Christie Captiva DWU500S 4500-Lumen WUXGA Ultra Short-Throw Laser DLP Projector (Black)(Christie Captiva Dwu500s 4500 Lumen Wuxga Ultra Short Throw Laser Dlp Projector Black)
Original price was: $344.00.$99.99Current price is: $99.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Christie DWU500S Overview
Frank Abbate
Optimize your projection space with the Captiva DWU500S 4500-Lumen WUXGA Ultra Short-Throw Laser DLP Projector in black from Christie. This ultra short-throw laser projector is bright, compact, quiet, and capable of filling a 150″ 16:10 screen from just 32″ away (lens to screen).
Connect sources via HDMI and VGA inputs. A 3.5mm microphone input and 3.5mm audio out are available to simplify setup in conference and classroom spaces. Featuring four-corner geometry adjustment, portrait and landscape orientation capability, combined with long-lasting laser and DLP technology, the DWU500S is well suited for easy operation in a wide array of professional environments.
- Estimated 20,000 hours of low cost operation
- 3D format support
- Instant on/off
- RS-232 and Ethernet control inputs
- Compatible with Crestron RoomView, AMX, and PJ Link
- USB-A connection to power HDMI dongle
- Built-in 10W speaker
Items Included
- Christie Captiva DWU500S 4500-Lumen WUXGA Ultra Short-Throw Laser DLP Projector (Black)
- Power Cord
- Remote Control
- Limited 5-Year Manufacturer Warranty (or 20,000 Hours, Whichever Comes First)
Additional Resources
User Manual
6.0 MB
Christie DWU500S Specs
| Display System |
1-Chip 0.67″ DMD DLP |
| Native Resolution |
1920 x 1200 |
| Maximum Brightness |
4500 Lumens (ANSI) 5000 Lumens (ISO) |
| Throw Ratio |
0.25:1 (150″ Screen Size @ 32″ / .8 m) |
| Projection Size |
130 to 150″ / 3.3 to 3.8 m |
| HDR Support |
No |
| Inputs/Outputs |

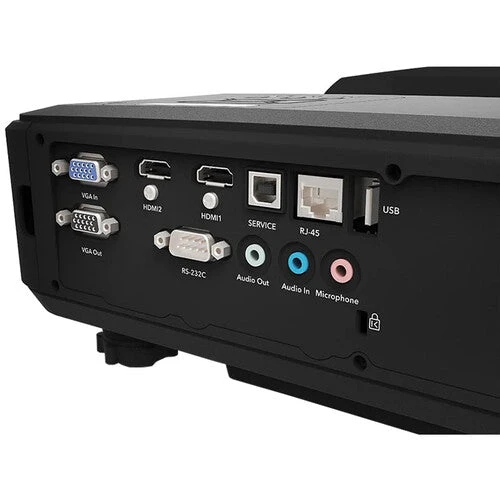

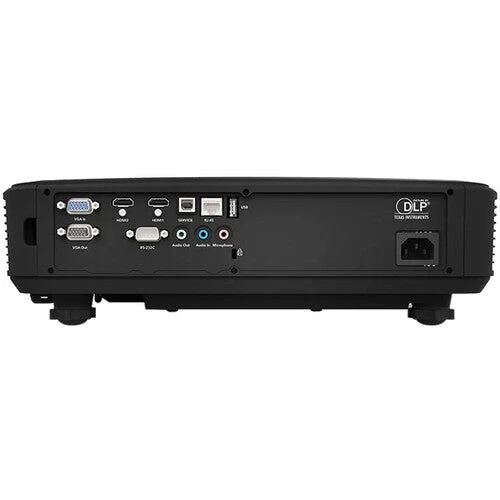

2x HDMI Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x 1/8″ / 3.5 mm Mini Microphone Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x DE-9/DB-9 (RS-232) Control Input 1x RJ45 (Ethernet) LAN Input 1x USB-A Power Output 1x USB-B Service Input |
| Light Source |
Laser Phosphor |
| Display System |
1-Chip 0.67″ DMD DLP |
| Native Resolution |
1920 x 1200 |
| Supported Resolutions |
Maximum: 1920 x 1200 @ 60 Hz |
| Maximum Brightness |
4500 Lumens (ANSI) 5000 Lumens (ISO) |
| Aspect Ratio |
Native: 16:10 Supported: 16:9 Supported: 4:3 |
| Contrast Ratio |
1800:1 |
| DLP Link 3D |
Yes |
| Supported 3D Formats |
Frame Packing (up to 1080p) Side by Side (up to 1080p) Top Bottom (up to 1080p) Frame Sequential (up to 720p) |
| Includes Lens |
Yes |
| Focus |
Manual |
| Optical Zoom |
No |
| Throw Distance |
27 to 32″ / 0.7 to 0.8 m |
| Throw Ratio |
0.25:1 (150″ Screen Size @ 32″ / .8 m) |
| Projection Size |
130 to 150″ / 3.3 to 3.8 m |
| Keystone Correction |
Manual to Vertical: ± 40° Manual to Horizontal: ± 40° |
| HDR Support |
No |
| Multi-Input Support (PIP/PBP) |
No |

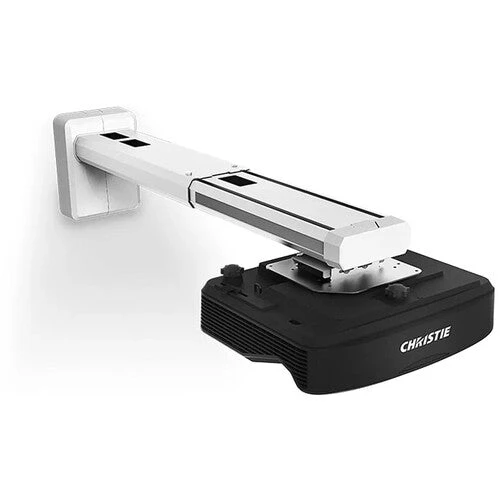

| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
Yes (Mono) |
| Speaker Power |
10 W |
| Projection Tilt Option |
Yes |
| Inputs/Outputs |
2x HDMI Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x 1/8″ / 3.5 mm Mini Microphone Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x DE-9/DB-9 (RS-232) Control Input 1x RJ45 (Ethernet) LAN Input 1x USB-A Power Output 1x USB-B Service Input |
| HDCP Support |
Yes |
| Media/Memory Card Slot |
No |
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
No |
| Bluetooth |
No |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 20,000 Hours |
| Fan Noise |
Full Brightness: 36 dB Low Brightness: 30 dB |
| Security |
Cable Lock Slot Password Protection |
| Supported Languages |
Arabic Danish Dutch English French German Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: 350 W Low Brightness: 250 W |
| Certifications |
RoHS, REACH, WEEE, UL/CSA/IEC 60950-1, FCC Class A, CE, CCC, BIS |
| Operating Temperature |
41 to 104°F / 5 to 40°C |
| Operating Humidity |
10 to 85% |
| Dimensions (W x H x D) |
15.1 x 3.5 x 12.5″ / 383.0 x 88.0 x 318.0 mm (Without Feet) |
| Weight |
12.8 lb / 5.8 kg |
