Celestron NexStar Evolution 9.25 235mm F/10 AZ GoTo Schmidt-Cassegrain Telescope(Celestron Nexstar Evolution 9 25 235mm F 10 Az Goto Schmidt Cassegrain Telescope)
Original price was: $371.00.$99.99Current price is: $99.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Celestron NexStar Evoution Overview

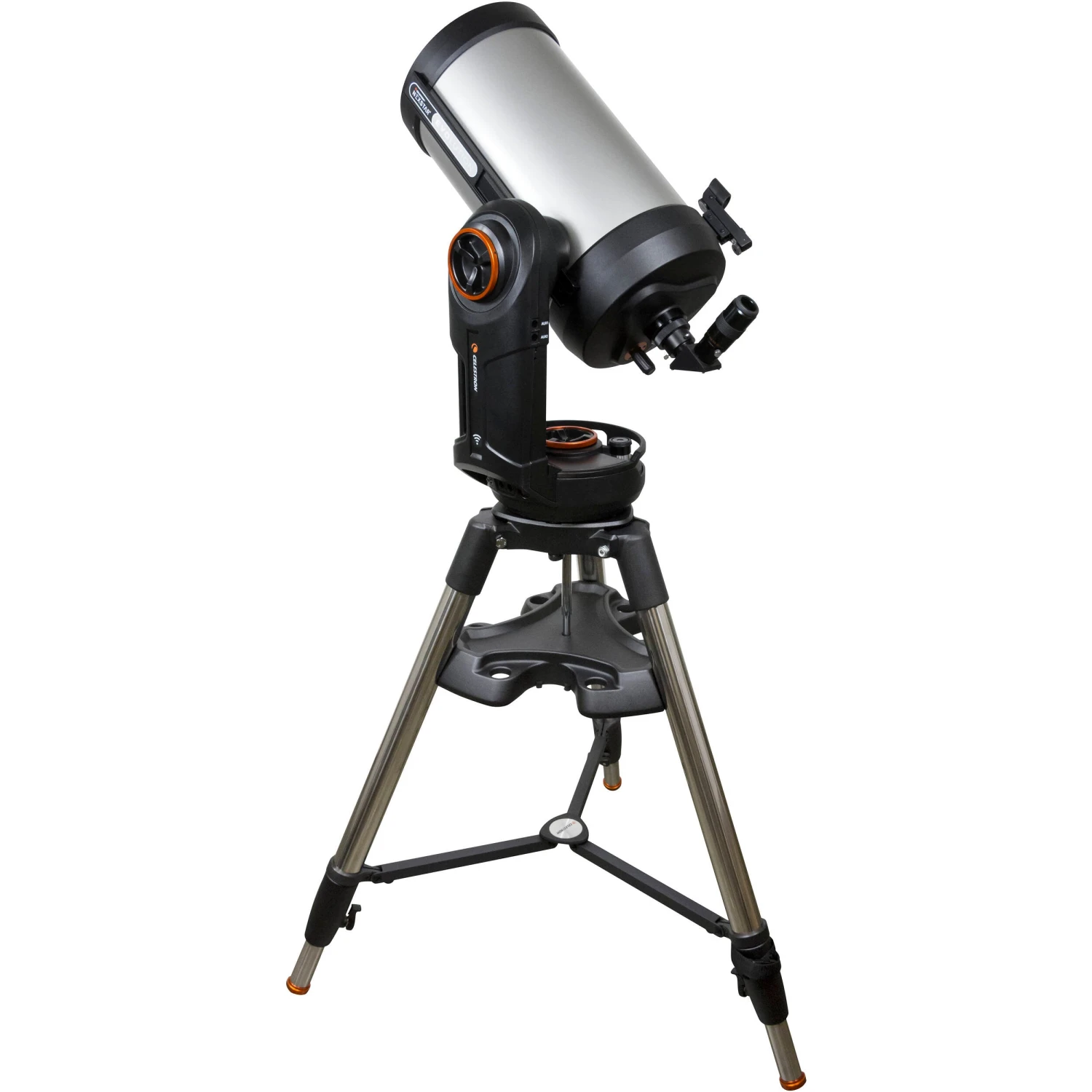

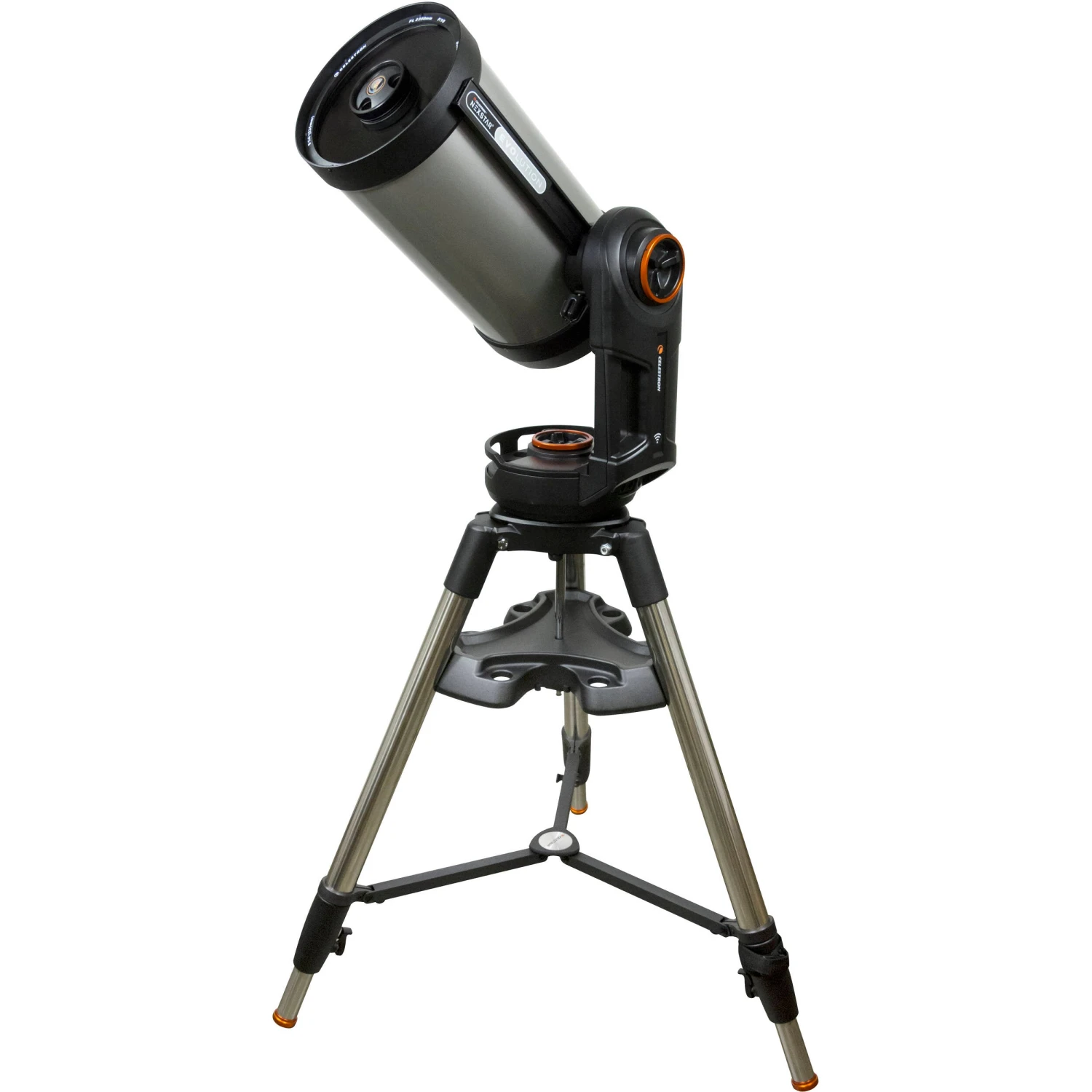

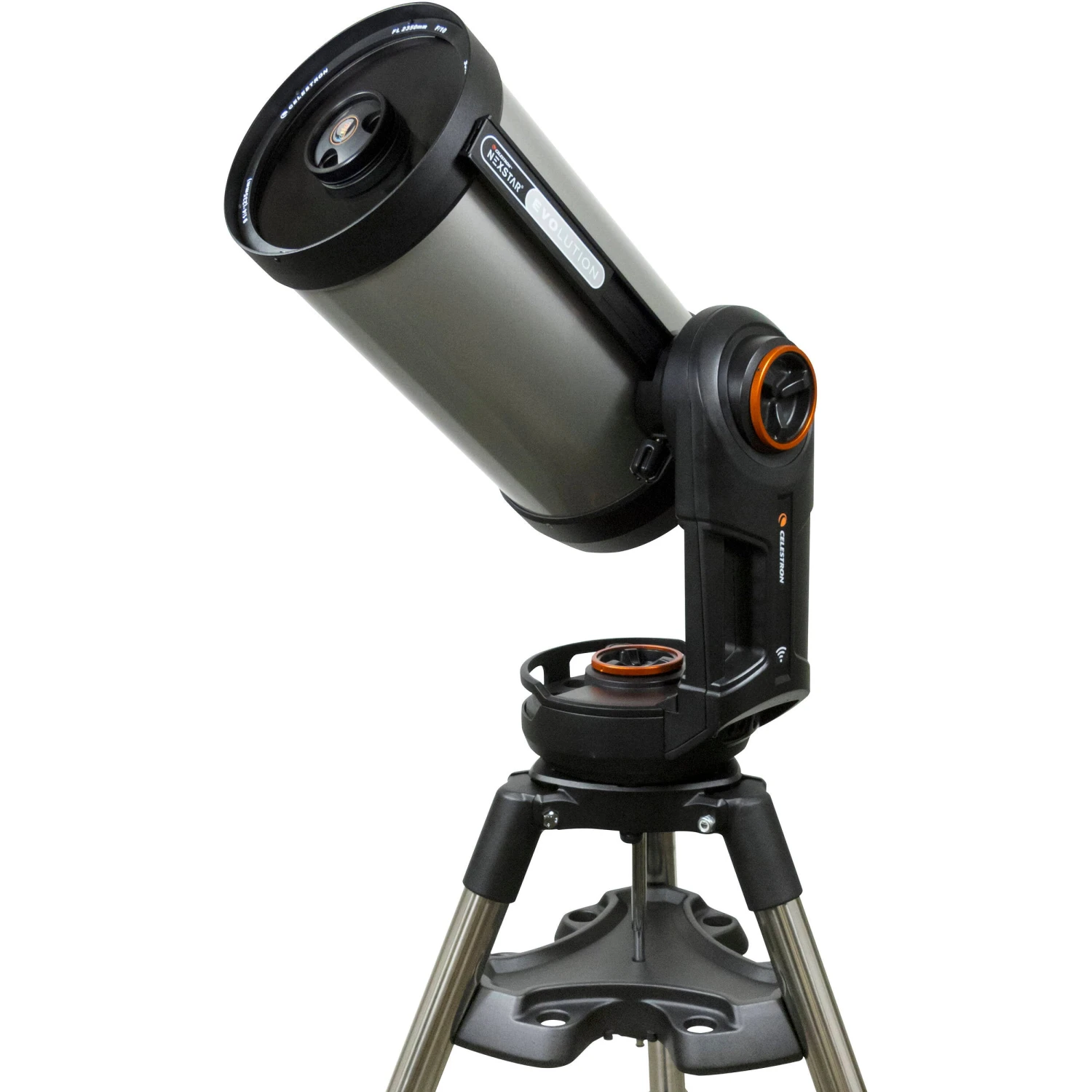

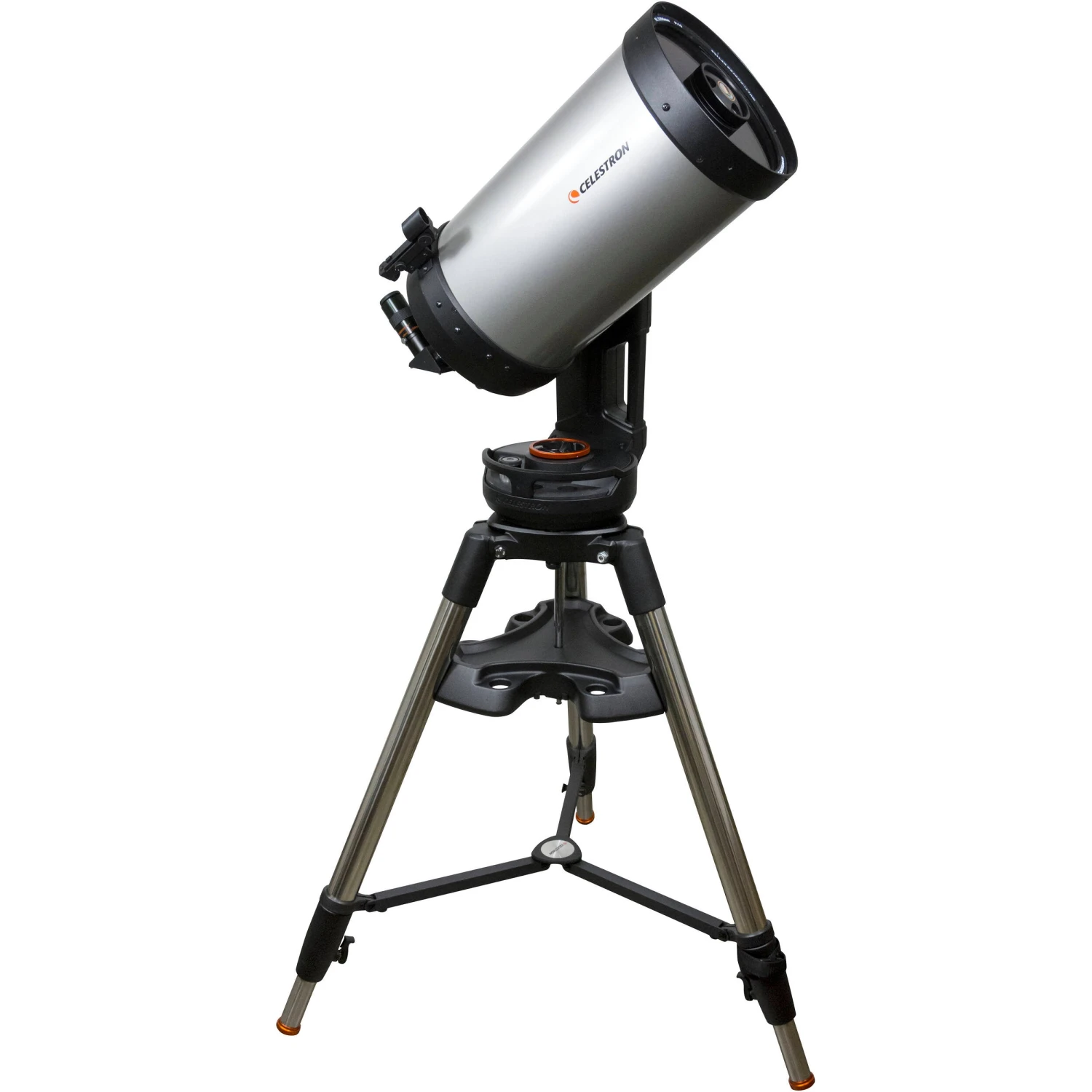

The Celestron NexStar Evolution 9.25 235mm f/10 AZ GoTo Schmidt-Cassegrain OTA & Mount is a complete powerful, portable, versatile, and user-friendly observation platform that can be used for observing everything from the moon and planets to deep-sky objects like galaxies and nebulae. Included with the optical tube assembly is a single arm fork mount, a NexStar controller, and a sturdy stainless steel tripod.
The Celestron NexStar Evolution 9.25 235mm f/10 AZ GoTo Schmidt-Cassegrain OTA & Mount is a powerful, portable, versatile, and user-friendly telescope that can be used for observing everything from the moon and planets to deep-sky objects like galaxies and nebulae. Using Celestron’s proprietary StarBright XLT multicoating system, light transmission is increased through the entire optical path with anti-reflection multicoated lenses and highly reflective multicoated four-element rare-earth glass mirrors. While the focal ratio is a slow f/10, the scope’s precision tracking system allows it to be a competent astrophotography/astroimaging platform for the moon and planets.
The Evolution comes with two ways to use and control it. The first is to simply download Celestron’s free Navigator app for Android and iOS smartphones and tablets. The scope’s Wi-Fi provides the connection to the app and expands its capabilities, including an expanded database of over 120,000 objects with detailed information on more than 200 of those objects. Second is the iconic 2-line 16-character NexStar+ computer controller. This is a wired piece of hardware with a database of over 40,000 celestial objects plus several astronomical catalogs, including the Messier and Caldwell. Whether using the controller or a mobile device, the system can assist in properly aligning the scope, provide tours of the objects and events visible whenever and wherever you’re viewing, and allow for manual direction and slew control.
Designed for portability, the Evolution features a long-life lithium-iron phosphate battery that provides up to 10 hours of continual use on a single charge. The scope comes with an AC power supply with plugs for the US, EU, UK, and AU outlets. The battery powers the servo motors, auxiliary accessory ports, USB charging port, and built-in Wi-Fi module. Manual clutches in both altitude and azimuth enable you to manually move and point the telescope when it’s powered off.
- Large 235mm (9.25″) f/10 aperture can be used for lunar, planetary, and deep-sky viewing
- 2350mm focal length produces a high magnification potential
- Crown optical glass primary mirror
- StarBright XLT optical coatings: Multilayer aluminum/SiO2 (quartz)/TiO2 (titanium dioxide) mirror coatings with flat reflectivity across the light spectrum for both astrophotography/astroimaging and visual observation
- Multilayer MgF2 (magnesium fluoride) and HfO2 (hafnium dioxide) anti-reflective lens coatings
- High-transmission water white glass corrector lens with 97.4% light transmission
- Internal focusing mechanism
- Resolution: 0.59 arcsec (Rayleigh); 0.49 arcsec (Dawes)
- Secondary mirror obstruction: 3.35″; 36%: by diameter; 13% by area
- Fastar capability: Secondary mirror can be removed and a DSLR or imaging rig mounted in its place for fast wide-field astrophotography
- 2-line, 16-character LCD display
- 19 fiber optic backlit red LED summarys
- Database of over 40,000 celestial objects plus 100 user defined
- Automatically slew to planets, stars, constellations, and a variety of catalogs
- Camera control: For piggyback wide field or conventional astrophotography through the OTA, the controller can automatically trigger the shutter release to capture the image
- Anti-backlash compensation programs out play between gears for more precise tracking
- Tour Mode: Shows a selection of the most popular objects for the time and date you are observing
- Constellation Tour: Allows the user to take a tour of all the best objects within a particular constellation
- Alignment procedures: SkyAlign, Auto 2-Star, 1-Star, 2-Star, and Solar System
- SkyAlign alignment: Takes minutes, with minimal effort or experience�point the telescope at three bright objects in the sky, and the telescope does the rest
- Nine slew speeds: 4°/sec, 2°/sec, 1°/sec, 0.5°/sec, 2x, 4x, 8x,16x, and 32x
- Sidereal, Solar, and Lunar tracking rates for observing the fast-moving moon, to slower-moving deep space subjects
- RS-232 communication port allows for computer control
- Flash updateable via the Celestron website
Database Details:
- Solar system objects including the sun, moon, and planets
- Named objects
- Stars: Asterims, variable stars, double stars, named stars
- Caldwell catalog
- Messier catalog
- NGC catalog
- SAO catalog
- Constellations
- Connect your smart device to the telescope via direct Wi-Fi connection; no router required
- Align and control the telescope from your device
- App uses the device’s camera and compass to determine location and what is available to see
- Enjoy the same features as NexStar controller, but without wires
- Expanded database of over 120,000 objects
- Detailed information on over 200 popular objects including audio commentary, statistics, history, mythology, video, and pictures
- Database includes: sun, moon, planets, star clusters, nebulae, galaxies, asteroids and comets, satellites, and the International Space Station
- Simulate the night sky up to 100 years in the past or future to plan an upcoming observing session
- Compass Mode: Hold device up to the night sky and identify objects such as stars, planets, and galaxies; zoom in to view fainter objects not visible to the naked eye
- Night Vision Mode: Preserves night-adjusted vision
- Listen to more than four hours of audio narration to learn the history, mythology, and science of astronomy and the night sky
- Works as a stand-alone planetarium app
- Free for Android or iOS mobile devices
- Apple iOS 7.0 and later, or Android 4.0 and later
- Motorized single-arm alt-azimuth fork mount
- Integrated carry handle in arm enables safe and secure handling during setup and breakdown
- Altitude and azimuth clutches to manually point the telescope when it is powered off
- Brass worm gears with steel ball bearings provide smooth movement with reduced vibration
- 146mm diameter/180-tooth stainless steel worm wheels
- Ports: One port for NexStar+ controller; one 5 VDC USB charging port for smartphones and small electronics; three auxiliary ports for optional accessories such as StarSense AutoAlign System
- Runs on one internal rechargeable 9.6V, 4.5Ah lithium-iron phosphate (LiFePO4) battery
- Includes power supply with US, EU, UK, and AU plugs
- 1.25″-diameter barrel accepts most filters
- Anti-reflection multicoated glass
- Fold-down rubber eyecups for use with or without eyeglasses
- 40mm eyepiece produces a low 59x magnification for viewing wide swaths of the night Sky or for lunar viewing
- 13mm eyepiece produces a powerful 180x magnification to make detailed planetary observations or splitting binary stars or viewing specific areas of deep space
Diagonal:
- 1.25″ snout and eyepiece holder
- 90° angle places head in comfortable position when optical tube assembly is pointed at or near the zenith
- Star mirror diagonal corrects view horizontally, but not vertically
Finderscope:
- Projects a single red dot in line of sight
- Unmagnified view ensures a wide field of view to make finding objects faster and star-hopping navigation easier

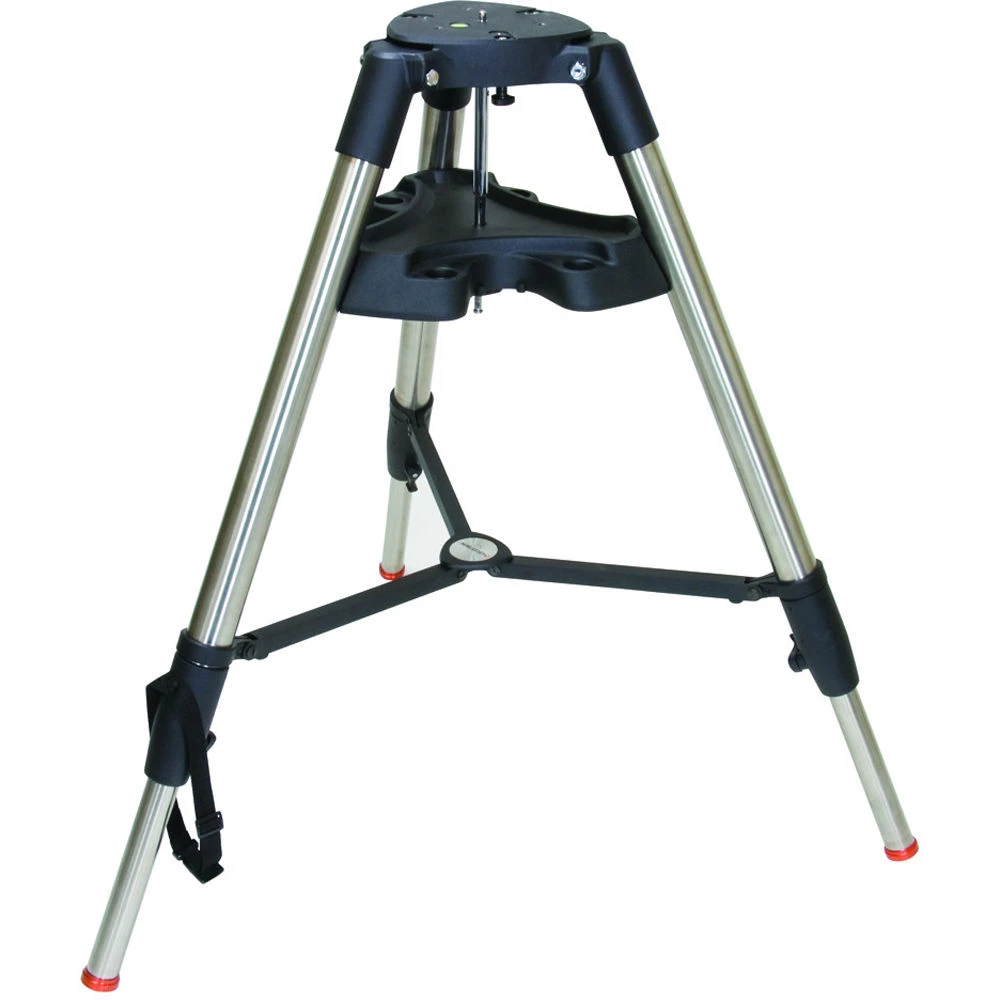

The Celestron Heavy Duty for CPC, Nextar GPS is a full size, aluminum tripod with adjustable legs designed to provide great stability for your telescope. It comes with a metal accessory tray and eyepiece storage capability. This tripod features mounting holes for alt-az mounting and is also suitable to be used with a wedge.
In the Box
- Celestron NexStar Evolution 9.25 235mm f/10 AZ GoTo Schmidt-Cassegrain OTA & Mount
- Celestron NexStar+ Hand Control (EQ)
- Celestron StarPointer Finderscope
- 13mm Eyepiece
- 40mm Eyepiece
- 90° Star Diagonal
- AC Adapter with US, EU, UK, and AU Plugs
- Limited 2-Year Warranty
- Celestron Heavy Duty Tripod for CPC, Nextar GPS
Celestron NexStar Evolution 9.25 235mm f/10 AZ GoTo Schmidt-Cassegrain OTA & Mount Specs
| Optical Design | Schmidt Cassegrain |
| Aperture | 235 mm / 9.3″ |
| Focal Length | 2350 mm |
| Focal Ratio | f/10 |
| Resolution | 0.59 Arcsec (Rayleigh) 0.49 Arcsec (Dawes) |
| Focuser | Internal |
| Eyepiece Barrel Diameter | 1.25″ |
| Diagonal | 90° Star |
| Finderscope | Yes |
| Mounting | Vixen Style |
| Optical Tube Dimensions | Length: 22″ / 55.9 cm |
| Type | Motorized; Alt-Azimuth Single Fork |
| GoTo Capability | Yes, NexStar + Hand Controller |
| Payload Capacity | 25 lb / 11.3 kg |
| Batteries | 1 x Built-In Rechargeable |
| GPS | No |
| Wi-Fi | Yes (Built In) |
| Weight | 20 lb / 9.1 kg (OTA) 16 lb / 7.3 kg (Mount) |
| Package Weight | 46.5 lb |
| Box Dimensions (LxWxH) | 33.5 x 22.5 x 17.5″ |
Celestron Heavy Duty Tripod for CPC, Nextar GPS Specs
| Package Weight | 34 lb |
| Box Dimensions (LxWxH) | 36.5 x 19 x 15″ |
