CELESTRON LABS S10-60 Stereo Microscope(Celestron Labs S10 60 Stereo Microscope)
Original price was: $369.74.$96.99Current price is: $96.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
- Siedentopf Interpupillary Adjustment
- 1x and 3x Objectives
- Two 10x Wide Field Eyepieces
- Two 20x Wide Field Eyepieces
- 10x to 60x Magnification Range
- Dual Coarse-Focus Knobs
- Upper Tungsten Bulb Illumination
- Lower Halogen Bulb Illumination
- 2.17″ Maximum Working Distance
- Translucent and Opaque Stage Plates

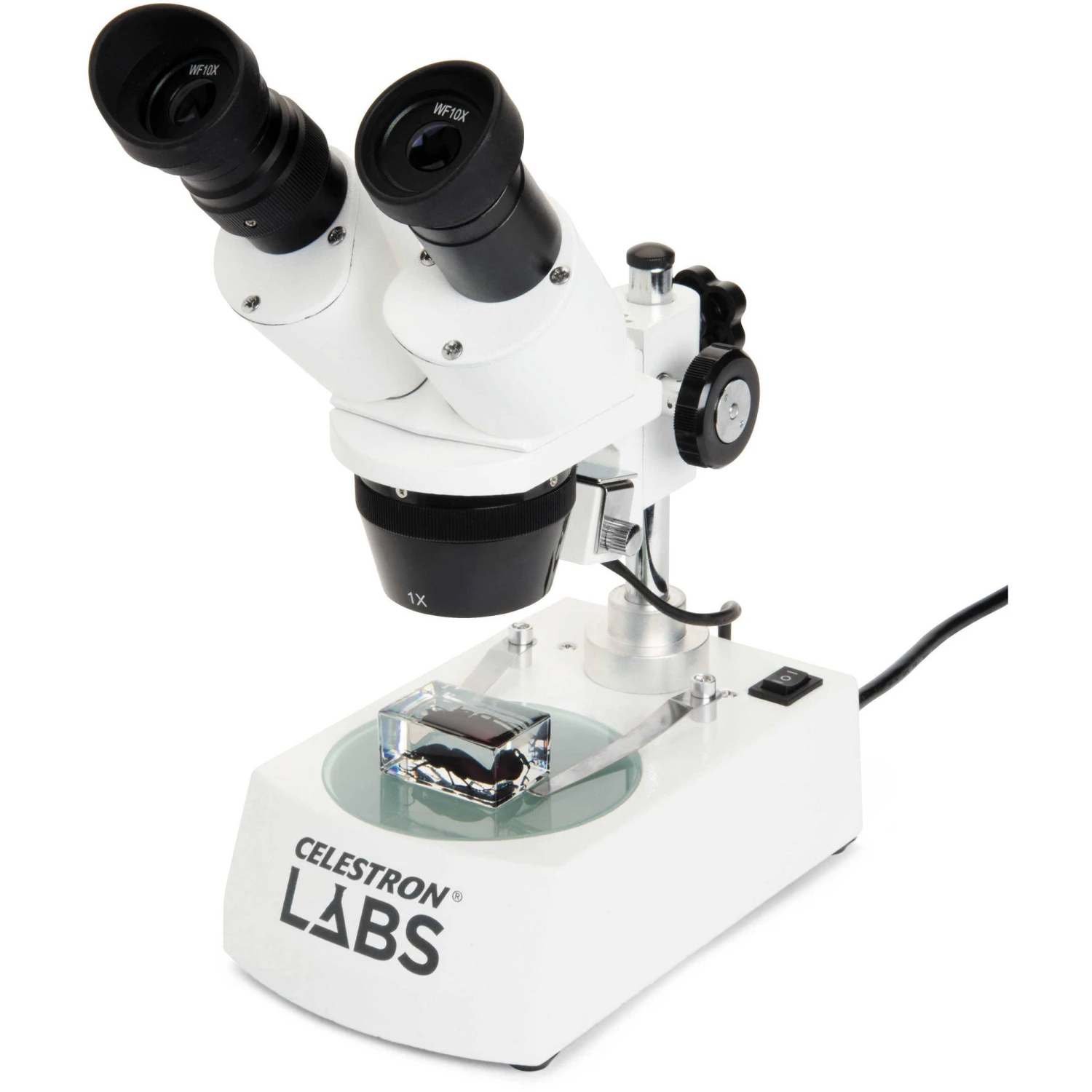

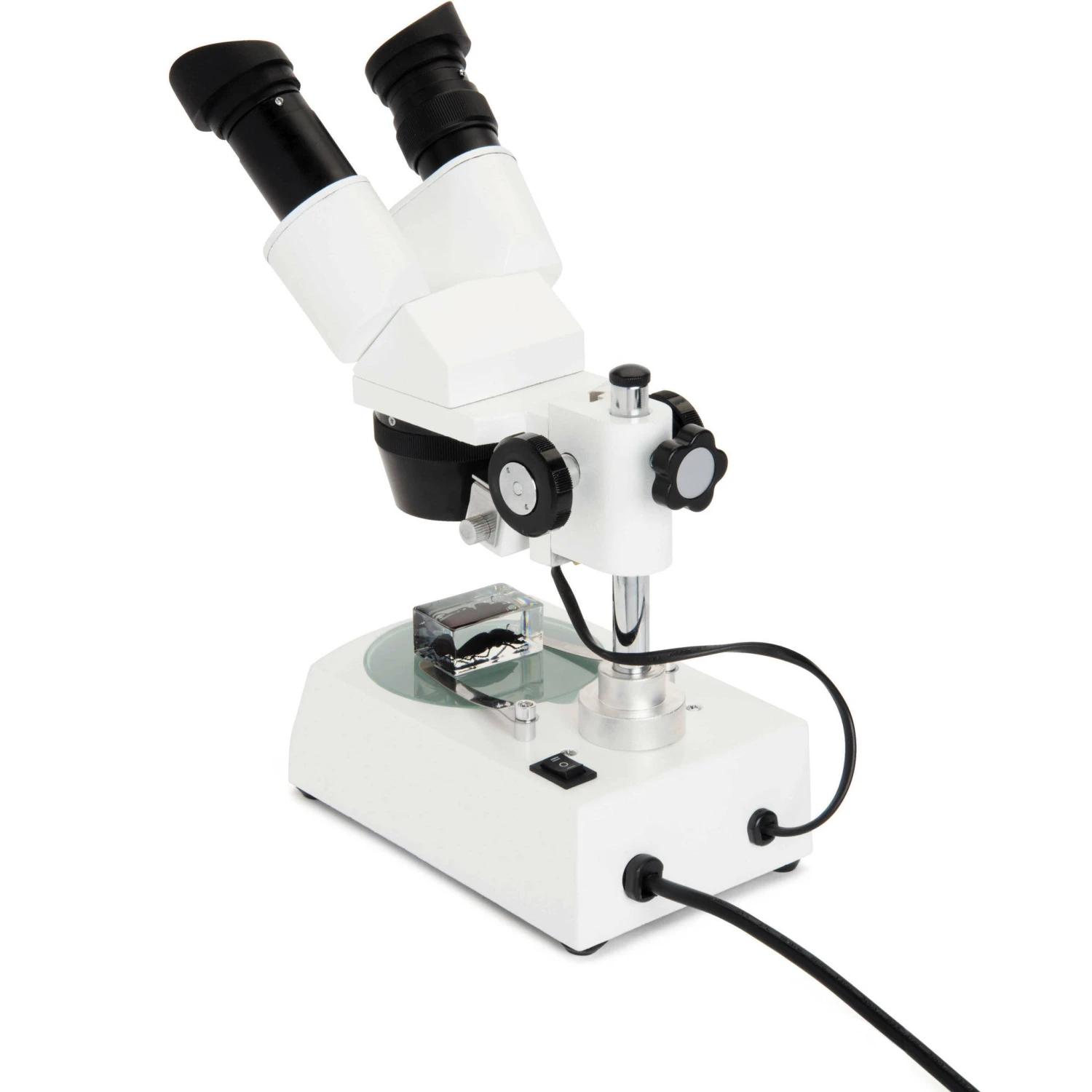

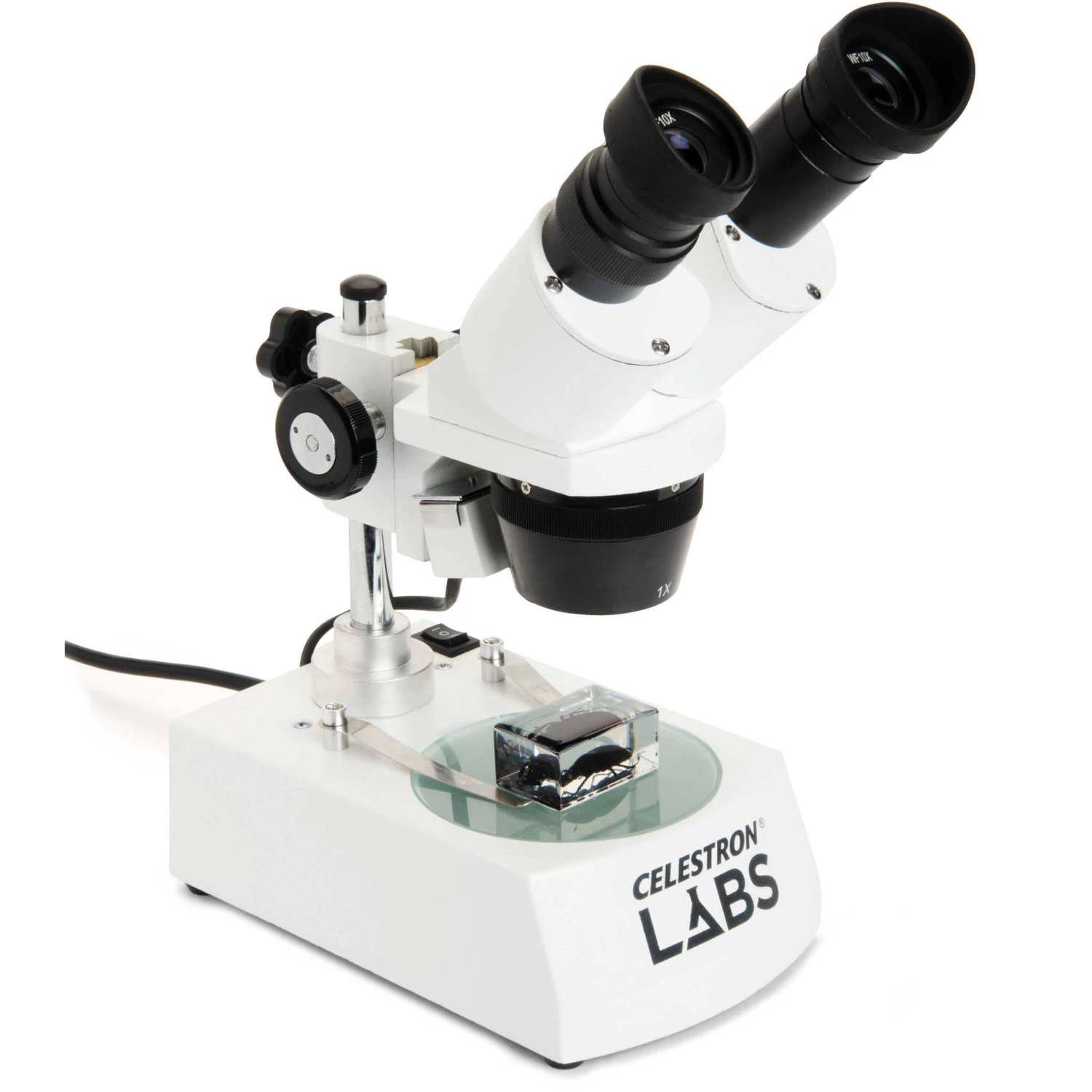

Designed for students and hobbyists, Celestron Lab ‘s S10-60 Stereo Microscope is a versatile instrument for making detailed 3D observations of a variety of subjects such as coins, minerals, insects, leaves, textiles and documents. Dual eyepieces preserve stereoscopic vision which renders images in three dimensions, as opposed to a flat field common in single-ocular microscopes. Stereo, or dissecting, microscopes traditionally have relatively low power and a large working distance for larger subjects. This instrument has a magnification range from 10x to 60x with a maximum working distance of 2.17″. The head and nosepiece are attached to the microscopes’ pillar and is easily adjustable to set the correct working distance to achieve the sharpest focus.
The stage is built into the base to provide a large and stable area for specimens. Dual light sources above and below the stage and interchangeable stage plates enable users to optimize the light, depending on their subjects. Use the upper light and opaque plate to improve contrast on specimens for better viewing, and the lower light with the translucent plate to illuminate a specimen from below.
- Optical System
-
- Two 10x wide field eyepieces
- Two 20x wide field eyepieces

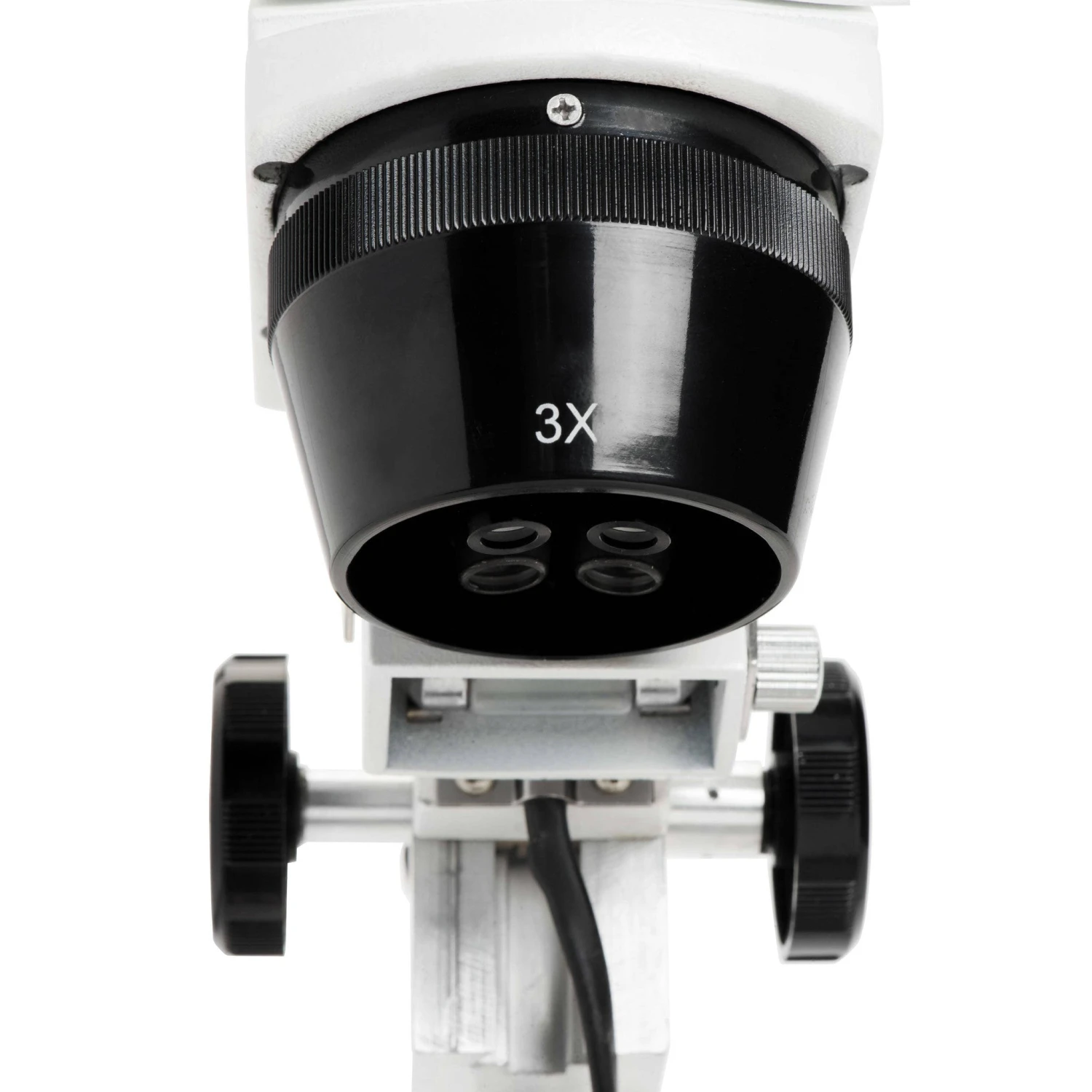

- Two objectives: 1x and 3x
- Two-position rotating turret
- 10x and 30x magnification with 10x eyepieces
- 20x and 60x magnification with 20x eyepieces
- Contoured eyecups block peripheral light
- Lighting
-

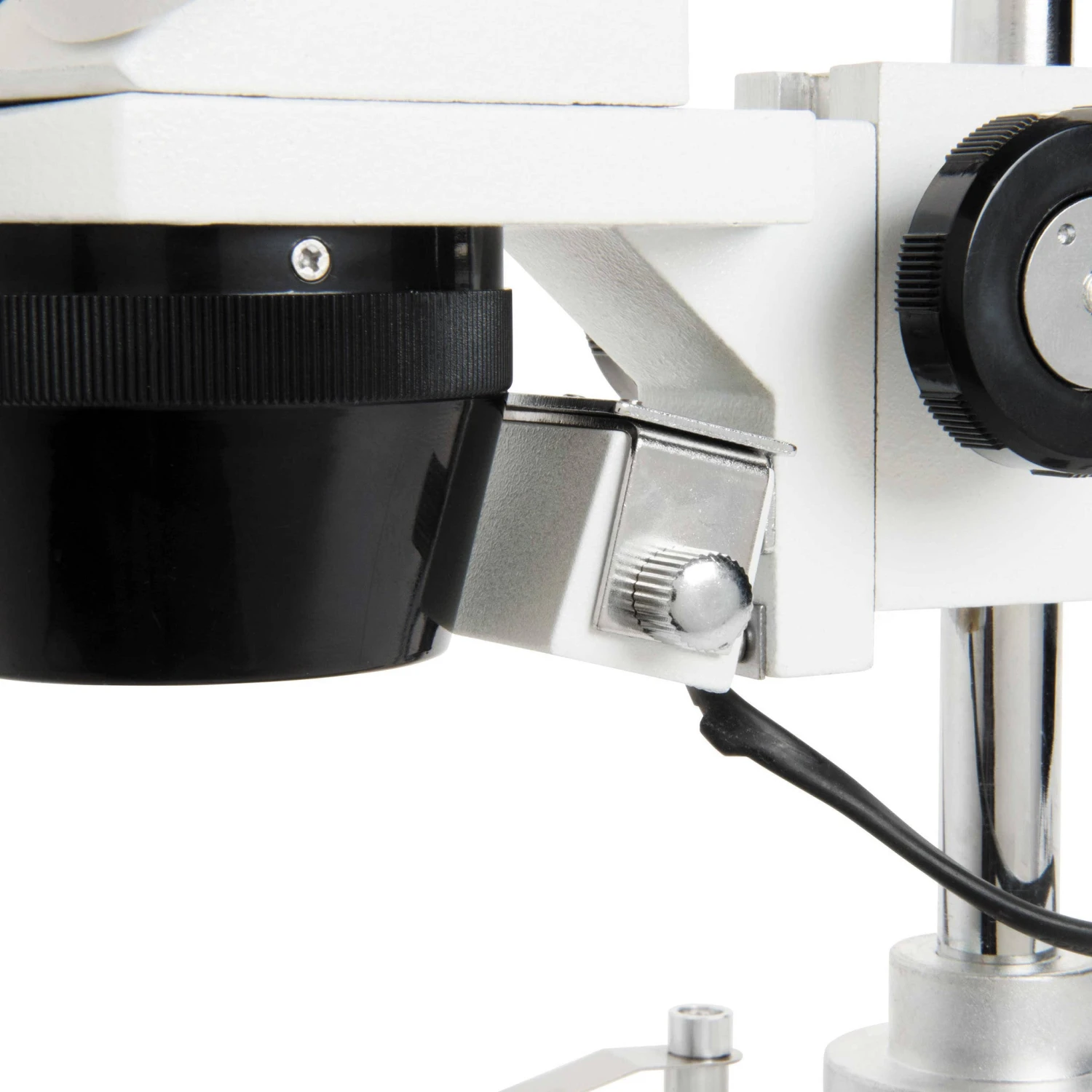

- Upper tungsten bulb illumination
- Lower halogen bulb illumination
- On/off switch
- Focusing
-
- Dual coarse focus knob, left and right sides
- Siedentopf interpupillary adjustment accommodates a wide range of users
- Right-eye dioptric adjustment

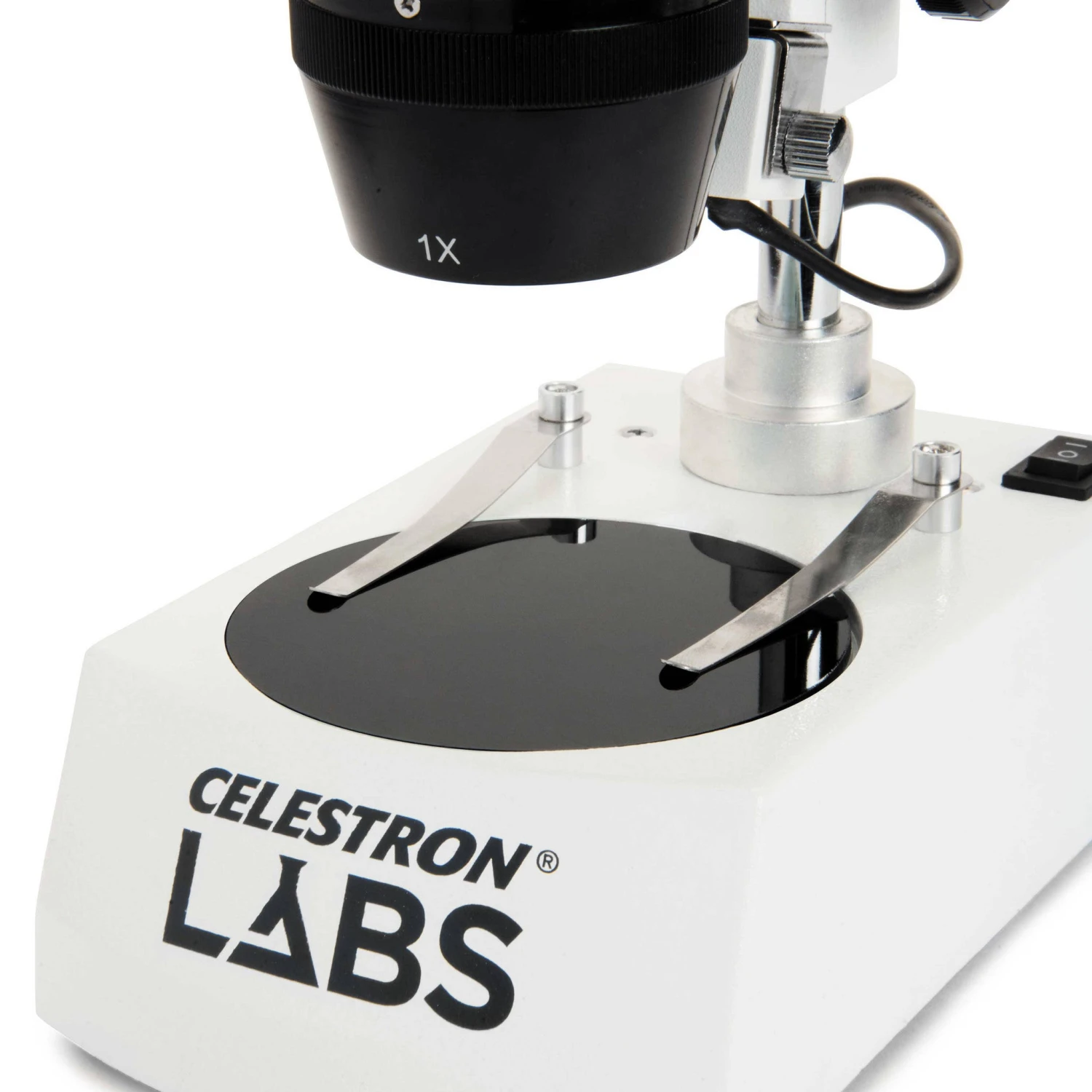

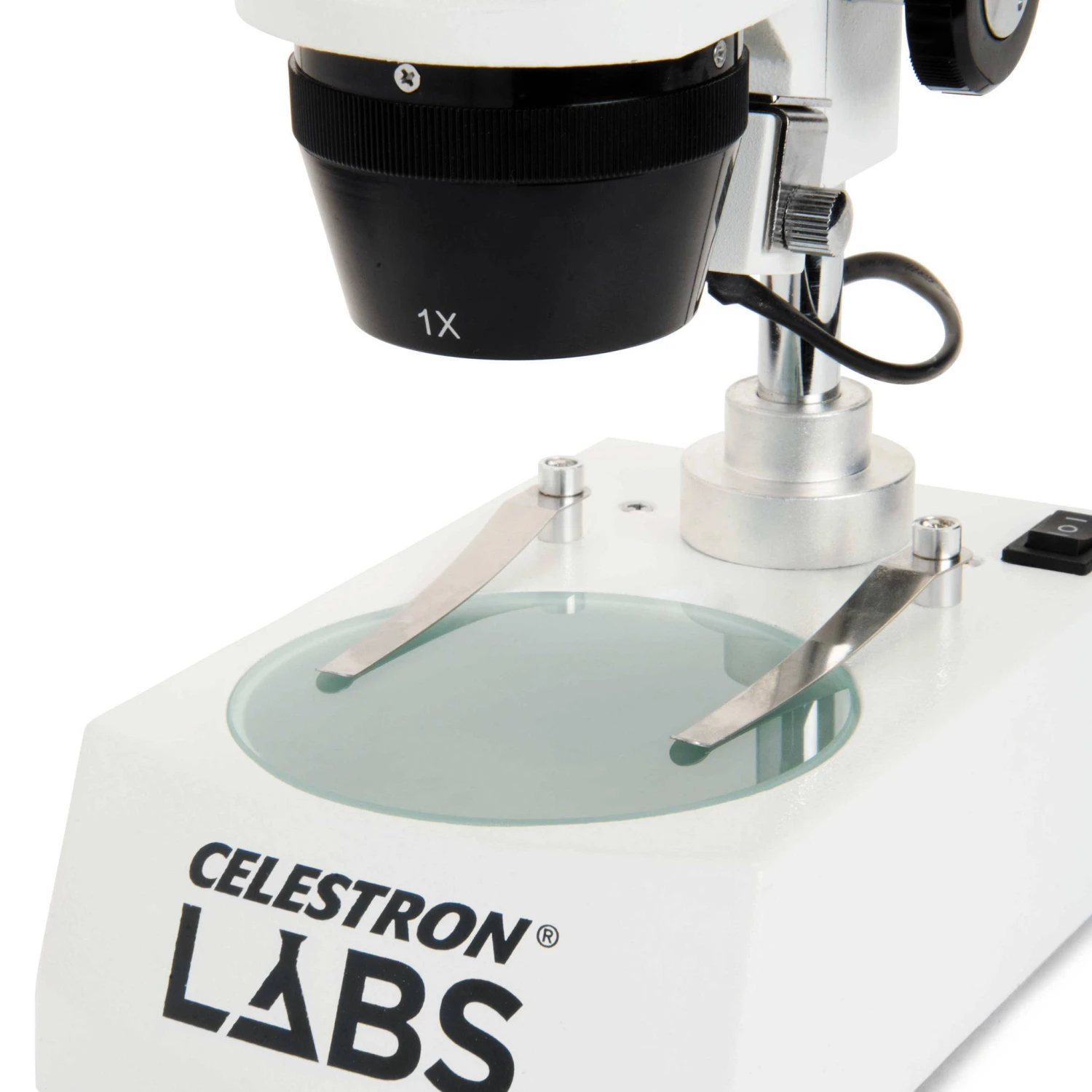

- Stage
-
- Adjustable working distance, 2.17″ maximum
- Stage is integrated into base with slide/specimen clips
- Removable 3.7″ diameter round stage plates for different viewing application
- Translucent: Light passes through the plate and illuminates the specimen from below
- Opaque: Optimal when using the top illuminator and helps to improve contrast on specimens for better viewing
| Microscope Type | Stereo |
| Body Type | 2-Piece pillar-type Stand |
| Eyepiece | (2) 10x wide field (2) 20x wide field |
| Nosepiece | Two-position |
| Objective(s) | 1x, 3x |
| Head | Binocular with 45° incline |
| Focuser | Rack-and-pinion coarse |
| Interpupillary Adjustment | 2.25 x 3.24″ (5.72 x 8.23 cm) |
| Light Source | Top: Tungsten Bottom: Halogen |
| Light Control | On/off switch |
| Power | 110 VAC |
| Specimen Stage | Integrated into base with changeable 3.7″ (9.4 cm) diameter stage plates Black/white and translucent removable stage plates Working distance: 2.2″ (5.5 cm) |
| Overall Dimensions | 11.5 x 7.6 x 4.8″ (29.2 x 19.4 x 12.1 cm) |
| Weight | 5.2 (2.4 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 6.75 lb |
| Box Dimensions (LxWxH) | 13.9 x 11.1 x 6.4″ |

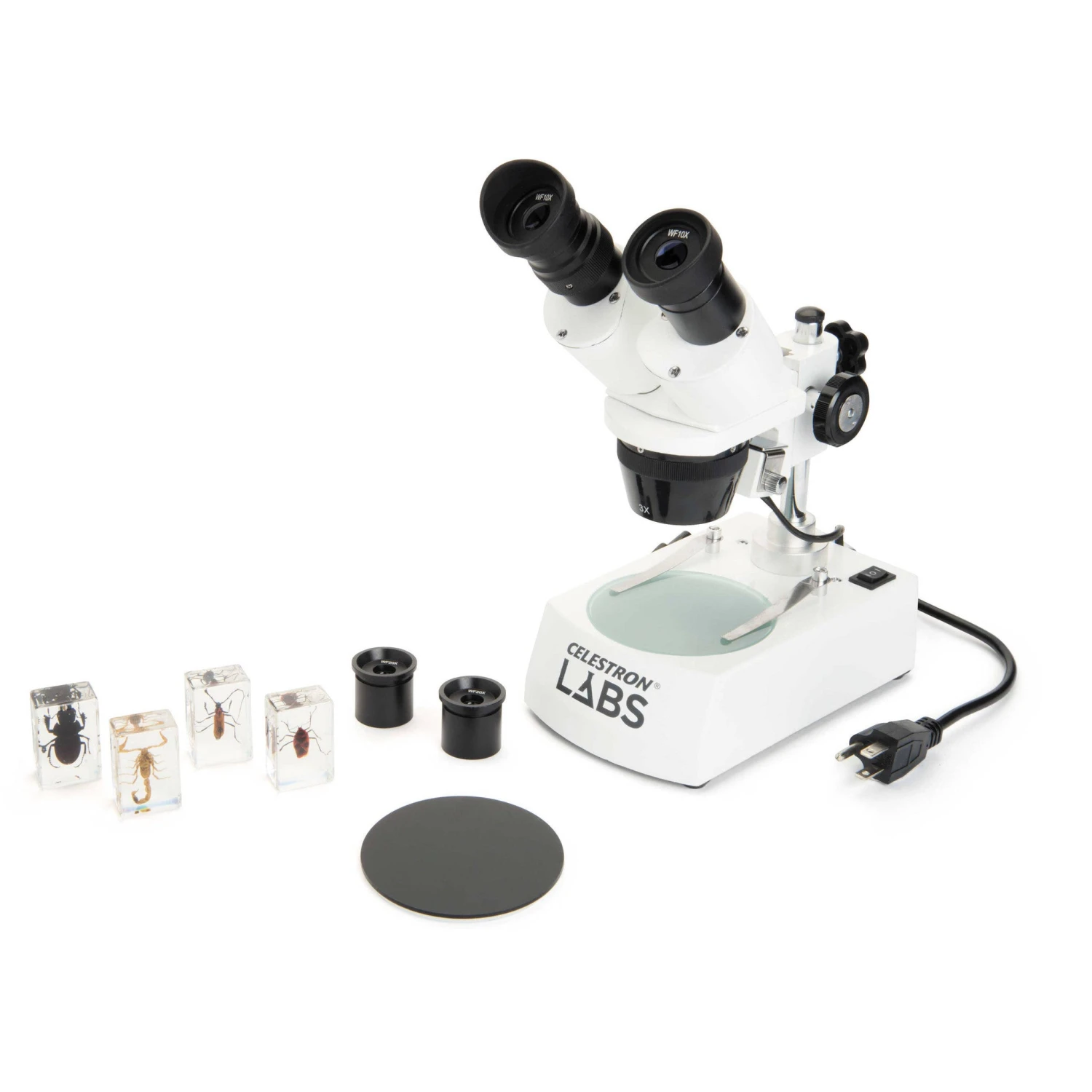

- 2 x 10x Eyepieces
- 2 x 20x Eyepieces
- Opaque Stage Plate
- Translucent Stage Plate
- 4 x Prepared Insect Specimens
- Limited 2-Year Warranty
