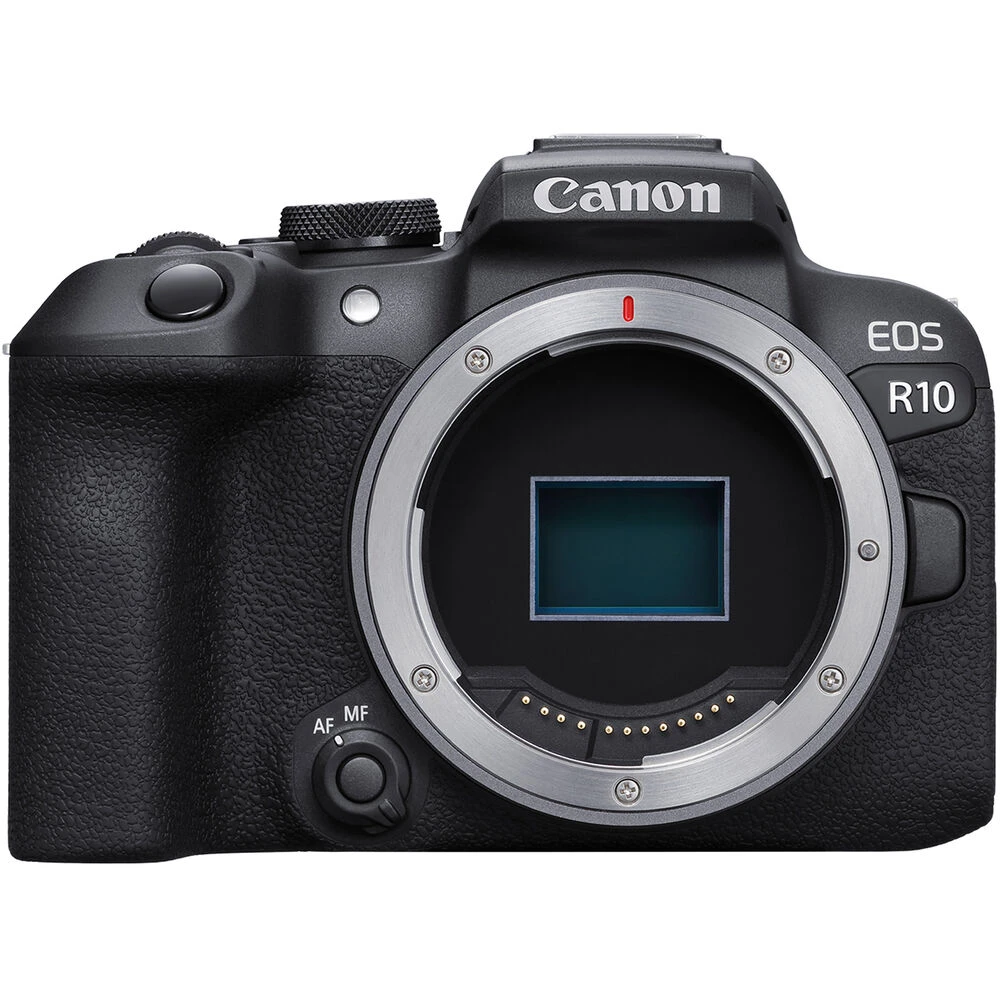

Canon EOS R10 Mirrorless Camera With Cropping Guide Firmware(Canon Eos R10 Mirrorless Camera With Cropping Guide Firmware)

EOS R10: Compact and Capable, for Content Creators

Emphasizing portability without sacrificing on capability, the black
Canon EOS R10 Mirrorless Camera with Cropping Guide Firmware pairs the sleek, hybridized mirrorless camera with Canon’s latest firmware update designed to streamline workflows for high-volume portrait photographers. Adept in both photo and video worlds, the R10 brings an APS-C sensor to the R system, along with high-speed shooting, intelligent AF, and impressive 4K video recording to complement a multimedia workflow.

Sitting at a sweet-spot in terms of resolution, the 24.2MP APS-C CMOS sensor strikes a fine balance between resolution, file size, speed, and low-light performance. This sensor is suitable for general photo tasks along with UHD 4K recording, as the file sizes are manageable enough to allow for quick continuous burst shooting and extended video recording.

Borrowed from the R3, the R10 sports a DIGIC X image processor to perform a variety of high-speed tasks, ranging from continuous shooting to high-resolution video recording. In terms of high-speed shooting, the R10 supports up to 23 fps continuous shooting with a silent electronic shutter or 15 fps with a mechanical shutter, with AF and AE readings before each frame. The processor also helps to realize a broad sensitivity range from ISO 100-32000, which is expandable up to ISO 51200 for working in difficult lighting conditions.

Cropping Guide Firmware

This R10 mirrorless camera comes pre-installed with Canon’s latest firmware upgrade, which was designed to improve workflows for high-volume portrait photographers. The upgrade overlays one of four cropping guides on both the camera’s EVF and rear LCD screen, allowing for consistent posing during capture and efficient post-processing. The cropping guides are suitable for use in both vertical and horizontal orientations, and the outer frame of each guide corresponds to the standard picture frame sizes of 5 x 7″ and 8 x 10″, making it easier to prepare your images for print.

• Guide 1: Top and bottom guidelines to fit large or adult head sizes.
• Guide 2: Top and bottom guidelines for small or child head sizes.
• Guide 3: Guidelines for three different head sizes.
• Left and right guidelines for positioning limbs, props, and other objects.

Beyond stills, the R10’s sensor also offers high-res UHD 4K 8-bit recording, with the ability to record at up to 60p using a cropped portion of the sensor or at 30p when using an oversampled 6K recording area for improved sharpness, reduced moiré, and lower noise. And, for slow-motion playback, 120p recording is supported at up to Full HD resolution.

HDR-PQ recording is possible, too, for in-camera HDR production in 10-bit and external recording, via the micro-HDMI port, which supports a clean 4K output. Also, unlimited recording times are possible, too, and the R10 features an external microphone port as well as a multi-function shoe for wide accessories compatibility.

Carried over from the EOS R3, the advanced Dual Pixel CMOS AF II system features 651 automatic AF points that covers the entire sensor area, for faster, more responsive, and more precise focusing performance. This phase-detection focusing system also has enhanced subject detection and tracking, with the ability to intelligently recognize people, animals, and vehicles and tracking will automatically lock onto these subjects and maintain sharp focus throughout burst captures. Dual Pixel AF II’s low-luminance limit focuses down to an impressive -4 EV for accurate focusing even in nighttime conditions.

• Bright, clear 2.36m-dot OLED electronic viewfinder is featured for high-resolution eye-level viewing. This 0.95x-magnification finder is benefitted by the fast processing for virtually no lag and a quick 120-fps refresh rate can be used for vivid, realistic motion portrayal.

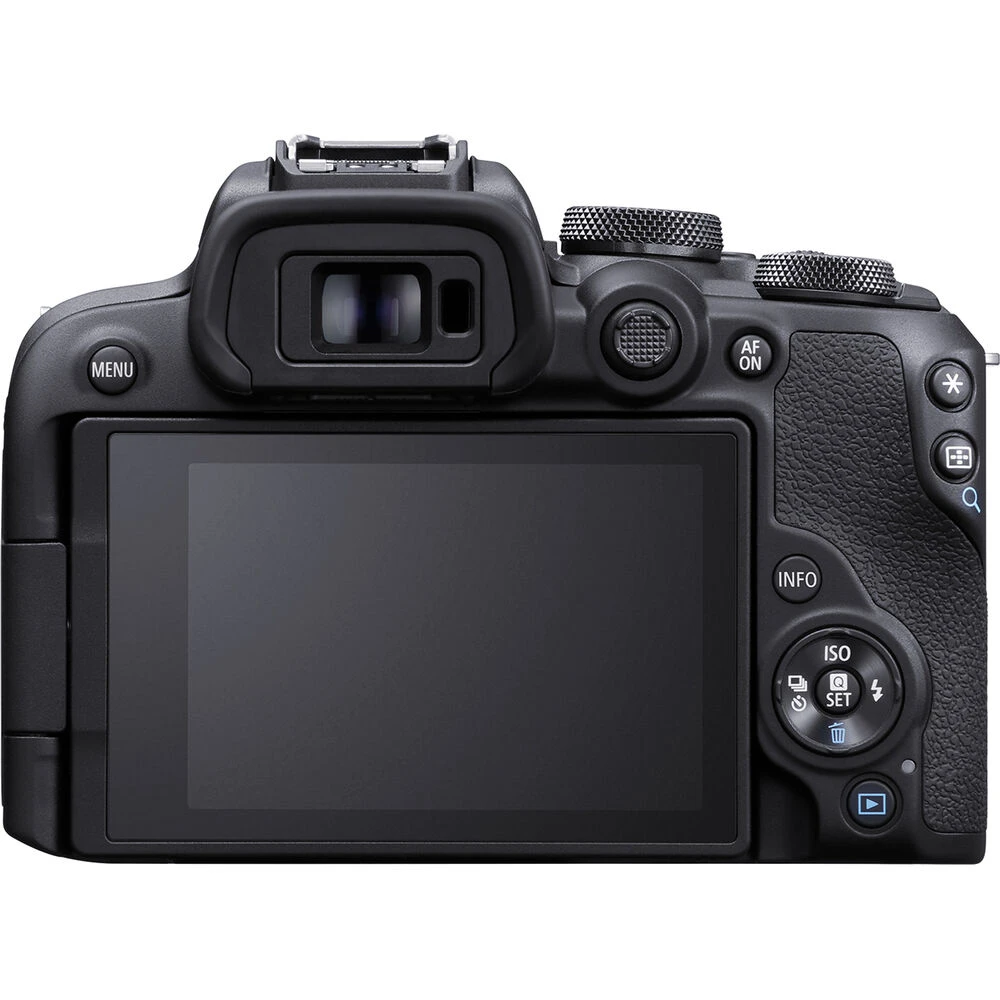

• A 3.0″ vari-angle LCD is also available and benefits working high, low, and front-facing angles. The flexible position is complemented by a touchscreen interface and the clear 1.04m-dot resolution allows for vivid playback and live view monitoring.
• Single SD memory card slot is rated for UHS-II card speeds to support fluent 4K video recording and high-speed continuous shooting.

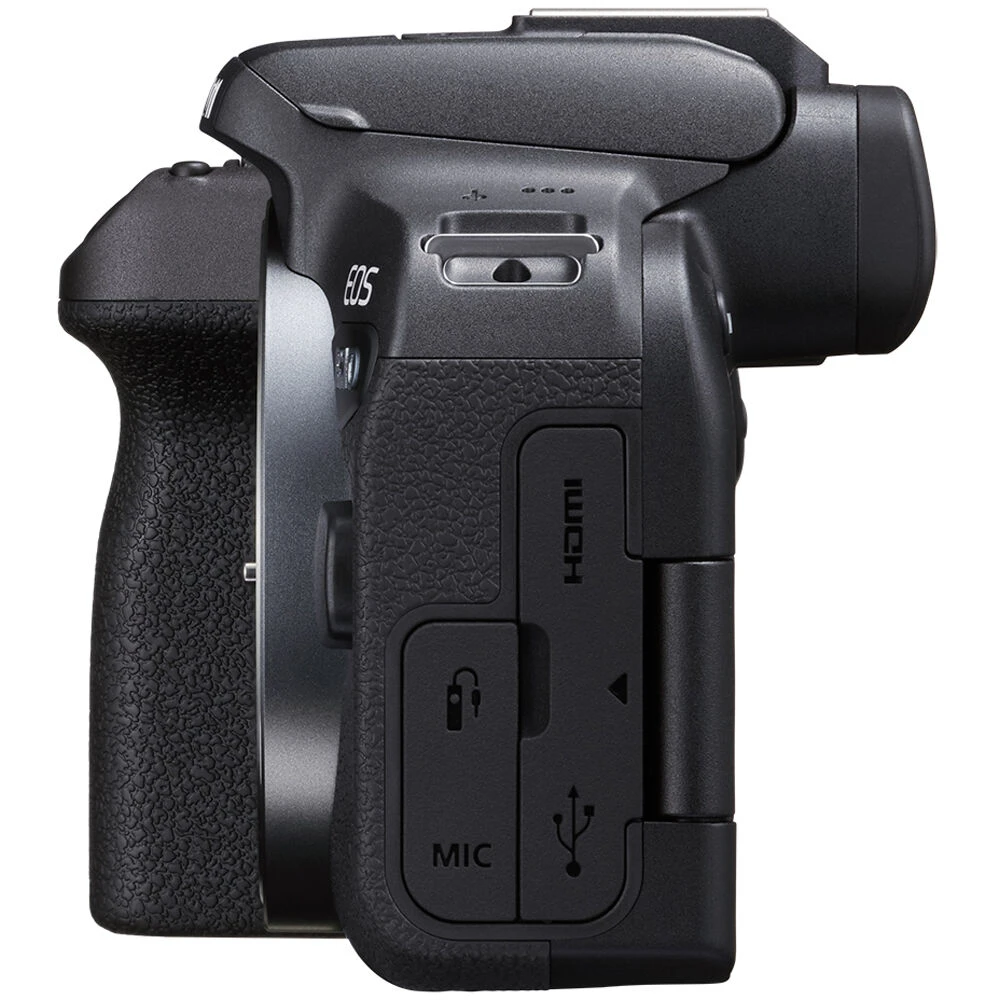

Wired and wireless connectivity options are available, allowing for multiple methods of transferring photos and videos, as well as for remotely controlling the camera. Physically, the camera features a USB Type-C port along and a micro-HDMI port, as well as a 3.5mm microphone port to benefit video recording. In terms of wireless, 2.4GHz Wi-Fi and Bluetooth is available for transferring and remote camera control.

Next-Generation Multi-Function Shoe

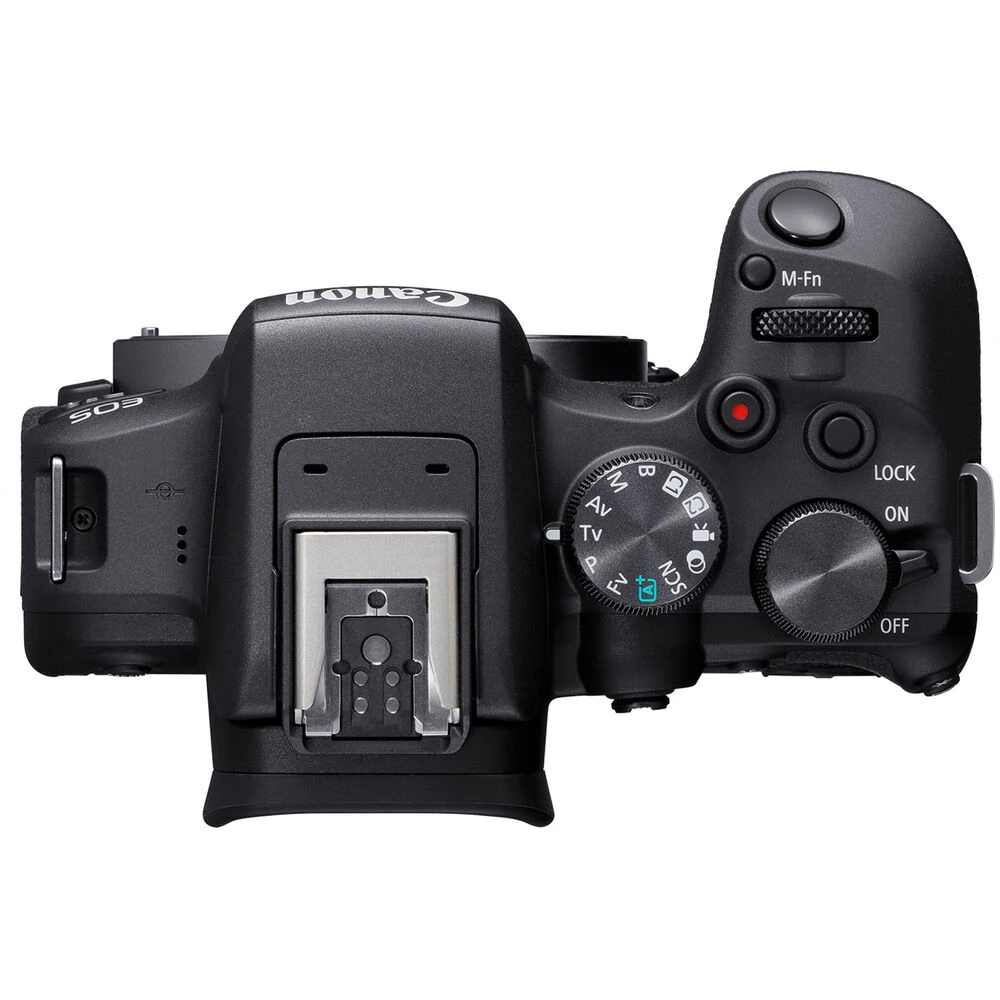

An update to a conventional hot shoe, the Multi-Function Shoe adds a row of pins at the front of the design to permit greater accessory functionality as well as provide power to select accessory types that traditionally rely on separate batteries. This updated shoe is compatible with select accessories, including the ST-E10 Speedlite Transmitter, DM-E1D Stereo Microphone, and AD-P1 Smartphone Link Adapter, as well as the AD-E1 Multi-Function Shoe Adapter to provide compatibility with legacy shoe-mounted accessories.

Canon R10 Specs

Lens Mount	Canon RF
Sensor Resolution	Actual: 25.5 Megapixel Effective: 24.2 Megapixel (6000 x 4000)
Image Sensor	22.3 x 14.9 mm (APS-C) CMOS
Image Stabilization	Digital (Video Only)
ISO/Gain Sensitivity	Native: 100 to 32,000 (100 to 51,200 Extended)
Internal Recording Modes	H.264/MP4 4:2:0 8-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps H.265/MP4 4:2:2 10-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps
External Recording Modes	HDMI 1920 x 1080p
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC (UHS-II)
Video I/O	1x Micro-HDMI Output
Audio I/O	1x 1/8″ / 3.5 mm TRS Stereo Microphone Input
Power I/O	1x USB-C Input/Output
Other I/O	1x 2.5 mm Sub-Mini Remote Input 1x USB-C (USB 2.0) Data Input/Output (Shared with Power Input)
Wireless	Bluetooth 4.2 2.4 GHz Wi-Fi 4 (802.11n)
Display Type	Free-Angle Tilting Touchscreen LCD
Battery	1x LP-E17 Rechargeable Lithium-Ion (Included)

Lens Mount	Canon RF
Sensor Resolution	Actual: 25.5 Megapixel Effective: 24.2 Megapixel (6000 x 4000)
Image Sensor	22.3 x 14.9 mm (APS-C) CMOS
Sensor Crop (35mm Equivalent)	Crop Factor: 1.6x *Additional Crop Occurs in Select Video Modes
Image Stabilization	Digital (Video Only)
Capture Type	Stills & Video

Shutter Type	Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed	Electronic Shutter 1/4000 to 30 Seconds Mechanical Shutter 1/4000 to 30 Seconds
Bulb/Time Mode	Bulb Mode
ISO/Gain Sensitivity	Native: 100 to 32,000 (100 to 51,200 Extended)
Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range	-2 to 20 EV
White Balance	Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting	Up to 23 fps at Maximum Resolution for up to 21 Frames (Raw) / 70 Frames (JPEG)
Interval Recording	Yes
Self-Timer	2/10-Second Delay

Aspect Ratio	1:1, 3:2, 4:3, 16:9
Image File Format	C-RAW, HEIF, JPEG, Raw

Internal Recording Modes	H.264/MP4 4:2:0 8-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps H.265/MP4 4:2:2 10-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps
External Recording Modes	HDMI 1920 x 1080p
Gamma Curve	HDR-PQ
Recording Limit	30-Minute Maximum in 1080p HFR 2-Hour Maximum
Built-In Microphone	Stereo
Audio Recording	MP4: 2-Channel AAC Audio

Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC (UHS-II)
Video I/O	1x Micro-HDMI Output
Audio I/O	1x 1/8″ / 3.5 mm TRS Stereo Microphone Input
Power I/O	1x USB-C Input/Output
Other I/O	1x 2.5 mm Sub-Mini Remote Input 1x USB-C (USB 2.0) Data Input/Output (Shared with Power Input)
Wireless	Bluetooth 4.2 2.4 GHz Wi-Fi 4 (802.11n)
Mobile App Compatible
