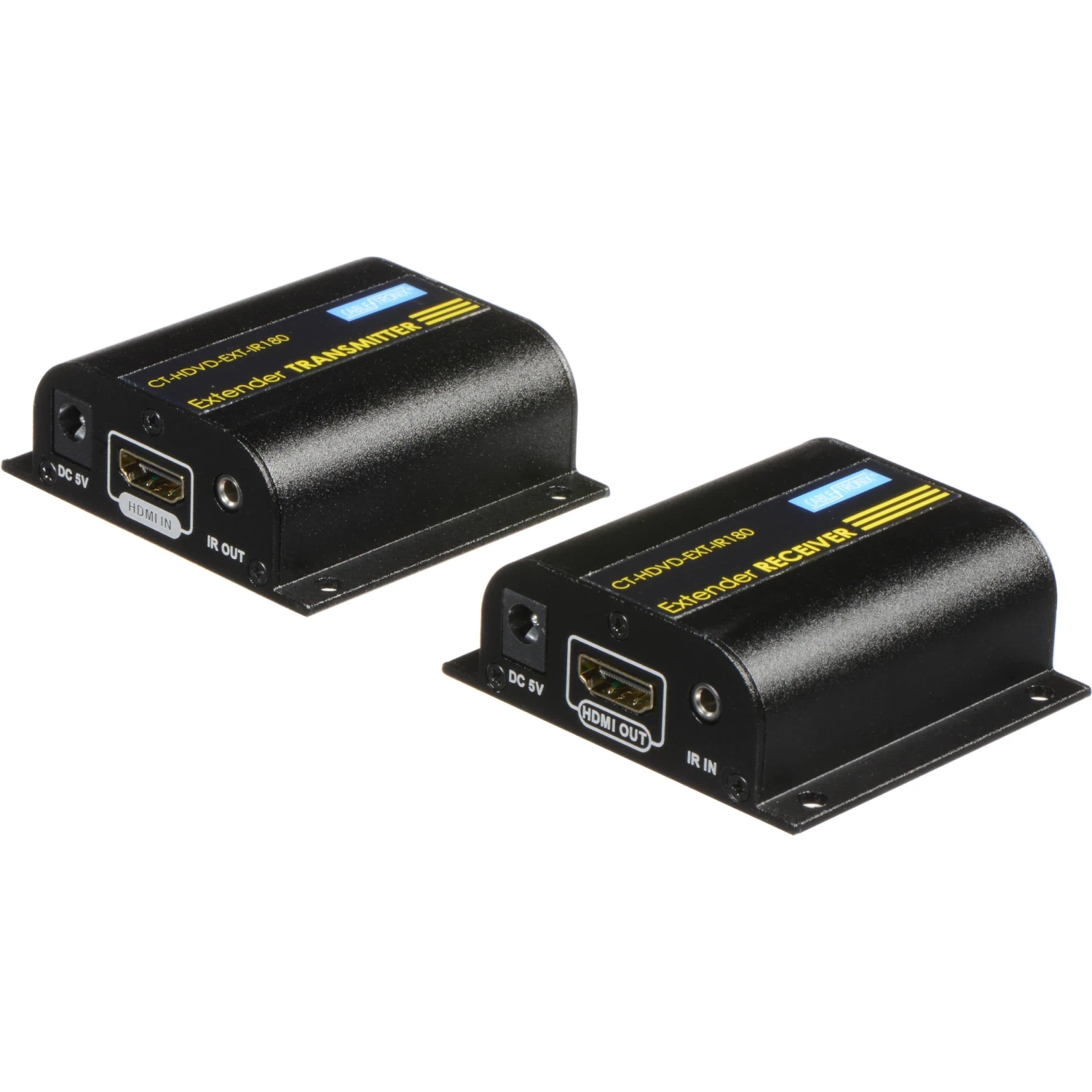

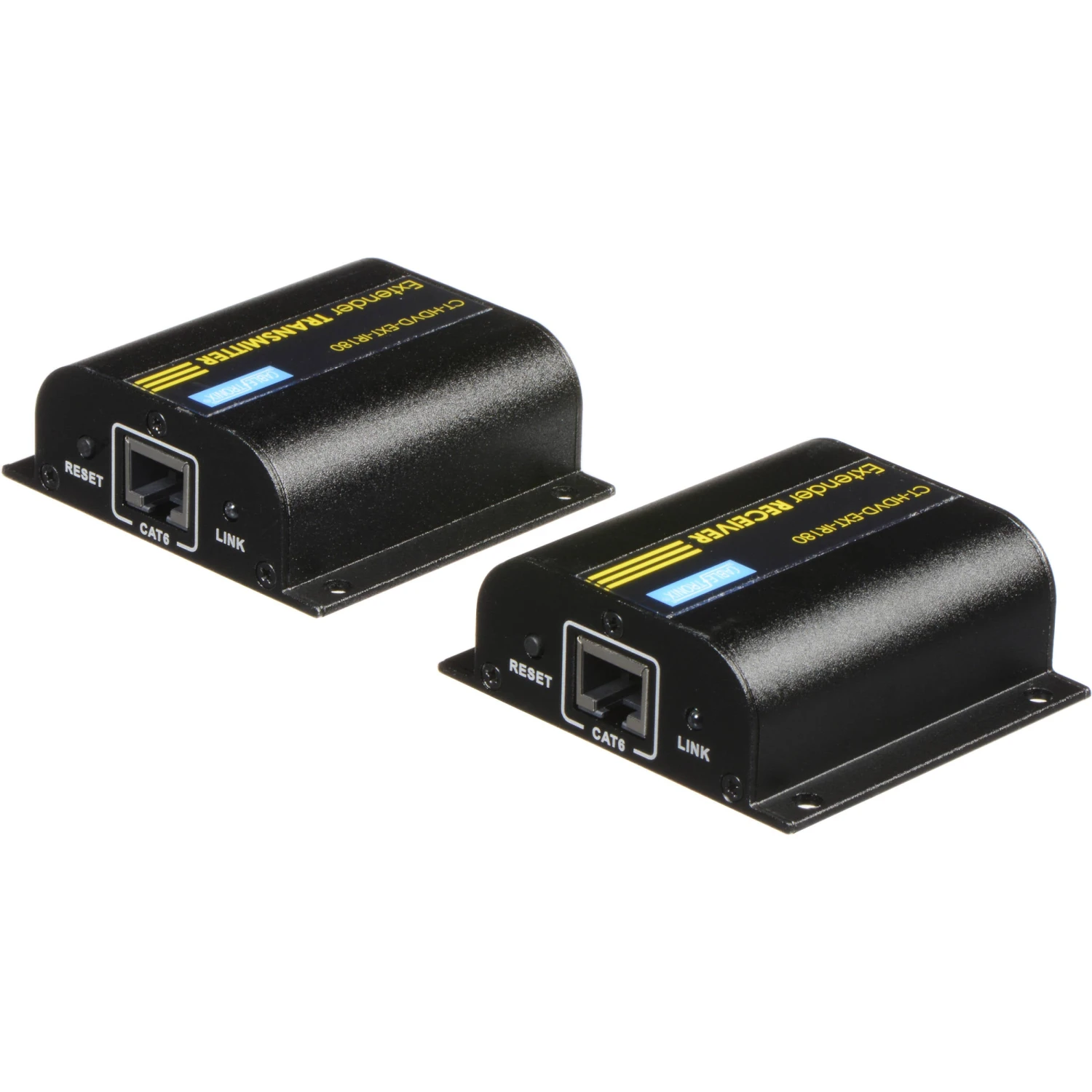

CableTronix CT-HDVD-EXT-IR180 Overview
Extend HDMI transmission distances with the HDMI Extender Transmitter and Receiver Kit from CableTronix. This kit includes a transmitter unit and a receiver unit to allow HDMI signals to be transmitted over a Cat5e or Cat6 4-pair cable. An IR blaster and an IR receiver provide IR control. This kit is designed to provide extended range when using an HDMI-enabled device, such as a computer, gaming console, or video recorder, and an HDMI display. Two 5 VDC power adapters are included to power to the transmitter and receiver units.
In the Box
- CableTronix HDMI Extender Transmitter and Receiver Kit
- Base Transmission Unit
- Base Receiver Unit
- 2 x 5 VDC Power Supplies
- IR Emitter Cable
- IR Target Cable
- Limited 1-Year Manufacturer Warranty
CableTronix CT-HDVD-EXT-IR180 Specs
| Input Video Signal |
0.5 to 1.0 V p-p |
| Input DDC Signal |
5 V p-p (TTL) |
| Video Format Support |
480i at 60 Hz, 480p at 60 Hz, 576i at 50 Hz, 576p at 50 Hz, 720p at 50/60 Hz, 1080i at 50/60 Hz, 1080p at 50/60 Hz DTV/HDTV: 1080p/1080i |
| Output Video |
HDMI 1.3+ HDCP |
| Output Audio Format |
Support DTS-HD, Dolby HD |
| Maximum Transmission Distance |
Up to 180′ (55 m) using Cat6 |
| Power Supply |
5 VDC, 1A |
| Maximum Power Consumption |
Transmitter: 2 W Receiver: 2 W |
| Operating Temperature |
32 to 140°F (0 to 60°C) |
| Operating Humidity |
5 to 90% RH, non-condensing |
| Network Cables |
Cat5e, 6, 6a, 7 Low resistance and consumption oxygen-free copper core |
| IR Remote |
Support 20 to 60 kHz wide frequency IR remote control |
| Dimensions |
Transmitter: 2.85 x 1 x 2.65″ (7.2 x 2.5 x 6.7 cm) Receiver: 2.85 x 1 x 2.65″ (7.2 x 2.5 x 6.7 cm) |
| Weight |
Transmitter: 0.4 lb (0.2 kg) Receiver: 0.4 lb (0.2 kg) |
| Package Weight |
0.85 lb |
| Box Dimensions (LxWxH) |
7.402 x 5.984 x 2.835″ |
