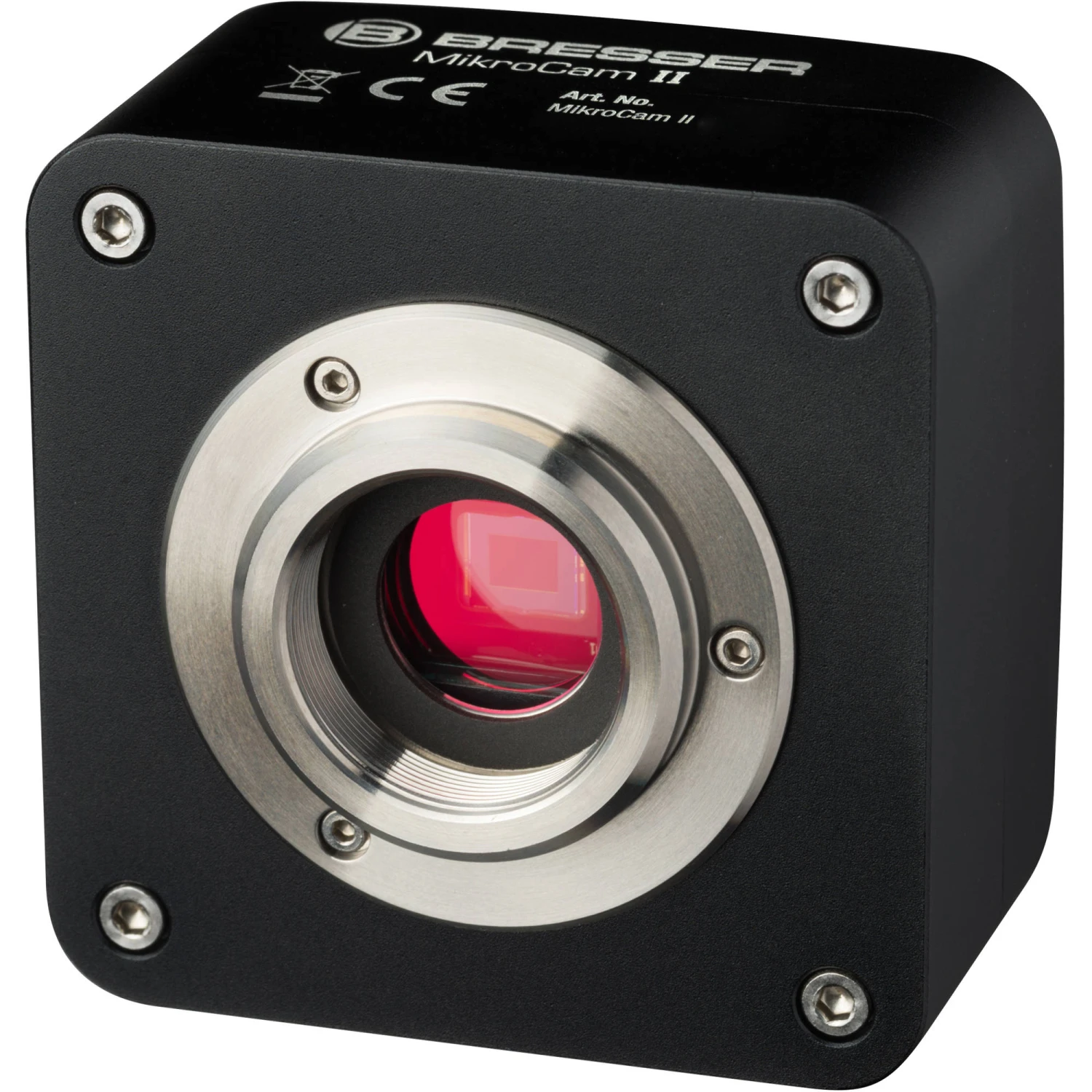

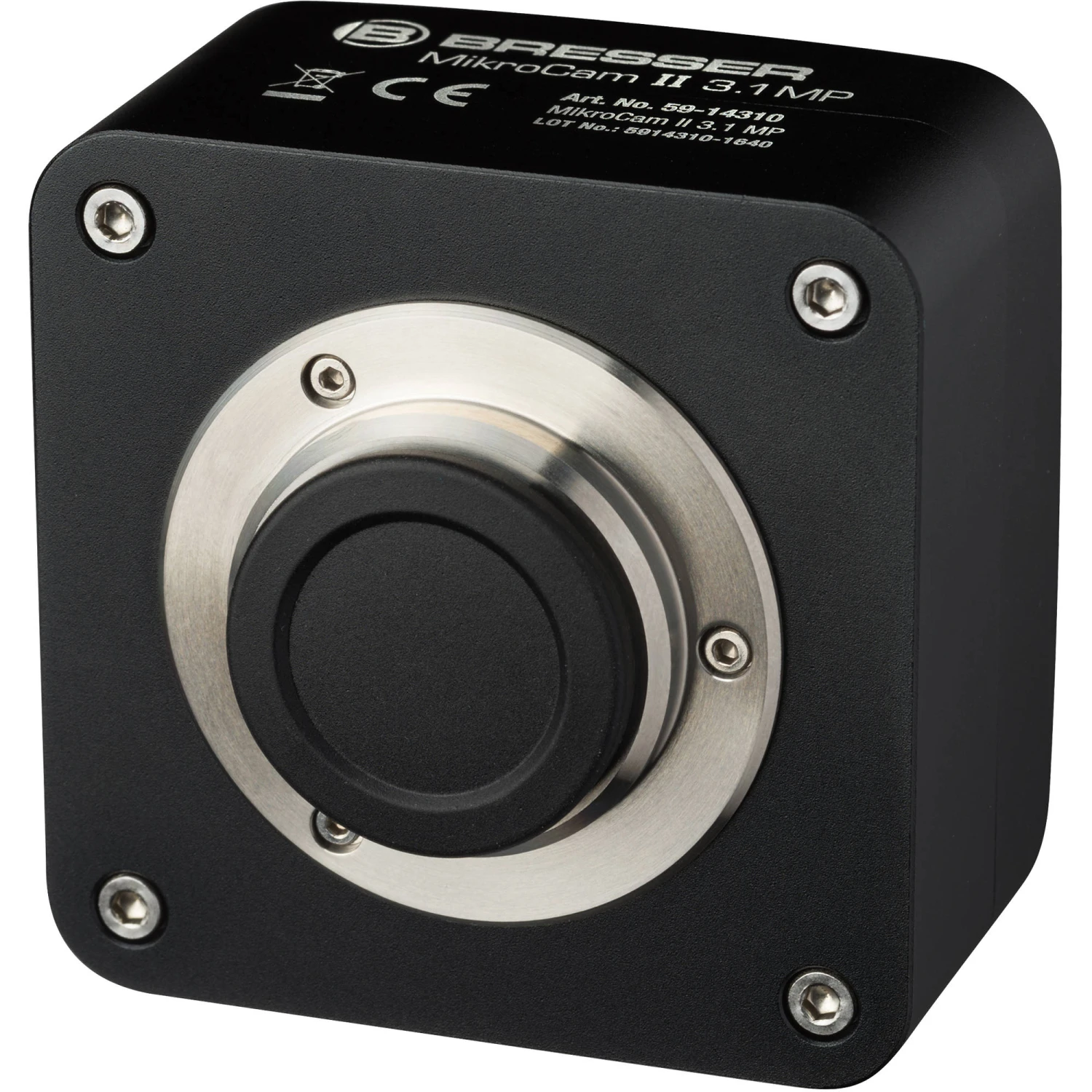

BRESSER MikroCam II 3.1MP USB 3.0 Microscope Camera(Bresser Mikrocam Ii 3 1mp Usb 3 0 Microscope Camera)

Photo/Video Capture with Image EditingUses: Microscopy, Industrial, MechanicalSony IMX123 3.1MP Color CMOS SensorHigh 2048×1534 Maximum Resolution

The BRESSER MikroCam II 3.1MP USB 3.0 Microscope Camera is well suited for a wide array of uses and applications�from being mounted on a microscope to monitoring manufacturing and industrial machinery. Outfitted with a Sony IMX123 color CMOS sensor, it has an impressive 2048×1534 maximum resolution with video frame rates of up to 25 fps and up to 30 fps on a lower 1920×1080 resolution. Information is fed to a Windows computer utilizing a high-speed USB 3.0 connection that also provides power to the camera. An included software suite provides an array of capture and editing tools to optimize the image and make saving and sharing easy.

Designed to be compatible with a wide variety of gear, the housing has standard C-mount threads for camera lenses, and it comes with three nosepiece adapters that allow you to mount the camera on a microscope without a dedicated camera port in place of its eyepiece. For special applications, there is a standard 1/4″-20 mount on the housing to mount/install the camera wherever you need it�on tripods or industrial equipment for automated quality control, inspection, and monitoring applications.

Performance

• Capture images, video, and time-lapse sequences

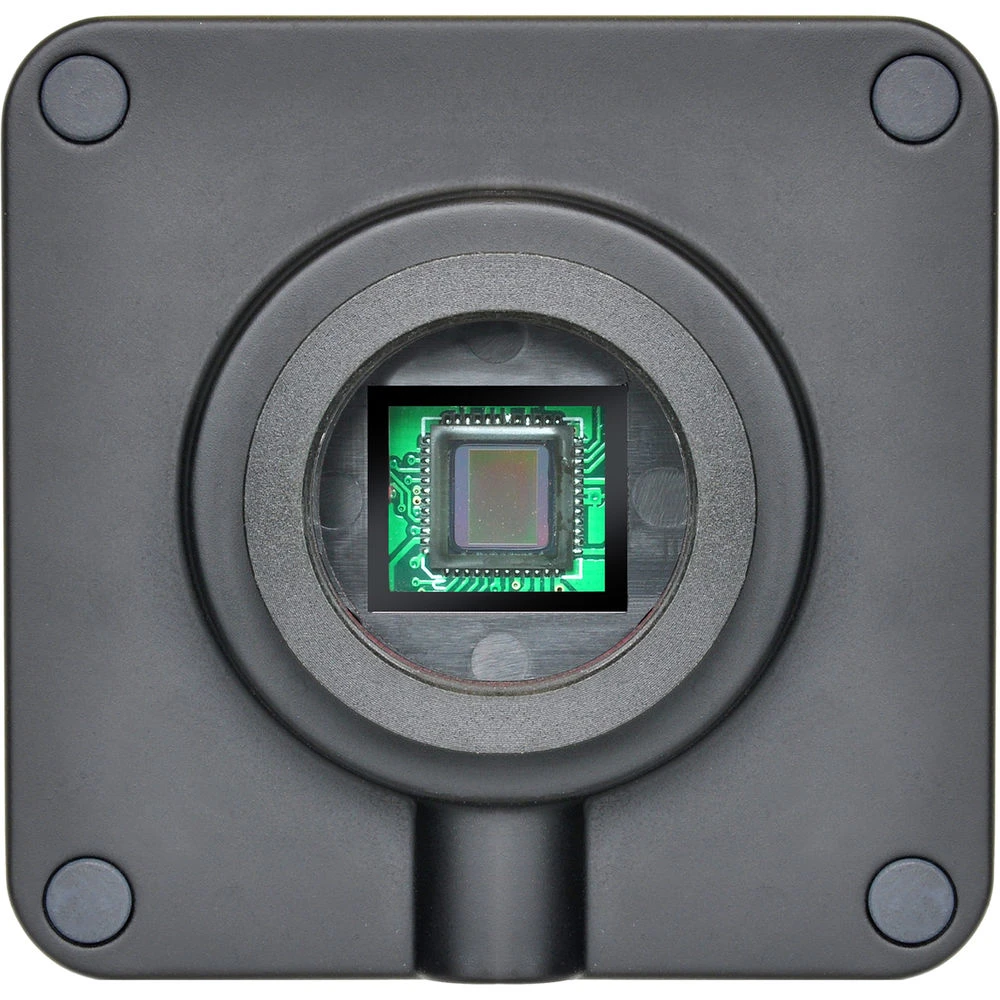

• 3.1MP Sony IMX123 color CMOS sensor
• 2048×1534 maximum resolution
• Frame rates of up to 25 fps at 2048×1536 resolution and up to 30 fps at 1920×1080
• Fast USB 3.0 data transfer interface enables up to 8x faster data transfer speeds versus standard USB 2.0 connection
• Backward compatible with USB 2.0, but with reduced frame rates
• Standard C-mount threads fit a wide variety of lenses and microscope adapters

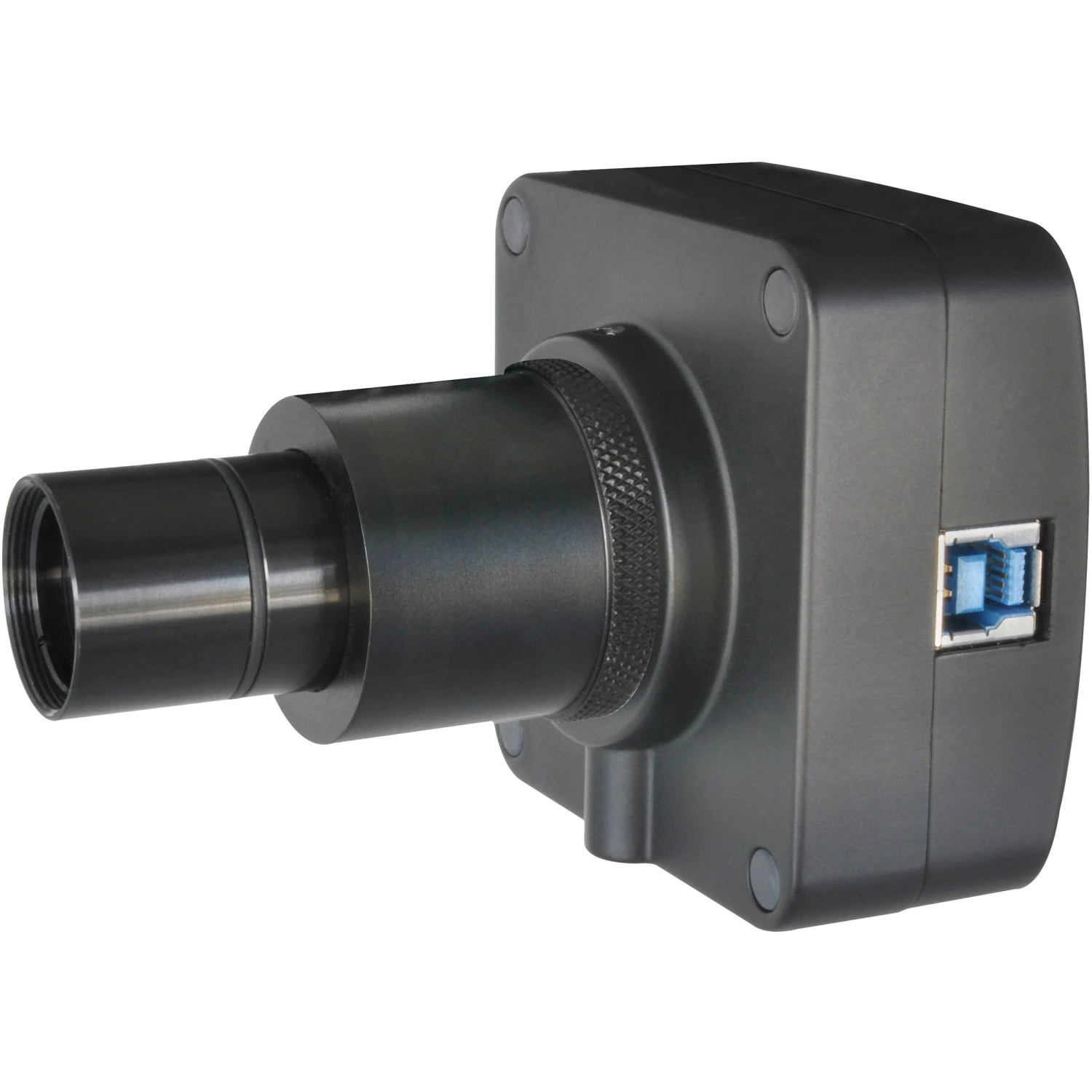

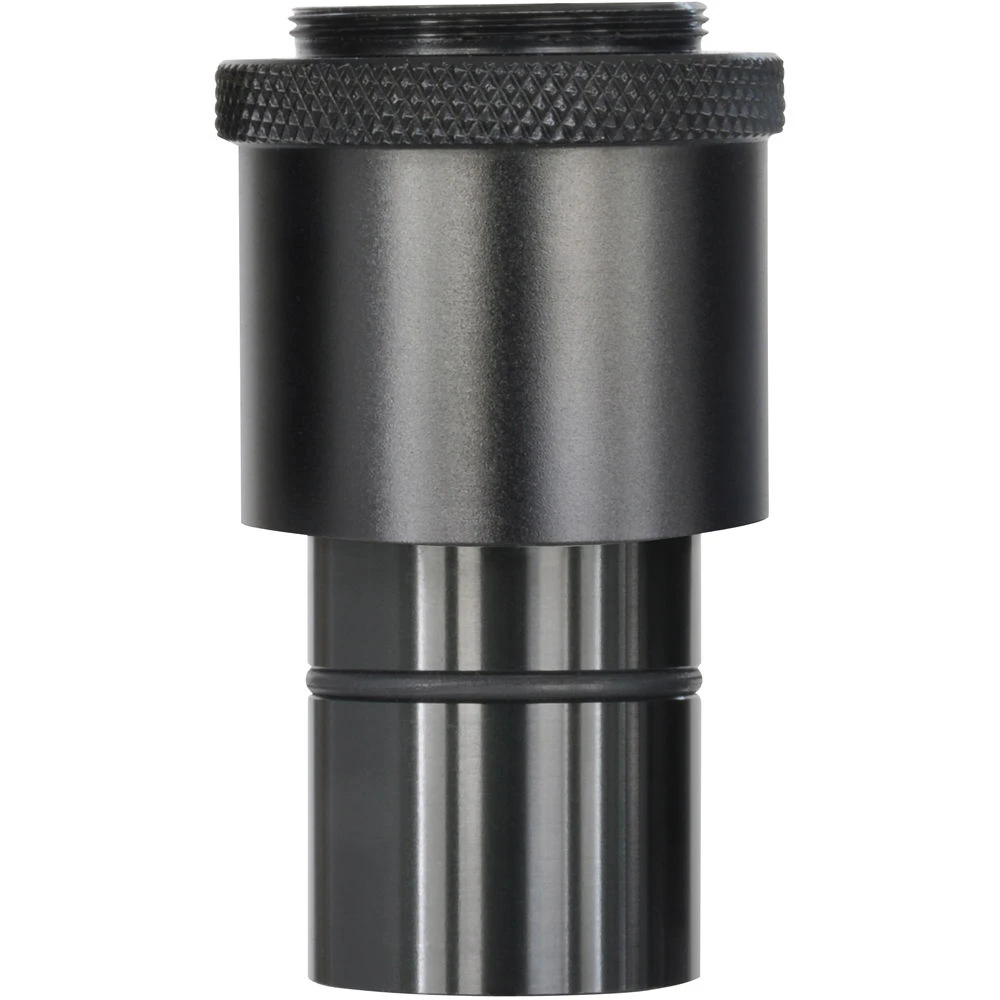

• Adapters for 23.2, 30, and 30.5mm eyepiece holders included for use on microscopes without an integrated camera port
• 1/4″-20 mount on the housing to mount/install on tripods or industrial equipment for automated quality control, inspection and monitoring applications

Included Software

• Photo and video image capture and processing software
• Measuring routine allows for a measurement in the live camera image
• Measuring function allows a precise measurement of specimens; optional calibration slide required for proper use
• Counting function allows for exact counting, such as for particles
• Additional settings and filters for optimal image

System Requirements:

• Windows 7/8/10; 32/64 Bit
• 2.8 GHz Quad Core processor
• 2 GB RAM
• 2 GB free HDD space
• CD or DVD drive
• USB 3.0 port



Sensor	3.1MP Sony IMX123 Color CMOS
Resolution	2048 x 1534, Maximum
Frame Rate	Up to 25 fps @ 2048 x 1536 Resolution Up to 30 fps @ 1920 x 1080
Lens Mount	C-Mount
Housing Mount	1/4″-20

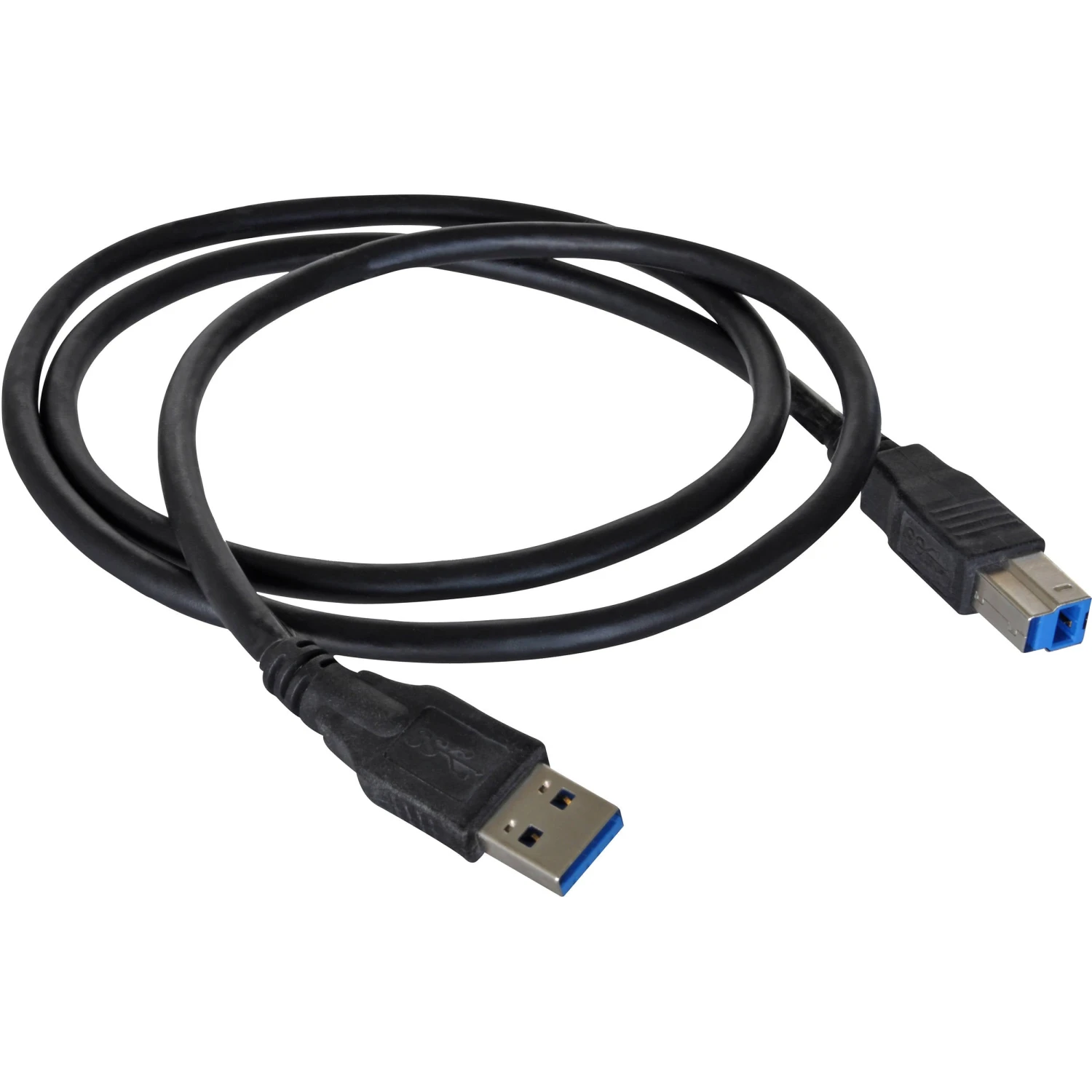

Connection	USB 3.0 USB 2.0 Compatible with Reduced Frame Rate
Material	Aluminum
Dimensions	2.7 x 2.7 x 1.9″ / 6.8 x 6.8 x 4.7 cm
Weight	10.2 oz / 290.0 g
