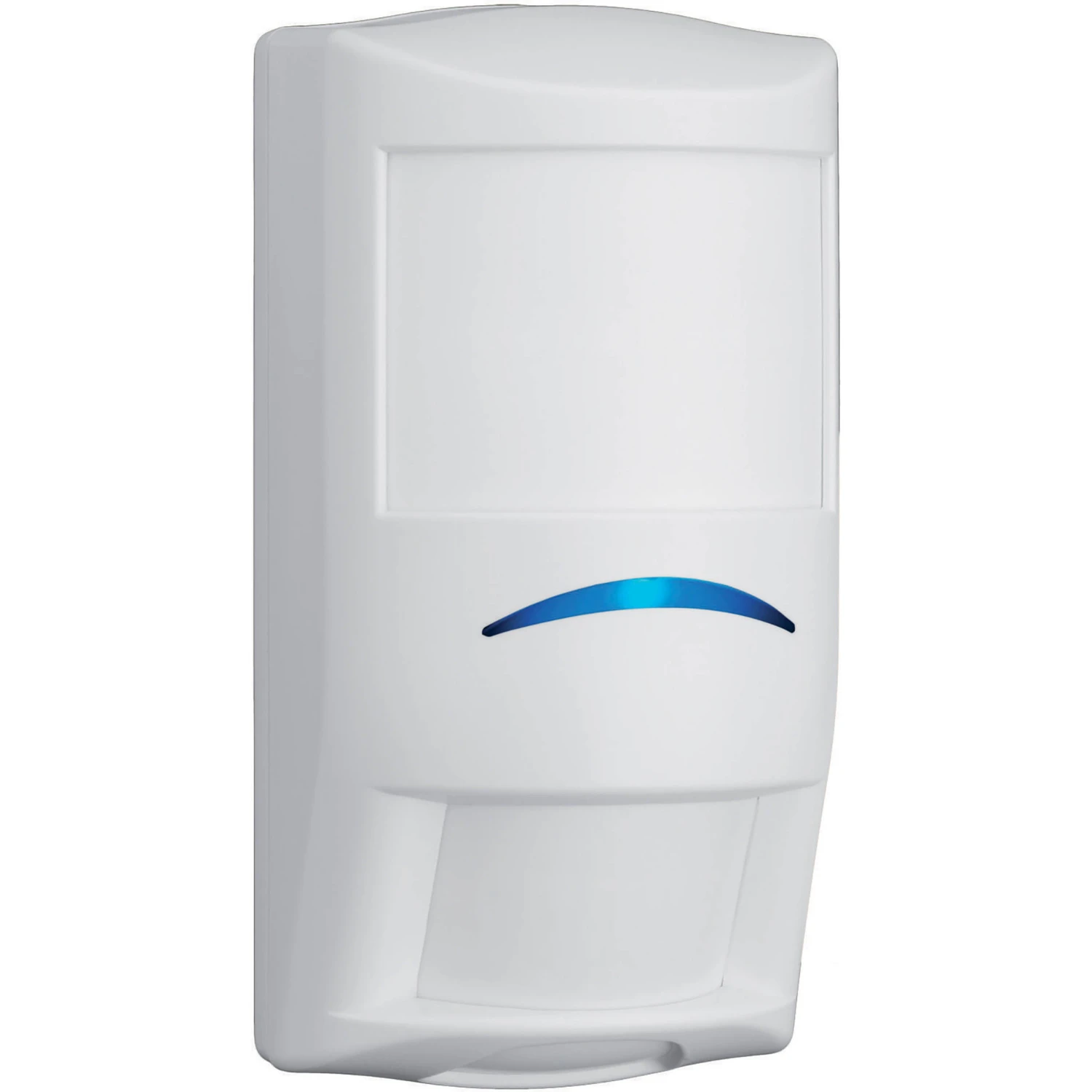

Bosch ISC-PDL1-W18G Overview

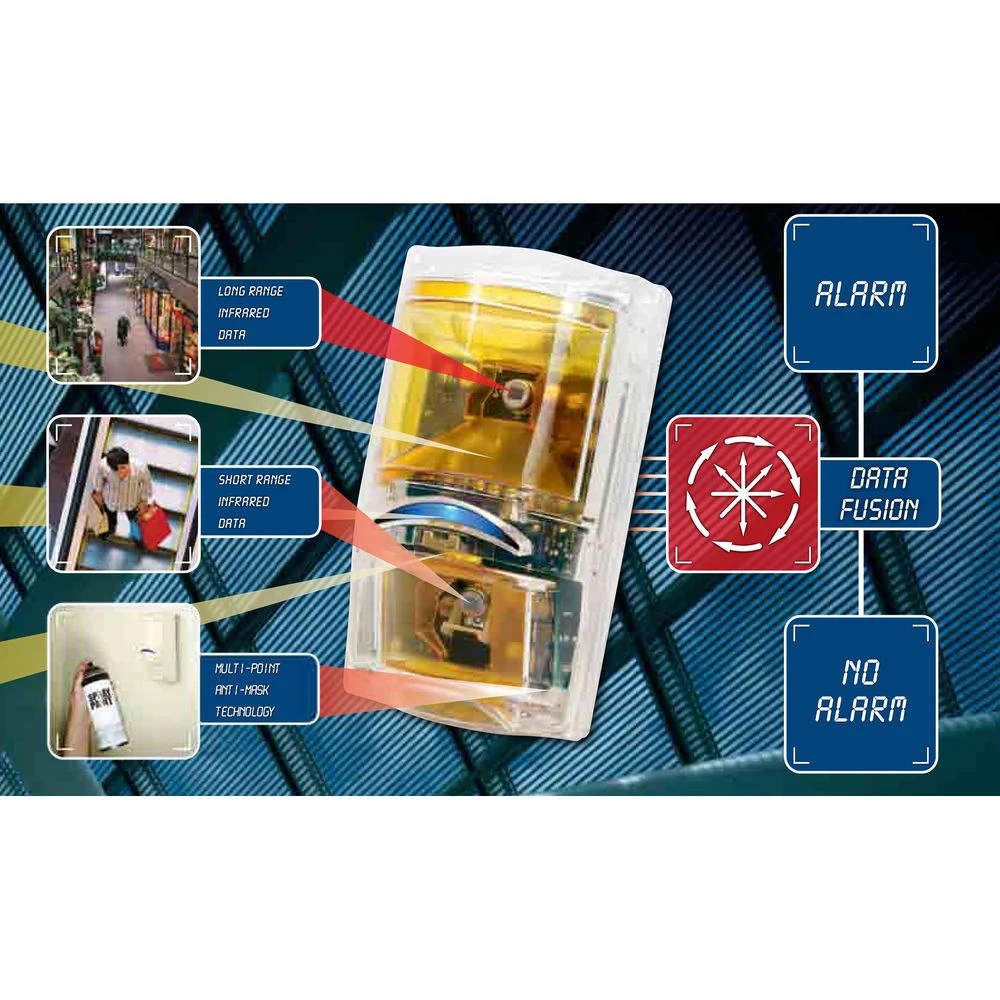

Featuring built-in PIR and microwave detection sensors and tri-focus optics technology, the ISC-PDL1-W18G Professional Series TriTech+ Motion Detector from Bosch uses optics with three focal lengths for long-, medium-, and short-range coverage. Its 90° field of view covers a 60 x 80′ area, or a narrowed 25 x 33′ area. Sensor Data Fusion technology analyzes signals from all five sensors including two pyroelectric sensors, a range adaptive finder, a room temperature sensor, and a white light level sensor to provide accurate detection.

The detector adjusts its sensitivity to compensate for weather, ensuring accurate operation in varying weather conditions, and features self-adjusting LED brightness to automatically adjust to surrounding light levels. There is a blue LED that indicates an alarm condition and activates during a remote walk test. The detector is immune to drafts, insects, and small animals under 10 lb, helping to reduce false alarms. Installation is quick with its self-locking enclosure and built-in bubble level.

PIR motion sensor with microwave detection technologies

Microwave noise adaptive processing adjusts to background disturbances to help reduce false alarms

Range adaptive radar lets the microwave transceiver automatically adjust its detection thresholds based on input from the PIR sensor to reduce false alarms from Doppler radar

Microwave anti-mask function allows the detector to send a supervision-trouble signal if microwave reflective material is placed within 1′ of the detector

90° field of view covers a 60 x 80′ or 25 x 33′

Tri-focus optics with three specific optic focal lengths (long-, medium-, short-range) for accurate detection

Active white light suppression measures light intensity and eliminates false alarms

Dynamic temperature compensation adjusts sensitivity for use in varying weather conditions

Self-adjusting LED with remote walk test function via DIP switch

Alarm memory flashes the alarm LED to indicate stored alarms across multiple units (available separately)

Solid state relays send silent alarm output signals for discreet operation

Draft, insect, and small animal immunity reduces false alarms

Remote self test and trouble memory

Input power supervision activates the trouble relay when power is below 8 V

Cover and wall tamper switch detects and sends an alert if the detector cover is tampered with or removed, or if the detector is removed from the wall

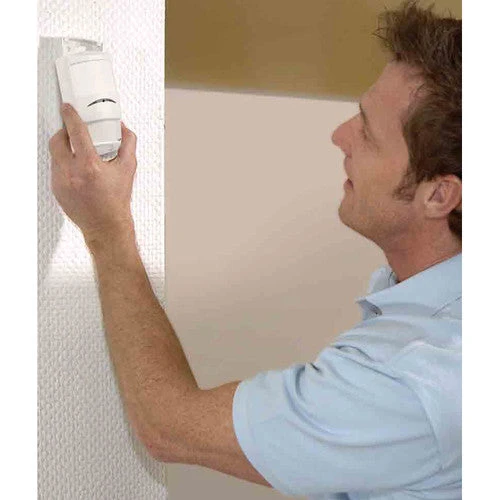

Self-locking enclosure with built-in bubble level

UPC: 800549081658

In the Box

Bosch ISC-PDL1-W18G Professional Series TriTech+ Motion Detector
Limited 5-Year Manufacturer Warranty

Bosch ISC-PDL1-W18G Specs

Operating Voltage	9-15 VDC
Maximum Current	<25 mA
Standby Current	13 mA
Relay Output	Solid state relay, normally-closed (NC) contacts, power supervised, 3 W, 125 mA, 25 VDC, <10 Ohms resistance
Tamper Output	Normally-closed (NC) contacts (with cover on) rated 25 VDC, 125 mA maximum Connect tamper circuit to 24-hour protection circuit
Trouble Output	Solid state relay normally-closed (NC) contacts
Relative Humidity	0 to 95%, non-condensing
Operating Temperature	-20 to 130°F (-29 to 55°C) 32 to 120°F (0 to 49°C) (for UL-certificated installation)
LED Indicators	TriTech Alarm: Blue Microwave Detection: Yellow PIR Detection: Red
Pattern	11-layer, 86 zones
Coverage	60 x 80′ (18 x 25 m) or 25 x 33′ (8 x 10 m)
Frequency	10.525 GHz No alarm or setup on critical frequencies in the range from 26 MHz to 1 GHz at 50 V/m
Mounting Height	Recommended: 7 to 10′ (2 to 3 m)
Wire	Recommended: 26 to 16 AWG
Material	High-impact ABS plastic
Environment	EN 50130-5
IP Rating	IP41 (EN 60529)
IK Rating	IK04 (EN 50102)
Certifications & Approvals	USA: UL639, cULus, FCC Italy: IMQ Canada: IC Europe: CE EMC, LVD, R&TTE, RoHS, EN50131 France: AFNOR China: CCC 2009031901000559 Sweden: INTYG Brazil: ANATEL Netherlands: REQ Australia: C-Tick, SCEC
Dimensions	5.3 x 2.8 x 2.3″ (136 x 69 x 58 mm)

Packaging Info

Package Weight	0.525 lb
Box Dimensions (LxWxH)	5.9 x 3 x 2.5″
