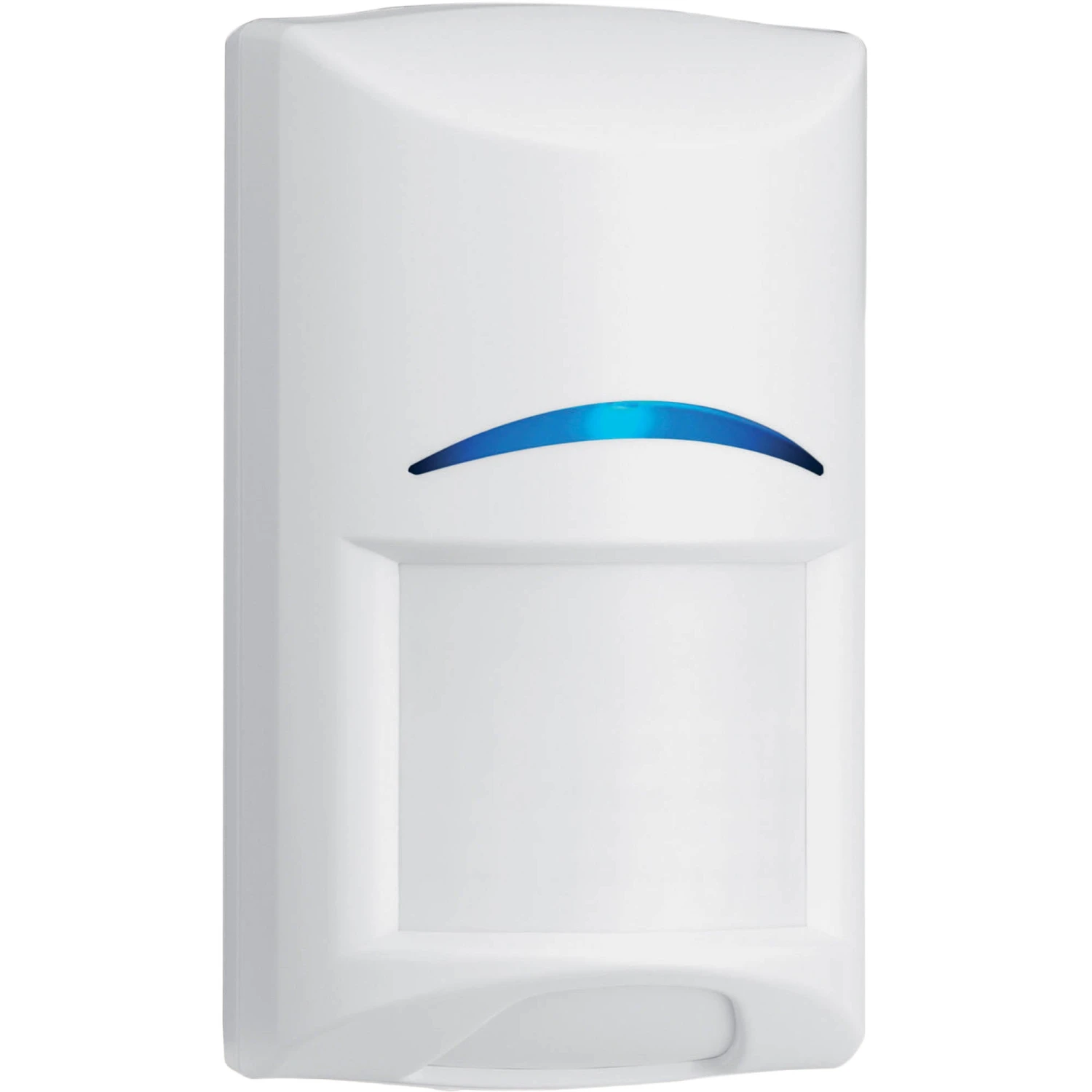

Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector(Bosch Isc Bpr2 W12 Blue Line Gen2 Pir Motion Detector)

Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector(Bosch Isc Bpr2 W12 Blue Line Gen2 Pir Motion Detector) - Image 2

Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector(Bosch Isc Bpr2 W12 Blue Line Gen2 Pir Motion Detector) - Image 3

Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector(Bosch Isc Bpr2 W12 Blue Line Gen2 Pir Motion Detector) - Image 4

Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector(Bosch Isc Bpr2 W12 Blue Line Gen2 Pir Motion Detector) - Image 5

Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector(Bosch Isc Bpr2 W12 Blue Line Gen2 Pir Motion Detector) - Image 6

Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector(Bosch Isc Bpr2 W12 Blue Line Gen2 Pir Motion Detector)

Original price was: $39.78.Current price is: $27.85.

SKU: DGFUB 7058263277653 Categories: Alarm Systems, Optics & Surveillance, Surviellance Tags: Alarm Accessories, Alarm Systems, Bosch Blue Line Gen2, Surveillance

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Bosch ISC-BPR2-W12 Overview

Featuring two Fresnel lenses, the ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector from Bosch provides accurate motion detection within its wide, 94° field of view. It covers a large 40 x 40′ area with its 77-zone, 7-layer pattern lookdown lens and features up to three selectable lookdown zones.

First Step Processing (FSP) technology analyzes motion, limiting false alarms. For increased reliability, the detector’s sensitivity is automatically adjusted based on signal amplitude, polarity, slope, and timing. The detector also adjusts its sensitivity to compensate for weather, ensuring accurate operation in varying weather conditions. Installation is quick with its self-locking enclosure and built-in bubble level.

PIR motion sensor with two Fresnel lenses

94° field of view covers a 40 x 40′ area

First Step Processing technology reduces false alarms

Dynamic temperature compensation adjusts sensitivity for use in varying weather conditions

Self-locking enclosure with built-in bubble level

UPC: 800549283878

In the Box

Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector
Mounting Hardware
Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

Bosch ISC-BPR2-W12Specs

Current	Alarm/Standby: 10 mA at 12 VDC
Operating Voltage	9-15 VDC
Environment	EN50130-5 Class II
Relative Humidity	0 to 95%, non-condensing 0 to 85%, non-condensing (for UL-listed installation)
Operating Temperature	-20 to 130°F (-30 to 55°C) 32 to 120°F (0 to 49°C) (for UL-listed installation)
Relay Output	Solid state, supervised, Form A normally-closed (NC) contacts rated for ?100 mA, 25 VDC, 2.5 W, <20 Ohms closed
Tamper Output	Normally-closed (NC) contacts (with cover on) rated for ?100 mA, 25 VDC, 2.5 W Connect tamper circuit to 24-hour protection circuit
Pattern	7-layer, 77 zones
Coverage	40 x 40′ (12 x 12 m)
Mounting Height	Recommended: 7.5 to 9′ (2.2 to 2.8 m)
Material	High-impact ABS plastic
Certifications & Approvals	USA: UL 639, ULC-S306 Europe: EN50131-2-2 Grade 2, EN50130-5 Class II, EN60529, EN50102 (IP30, IK04), 2002/95/EC, CE (EMC, LVD), EN50131-2-2 Belgium: INCERT B-509-0051/d France: AFNOR 2620200001A0 Sweden: INTYG 11-269 Netherlands: NCP Bulgaria: GD FSPP GODKJENNELSESBEVIS
Dimensions	4.2 x 2.4 x 1.7″ (10.5 x 6.1 x 4.4 cm)

Packaging Info

Package Weight	0.25 lb
Box Dimensions (LxWxH)	4.4 x 2.5 x 1.9″
