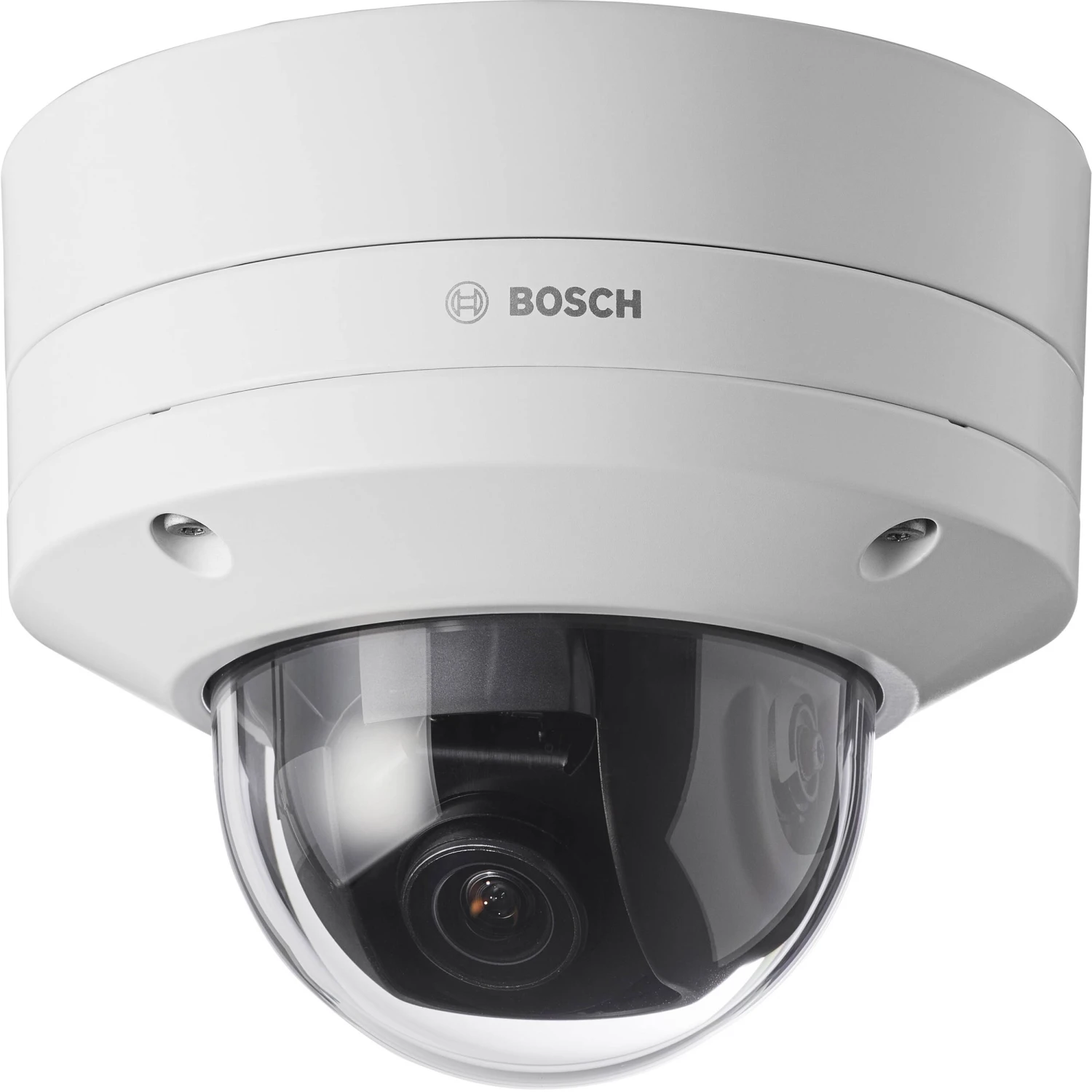

Bosch FLEXIDOME 8100i NDE-8704-RT 4K UHD Outdoor Network PTRZ Dome Camera(Bosch Flexidome 8100i Nde 8704 Rt 4k Uhd Outdoor Network Ptrz Dome Camera)

Original price was: $341.00.Current price is: $99.99.

SKU: DGFUB 7133531668565 Categories: Optics & Surveillance, Surveillance, Surviellance Tags: Bosch NDE-8704-RT, Security Cameras, Surveillance, Wired IP Cameras

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Bosch NDE-8704-RT Overview

Designed for monitoring outdoor areas, the FLEXIDOME 8100i NDE-8704-RT 4K UHD Outdoor Network PTRZ Dome Camera from Bosch uses a 1/1.8″ CMOS sensor to capture 4K UHD resolution video at 30 fps. A 12-38mm motorized varifocal lens delivers a 36 to 12° horizontal angle of view. The camera features a 0 to 361° pan range, a -3 to 85° tilt range, ±95° rotation, and 3.2x optical zoom. Dual card slots each accept microSD/SDHC/SDXC cards for a storage total up to 2TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.

This camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP69K-, NEMA 4X-, and IK11-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.

IR cut filter for day and night functionality

Motorized zoom and focus control

Privacy masking for eight independent areas

Preinstalled Intelligent Video Analytics Pro (IVA Pro Buildings, IVA Pro Perimeter, IVA Pro Privacy) enables the system to reliably detect and track people/vehicles, and alert you when predefined alarms are triggered while minimizing false alarms

Camera Trainer program enables users to define objects of interest and generate detectors for them

Tracking modes include standard 2D tracking, 3D tracking, 3D people tracking, ship tracking, and museum mode

Additional features include electronic image stabilization (EIS), HDR, white balance, adjustable sharpness, contrast enhancement, backlight compensation, saturation, brightness, intelligent defog, image mirror/flip, rotation (90 to 270°), pixel counter, display stamping, location, and group of pictures (GOP) structure

End-to-end encryption

Items Included

Bosch FLEXIDOME 8100i NDE-8704-RT 4K UHD Outdoor Network PTRZ Dome Camera
T-20 Security Torx Bit
Mini Screwdriver
IP66 Rubber Grommet
IP67 Grommet
Network Patch Cable (1.64′)
3 x Identification Labels
Limited 1-Year Manufacturer Warranty

Additional Resources

User Manual

6.5 MB

Bosch NDE-8704-RT Specs

Key Specs

Image Sensor	1/1.8″-Type CMOS
Focal Length	12 to 38mm
Field of View	Horizontal: 36 to 12° Vertical: 20 to 7°
Pan/Tilt	Pan: 361° (0 to 361°) Tilt: 88° (-3 to 85°)
Built-In Microphone	No
Power I/O	1x RJ45 (12 to 26VDC) 1x RJ45 (24VAC)

Imaging

Number of Lenses	1
Image Sensor	1/1.8″-Type CMOS
Sensor Resolution	Effective: 8 Megapixel
IR Cut Filter	Yes
Day/Night	Yes
DORI Coverage	With 12 to 38mm Lens: Detect: 739 to 2174′ / 225.2 to 662.6 m Observe: 311 to 915′ / 94.8 to 278.9 m Recognize: 156 to 458′ / 47.5 to 139.6 m Identify: 78 to 229′ / 23.8 to 69.8 m

Exposure Control

Shutter Speed	1/15000 to 1/25 Second
Signal-to-Noise Ratio	55 dB
Minimum Illumination	0.0885 Lux (Color) 0.0083 Lux (Black and White)

Lens

Focal Length	12 to 38mm
Optical Zoom Ratio	3.2x
Field of View	Horizontal: 36 to 12° Vertical: 20 to 7°
Maximum Aperture	f/2.05 to 2.25

Video

Max IP Streaming	H.264, H.265, MJPEG via RJ45 3840 x 2160 up to 30.00 fps
Multi-View Streaming	Yes

Control

Camera Angle Adjustment	Rotation: -95 to 95°
Pan/Tilt	Pan: 361° (0 to 361°) Tilt: 88° (-3 to 85°)

Networking

Security	Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, Password Protection
Supported Protocols	APIPA, ARP, CHAP, DHCP, DiffServ, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, iSCSI, LLDP, NTP, ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SNTP, SOAP, SRTP, SSL/TLS, TCP, UDP, UPnP

Interface

Media/Memory Card Slot	Dual Slot: microSD/microSDHC/microSDXC [2 TB Maximum]
Other I/O	1x RJ45
1- or 2-Way Audio	Two-Way
Audio Formats	AAC-LC, G.711, L16
Built-In Microphone	No
External Storage Options	Cloud

System Integration

Analytics	Abandoned Object, Camera Sabotage/Tampering, Crowd Gathering, Entering/Exiting, Loitering, Motion Detection, Object Counting, Object Detection, Object Removal, People Counting, People Detection, Vehicle Detection, Virtual-Line Crossing Detection
Built-In Installation Aids	Autofocus, Pixel Counter

Sensors & Alarms

Event Trigger	Yes
Event Action	Recording, Notification, Alarm
Alarm I/O	2 / 1

Power

PoE Support	PoE+ 802.3at, PoE 802.3af
Power I/O	1x RJ45 (12 to 26VDC) 1x RJ45 (24VAC)
Power Consumption	PoE: 7 to 12.95 W 12 to 26 VDC 7.2 to 19 W 24 VAC 6.9 to 12.6 W

Environmental

Operating Conditions	-58 to 140°F / -50 to 60°C at 5 to 100% Humidity
Storage Conditions	-22 to 158°F / -30 to 70°C at 0 to 98% Humidity
Impact Resistance	Impact-Resistant (IK11)
Environmental Resistance	Dust/Weather/Water-Resistant (IP69K)
Startup Temperature	-40°F / -40°C

General

Material of Construction	Aluminum, Polycarbonate
Certifications	BIS, CE, CSA, EN, EU, FCC, ICES, IEC, Kcc, NDAA, NEMA, RCM, REACH, RoHS, UL, VCCI, WEEE, cULus
OS Compatibility	Computer: Windows Mobile: Android/iOS
Dimensions (W x H x D)	6.9 x 5.7 x 6.9″ / 175.3 x 144.8 x 175.3 mm
Weight	5.1 lb / 2.3 kg (Body Only)
