Bogen NQ-S1810WBC Overview

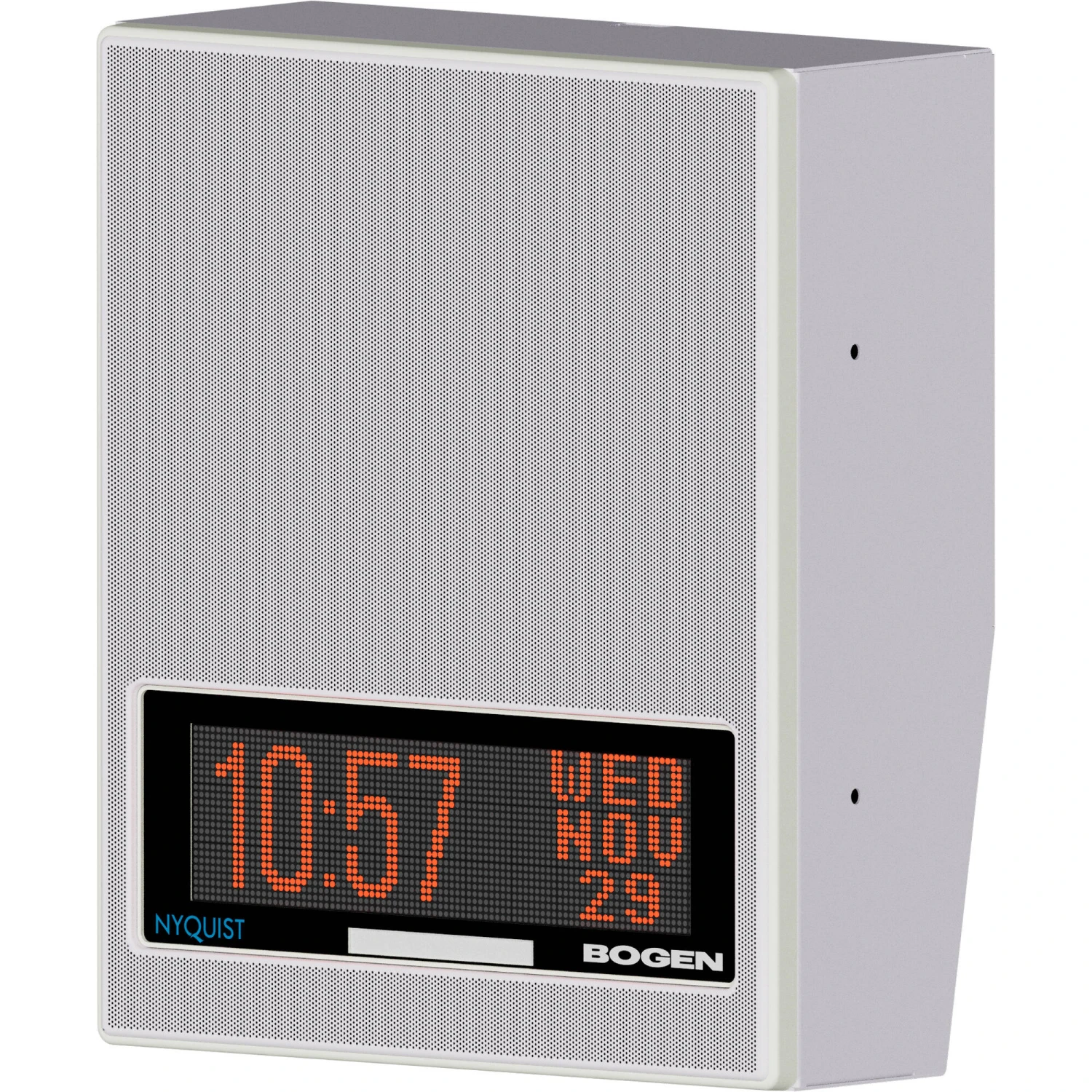

Deliver simple and clear communication with the Bogen Nyquist VoIP Wall Baffle Combo Speaker, a self-contained baffle speaker with an integrated microphone, LED text display, and LED flasher. The device is PoE powered and features an integrated 10W audio amplifier. A separate, high-performance MEMS microphone provides superior talkback audio.

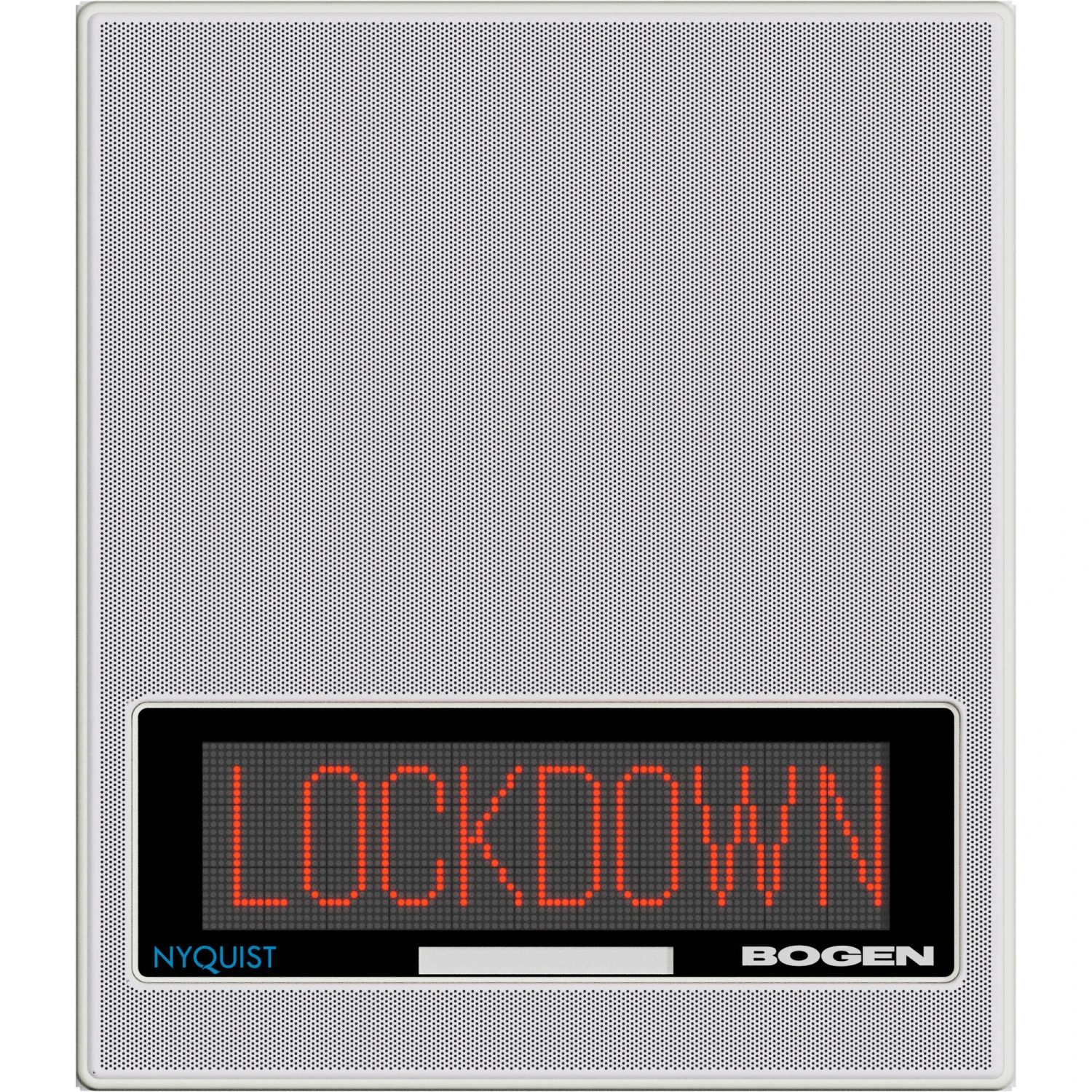

The message display can show user programmable messages for standard or emergency announcements, as well as a clock with date and time (seconds are optional). The flasher is completely programmable for color, duty cycle, and duration to differentiate alert types. It can also be triggered, independent of the message display.

At a Glance

10/100 Ethernet connection
PoE (Type-1) IEEE 802.3af compliant
DHCP deployment for easy installation
Pre-assembled for easy installation
10W integrated audio amplifier
Reset summary for restoring factory settings
Form-C SPDT Type-2 A 30 VDC dry contact relay output
DSP-based noise rejection and voice bandwidth optimization
MEMS microphone for superior talkback audio
CAN Bus 2.0 Interface connects to Nyquist Digital Call Switches (NQ-E7020-G2)

Key Benefits

LED Message Display to visually inform students and personnel of the date and time, or scroll emergency or standard messages
Programmable messages for predefined or manually input messages, with longer ones scrolled across the display for a defined period of time
Programmable flasher for gaining audience attention; use different colors for different types of alerts (e.g., fire, lockdown, weather, etc.) and triggers.
Routines/Routines API functionality for displaying messages, alerts, and flashes via predefined Routines triggered through system events or API calls

UPC: 765368770490

Items Included

Bogen Nyquist VoIP Wall Baffle Combo Speaker with Integrated LED Text Display and LED Flasher
Mounting Hardware
Limited 5-Year Manufacturer Warranty

Additional Resources

User Manual

2.3 MB

Bogen NQ-S1810WBC Specs

General

Compatibility	Bogen Education E7000 / Commercial C4000
Impedance	Rated Load Impedance: 8 Ohms
Frequency Response	95 Hz to 20 kHz
THD + N	< 1% at 1 kHz Rated Power
Network	10/100 Ethernet
Sensitivity	94 dB, 1 W / 1 m
Connectors	CAN Bus 2.0 Interface: Connection to the CAN Bus Is via a Phoenix-Style Connector Outputs: Connection to the Relay Is via a Phoenix-Style Connector
Microphone	MEMS Talkback Mic
Amplifier	Integrated 10 W Audio Amplifier

Inputs/Outputs

Audio I/O

1x Block Input
1x Block Output

Power

Power Source

PoE (Built-In)

Physical

Color	White
Operating Conditions	32 to 100°F / 0 to 37°C
Dimensions	13.8 x 11.9 x 4.75″ / 35.1 x 30.2 x 12.06 cm
Weight	13 lb / 5.9 kg

Packaging Info

Package Weight	12.9 lb
Box Dimensions (LxWxH)	16.6 x 15.1 x 9.2″
