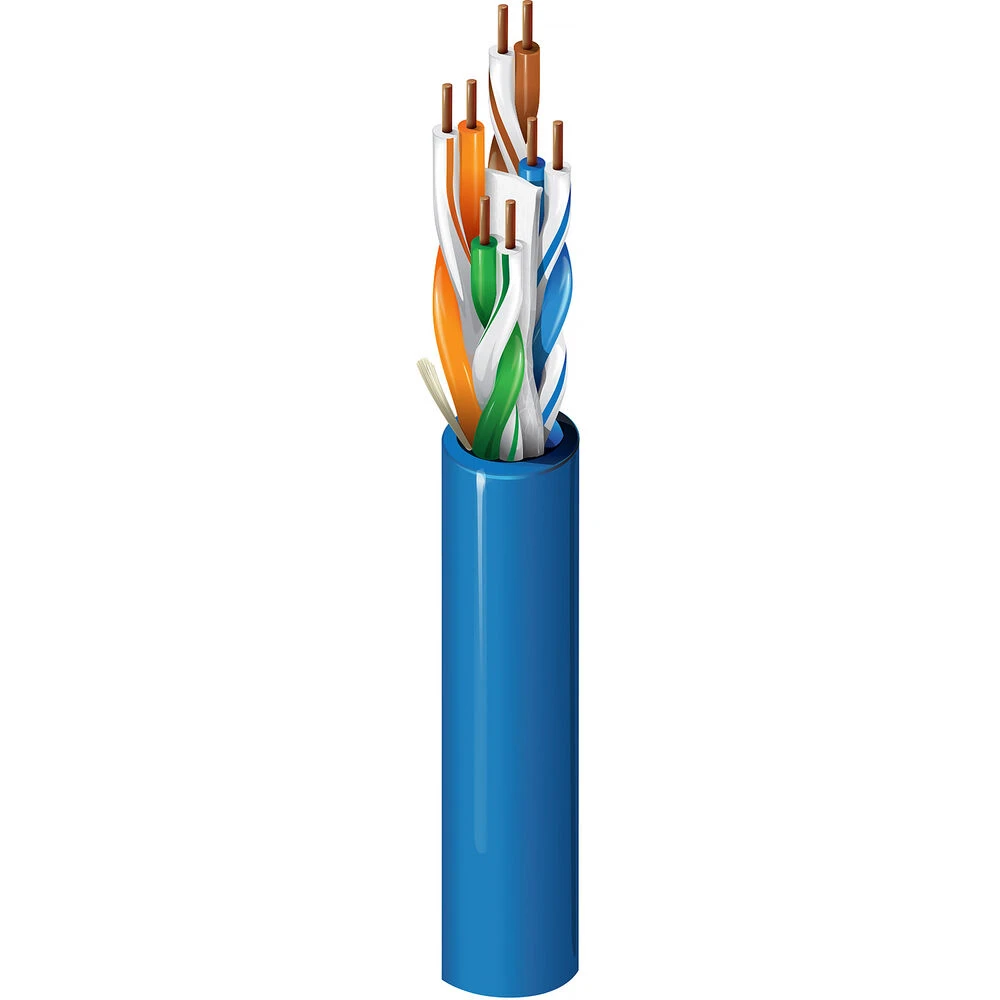

Belden 2413-1000-BLU Overview

The 2413 Multi-Conductor – Enhanced Cat 6 Nonbonded-Pair Cable from Belden is a 1000′ (304.8m) cable with 23 AWG solid bare copper conductors, dual FRPO/FEP insulation, and a tape separator. This is a Plenum cable. It has a ripcord which is situated under the jacket of the cable. The cable is suitable for applications like premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, and 250 MHz Cat 6 cables.

The cable is compatible with the following applications such as premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, and 250 MHz Cat 6 cables.

The Cat 6 cable is made of flame retardant polyolefin/fluorinated ethylene propylene and has bare copper conductors.

Items Included

Belden 2413 Multi-Conductor – Enhanced Cat 6 Nonbonded-Pair Cable (Blue)

Additional Resources

No additional resources available

Belden 2413-1000-BLU Specs

Pairs	4
AWG	23
Stranding	Solid
Color	Blue
Conductor Material	Bare copper
Compatibility	Premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, 250 MHz Cat 6.
Insulation Material	Flame retardant polyolefin/fluorinated ethylene propylene
Outer Shield Material	Unshielded
Outer Jacket Material	LS PVC (low smoke polyvinyl chloride)
Outer Jacket Diameter	0.225″ (0.57 cm) nominal
Outer Jacket Ripcord	Yes
Overall Cabling Separator Material	Dielectric tape
Overall Nominal Diameter	0.225″ (0.57 cm)
Pair Color Code Chart	White/blue stripe and blue White/orange stripe and orange White/green stripe and green White/brown stripe and brown
NEC/(UL) Specification	CMR
Other Standards	ISO/IEC 11801 ed 2.1 (2008) Class E
EU CE Mark	Yes
EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2002/95/EC (RoHS)	Yes
EU RoHS Compliance Date	10/13/2004
EU Directive 2002/96/EC (WEEE)	Yes
EU Directive 2003/11/EC (BFR)	Yes
CA Prop 65 (CJ for Wire and Cable)	Yes
MII Order #39 (China RoHS)	Yes
Telecommunications Standards	Cat 6 – TIA 568.C.2
Other Specification	Third party verified to Cat 6
Country Patent	US 5563377 US 6570095 US 6998537 US 7179999 CANADA 2144694 US 7977575
Flame Test	NFPA 262 plenum flame test (UL910)(FT6)
C(UL) Flame Test	FT6
CSA Flame Test	FT6
Suitability	Indoor: Yes Outdoor: No
Plenum	Yes
Velocity of Propagation	70 VP (%)
Maximum Delay	537 @ 100 MHz delay (ns/100 m)
Max. Delay Skew	45 delay skew (ns/100 m)
Max Conductor DC Resistance	8.2 DCR @ 68°F (20°C) (Ohm/100 m)
Max. Operating Voltage – UL	300 V RMS
Maximum DCR Unbalanced	5 DCR unbalance @ 68°F (20°C) (%)
Storage Temperature Range	68 to 167°F (-20 to 75°C)
Installation Temperature Range	41 to 122°F (5 to 50°C)
Operating Temperature Range	32 to 167°F (0 to 75°C)
Max Recommended Pulling Tension	40 lb (18.14 kg)
Min. Bend Radius/Minor Axis	1″ (2.54 cm)
Length	1000′ (304.8 m)
Weight	27 lbs (12.24 kg)
