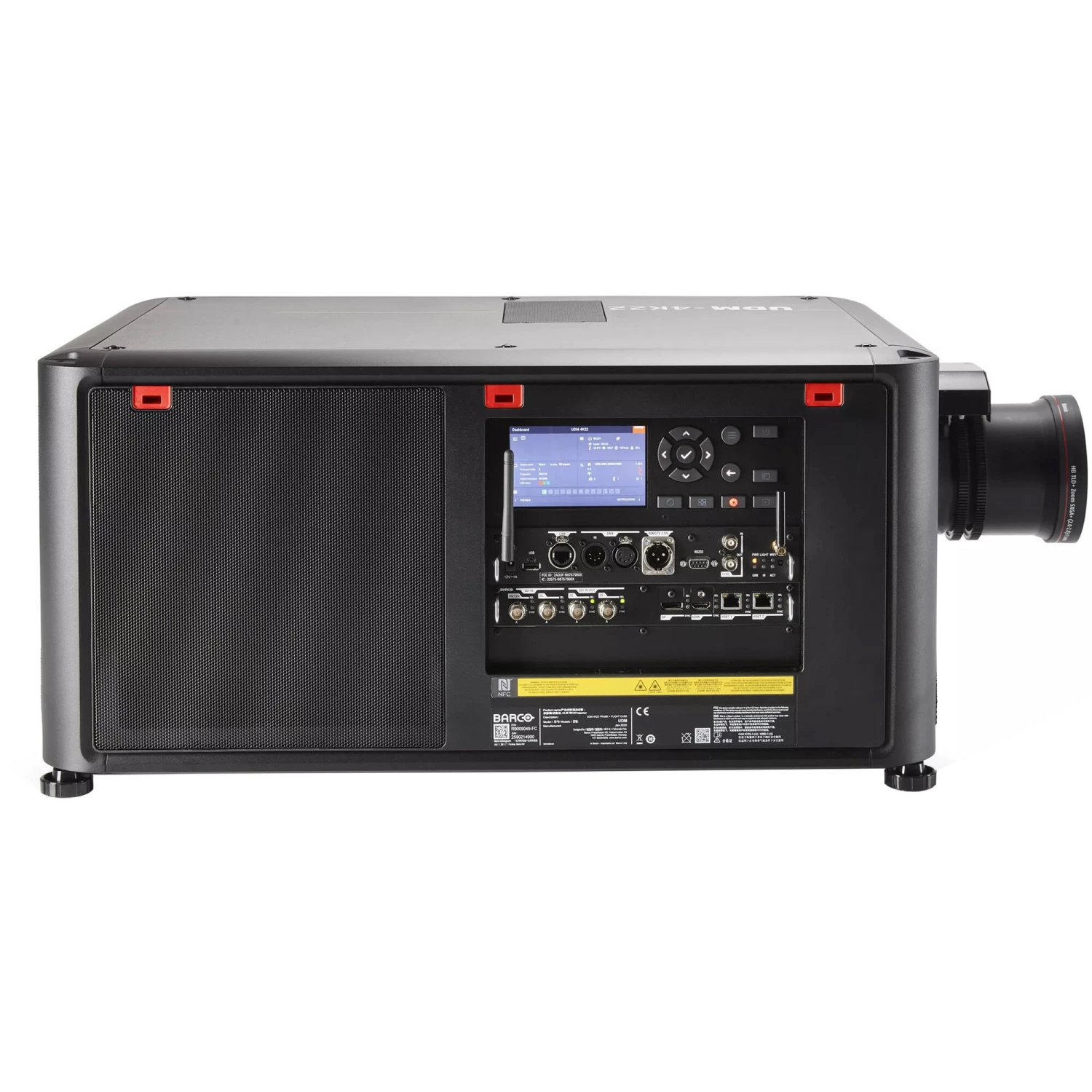

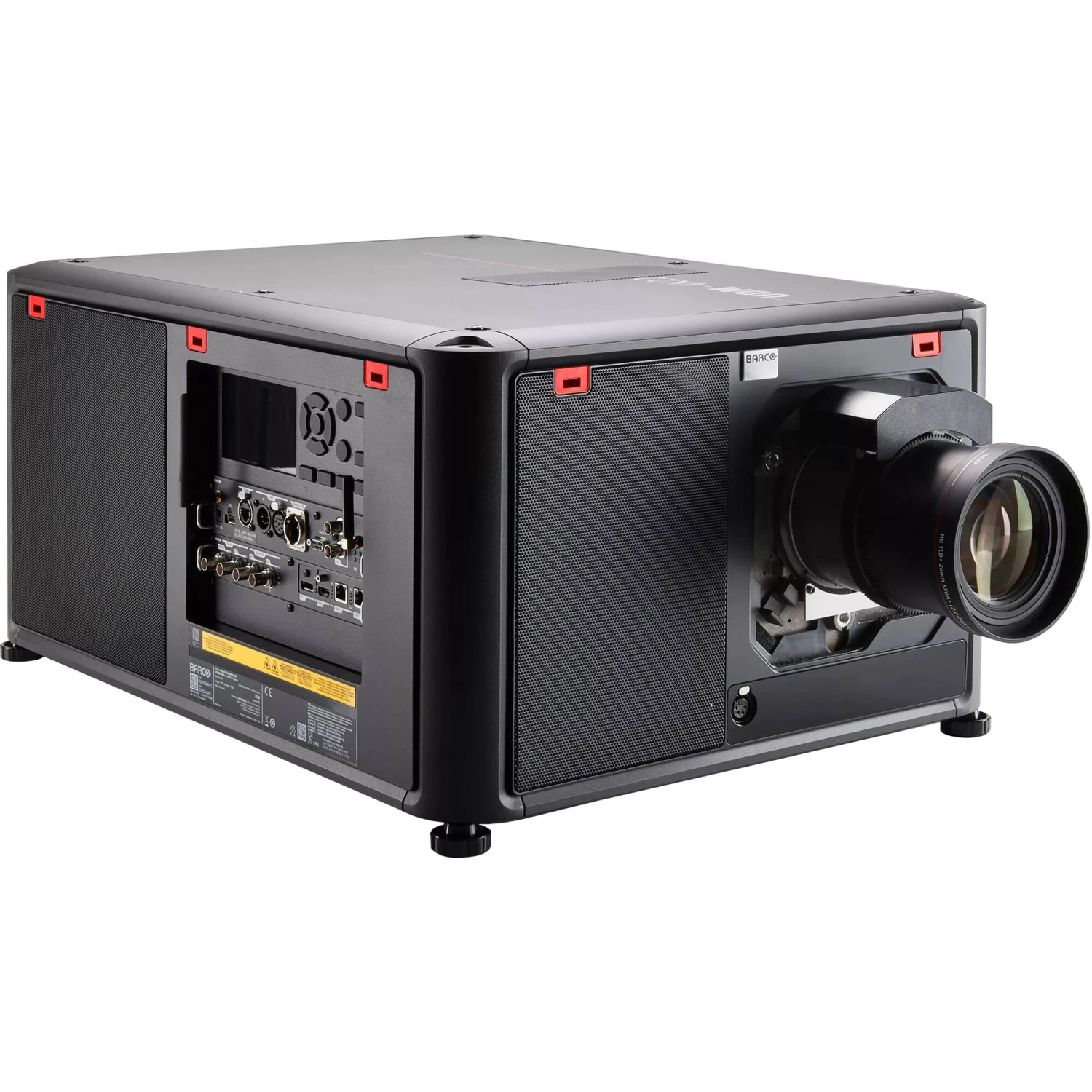

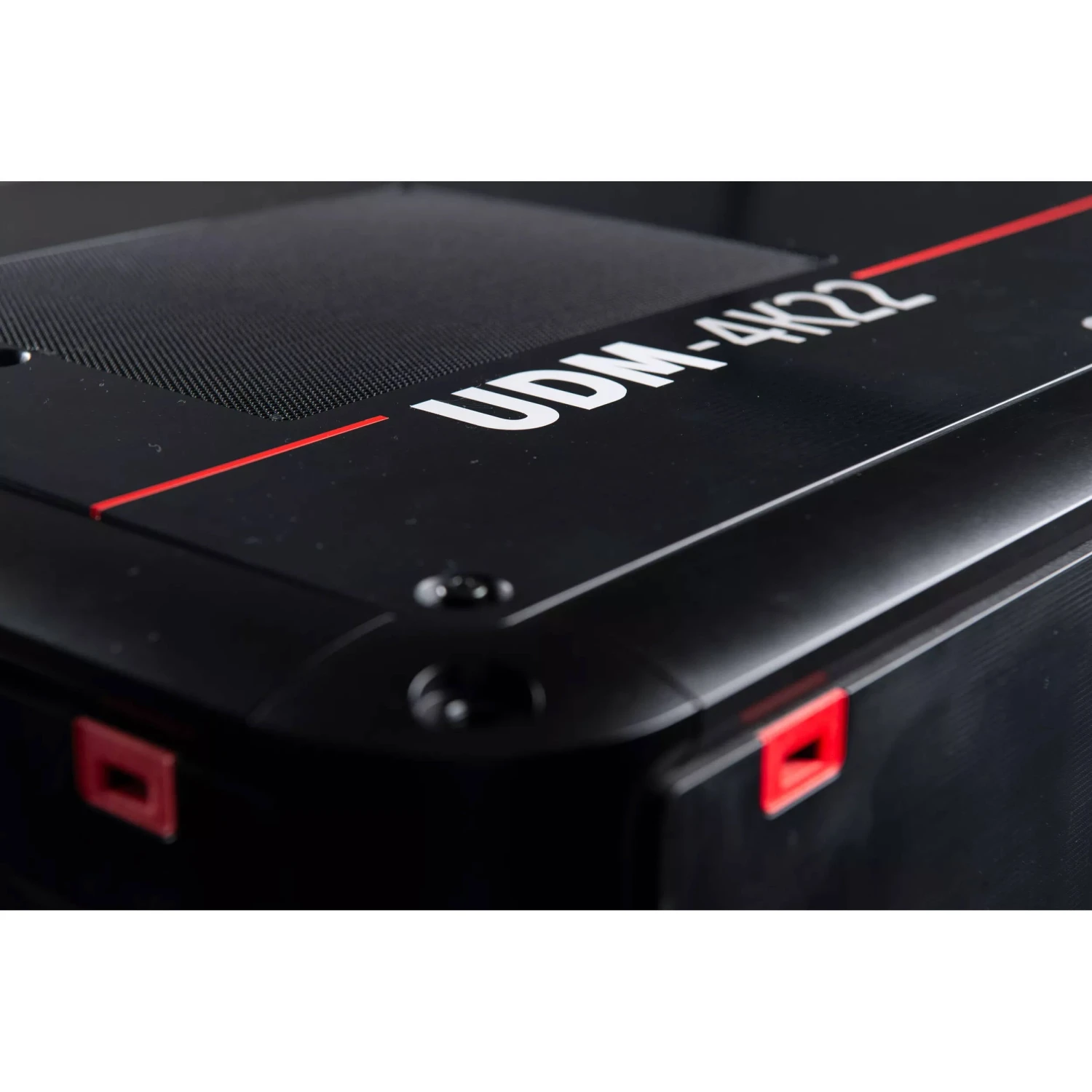

Barco UDM-4K22 22,000-Lumen UHD 4K Laser 3DLP Projector (No Lens, No Wi-Fi)(Barco Udm 4k22 22 000 Lumen Uhd 4k Laser 3dlp Projector No Lens No Wi Fi)

Barco UDM-4K22 22,000-Lumen UHD 4K Laser 3DLP Projector (No Lens, No Wi-Fi)(Barco Udm 4k22 22 000 Lumen Uhd 4k Laser 3dlp Projector No Lens No Wi Fi) - Image 2

Barco UDM-4K22 22,000-Lumen UHD 4K Laser 3DLP Projector (No Lens, No Wi-Fi)(Barco Udm 4k22 22 000 Lumen Uhd 4k Laser 3dlp Projector No Lens No Wi Fi) - Image 3

Barco UDM-4K22 22,000-Lumen UHD 4K Laser 3DLP Projector (No Lens, No Wi-Fi)(Barco Udm 4k22 22 000 Lumen Uhd 4k Laser 3dlp Projector No Lens No Wi Fi) - Image 4

Barco UDM-4K22 22,000-Lumen UHD 4K Laser 3DLP Projector (No Lens, No Wi-Fi)(Barco Udm 4k22 22 000 Lumen Uhd 4k Laser 3dlp Projector No Lens No Wi Fi) - Image 5

Barco UDM-4K22 22,000-Lumen UHD 4K Laser 3DLP Projector (No Lens, No Wi-Fi)(Barco Udm 4k22 22 000 Lumen Uhd 4k Laser 3dlp Projector No Lens No Wi Fi)

Original price was: $399.00.Current price is: $96.99.

SKU: DGFUB 7074943533141 Categories: Audio Visual Presentation, Computer & Presentation, Projectors Tags: All Projectors, Audio Visual Presentation, Barco UDM-4K22, Projectors

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Barco UDM-4K22 Overview

By Photo’s

Frank Abbate

Experience up to 22,000 ISO lumens in a compact, rugged, road-ready design with the UDM-4K22 Laser 3DLP Projector from Barco. The UDM-4K22 is one of the lightest 22K projectors available at around 105 lbs. While the compact and lightweight design of the UDM-4K22 saves you lots of installation time and reduces shipping and labor costs, it never compromises on the quality or brightness of your projection. The UDM-4K22 features 4K UHD on-screen resolution and 19,000 ANSI-lumens light output to deliver impactful 4K experiences with mind-blowing colors. The UDM projector offers one of the widest color spectrums for 22K laser phosphor projection on the market, outperforming the Rec. 709 color space. Additionally, this model, R9409049BU, does not include integrated wireless connectivity so it may be used in secure facilities.

Operational Efficiency

Lift your creativity to unprecedented levels with the widest lens shift on the market and an extensive list of other peripherals which will facilitate a smooth installation and integration of the projector in your setup. Barco’s unique FLEX feature allows you to tune and lock the brightness level or resolution for a specific show. The modular design supports fast maintenance and easy serviceability in the field.

Pulse Electronics

With the Barco Pulse proprietary Single Step Processing technology warping, scaling, and 4K UHD processing is done in only one step. The result? Razor-sharp images, market leading lowest latency, and less dark time than comparable solutions.

Connectivity

The UDM is the first projector in the Barco range which is fully connected. The Barco Insights Management Suite Dashboard and remote log file access enable faster and more effective troubleshooting. Manage the brightness settings of your projector fleet and keep track of operating conditions anywhere and anytime through a secured cloud-based platform and integrated LAN connectivity.

Long Lifetime

Thanks to its robustness and the smart material choices, you can trust UDM to withstand the endurances of life on the road. With the laser phosphor light source, lamp-related costs and maintenance as well as image flicker, belong to the past. Barco’s outstanding integrated laser cooling prevents overheating, and the Constant Light Output functionality guarantees constant brightness and color across the projector’s lifetime.

Items Included

Barco UDM-4K22 22,000-Lumen UHD 4K Laser 3DLP Projector (No Lens, No Wi-Fi)
Power Cord
Wireless/XLR Wired Rugged Remote Control
Limited 3-Year Manufacturer Warranty

Additional Resources

User Manual

18.1 MB

Barco UDM-4K22 Specs

Key Specs

Display System	3-Chip 0.9″ DMD DLP
Native Resolution	2560 x 1600
Maximum Brightness	19,000 Lumens (ANSI) 20,000 Lumens (Center) 22,000 Lumens (ISO)
HDR Support	Yes

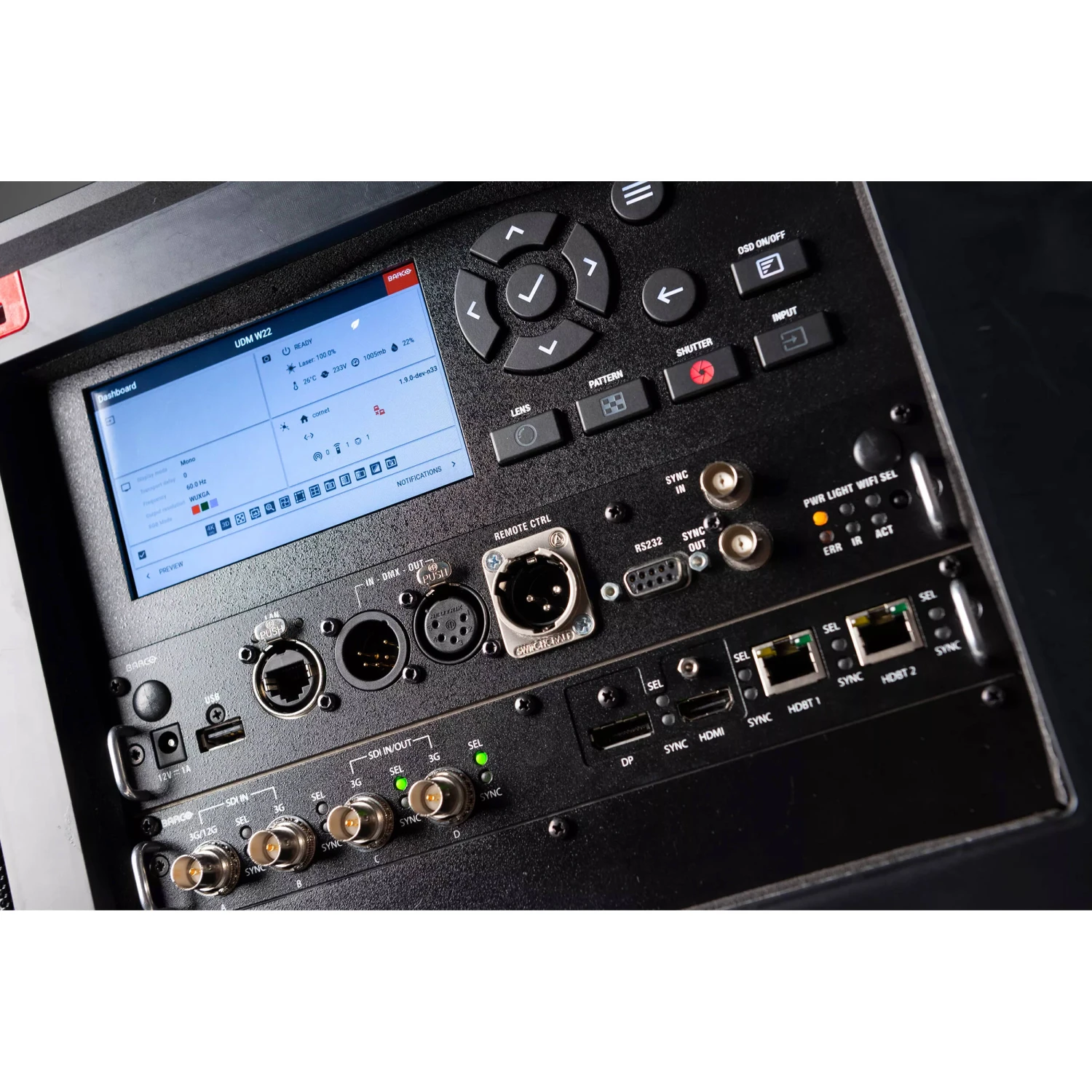

Inputs/Outputs	1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x HDMI 2.0 Audio, Video Input 1x DisplayPort 1.2 Video Input 4x BNC (3G-SDI) Video Input/Output
Light Source	Laser Phosphor

Image Display

Display System	3-Chip 0.9″ DMD DLP
Native Resolution	2560 x 1600
On-Screen Resolution	Up to 3840 x 2400 via Pixel-Shift Technology
Supported Resolutions	Maximum: 4096 x 2160 @ 120 Hz
Maximum Brightness	19,000 Lumens (ANSI) 20,000 Lumens (Center) 22,000 Lumens (ISO)
Uniformity	95%
Aspect Ratio	Native: 16:10
Contrast Ratio	2200:1
Dynamic Contrast Ratio	20,000:1
DLP Link 3D	Yes

Lens

Includes Lens

Features

HDR Support	Yes
Multi-Input Support (PIP/PBP)	Not Specified by Manufacturer

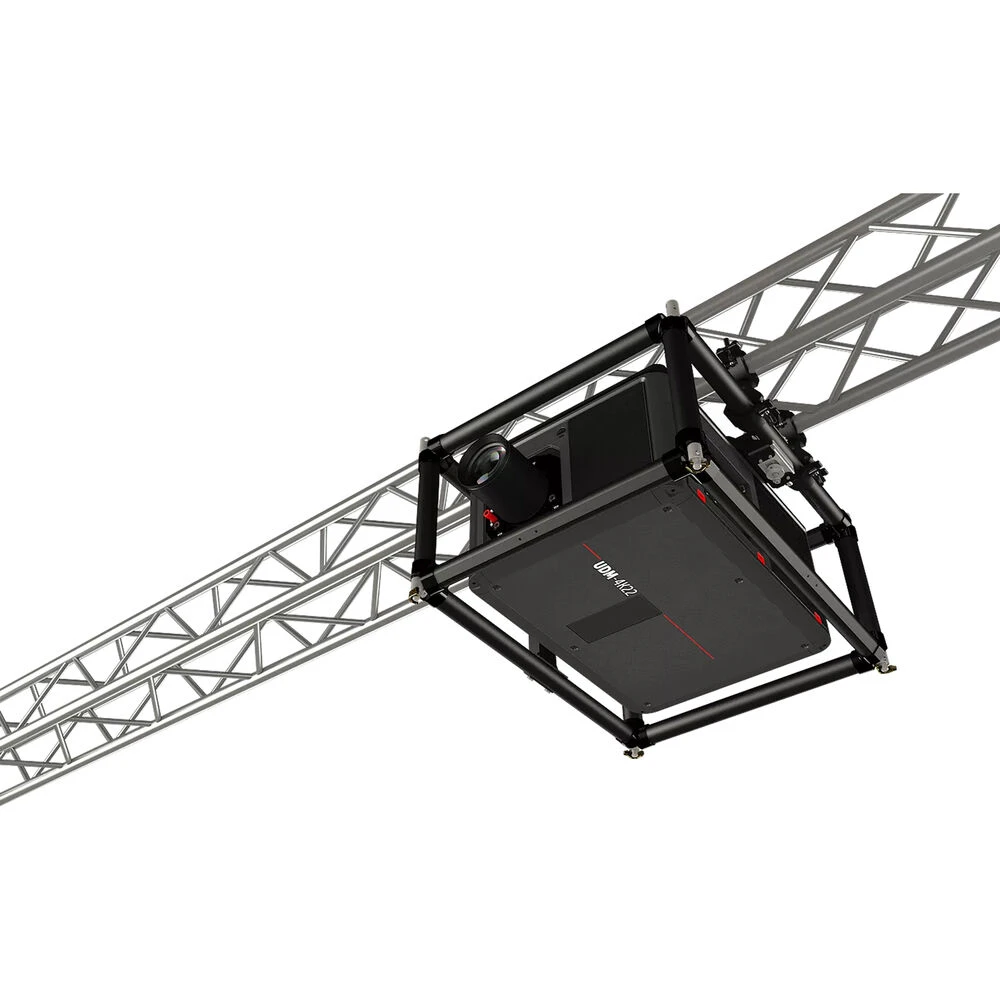

Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	No
Projection Tilt Option	Yes

Input/Output Connectors

Inputs/Outputs	1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x HDMI 2.0 Audio, Video Input 1x DisplayPort 1.2 Video Input 4x BNC (3G-SDI) Video Input/Output
HDCP Support	Yes, Version 2.2
Media/Memory Card Slot	No
Number of Expansion Slots	1

Hardware

Mobile App Compatible	Yes: Android & iOS
Wireless LAN / Wi-Fi	No
Bluetooth	No

General

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 20,000 Hours
Fan Noise	Full Brightness: 48 dB
Input Power	120 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: < 2200 W
Certifications	UL60950-1, EN60950-1, FCC part 15 Class A, CE EN55032 Class A, RoHS
Dimensions (W x H x D)	28.5 x 13.3 x 21.3″ / 725.0 x 339.0 x 540.0 mm
Weight	105.8 lb / 48 kg
