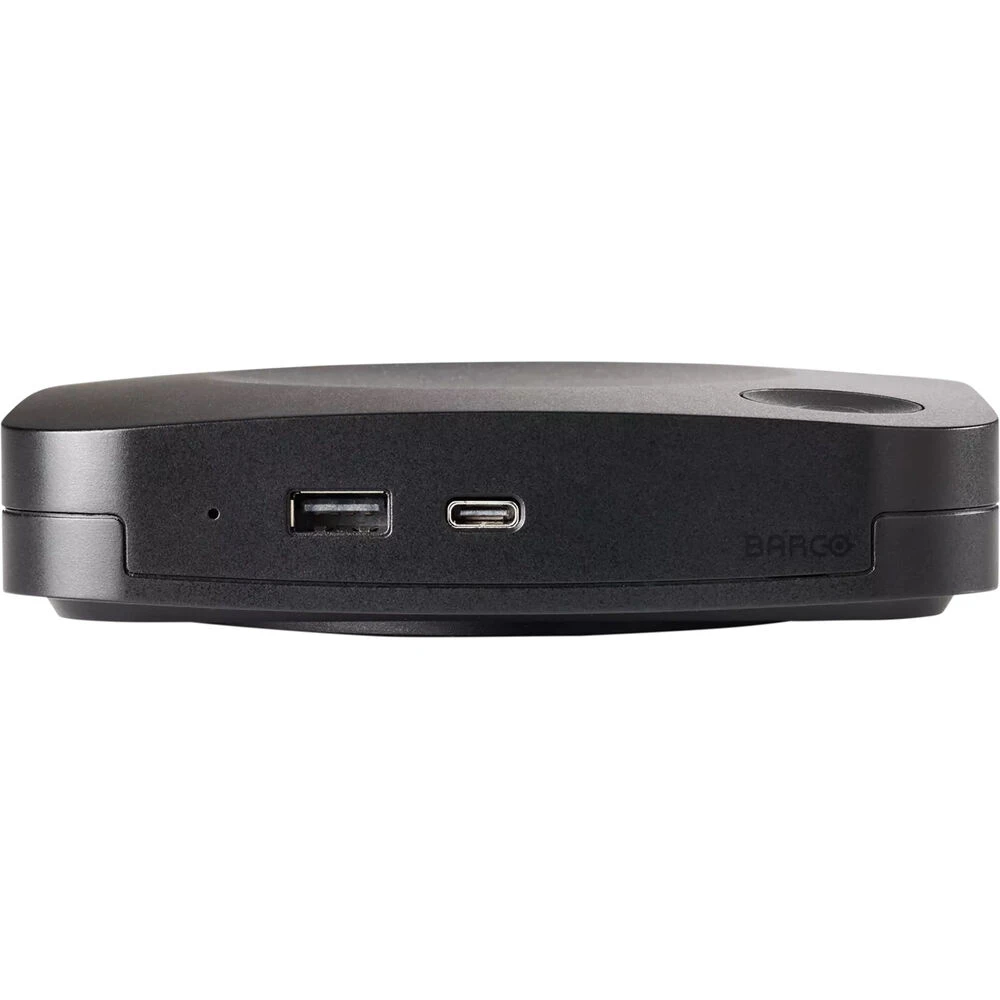

Barco CX-30 Gen 2 Overview
ClickShare CX-30 Gen 2 Wireless Collaboration System with 2 Buttons from
Barco offers an all-in-one conferencing solution for your office. The Gen 2 model provides fast USB-C 3.1 Gen 1 connectivity with DisplayPort 1.2 and power support. Included in the system is a base unit and two summarys for bring-your-own device compatibility using Windows or Mac operating systems and even iOS and Android phones or tablets. Facilitate both in-person and remote participant sharing with this system. When you register your ClickShare CX-30 you will receive an enhanced five-year SmartCare warranty that includes higher service levels, analytics, cloud access, and a knowledge base.
- The system itself has a maximum reach of 100′ between the base and summarys. USB-C and USB-A connections integrate the CX-30 into your preexisting setup while an HDMI port outputs UHD 4K video to a display of your choice.
- Screen sharing and control can be achieved via the summary or software application thanks to the base unit’s LAN port.
- The USB-C port can also be used with DisplayPort 1.2 output as well as power.
- The system is compatible with both macOS and Windows systems and facilitates screen mirroring via Airplay, Google Cast, and Miracast.
- Control over the system’s functions can be achieved with the ClickShare desktop or mobile app, which is compatible with Android and iOS devices. Enhanced security keeps the system connected to the cloud while the XMS cloud management platform remotely manages all units.
In the Box
- Barco ClickShare CX-30 Gen 2 Wireless Collaboration System with 2 Buttons
- 2 x Barco ClickShare USB-C Button (Third-Generation, for C-10, CX-20, CX-30, CX-50)
- Power Adapter
- Limited 1-Year Manufacturer Warranty
Registration Extension: 5-Year
Additional Resources
More from manufacturer
Barco CX-30 Gen 2Specs
| Max Resolution |
UHD 4K (3840 x 2160) at 30 fps |
| Security |
Kensington Lock |
| Max Transmission Distance |
100′ / 30 m (Between ClickShare Button and ClickShare Base Unit) |
| Supported Protocols |
Airplay, Google Cast, Miracast |
| Operating System |
Windows 10 and Higher, macOS 11 (BigSur) and Higher Android v11 and Higher (ClickShare App) iOS 14 and Higher (ClickShare App) |
| Simultaneous Client Access |
32 |
| Noise Level |
Max: 25 dBA @ 32 to 86°F / 0 to 30°C Max: 30 dBA @ 86 to 104°F / 30 to 40°C |
| USB I/O |
1 x USB-C 2.0 Female Input/Output 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Input/Output |
| Video I/O |
1x DisplayPort 1.2 Output 1x HDMI 1.4b Output 1x RJ45 Output |
| Wireless |
Wi-Fi 5 (802.11ac) *Built-In |
| Mobile App Compatible |
Yes: Android & iOS App Name: ClickShare App |
| Power Source |
AC Input, USB |
| AC Input Power |
110 to 220 VAC, 50 / 60 Hz |
| Power Consumption |
5 W 10 W 24 W (Maximum) |
| Color |
Black |
| Certifications |
CE, FCC |
| Operating Conditions |
32 to 104°F / 0 to 40°C up to 85% Humidity |
| Storage Conditions |
-4 to 140°F / -20 to 60°C up to 90% Humidity |
| Dimensions |
5.3 x 5.3 x 1.3″ / 135 x 135 x 34 mm (Base Unit) |
| Weight |
31.7 oz / 900 g (Base Unit) |
| Package Weight |
2.96 lb |
| Box Dimensions (LxWxH) |
10.3 x 6.9 x 3.3″ |
