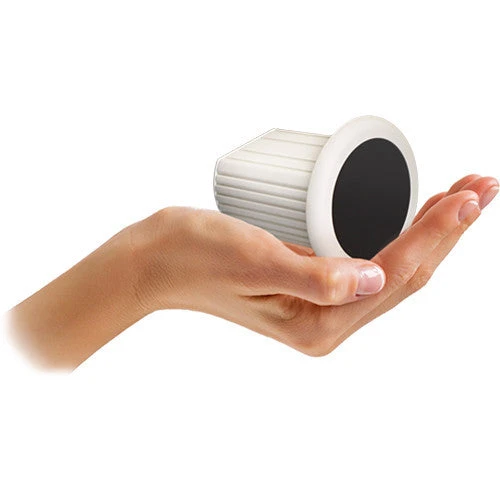

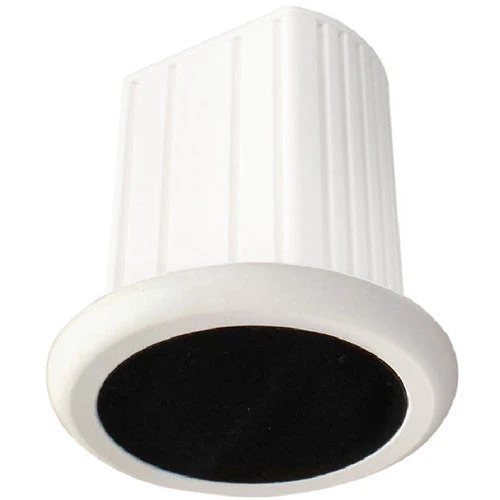

The OMNI AT-3LE Compact Infrared Indoor Illuminator from Axton can be powered via a 12 VDC power adapter or via PoE. It has low visibility and a rugged design to prevent detection and possible tampering or damage. After installation, only 3″ disk is visible. It is suitable for drop-ceilings or drywall installations.
Note: For optimal performance, each illuminator should be at least 12″ away from the camera.
- Wavelength of 850nm (semi-covert)
- Energy efficient with power consumption of 3W

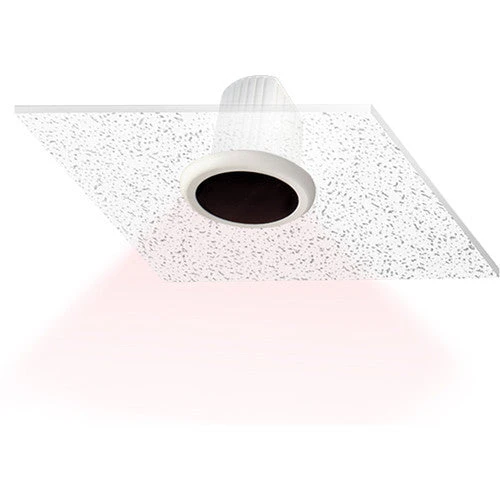

- Indoor recessed mounting
- Discreet low-profile design
- Vandal-resistant enclosure
- Coverage of up to 2070 ft 2
| Wavelength | 850 nm (semi-covert) infrared |
| Input Power | 12 VDC or PoE 802.3af |
| Power Consumption | 3 W |
| Operating Temperature | -2 to 157°F / -20 to 52°C |
| Environmental | IP55 for indoor use only |
| Mounting | In-ceiling |
| Coverage Area | 2070 ft 2 / 192.309 m 2 |
| Dimensions | 3.0 x 2.7″ / 76 x 69 mm |
| Weight | 6 oz / 170 g |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 6.0 x 6.0 x 6.0″ |
- Limited Lifetime Warranty
