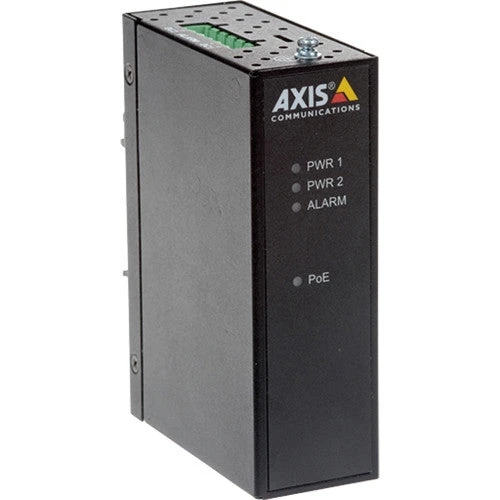

Axis Communications T8144 60W Industrial Midspan(Axis Communications T8144 60w Industrial Midspan)

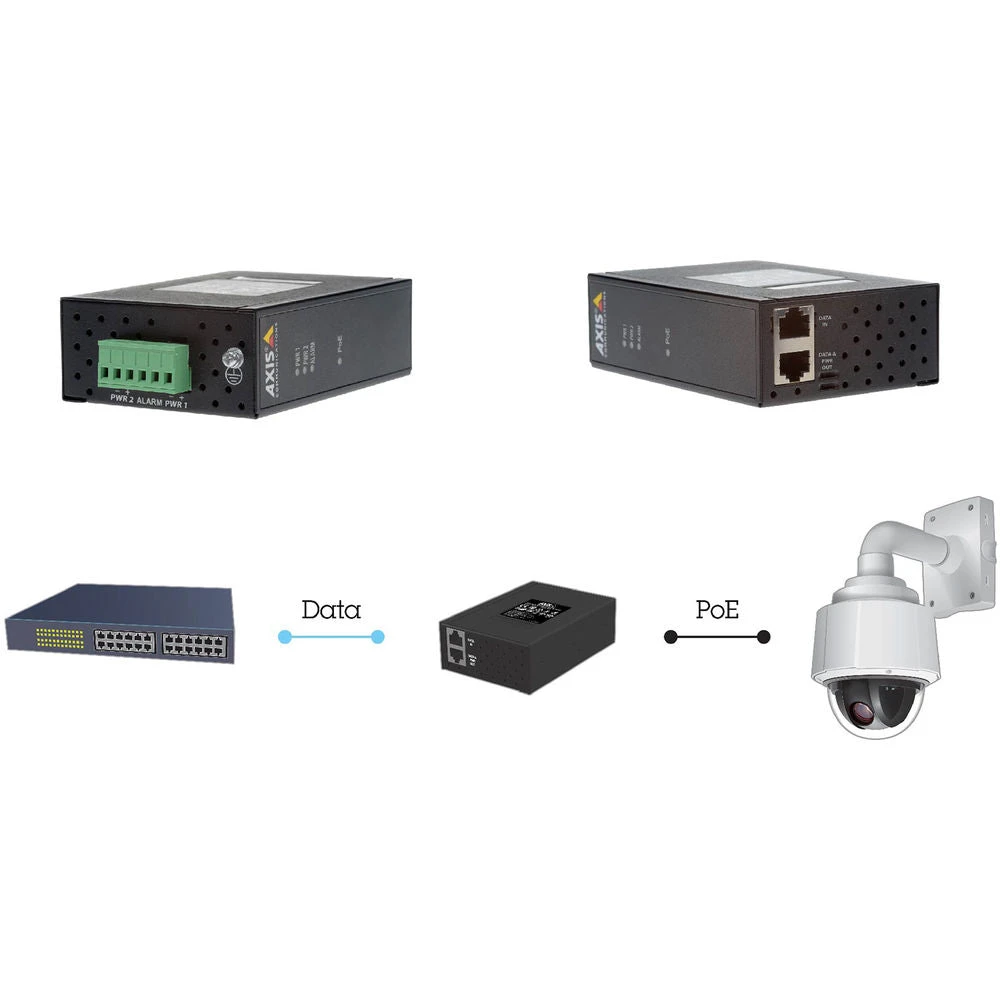

The black T8144 60W Industrial Midspan from Axis Communications is a 1-port midspan that can be used with a PoE splitter for powering network video product without built-in PoE support. Data and power are provided to a network video product through an Ethernet cable. This device has dual DC inputs for power redundancy and is suitable for mounting inside cabinets or on DIN rails. It automatically detects PoE and PoE-enabled devices and supplies inline power.

Data Rate	10/100/1000 Mb/s
Power Source	High Power over Ethernet (PoE)
Power Input	Voltage: 20 to 60 VDC Wattage: Maximum 72 W
Power Output	Voltage: 55 VDC Power: Maximum 60 W
Power Consumption	No Remote Device Connected: 2 W 30 W Remote Device Connected: 36 W 60 W Remote Device Connected: 72 W
Connectors	Shielded RJ45, EIA 568A, and 568B 6-pin DC power and alarm terminal connector
Wiring	Data provided over pairs 1/2 and 3/6 for 10/100 Ethernet, over all four pairs for Gigabit Ethernet Power over pairs 1/2 (-), 3/6 (+), 4/5 (+), and 7/8 (-)
Casing	Steel
Sustainability	PVC-free
LED Indicators	PoE LED Power LEDs: PWR 1 and PWR 2 Alarm LED
Mounting	Wall or DIN rail
Operating Conditions	-40 to 167°F / -40 to 75°C Humidity maximum 95% RH (non-condensing)
Storage Conditions	-40 to 185°F / -40 to 85°C
Approvals	Safety: IEC/EN/UL 62368-1 EMC EN 55024, EN 55032 Class A, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, ICES-003 Class A, EAC Environment RoHS, REACH, WEEE
Dimensions	3.1 x 1.4 x 4.4″ / 78 x 36 x 111 mm
Weight	11.1 oz / 315 g
