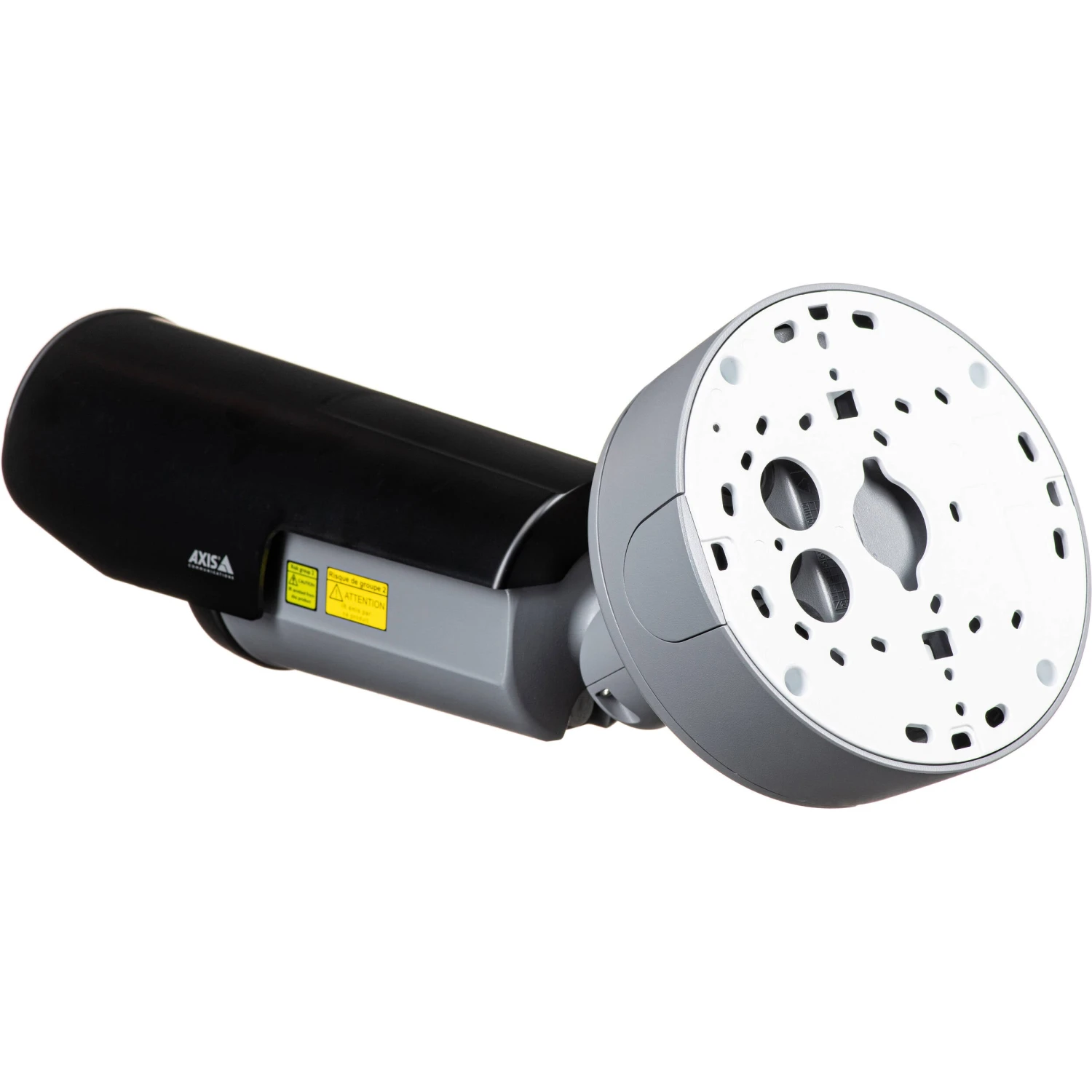

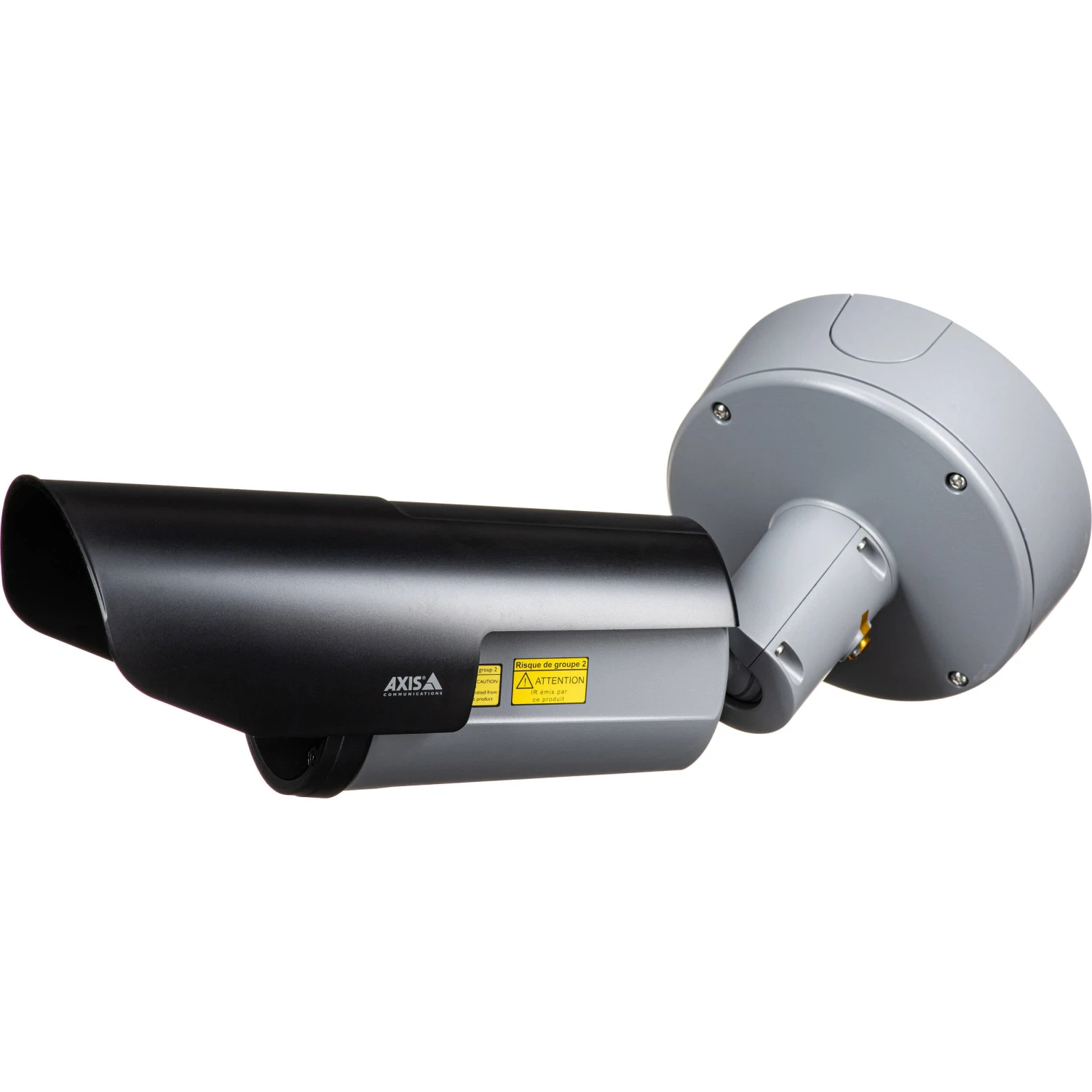

Axis Communications Q1800-LE-3 Overview

Capture license plates of moving vehicles day and night with the Q1800-LE-3 2MP Outdoor Network License Plate Verifier Kit from Axis Communications. This unit captures license plates of vehicles traveling at up to 124 mph from distances up to 328′ away. It features a 1/2.8″ progressive scan RGB CMOS image sensor to capture 1080p resolution video at 90 fps. IR LEDs provide night vision up to 164′. The camera’s 7-137mm varifocal lens delivers a 38 to 2.3° horizontal angle of view. An onboard card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.

This bullet camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure for protection from inclement weather and impact.

Main Features

Axis License Plate Verifier preinstalled
Single lane coverage with optional edge analytics
Analytics include Axis License Plate Verifier, Axis Scene Metadata, Axis Speed Monitor, Axis Video Motion Detection, active tampering alarm, and audio detection, with support for third-party applications
Can be installed from a mounting height up to 33′
Axis Lightfinder 2.0 technology, OptimizedIR, and forensic WDR for challenging and low-light conditions
Axis Zipstream technology lowers bandwidth and storage requirements
Up to 20 unique and configurable video streams
Controllable frame rate and bandwidth (VBR/ABR/MBR H.264/H.265)
3.9′ minimum focus distance
Electronic image stabilization
PoE output to power an additional device
Image settings include saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, compression, 0, 90, 180, and 270° rotation including corridor format, mirroring, text and image overlay, dynamic text and image overlay, polygon privacy mask, and scene profiles (license plate)
3.5mm audio input
Two-way audio support via edge-to-edge technology and network speaker pairing
Supports microphone, speaker, and radar pairing
Axis Edge Vault safeguards the device and offers secure key storage with FIPS 140-2 level 2 certification
Built-in weathershield withstands winds up to 134 mph
PVC and BFR/CFR free

Items Included

Axis Communications Q1800-LE-3 2MP Outdoor Network License Plate Verifier Kit
Axis License Plate Verifier License
Terminal Block Connector
RJ45 Cable
Connector Guard
Cable Gaskets
Owner Authentication Key
Limited 5-Year Manufacturer Warranty

Additional Resources

No additional resources available

Axis Communications Q1800-LE-3 Specs

Key Specs

Image Sensor	1/2.8″-Type CMOS
Focal Length	7 to 137mm
Field of View	Horizontal: 38 to 2.3° Vertical: 22 to 1.3°
Built-In Microphone	No
Power I/O	1x RJ45 (10 to 28VDC) 1x RJ45 (20 to 24VAC)

Imaging

Number of Lenses	1
Image Sensor	1/2.8″-Type CMOS
Sensor Resolution	Effective: 2 Megapixel
IR Cut Filter	Yes
Day/Night	Yes
DORI Coverage	With 7 to 137mm Lens: Detect: 317.3 to 6181.8′ / 96.7 to 1884.2 m Observe: 126.0 to 2453.1′ / 38.4 to 747.7 m Recognize: 63.3 to 1236.2′ / 19.3 to 376.8 m Identify: 31.8 to 618.1′ / 9.7 to 188.4 m

Exposure Control

Shutter Speed	1/111000 to 2 Second
Automatic Gain Control	Yes
Signal-to-Noise Ratio	55 dB
Minimum Illumination	0.06 Lux (Color) 0 Lux (Black and White)

Lens

Focal Length	7 to 137mm
Optical Zoom Ratio	19.6x
Field of View	Horizontal: 38 to 2.3° Vertical: 22 to 1.3°
Maximum Aperture	f/1.5 to 4

Video

Max IP Streaming	H.264, H.265, MJPEG via RJ45 1920 x 1080 up to 90 fps
Multi-View Streaming	Yes, 20 Streams

Control

Camera Angle Adjustment

Horizontal: -180 to 180°
Vertical: -90 to 0°
Rotation: -90 to 270°

Networking

Security	Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, Password Protection
Supported Protocols	Bonjour, CDP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, mDNS, MQTT, NTP, ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSH, SSL/TLS, syslog, TCP, UDP, UPnP, USGv6, Zero Configuration

Interface

Media/Memory Card Slot	Single Slot: microSD/microSDHC/microSDXC
Audio I/O	1x 1/8″ / 3.5 mm TS Mono Mic/Line Input
Other I/O	1x RJ45 1x Block 4-Pin
1- or 2-Way Audio	One-Way
Audio Formats	AAC-LC, G.711, G.726, LPCM, Opus
Built-In Microphone	No
Memory	2048 MB RAM / 8192 MB Flash
External Storage Options	Cloud, NAS

System Integration

Analytics	Audio Detection, Camera Sabotage/Tampering, License Plate Recognition, Motion Detection, Scene Change Detection, Vehicle Detection, Vehicle Speed
Built-In Installation Aids	Level Grid, Pixel Counter, Remote Focus, Remote Zoom

Sensors & Alarms

Event Trigger	Yes
Event Action	Recording, Notification, Alarm
Alarm I/O	No

Power

PoE Support	PoE+ 802.3at, PoE 802.3af
Power I/O	1x RJ45 (10 to 28VDC) 1x RJ45 (20 to 24VAC)
Power Consumption	PoE: 12.6 to 25.5 W 10 to 28 VDC 11 to 29 W

Environmental

Operating Conditions	-40 to 140°F / -40 to 60°C at 10 to 100% Humidity
Storage Conditions	-40 to 149°F / -40 to 65°C at 5 to 95% Humidity
Impact Resistance	Impact-Resistant (IK10)
Environmental Resistance	Dust/Weather/Water-Resistant (IP66)

General

Material of Construction	Aluminum
Certifications	BIS, CAN/CSA, CE, EN, ETSI, EU, FCC, ICES, IEC, IEC/EN, IEC/EN/UL, KC, NDAA, RCM, RCM, REACH, RoHS, TAA, UKCA, UL, VCCI, cUL
Illumination	850 nm IR LEDs up to 164′ / 50 m
Supported Languages	Czech Dutch English Finnish French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese
Dimensions (W x H x D)	5.5 x 7.2 x 18.3″ / 139 x 183 x 464 mm
Weight	7.0 lb / 3200 g (Body Only)

Packaging Info

Package Weight	8.975 lb
Box Dimensions (LxWxH)	17.8 x 9.3 x 7.8″
