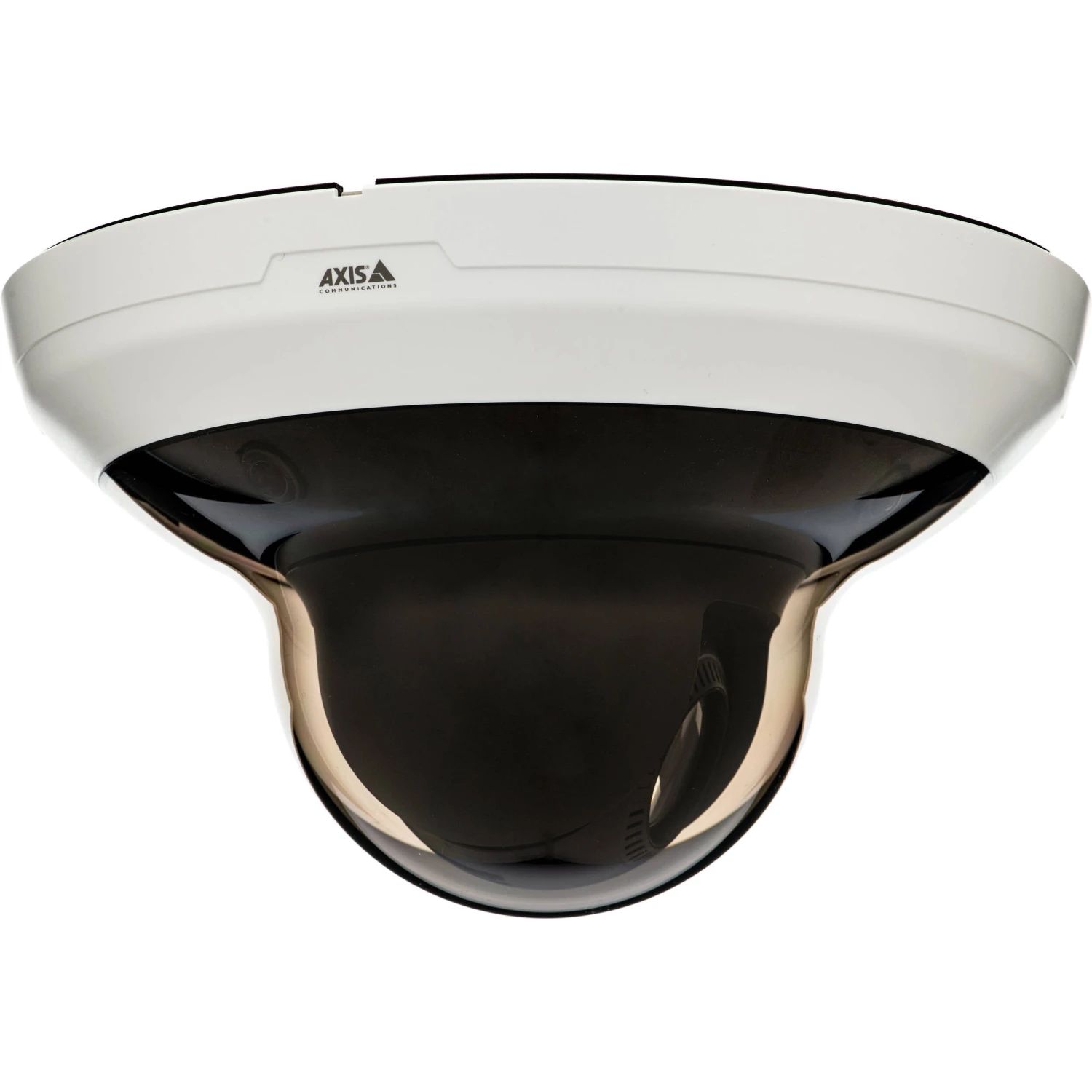

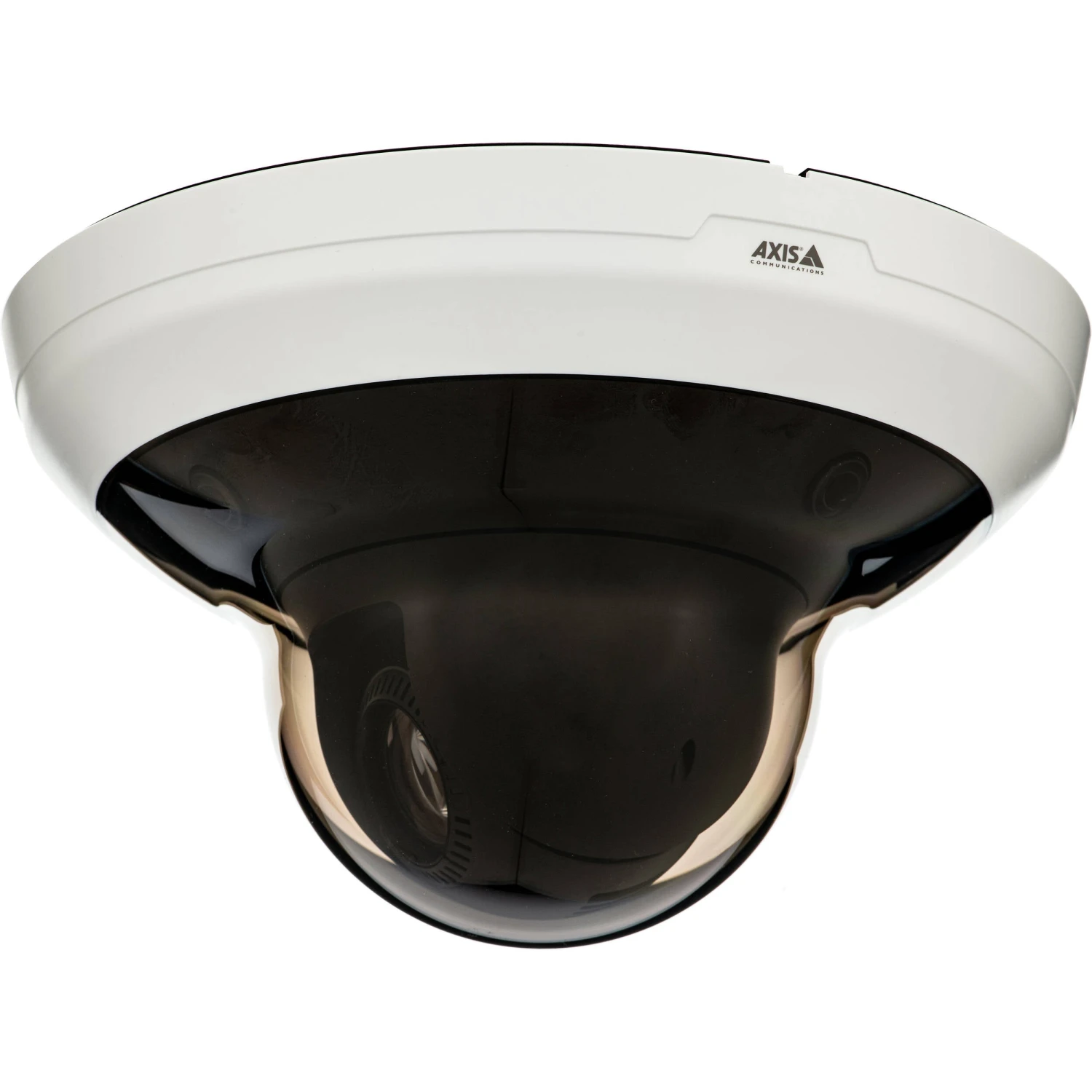

Axis Communications M5000-G Overview
Designed for use in indoor areas, the Axis Communications M5000-G combines a 1080p PTZ camera with three overview cameras, each equipped with a 5MP sensor, in one body for complete situational awareness and coverage of up to 4300 square feet. The PTZ camera features a 4.7-47mm varifocal lens that delivers a 61.8 to 6.7° horizontal field of view, along with endless panning, a 180° tilt range, and 10x optical zoom. The overview cameras feature 2.39mm fixed lenses that provide a combined 360° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts SD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. Wireless I/O connectivity with Z-Wave Plus enables you to communicate with up to six devices
In the Box
- Axis Communications M5000-G 15MP PTZ Network Dome Camera
- Windows Decoder 1-User License
- Drill Hole Template
- Terminal Block Connectors
- Connecter Guard
- Bayonette Screws
Axis Communications M5000-G Specs
| Image Sensor | PTZ Camera: 1/2.8″ Progressive Scan RGB CMOS Overview Cameras: 1/2.8″ Progressive Scan RGB CMOS |
| Lens | PTZ Camera: Varifocal, 4.7-47 mm, f/1.6-3.0, Autofocus, Auto/Precise Iris Control Overview Cameras: 2.39mm, f/2.0 |
| Field of View | PTZ Camera Horizontal Field of View: 61.8 to 6.7° Vertical Field of View: 36.3 to 3.8° Overview Cameras |
| Day & Night | PTZ Camera: Automatically Removable IR Cut Filter |
| Minimum Illumination | PTZ Camera Color: 0.09 Lux at 30 IRE f/1.6 B&W: 0.01 Lux at 30 IRE f/1.6 Color: 0.1 Lux at 50 IRE f/1.6 B&W: 0.01 Lux at 50 IRE f/1.6 Overview Cameras |
| Shutter Speed | PTZ Camera: 1/66,500 to 2 Seconds Overview Cameras: 1/50,000 to 2 Seconds |
| PTZ | Pan: 360° with Autoflip, 1.8 to 150°/s Tilt: 180°, 1.8 to 150°/s 10x Optical Zoom, 12x Digital Zoom, 120x Total Zoom 100 Preset Positions, Limited Guard Tour, Control Queue, On-Screen Directional Indicator, eFlip, Click-in-Image |
| SoC | ARTPEC-7 |
| Memory | 2048 MB RAM, 512 MB Flash |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile, MJPEG |
| Resolution | PTZ Camera: 1920 x 1080 to 320 x 180 Overview Cameras: 2592 x 1944 to 320 x 180 |
| Frame Rate | PTZ Camera: Up to 25/30 fps with Power Line Frequency 50/60 Hz Overview Cameras: Up to 12 fps with Power Line Frequency 50/60 Hz |
| Video Streaming | Multiple, Individually Configurable Streams in H.264, H.265, and MJPEG Axis Zipstream Technology in H.264 and H.265 Controllable Frame Rate and Bandwidth VBR/ABR/MBR H.264/H.265 Video Streaming Indicator |
| Image Settings | Saturation, Contrast, Brightness, Sharpness, WDR (Forensic Capture), White Balance, Day/Night Threshold, Tone Mapping, Exposure Mode, Exposure Zones, Compression, Z-Wave Overlay, Text and Image Overlay, Polygon Privacy Masks, Image Freeze on PTZ, Local Contrast, Max Shutter, Max Gain, Noise/Motion Priority, Aperture Lock, Exposure Level, Scene Profiles (Indoor, Forensic) |
| Audio Streaming | Two-Way, Full Duplex |
| Audio Encoding | 24-bit LPCM, AAC-LC 8/16/32/44.1 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable Bit Rate |
| Audio Input & Output | External Microphone Input or Line Input, Line Output, Automatic Gain Control |
| Security | Password Protection, IP Address Filtering, HTTPS Encryption, IEEE 802.1x (EAP-TLS) Network Access Control, Digest Authentication, User Access Log, Centralized Certificate Management, Brute Force Delay Protection, Signed Firmware, Secure Boot, Signed Video, Axis Edge Vault, Axis Device ID, Secure Keystore (CC EAL4 Certified) |
| Supported Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local Address (ZeroConf), Z-Wave Plus v2 |
| API | Open API for Software Integration, including VAPIX and AXIS Camera Application Platform One-Click Cloud Connection ONVIF Profiles G, S & T |
| Onscreen Controls | Focus Recall Area Video Streaming Indicator Privacy Masks Day/Night Shift |
| Event Conditions | Audio: Audio Clip Playing Device Status: Above Operating Temperature, Above or Below Operating Temperature, Below Operating Temperature, IP Address Removed, Network Lost, New IP Address, Storage Failure, System Ready, within Operating Temperature Edge Storage: Recording Ongoing, Storage Disruption, Storage Health Issues Detected I/O: Manual Trigger, Virtual Input MQTT Subscribe PTZ: PTZ Malfunctioning, PTZ Movement, PTZ Preset Position Reached, PTZ Ready Scheduled and Recurring: Scheduled Event Video: Average Bitrate Degradation, Day-Night Mode, Live Stream Open |
| Event Actions | Audio Clips: Play, Play while the Rule is Active, Stop Playing Guard Tours: Run while the Rule is Active, Start MQTT Publish Notification: Email, HTTP, HTTPS, TCP, and SNMP Trap Record Video: SD Card and Network Share Upload of Images or Video Clips: FTP, SFTP, HTTP, HTTPS, Network Share, and Email Day-Night Mode, Overlay Text, Preset Positions, WDR Mode |
| Data Streaming | Event Data |
| Built-In Installation Aids | Pixel Counter |
| Analytics | Included: AXIS Loitering Guard, AXIS Video Motion Detection, Audio Detection, Shock Detection, Advanced Gatekeeper Support for AXIS Camera Application Platform enabling Installation of Third-Party Applications |
| Casing | IP51 Rated Repaintable Plastic Casing, Polycarbonate (PC) Dome |
| Sustainability | PVC Free, BFR/CFR Free |
| Power | PoE 802.3at Type 2 Class 4 Typical 7.6 W, Maximum 13.4 W 20-28 VDC, Typical 6.6 W, Maximum 12.1 W (PoE Midspan and Power Supply not Included) |
| Connectors | 1000M RJ45 PoE DC Input Terminal Block Audio: Mic/Line In, Line Out Terminal Block |
| Storage | Support for SD/SDHC/SDXC Card Support for SD card Encryption (AES-XTS-Plain64 256-bit) Support for Recording to Network-Attached Storage (NAS) |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese |
| Video Management Software | AXIS Companion, AXIS Camera Station, VMS from Axis Application Development Partners |
| Approvals | EMC: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, VCCI Class A, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A) Safety: CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1 Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP51 Radio: EN 62311, EN 300220-2, EN 301489-1, EN 301489-3, MIC, FCC Part 15 Subpart C, RSS-210 Network: NIST SP500-267 |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 85% RH (Non-Condensing) |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Storage Humidity | 5 to 95% RH (Non-Condensing) |
| Dimensions (Diameter x Height) | 9.7 x 5.4″ / 247 to 138 mm |
| Weight | 4.3 lb / 1.95 kg |
| Package Weight | 5.78 lb |
| Box Dimensions (LxWxH) | 11.8 x 11.7 x 8.7″ |
