Axis Communications D2210-VE Overview

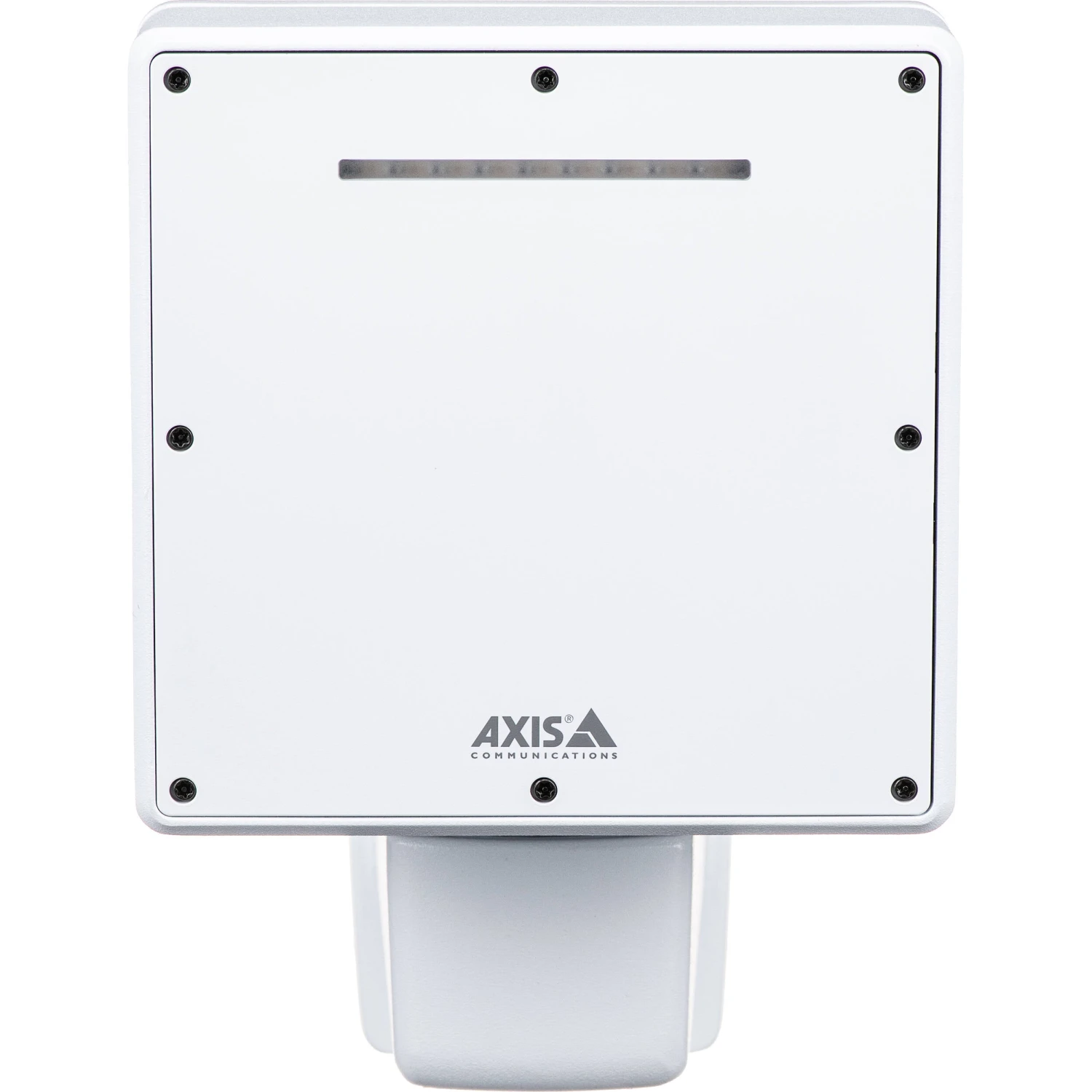

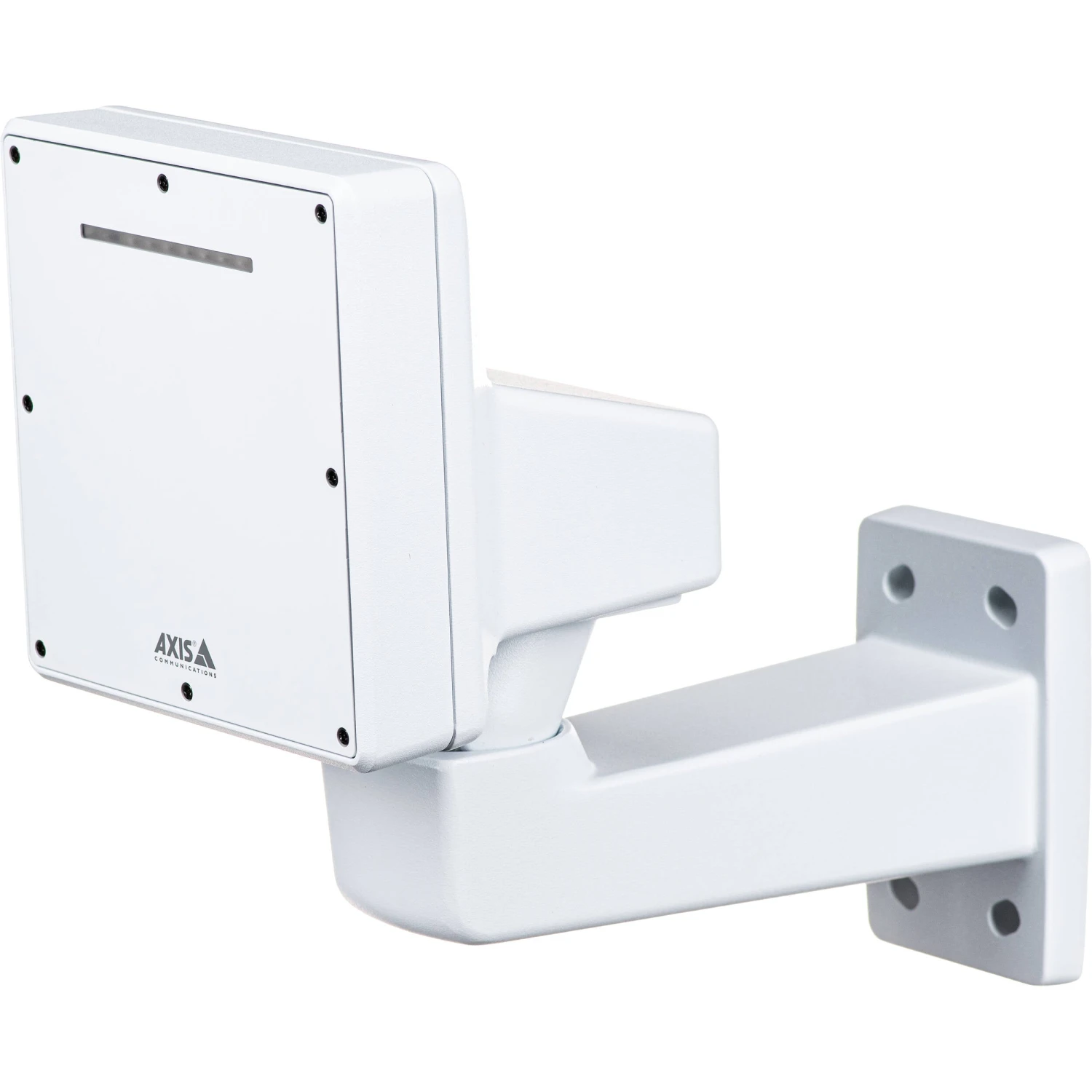

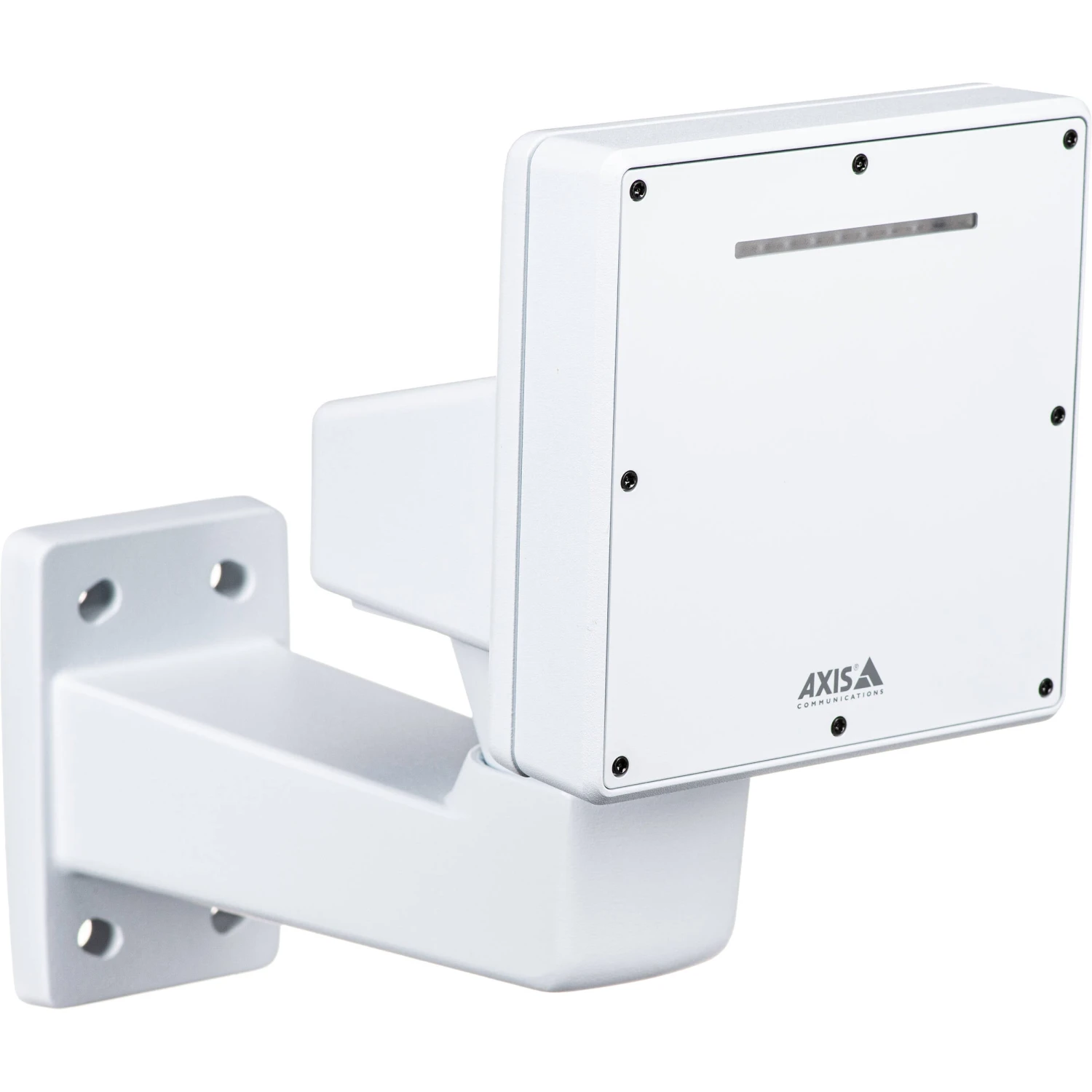

The white D2210-VE Security Radar from Axis Communications utilizes radar technology to provide 95° area coverage. The unit can detect, classify, and track people and vehicles 24/7 to minimize false alarms when integrated into your video surveillance system. It has a 200′ area monitoring detection range for people and a 300′ range for vehicles, along with a 492′ road monitoring detection range when detecting a vehicle. Integrated PoE technology simplifies connectivity by transferring power and data over one cable. Additionally, a PoE output can connect and power another device, such as a camera for visual verification or a network horn speaker for deterrence. A built-in memory card slot supports microSD/SDHC/SDXC cards (available separately).

The D2210-VE complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.

Compact network-based device uses advanced radar technology to accurately detect, classify, and track humans/vehicles in various weather and light conditions

FMCW radar sensor

95° field of detection

Integrated dynamic LED strip can be used to deter, warn, or notify

LED strip features daylight visibility up to 197′

Radial speed up to 34 mph for area monitoring and up to 125 mph for road monitoring

1.6′ area monitoring and 2.6′ road monitoring distance accuracy

1° angle and ±1.25 mph speed accuracy

1148′ radius (up to 8 radars)

29,000 ft² people and 65,600 ft² vehicle area monitoring profile coverage

Radar controls include: multiple detection zones, line crossing detection with one or two lines, exclude zones with filters for short-lived objects, object speed, object type, configurable trigger duration, radar transmission on/off, reference map, grid opacity, zone opacity, color scheme, trail lifetime, detection sensitivity, swaying object filter, small object filter, and frequency channel

Supports up to 20 unique and configurable video streams at resolutions up to 1080p (10 fps at all resolutions)

Image settings include: compression, rotation: 0, 90, 180, and 270°, dynamic text and image overlay

Analytics include: Axis Speed Monitor, Axis Radar Integration for Microbus, and support for third-party applications

Deep learning processing unit (DLPU)

Built-in installation aids include: reference map calibration, sensor for tilt angle, and GPS position

Audio output via edge-to-edge technology and network speaker pairing

Supports microSD card encryption and recording to NAS

Recommended mounting height of 11 to 39′

15° recommended mounting tilt

Operational in sustained winds up to 168 mph

PVC and BFR/CFR free

Items Included

Axis Communications D2210-VE Security Radar (White)

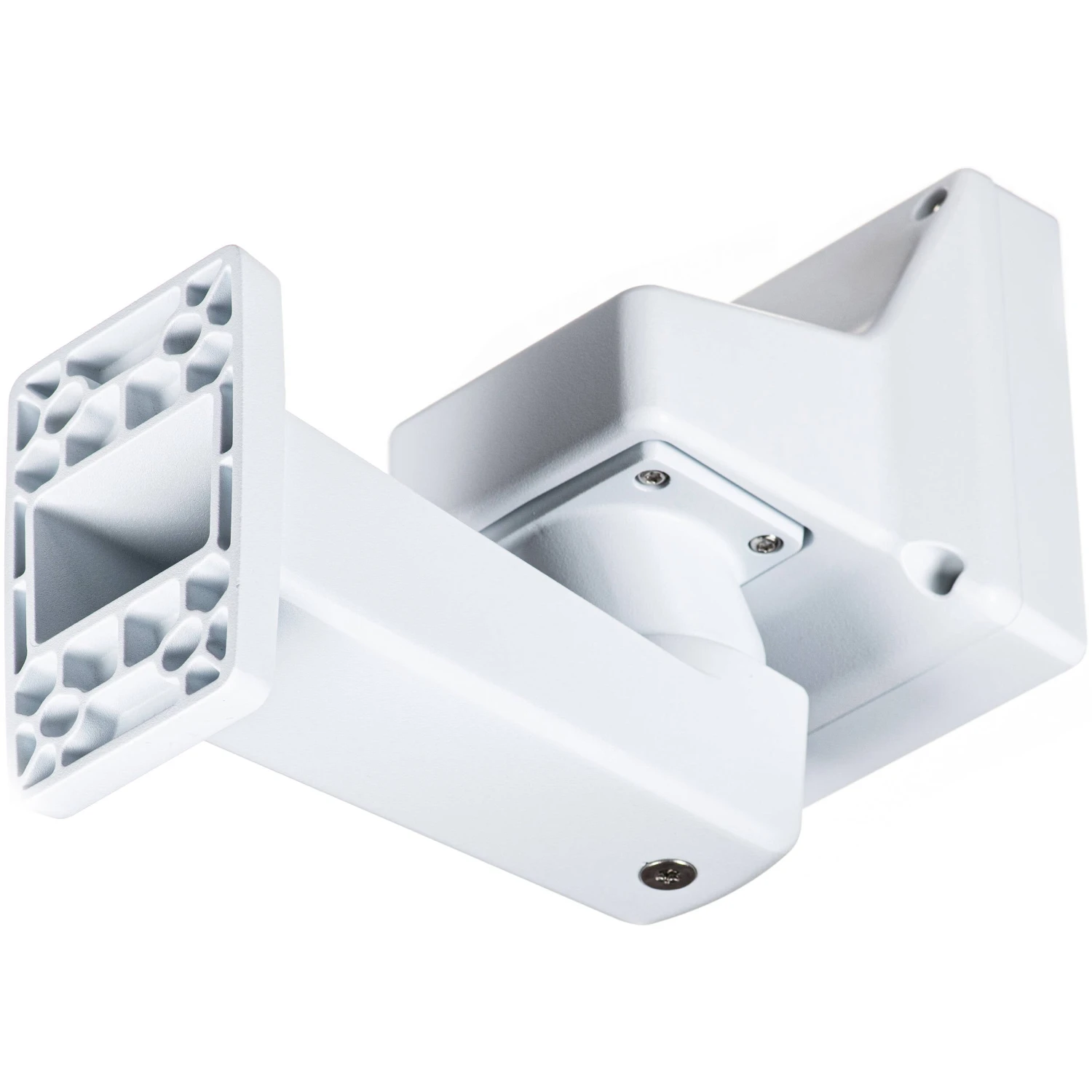

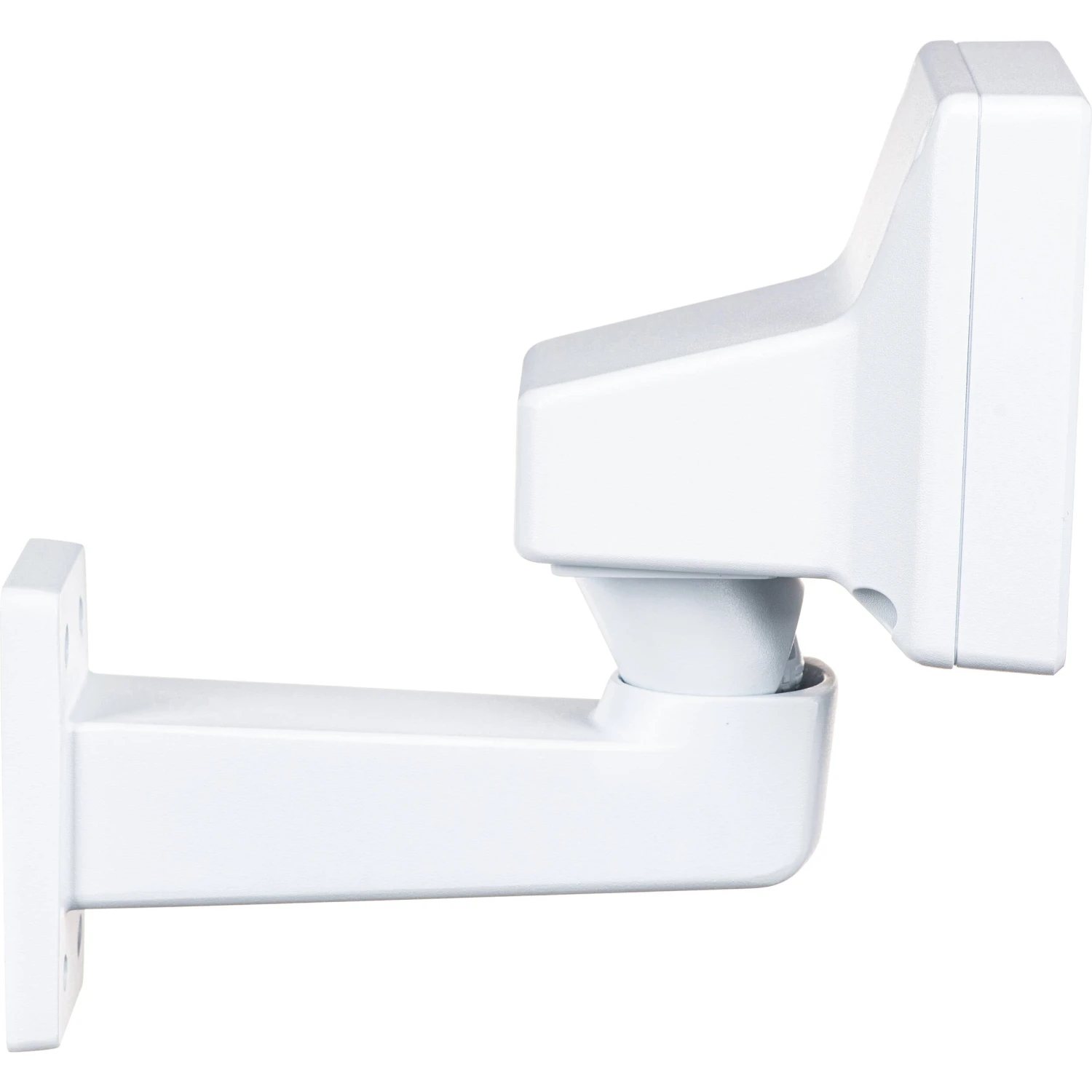

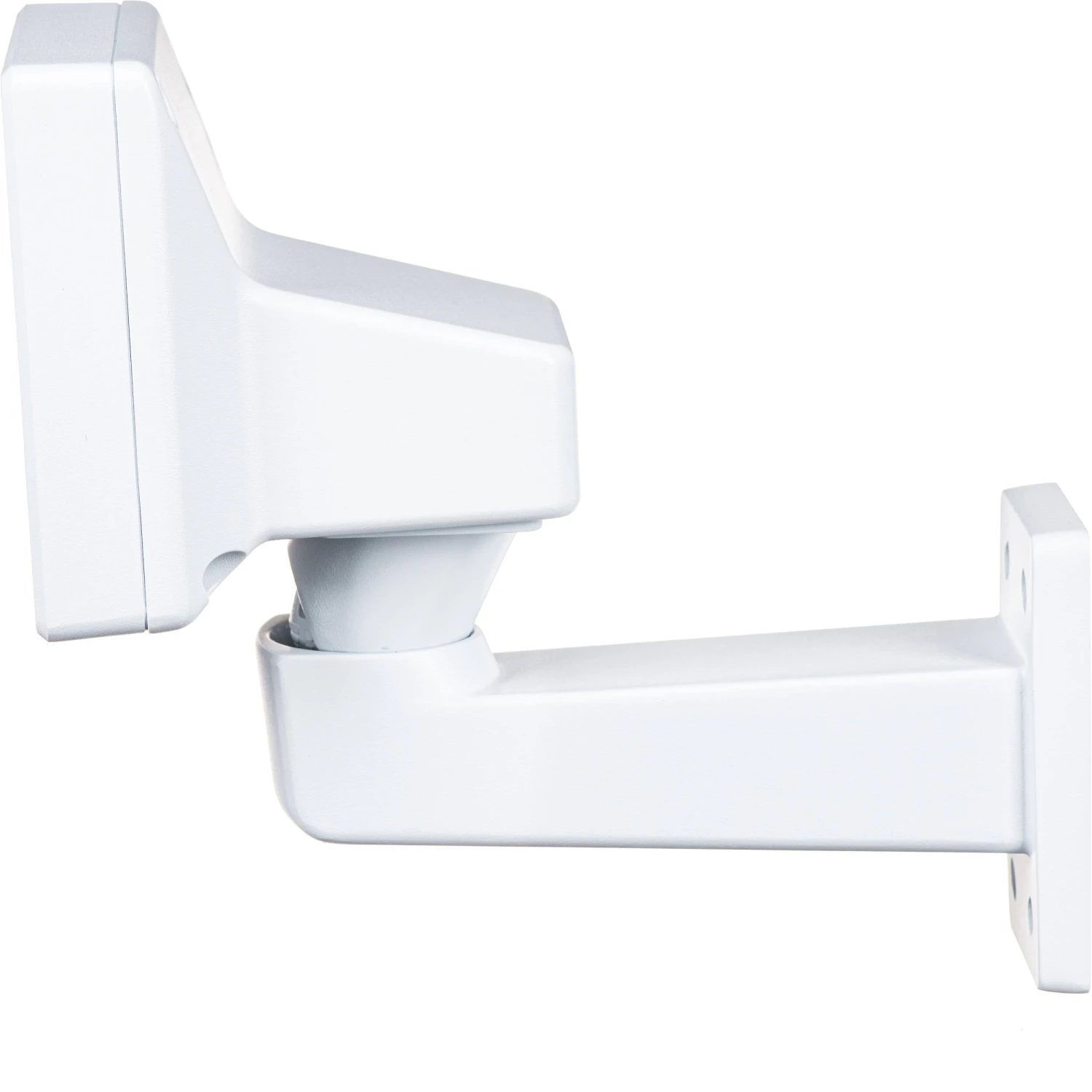

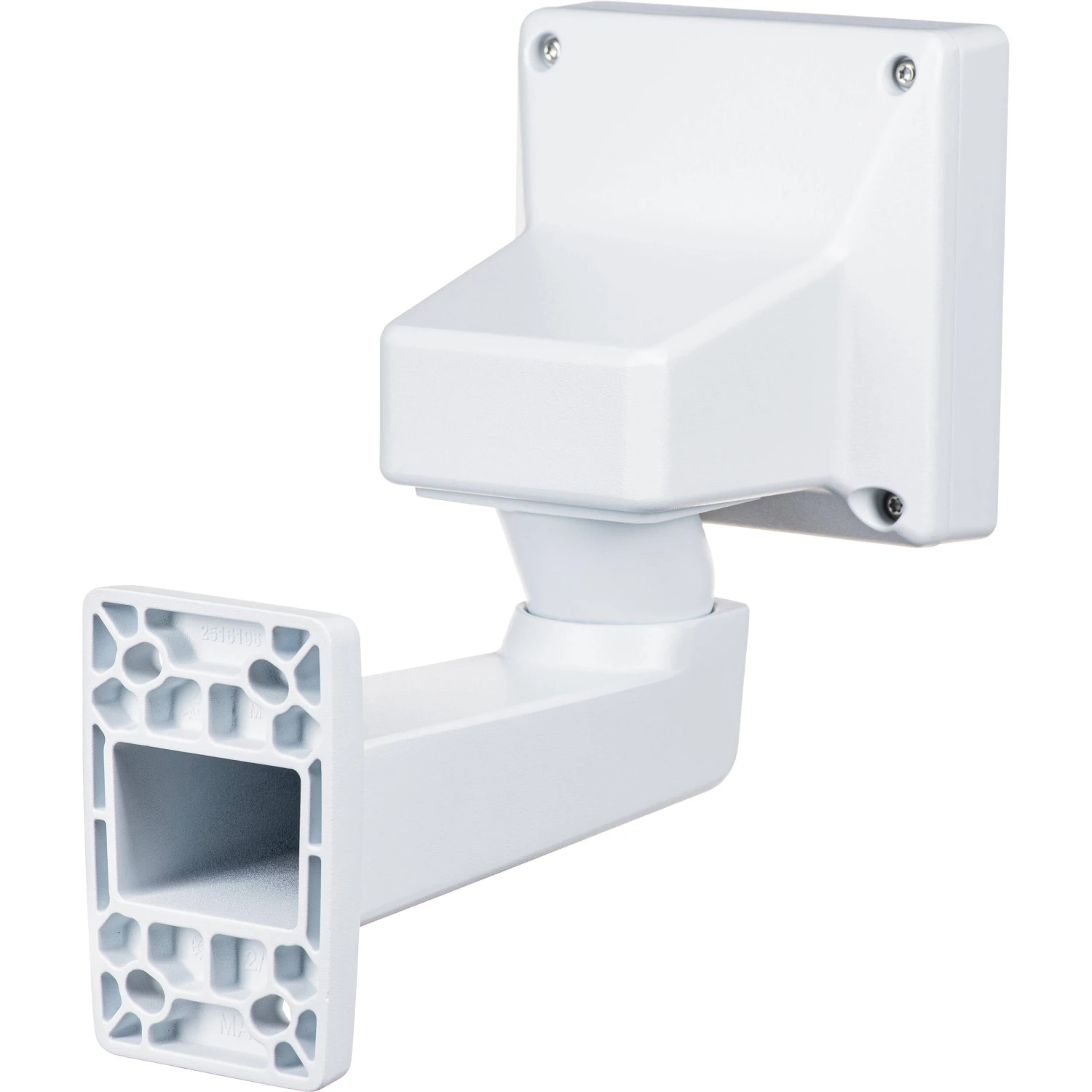

Axis TQ1003-E Wall Mount
TORX T20 Screwdriver
TORX T30 Bit
Terminal Block Connectors
Connector Guard
Cable Gaskets
Owner Authentication Key
Limited 5-Year Manufacturer Warranty

Additional Resources

No additional resources available

Axis Communications D2210-VE Specs

General

Compatibility	Axis Communications AXIS Camera Station, VMS from Axis’ Application Development Partners
Video Compression	H.264, H.265, MJPEG Controllable Frame Rate and Bandwidth VBR/ABR/MBR H.264/H.265 Video Streaming Indicator
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese
Memory	1048 MB RAM, 8192 MB Flash

Inputs/Outputs

Connectors

1 x Shielded RJ45 1000M PoE Port (802.3at)
1 x RJ45 1000M PoE Output (802.3bt)
I/O: Terminal Block for 1 Supervised Alarm Input and 1 Output (12 VDC Output, 50 mA Maximum Load)
Power: DC Input, Terminal Block

Wireless

Global Positioning (GPS, GLONASS, etc.)

GPS

Power

Power Source	PoE, AC Input
DC Input Power	10 to 28 VDC
Power Consumption	5 W (Typical) 6.44 W (Maximum)

Physical

Mounting	1x Wall
Color	White
Material of Construction	Aluminum
Environmental Resistance	Weather/Dust/Water-Resistant (IP67)
Impact Resistance	Impact-Resistant (IK10)
Certifications	CSA, UL, cUL, CE, TAA, EN, FCC, ICES, CAN/CSA, IEC/EN/UL, IEC/EN, NEMA 250 Type 4X, NEMA TS 2, EU, RoHS, REACH
Operating Conditions	-40 to 140°F / -40 to 60°C at 10 to 100% Humidity
Storage Conditions	-40 to 149°F / -40 to 65°C at 5 to 95% Humidity
Cable Length	Not Specified by Manufacturer
Dimensions	10.3 x 9.8 x 5.6″ / 260.4 x 248.5 x 142 mm
Weight	2.8 lb / 1250 g

Packaging Info

Package Weight	6.08 lb
Box Dimensions (LxWxH)	10.2 x 10.2 x 7.7″
