Sale!

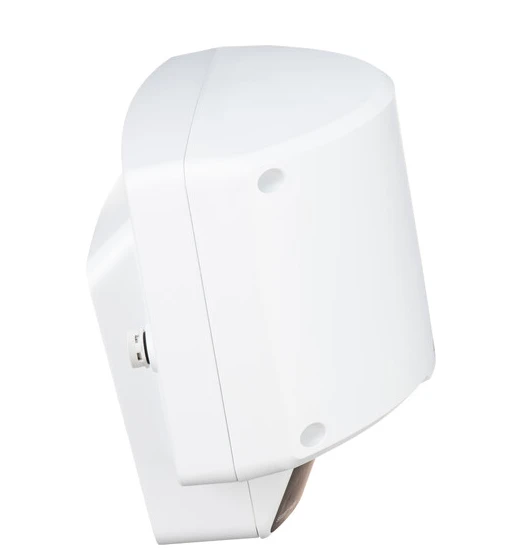

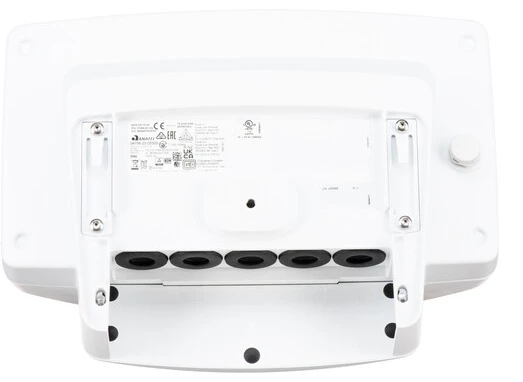

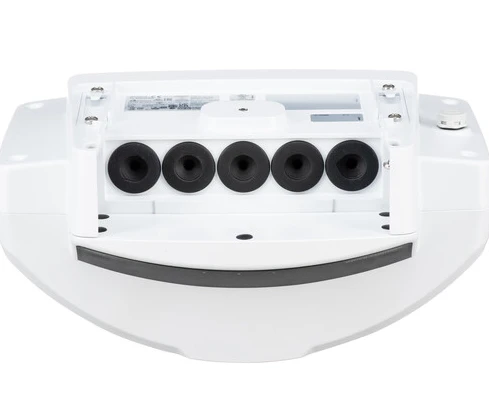

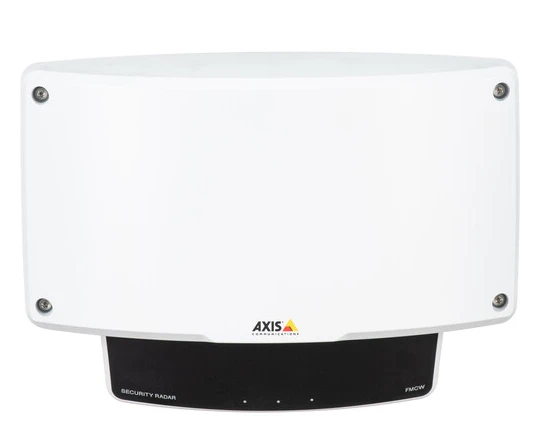

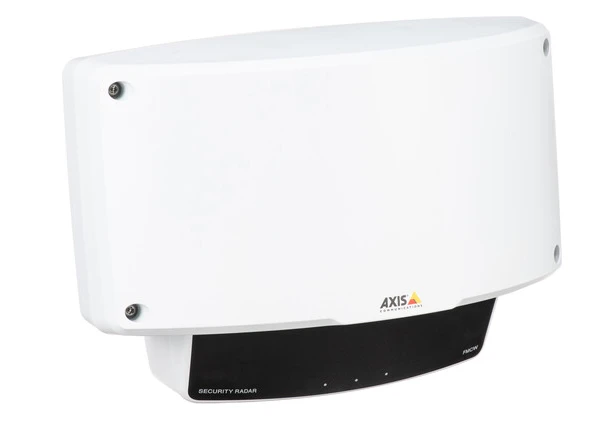

Axis Communications D2110-VE Security Radar(Axis Communications D2110 Ve Security Radar)

Axis Communications D2110-VE Security Radar(Axis Communications D2110 Ve Security Radar) - Image 2

Axis Communications D2110-VE Security Radar(Axis Communications D2110 Ve Security Radar) - Image 3

Axis Communications D2110-VE Security Radar(Axis Communications D2110 Ve Security Radar) - Image 4

Axis Communications D2110-VE Security Radar(Axis Communications D2110 Ve Security Radar) - Image 5

Axis Communications D2110-VE Security Radar(Axis Communications D2110 Ve Security Radar) - Image 6

Axis Communications D2110-VE Security Radar(Axis Communications D2110 Ve Security Radar)

Original price was: $332.00.Current price is: $95.99.

SKU: DGFUB 6613195227221 Categories: Alarm Systems, Optics & Surveillance, Surviellance Tags: Alarm Accessories, Alarm Systems, Axis Communications D2110-VE, Motion Detectors

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Key Features

Designed for 24/7 Area Protection
180° Horizontal Field of Detection
Up to 280′ Detection Range
Integrates into Your VMS
RJ45 Ethernet with PoE Technology
PoE Output to Power External PoE Devices
Supports microSD/SDHC/SDXC Cards
Complies with ONVIF Profiles G & S
IP66 & NEMA 4X Rated for Outdoor Use
IK08-Rated Vandal Resistance

Axis Communications D2110-VE Overview

The white D2110-VE Security Radar Sensor from Axis Communications utilizes radar technology to provide 180° area coverage. The unit can detect, classify, and track people and vehicles 24/7 to minimize false alarms when integrated into your video surveillance system. It has a 200′ detection range for people, and a 280′ detection range for vehicles. Integrated PoE technology simplifies connectivity by transferring power and data over one cable. Additionally, a PoE output can connect and power another device, such as a camera for visual verification or a network horn speaker for deterrence. A built-in memory card slot supports microSD/SDHC/SDXC cards (available separately).

The D2110-VE complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK08-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.

Phased array FMCW radar sensor

Radial speed up to 34 mph

2.3′ distance accuracy

Radar controls include; multiple detection zones, crossline detections, and exclude zones with filters for short-lived objects, object speed, and object type, radar transmission on/off, coexistence, reference map with rotation and cropping, grid opacity, zone opacity, color scheme, trail lifetime, detection sensitivity, and swaying object filter

Analytics include; Radar Motion Detection (detect, track, and classify objects), radar autotracking, and support for third-party applications

Built-in installation aids include; reference map calibration, sensor for tilt angle, and GPS position

Audio output via edge-to-edge technology and network speaker pairing

Supports microSD card encryption and recording to NAS

Recommended mounting height of 11′

PVC free

Axis Communications D2110-VE Specs

Sensor	Phased Array FMCW (Frequency Modulated Continuous Wave)
Object Data	Range, Direction, Velocity, Object Type
Frequency	24.05-24.25 GHz
RF Transmission	<100 mW (EIRP) License Free Unharmful Radio Waves
Mounting Height	Recommended: 11′ / 3.5 m
Detection Range	Person: 10 to 200′ / 3 to 60 m Vehicle: 10 to 280′ / 3 to 85 m
Radial Speed	Up to 34 mph / 55 km/h
Field of Detection	Horizontal: 180°
Distance Accuracy	2.3′ / 0.7 m
Angle Accuracy	1°
Spatial Differentiation	9.8′ / 3 m
Refresh Rate	Data Refresh Rate: 10 Hz
Coverage	Persons: 61,000 ft² / 5600 m² Vehicles: 122,000 ft² / 11,300 m²
Classification	Object Classification: Human, Vehicles, Unknown
Radar Controls	Multiple Detection Zones, Crossline Detections, and Exclude Zones with Filters for Short-Lived Objects, Object Speed, and Object Type, Radar Transmission On/Off, Coexistence, Reference Map with Rotation and Cropping, Grid Opacity, Zone Opacity, Color Scheme, Trail Lifetime, Detection Sensitivity, Swaying Object Filter
SoC	ARTPEC-7
Memory	1024 MB RAM, 512 MB Flash
Video Compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile MJPEG
Resolution	1920 x 1080 HDTV, 1080p to 640 x 360
Frame Rate	Up to 10 fps in All Resolutions
Video Streaming	Multiple, Individually Configurable Streams in H.264, H.265, and MJPEG Controllable Frame Rate and Bandwidth VBR/ABR/MBR H.264/H.265
Image Settings	Compression, 0, 90, 180, and 270° Rotation Including Corridor Format, Dynamic Text and Image Overlay
Audio Streaming	Audio Output via Edge-to-Edge Technology
Audio Input/Output	Network Speaker Pairing
Security	Password Protection, IP Address Filtering, HTTPS Encryption, IEEE 802.1X (EAP-TLS) Network Access Control, Digest Authentication, User Access Log, Centralized Certificate Management, Brute Force Delay Protection, Signed Firmware
Supported Protocols	IPv4/v6, HTTP, HTTP/2, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP v1/v2/v3, RTCP, ICMP, DHCP v4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1, Syslog
API	Open API for Software Integration, including VAPIX and AXIS Camera Application Platform ONVIF Profiles G & S
Analytics	Radar Motion Detection (Detect, Track, and Classify Objects), Radar Autotracking Support for AXIS Camera Application Platform Enabling Installation of Third-Party Applications
Event Conditions	Analytics, Object Data, Supervised External Input, Edge Storage Events, Time Scheduled Radar Data Failure Casing Open, Shock Detected
Event Actions	File Upload: FTP, SFTP, HTTP, HTTPS, Network Share, and Email Notification: Email, HTTP, HTTPS, and TCP External Output Activation, Relay Activation Video Recording to Edge Storage Pre- and Post-Alarm Video Buffering Overlay Text Status LED Activation Send SNMP Trap
Data Streaming	Event Data Analytics Data with Object GPS Position and Velocity
Built-In Installation Aids	Reference Map Calibration, Sensor for Tilt Angle, GPS Position
Casing	IP66, NEMA 4X, and IK08 Rated Aluminum and Plastic Casing Color: White NCS S 1002-B
Sustainability	PVC Free
Power	PoE IEEE 802.3at, Type 2 Class 4, Typical 11 W, Maximum 15 W PoE IEEE 802.3bt, Type 3 Class 5 or Axis Midspan 60 W Required for PoE Out 8-28 VDC, Typical 10 W, Maximum 15 W
Connectors	DC Input RJ45 1000M, PoE RJ45 1000M, PoE Output to Power an External PoE Device Relay: 2-Pin Terminal Block I/O: 6-Pin 2.5mm Terminal Block for 4 Configurable Inputs/Outputs
Relays	1 x 1 Form A, 1 NO, Maximum 5 A, 24 VDC Expected Lifetime 25,000 Operations
Storage	Support for microSD/microSDHC/microSDXC Card Support for SD Card Encryption (AES-XTS-Plain64 256-Bit) Recording to Network-Attached Storage (NAS)
Operating Conditions	-40 to 140°F / -40 to 60°C Humidity: 10 to 100% RH (Condensing)
Storage Conditions	-40 to 149°F / -40 to 65°C
Approvals	Radio EN 300440, EN 301489-1, EN 301489-51, EN 62311, FCC Part 15 Subpart C EMC EN 55032 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, RCM AS/NZS CISPR 32 Class A, VCCI Class B, EAC Safety IEC/EN/UL 62368-1, IEC/EN/UL 60950-22 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, NEMA 250 Type 4X
Supporting Software	AXIS Radar Autotracking for PTZ (Slew to Cue)
Video Management Software	Axis Camera Station, VMS from Axis’ Application Development Partners
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese
Dimensions	11.2 x 8.1 x 6″ / 285 x 206 x 152 mm
Weight	5.3 lb / 2.4 kg

Packaging Info

Package Weight	9.215 lb
Box Dimensions (LxWxH)	15.5 x 10.5 x 7.8″

In the Box

Axis Communications D2110-VE Security Radar Sensor
Connector Kit
Pipe Adapters
Cable Gland
Cable Gaskets
Windows Decoder 1-User License
Limited 5-Year Manufacturer Warranty
