Axis Communications S2212 Mk II Overview

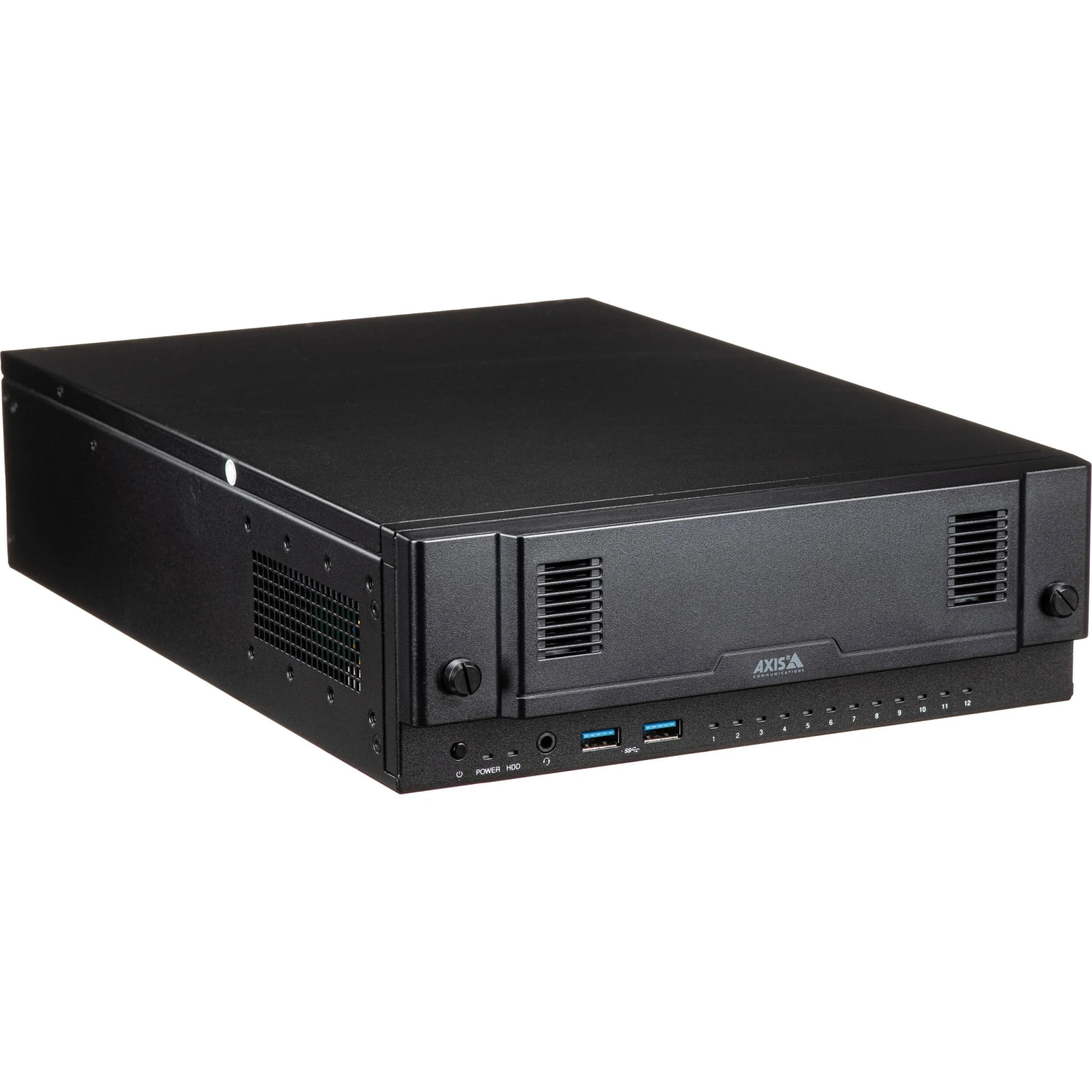

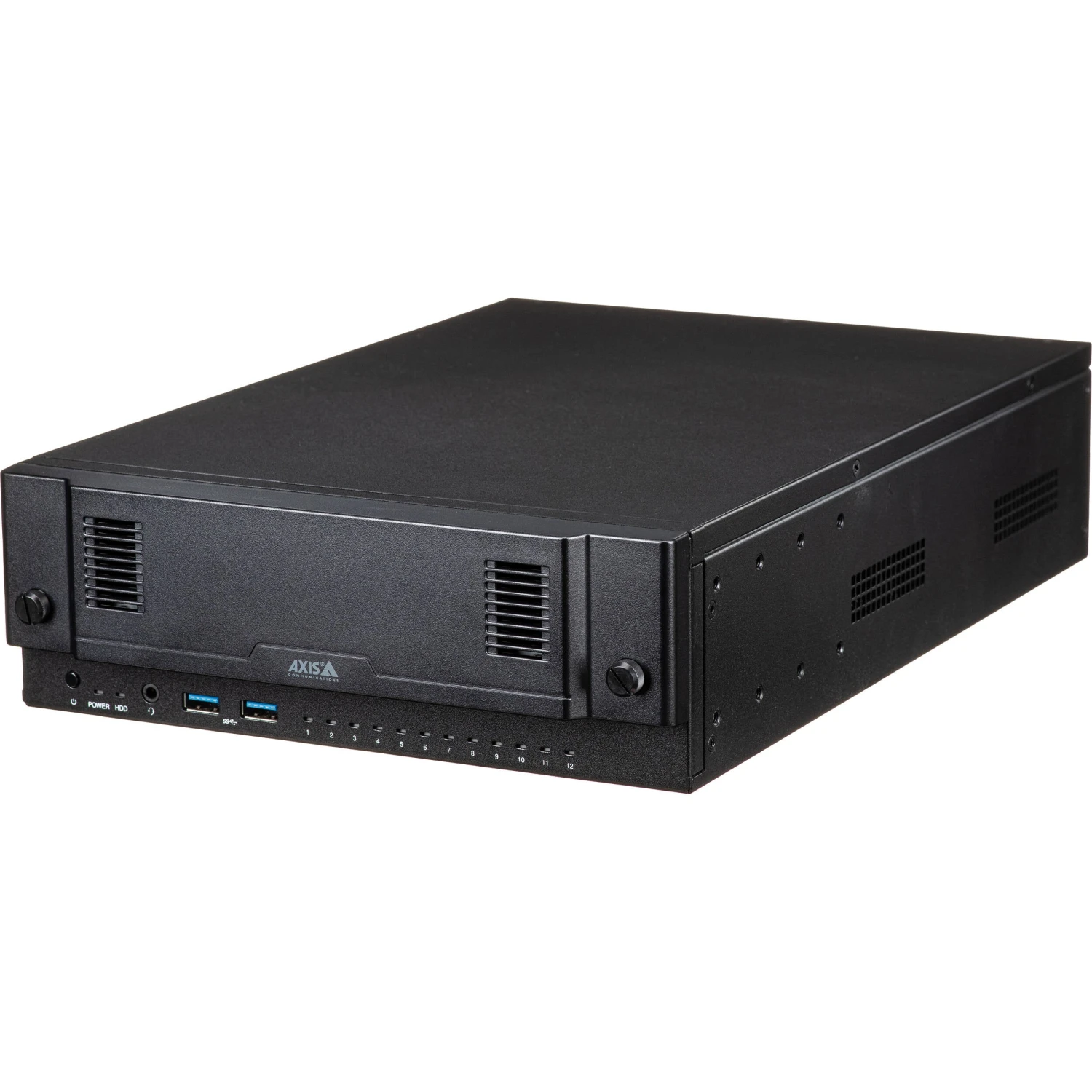

Record from and manage up to 12 cameras and 24 doors with the Camera Station S2212 Mk II Standalone Appliance All-in-One Recorder with 6TB HDD. Preloaded with video management software and tools to update and maintain your system, the S2212 is designed for use with Axis network cameras for a surveillance solution. It features 12 PoE ports via an integrated PoE switch, a 6TB preinstalled HDD, and silent operation.
Items Included
- Axis Communications Camera Station S2212 Mk II Standalone Appliance All-in-One Recorder with 6TB HDD

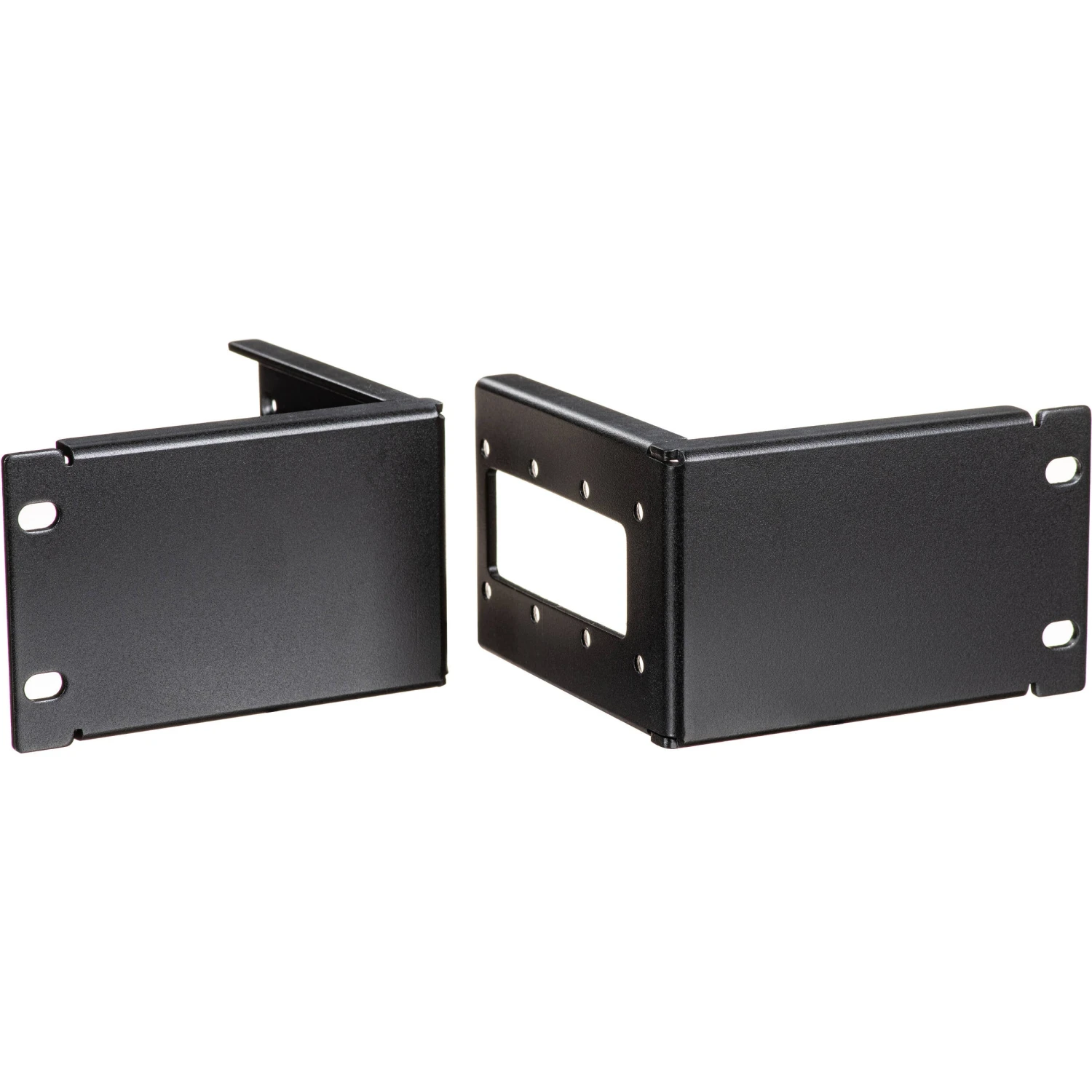

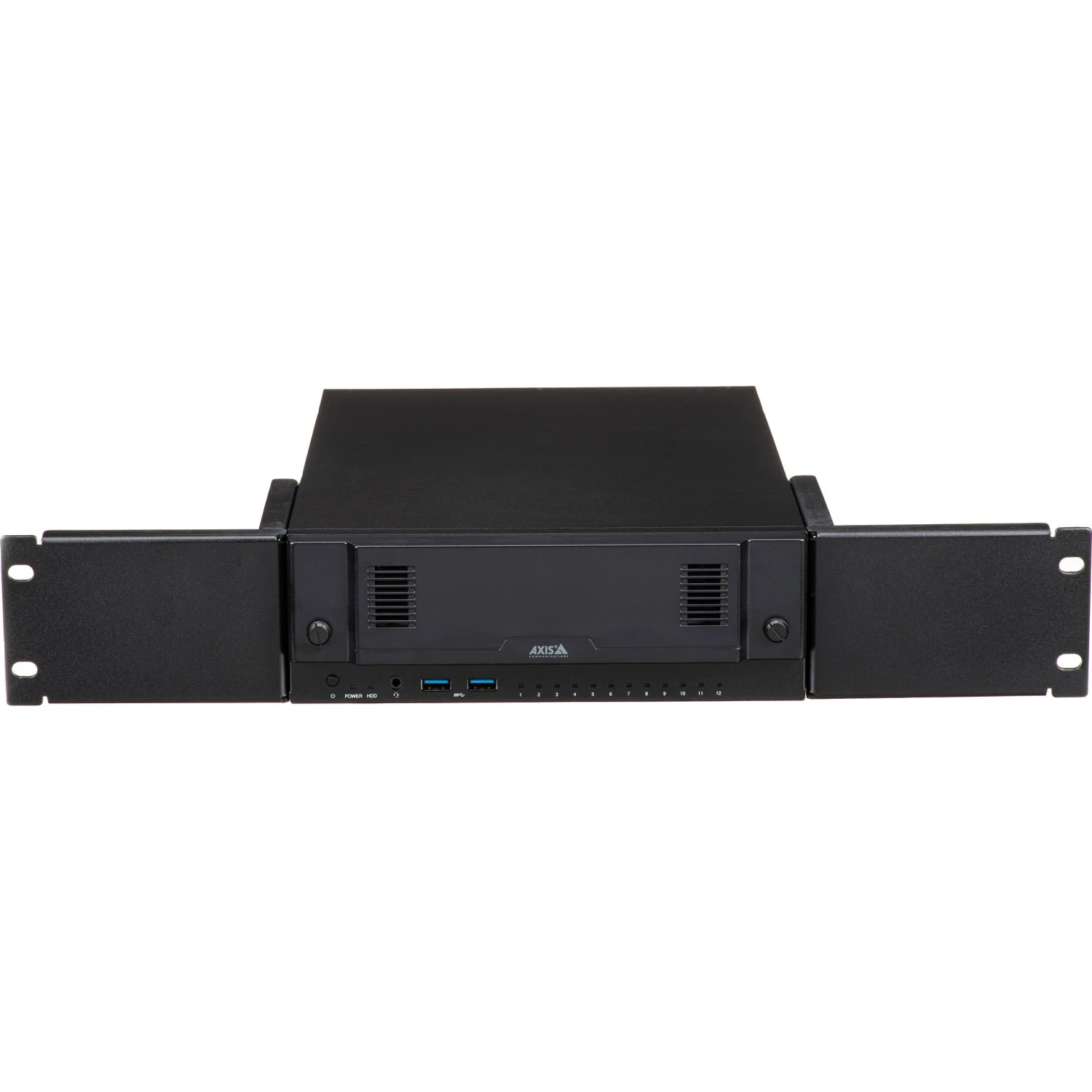

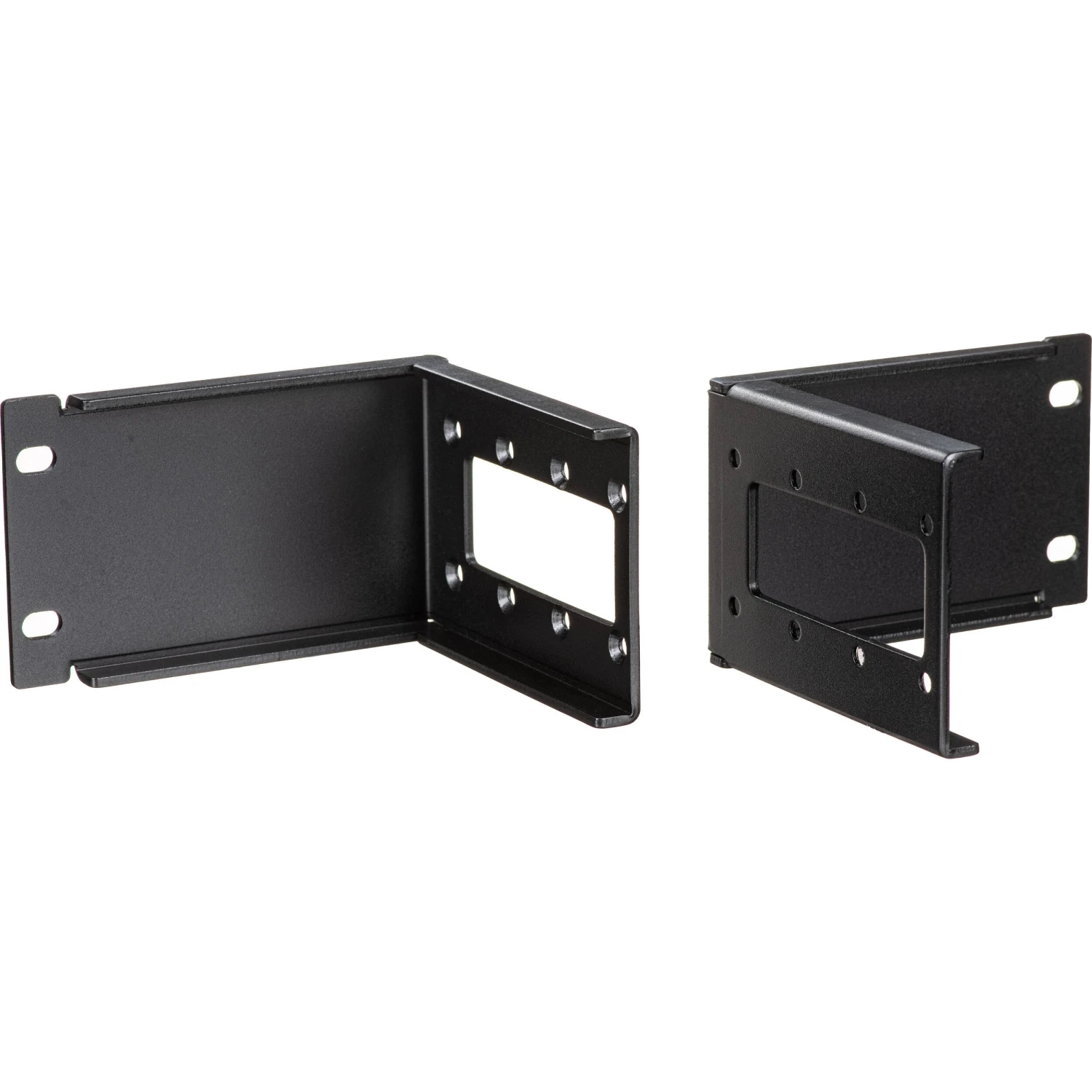

- Rack Ears
- Power Adapter
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications S2212 Mk II Specs
| Number of Channels |
12 |
| Playback Resolution |
1080p, 720p, 8K, 4K at 30 fps 640 x 360 at 15 fps |
| Recording Resolution |
4K |
| PTZ Support |
Yes |
| Throughput |
192 Mb/s (Recording) |
| A/V I/O |
2x HDMI 2.1 1x 1/8″ (3.5 mm) Audio |
| Communication I/O |

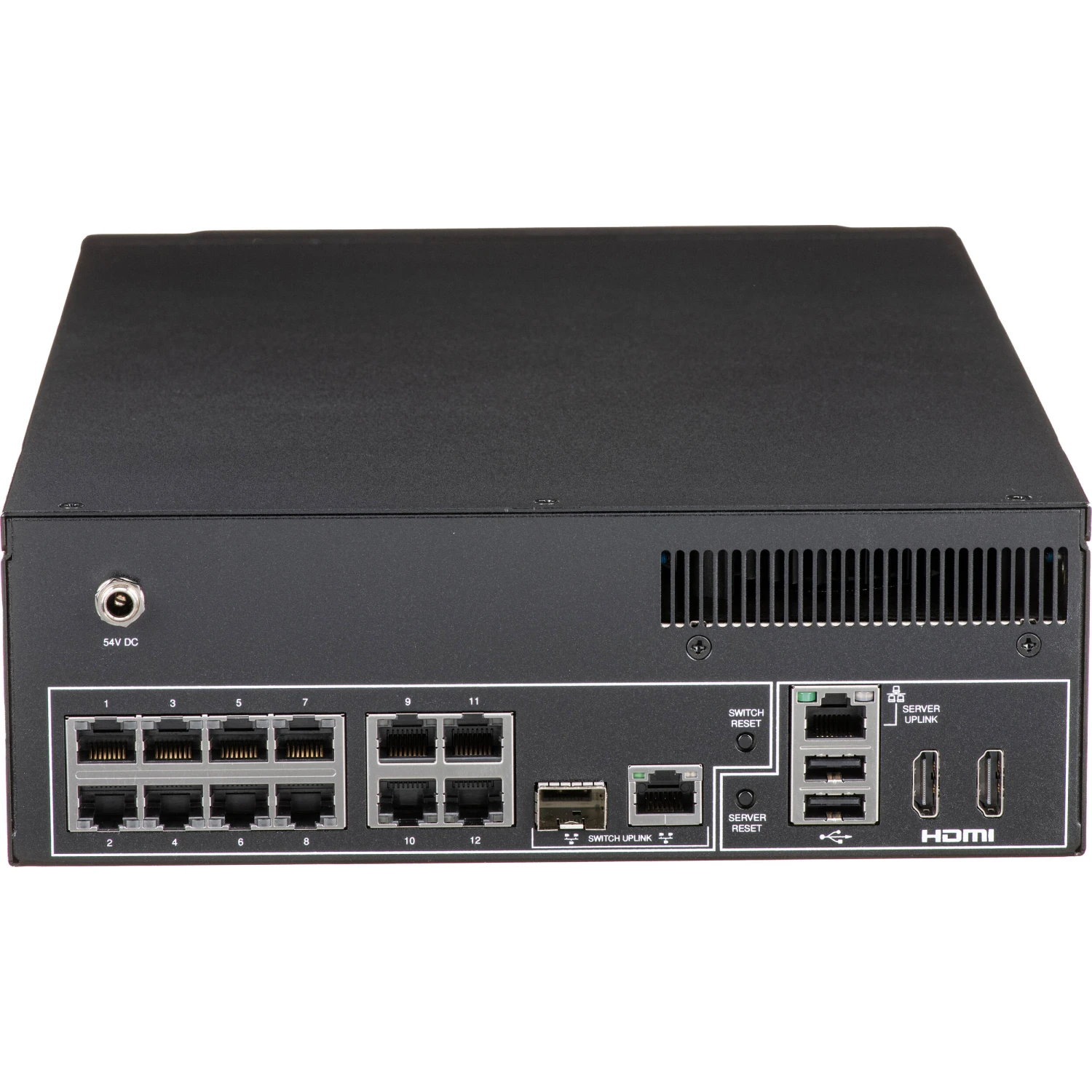

12x RJ45 Gigabit Ethernet PoE 2x RJ45 Gigabit Ethernet 1x SFP Gigabit Ethernet 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Front) 2x USB-A 2.0 (Rear) |
| Wi-Fi |
No |
| Bluetooth |
No |
| Installed Drive |
6 TB |
| PoE Power Budget |
135 W |
| Number of Channels |
12 |
| Playback Resolution |
1080p, 720p, 8K, 4K at 30 fps 640 x 360 at 15 fps |
| Recording Resolution |
4K |
| PTZ Support |
Yes |
| Throughput |
192 Mb/s (Recording) |
| IP Camera Support |
12 |
| 2-Way Audio |
Yes |
| A/V I/O |
2x HDMI 2.1 1x 1/8″ (3.5 mm) Audio |
| Communication I/O |
12x RJ45 Gigabit Ethernet PoE 2x RJ45 Gigabit Ethernet 1x SFP Gigabit Ethernet 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Front) 2x USB-A 2.0 (Rear) |
| Wi-Fi |
No |
| Bluetooth |
No |
| Supported IEEE Standards |
802.3at (PoE+ 30 W) |
| Installed Operating System |
Windows 11 IoT Enterprise |
| Processor |
Intel Core i3 |
| Memory |
2x 8 GB |
| GPU |
Intel UHD Graphics |
| Installed Drive |
6 TB |
| Number of Bays |
2 |
| Fisheye Dewarping |
No |
| Power Consumption |
75 W (Typical) 95 W (Maximum) |
| Power Supply Type |
External |
| PoE Power Budget |
135 W |
| Input Power |
54 VDC at 5 A 120 to 240 VAC, 50 / 60 Hz at 3.5 A |
| Built-In Display |
No |
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
| Storage Conditions |
-40 to 149°F / -40 to 65°C at 10 to 90% Humidity |
| Certifications |
BIS, CAN/CSA, CE, FCC, ICES, IEC/EN/UL, KC, NOM, RCM, TAA, UL, VCCI, cUL |
| LED Indicators |
Yes |
| Dimensions (W x D x H) |
9.1 x 13.0 x 3.1″ / 230.0 x 330.0 x 78.0 mm |
| Weight |
12.8 lb / 5.8 kg |
| Package Weight |
19.26 lb |
| Box Dimensions (LxWxH) |
19.4 x 14.6 x 10.3″ |
