Axis Communications A1214 Overview

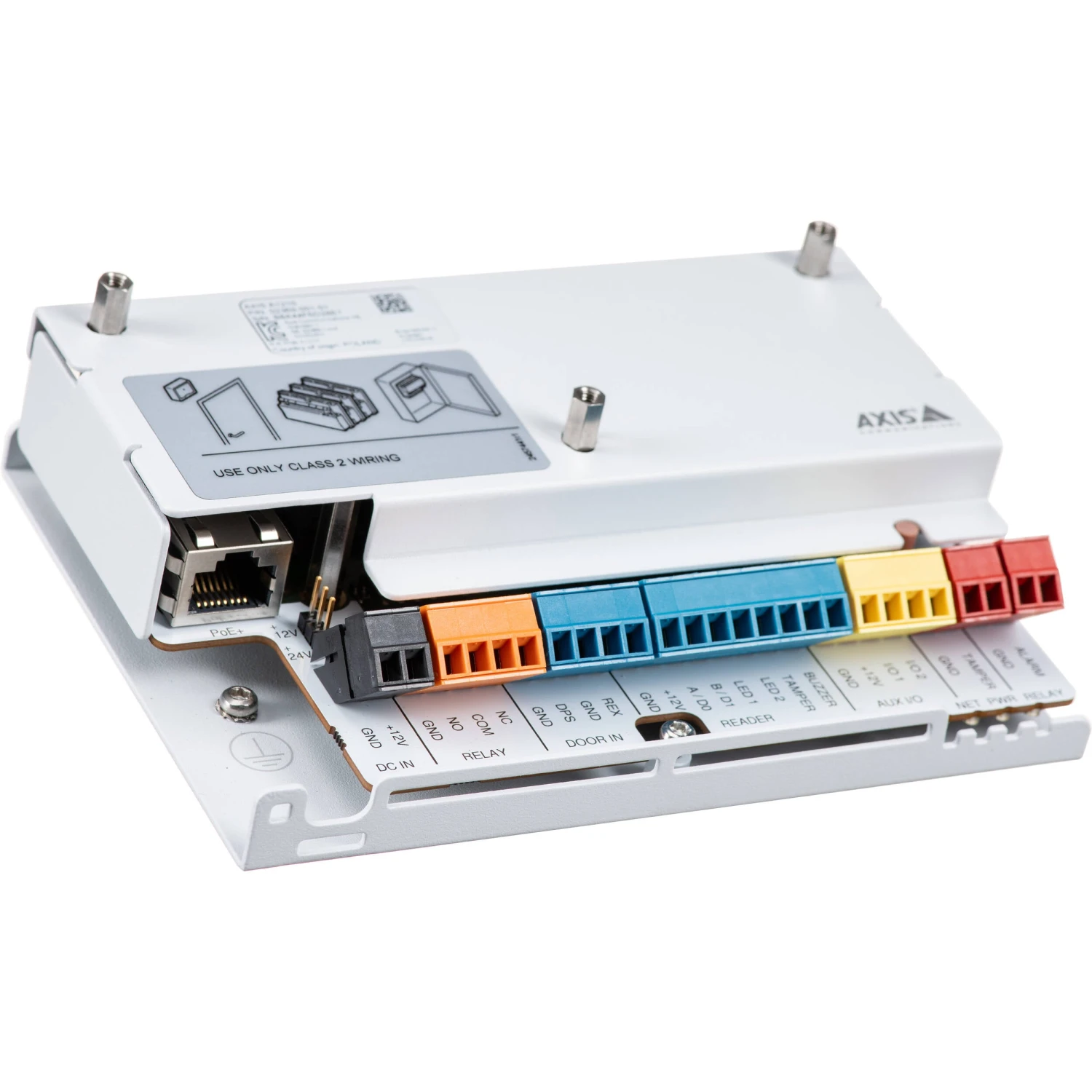

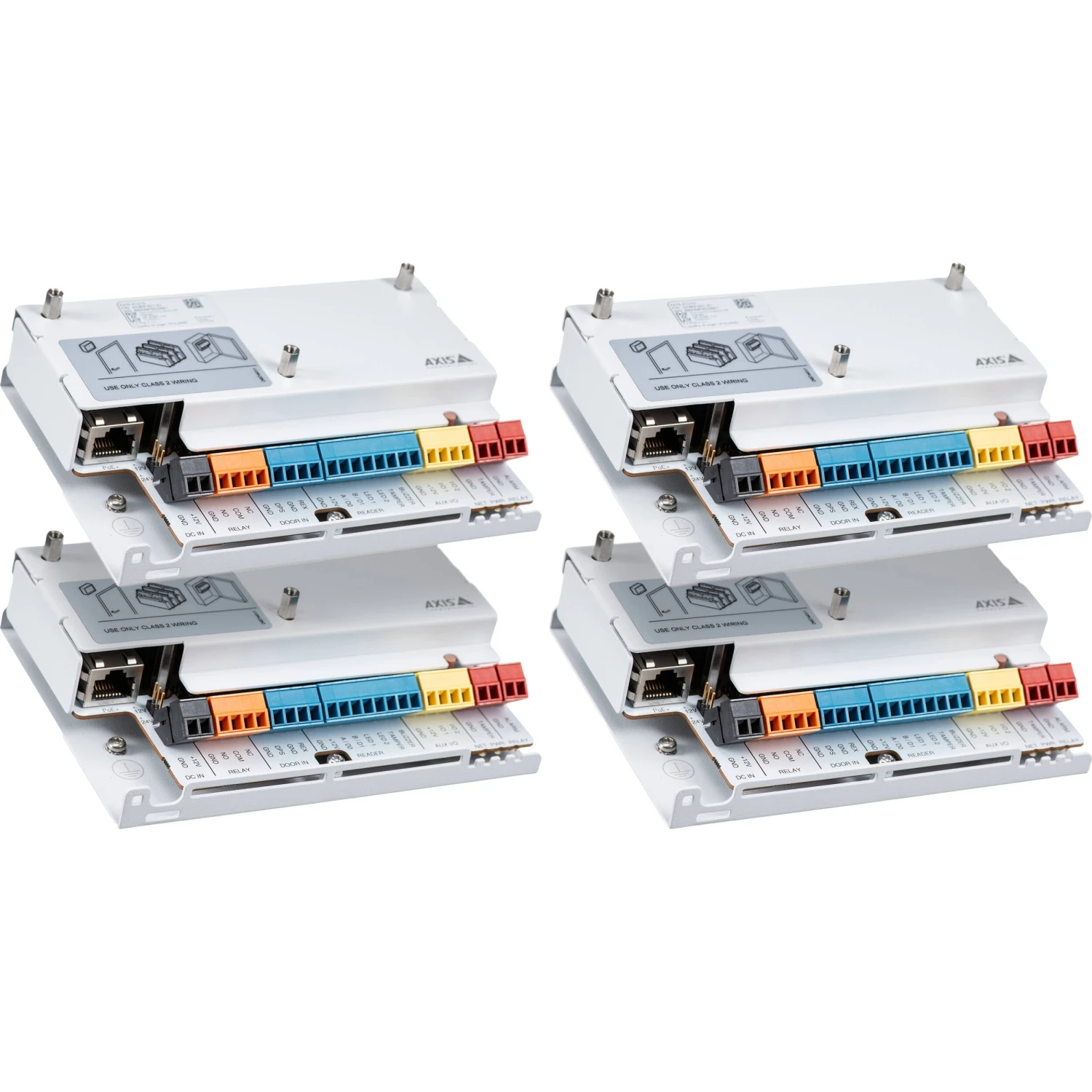

Implement edge-based control on up to four doors with the A1214 Door Controller Kit from Axis Communications. This kit includes four A1210-B controller units enclosed in a TQ1808-VE surveillance cabinet. The kit is designed to control and grant access to doors via up to two OSDP (multi-drop) or a single Wiegand reader. Up to 250,000 credentials and 250,000 event logs can be stored locally on the A1210-B controller units. Thanks to PoE compatibility, only a single cable is required for installation and operation.

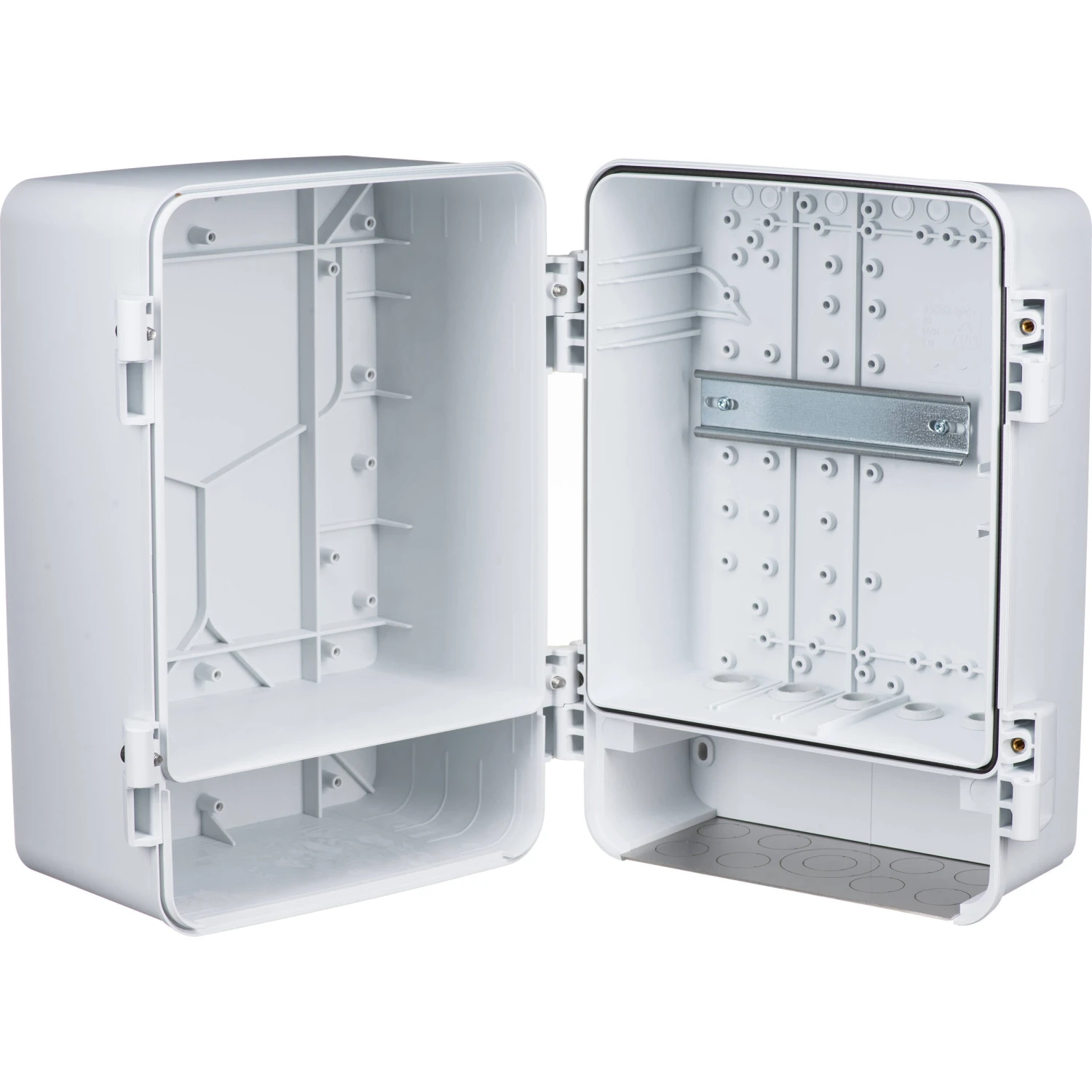

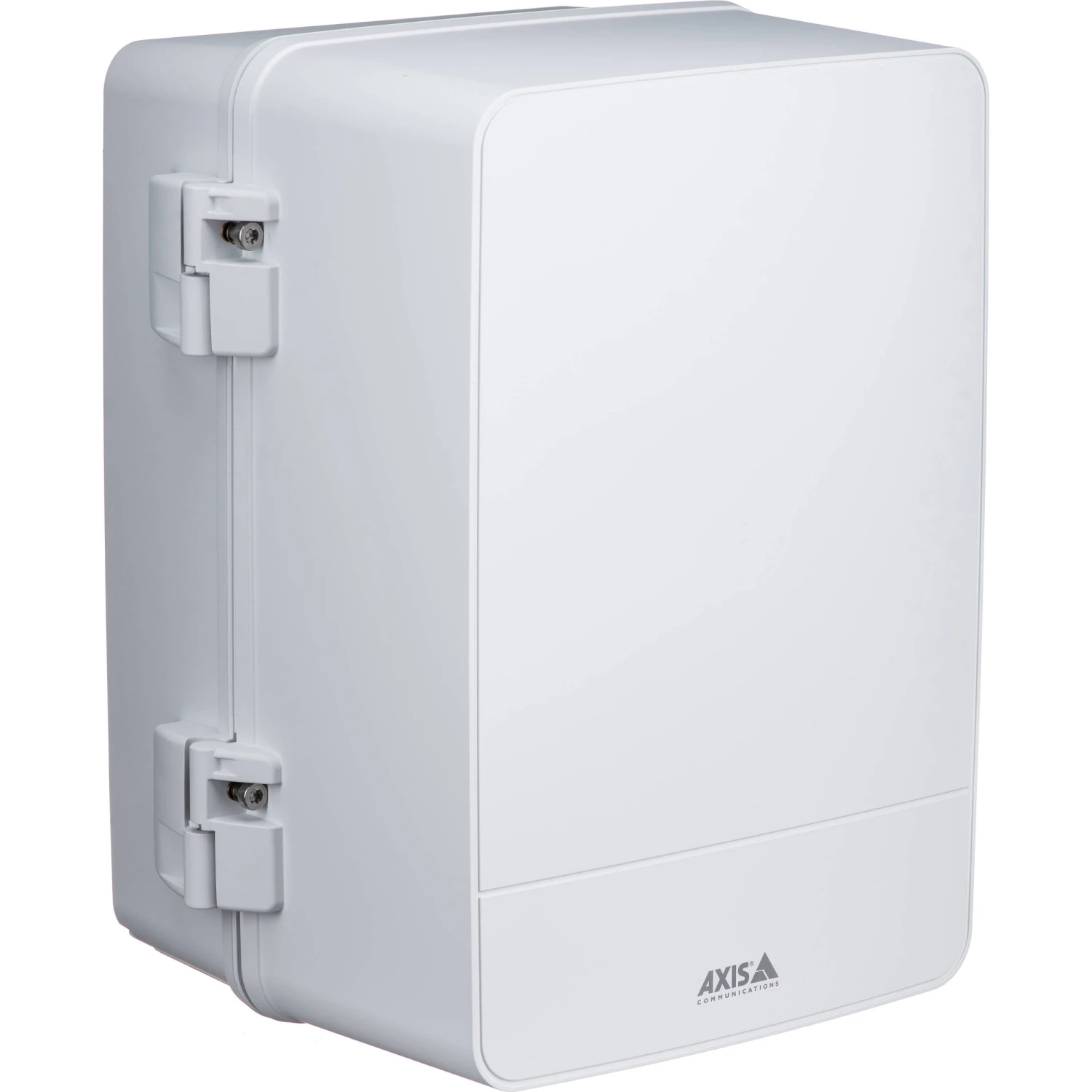

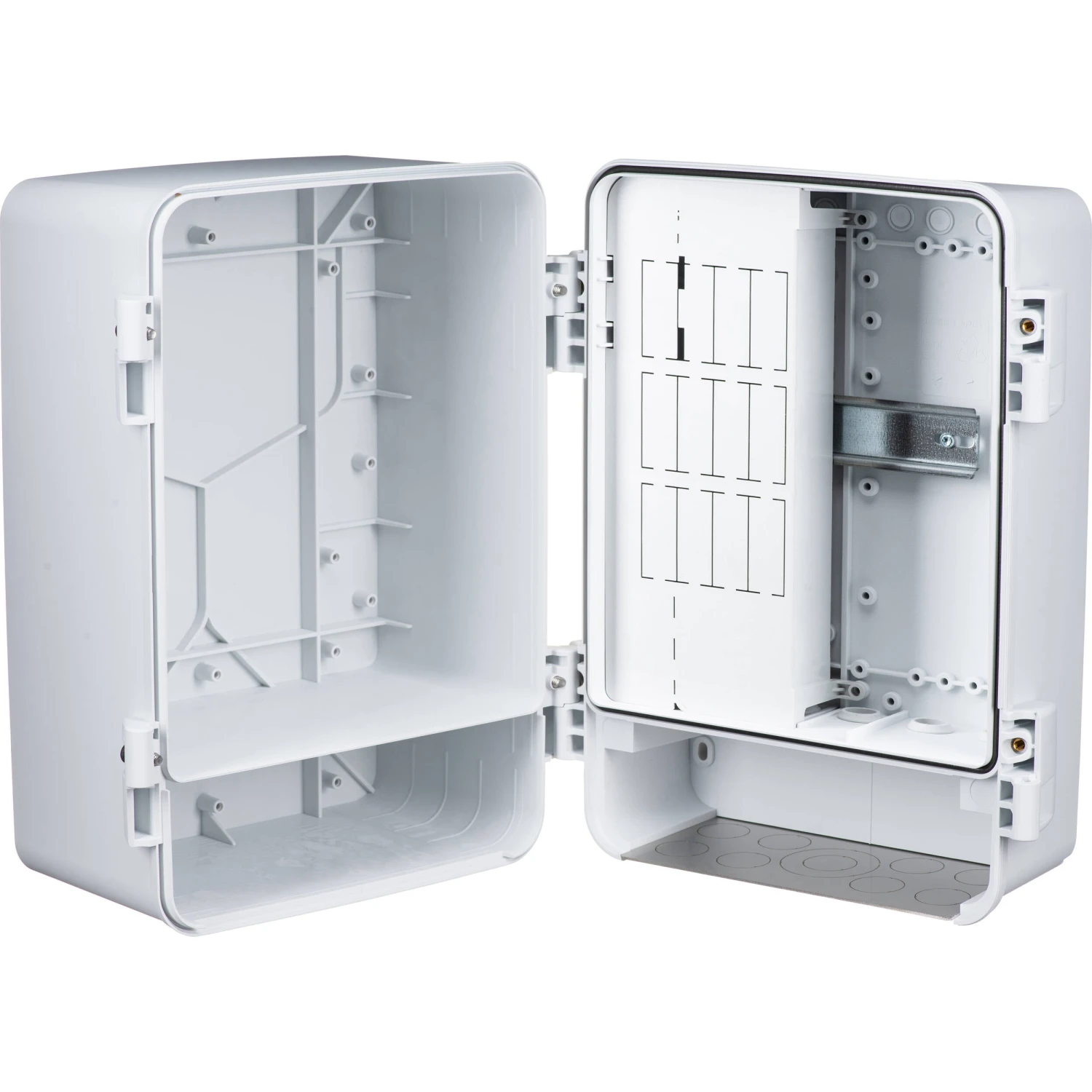

The TQ1808-VE surveillance cabinet is IP66, NEMA 4X, and IK10 rated for safe outdoor use in areas at risk of vandalism. Tamper detection provides an additional layer of security.

Suitable for installation on walls

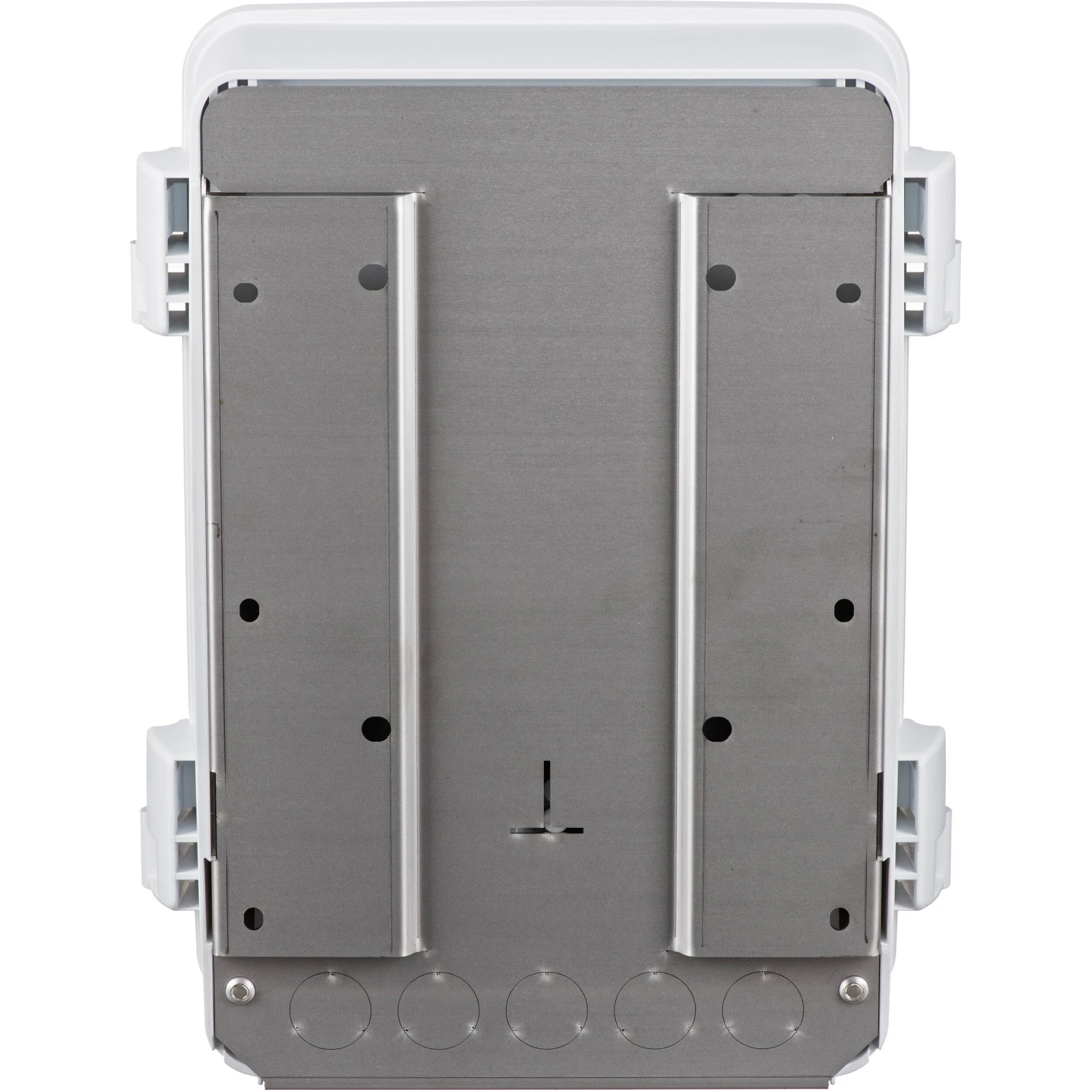

Supports DIN rail, cabinet, and stack mounting

Scalable and optimized for both small and large installations

OSDP secure channel supported

Fully integrated within Axis end-to-end solutions

Built-in cybersecurity features prevents unauthorized access and safeguards your system

PVC and BFR/CFR free

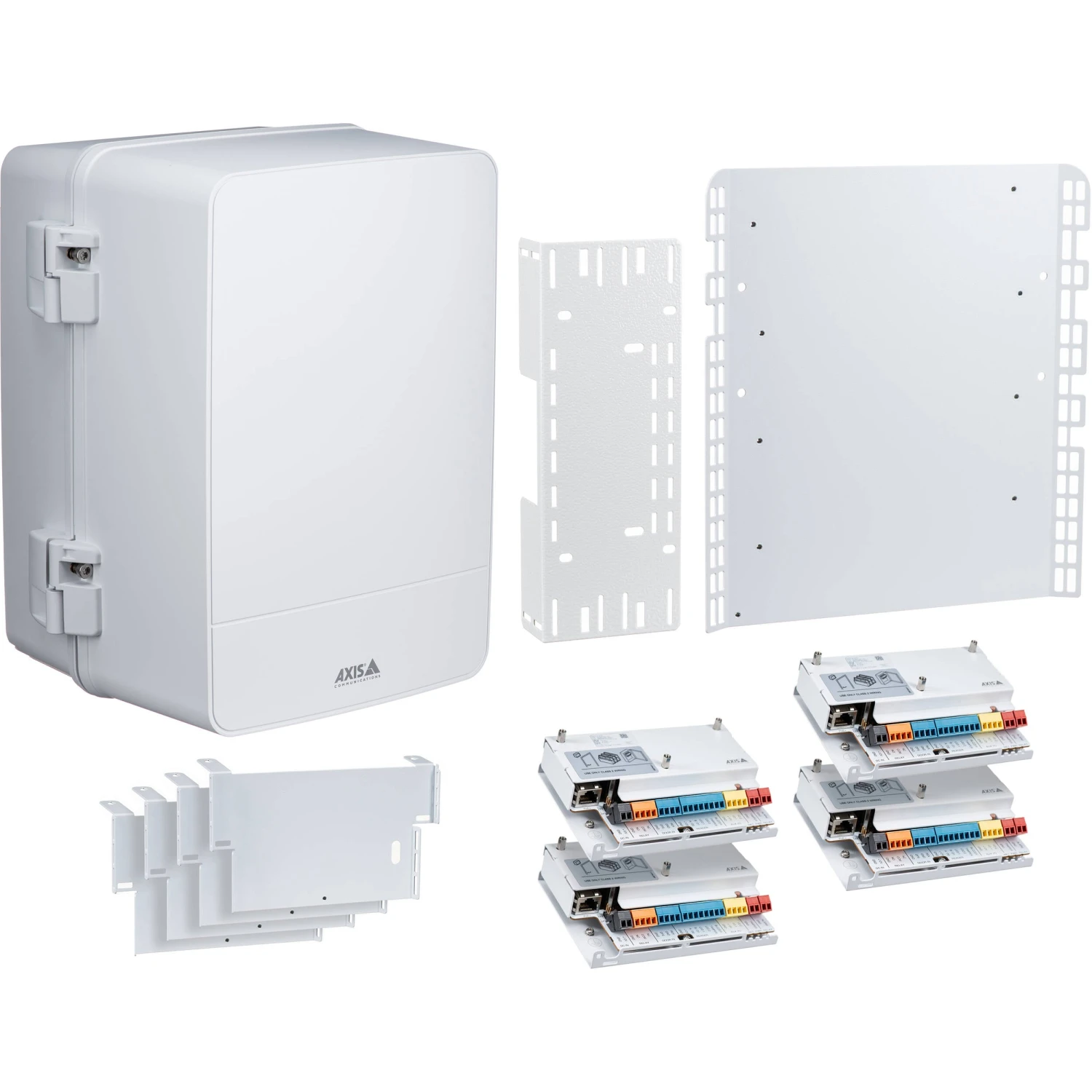

Items Included

Axis Communications A1214 Door Controller Kit
Connector Kit (Mounted)
Grounding Kit
Cable Ties
Limited 5-Year Manufacturer Warranty

Additional Resources

No additional resources available

Axis Communications A1214 Specs

General

Compatibility	Various Credentials
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese
Network Protocols	IPv4, IPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SOCKS, SSH, MQTT v3.1.1, Syslog
Memory	512 MB RAM, 2 GB Flash

Inputs/Outputs

Connectors

Shielded 1000M RJ45 PoE
Terminal Blocks: DC Power, Inputs/Outputs, RS-485/Wiegand, Relay

Power

Power Source	PoE
DC Input Power	12 VDC

Physical

Mounting	Multiple Wall, DIN Rail, Cabinet, Stack
Color	White
Material of Construction	Polycarbonate, Stainless Steel
Environmental Resistance	Dust/Weather/Water-Resistant (IP66)
Impact Resistance	Impact-Resistant (IK10)
Certifications	NEMA, CSA, RoHS, EU, EN, REACH, UL, cUL, KC, VCCI, TAA, IEC/EN/UL, IEC/EN
Operating Conditions	32 to 158°F / 0 to 70°C at 20 to 85% Humidity
Storage Conditions	-40 to 158°F / -40 to 70°C
Dimensions	14.2 x 11.1 x 9″ / 361 x 282 x 229 mm
Weight	0.9 lb / 425 g

Packaging Info

Package Weight	19.8 lb
Box Dimensions (LxWxH)	19.78 x 15.5 x 11.25″
