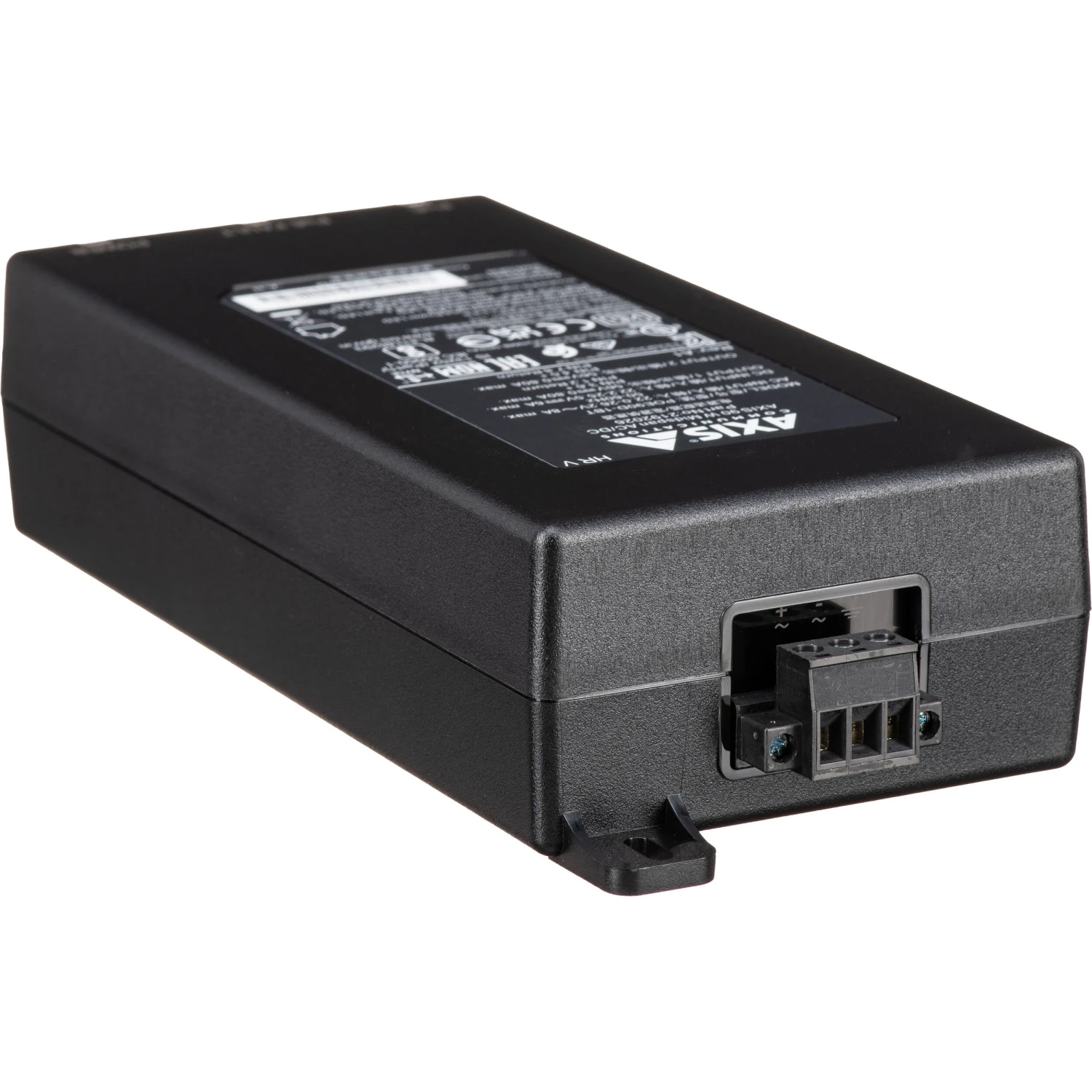

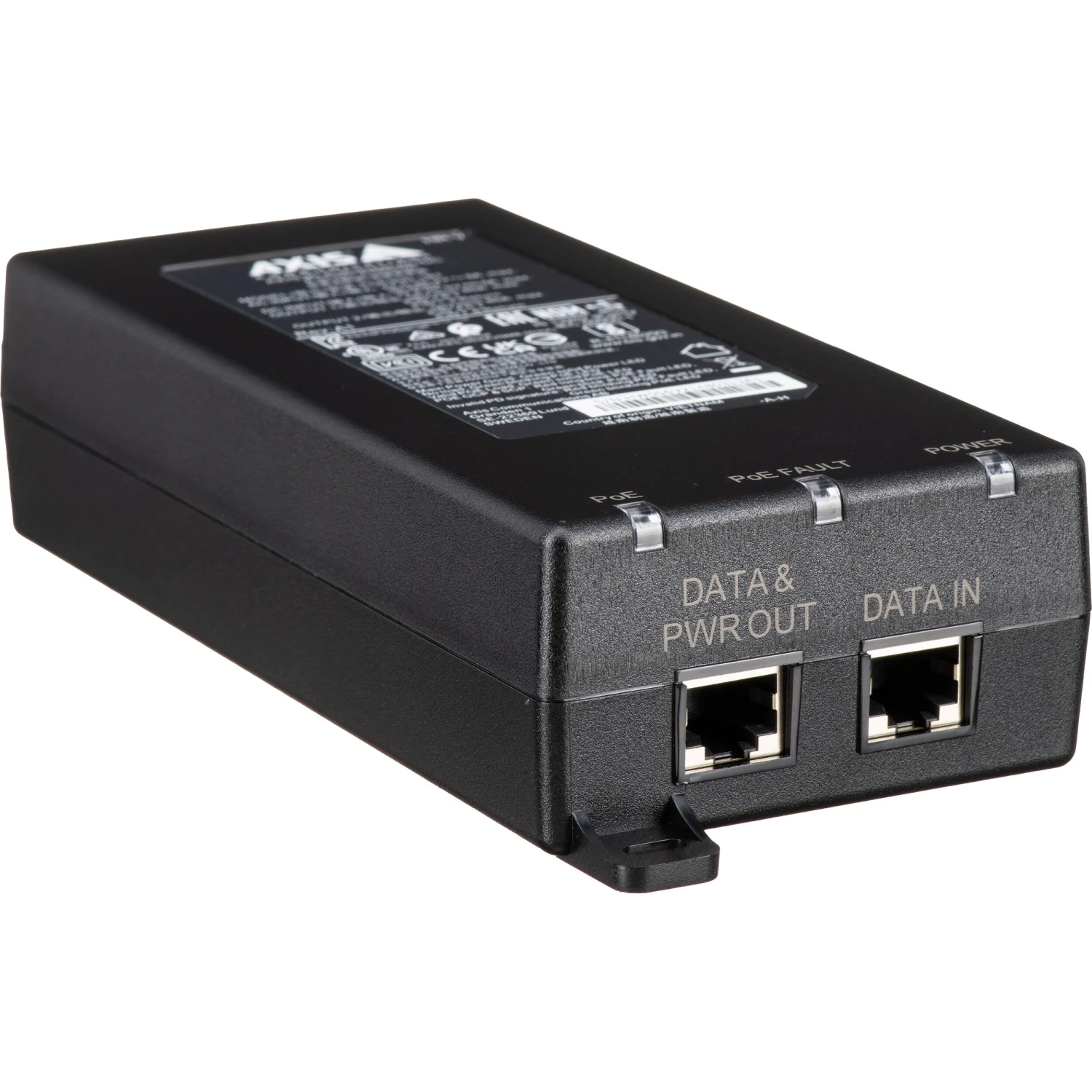

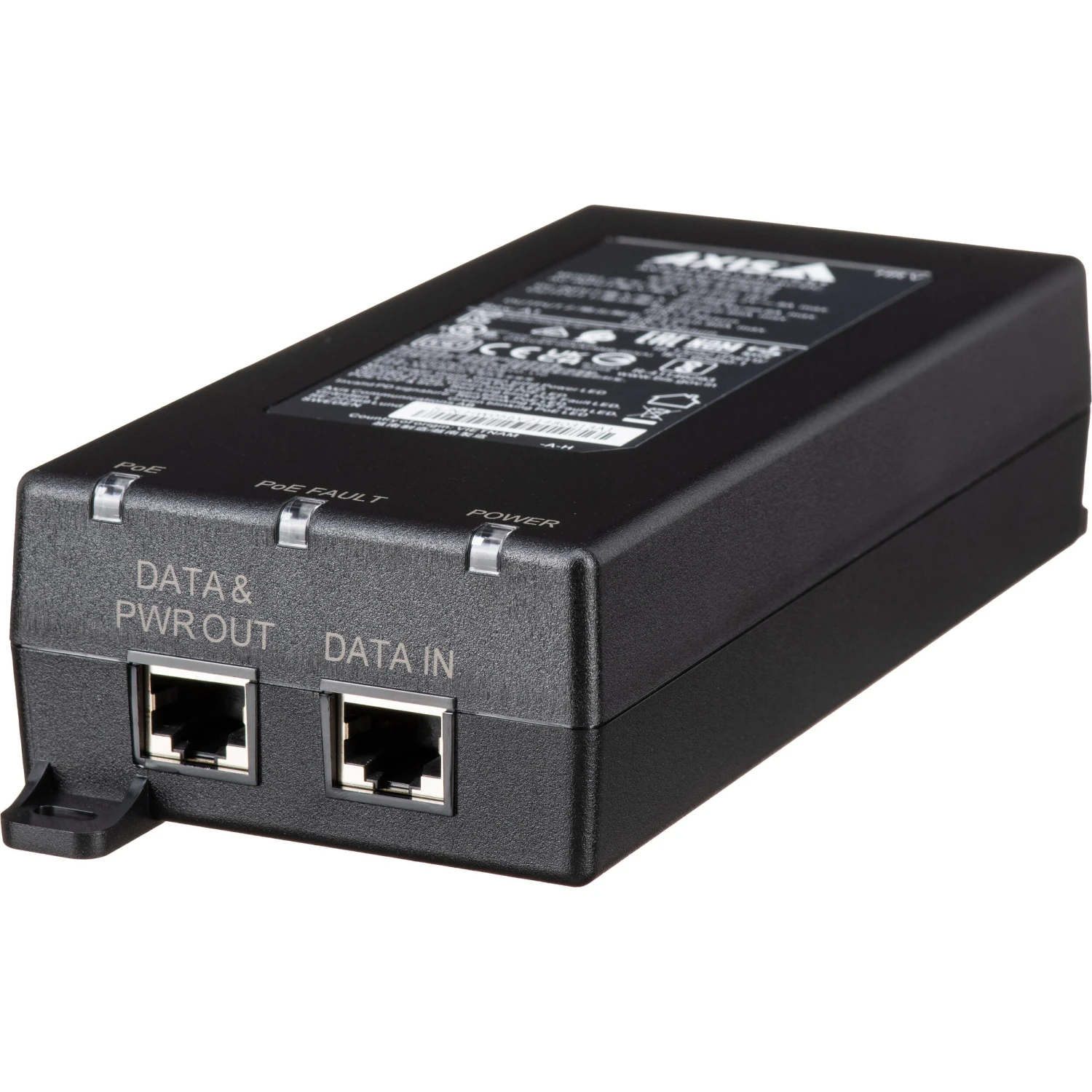

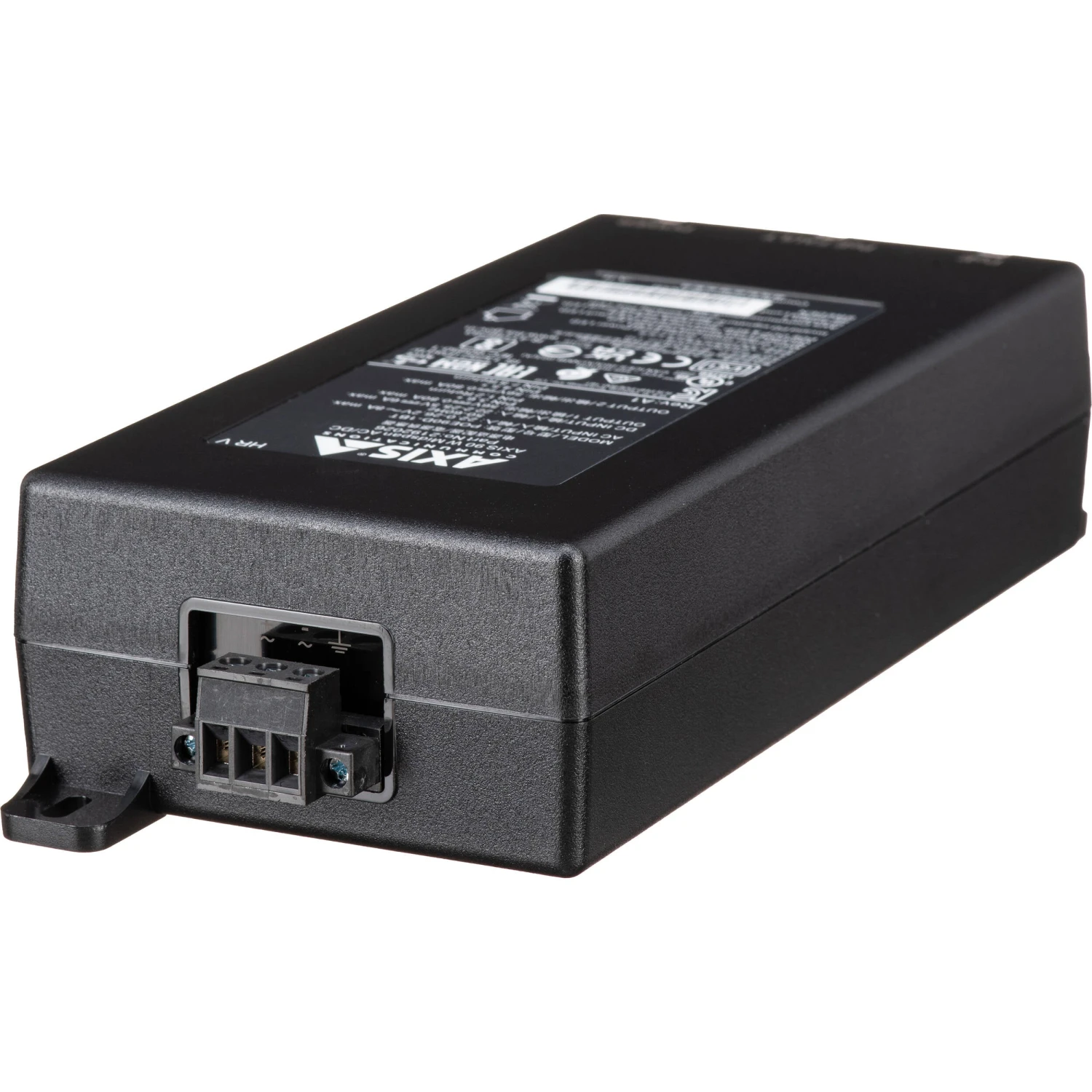

Axis Communications 90W Single-Port AC/DC Midspan(Axis Communications 90w Single Port Ac Dc Midspan)

Axis Communications 90W Single-Port AC/DC Midspan(Axis Communications 90w Single Port Ac Dc Midspan) - Image 2

Axis Communications 90W Single-Port AC/DC Midspan(Axis Communications 90w Single Port Ac Dc Midspan) - Image 3

Axis Communications 90W Single-Port AC/DC Midspan(Axis Communications 90w Single Port Ac Dc Midspan) - Image 4

Axis Communications 90W Single-Port AC/DC Midspan(Axis Communications 90w Single Port Ac Dc Midspan) - Image 5

Axis Communications 90W Single-Port AC/DC Midspan(Axis Communications 90w Single Port Ac Dc Midspan)

Original price was: $391.32.Current price is: $95.99.

SKU: DGFUB 6898840207445 Categories: Optics & Surveillance, Surveillance Video, Surviellance Tags: Networking, Power over Ethernet (PoE), Surveillance, Surveillance Video

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Axis Communications 02209-001 Overview

Power PoE/PoE+ devices, such as IP cameras, with the 90W Single-Port AC/DC Midspan from Axis Communications. This unit will support devices that require up to 90W of PoE power. It complies with IEEE 802.3af/at/bt standards and supports 1000 Mb/s passthrough data rates.

Unit automatically detects Axis PoE/PoE+ devices and supplies inline power

Suitable for retrofitting PTZ, dome, and box cameras where new cabling or installations are not an option, along with where battery backups are needed, for solar-powered installations, or when the network device is built in another equipment and is powered directly from it

Shielded RJ45 connectors

Three-pin AC/DC connector

Can be mounted on a wall, shelf, or DIN rail

LED indicators for status

PVC and halogen free

Axis Communications 02209-001 Specs

Type

Injector

General

Inputs/Outputs	2 x RJ45
Shielded I/O	Yes
Supported IEEE Standards	802.3af, 802.3at, 802.3bt

Electrical

PoE Power	56 VDC, 90 W (Output)
DC Input Power	20 to 26.4 VDC

Environmental

Operating Temperature	-4 to 158°F / -20 to 70°C
Operating Humidity	0 to 95% (Non-Condensing)
Storage Temperature	-40 to 167°F / -40 to 75°C

Physical

LED Indicators	Yes
Material of Construction	Plastic
Wall Mountable	Yes
Dimensions	7.4 x 3.1 x 1.7″ / 189.0 x 80.0 x 44.0 mm
Weight	1.1 lb / 500 g

Packaging Info

Package Weight	1.265 lb
Box Dimensions (LxWxH)	9.2 x 4.5 x 2.1″

Axis Communications 02209-001 Reviews
