Autel Robotics 102002546 Overview

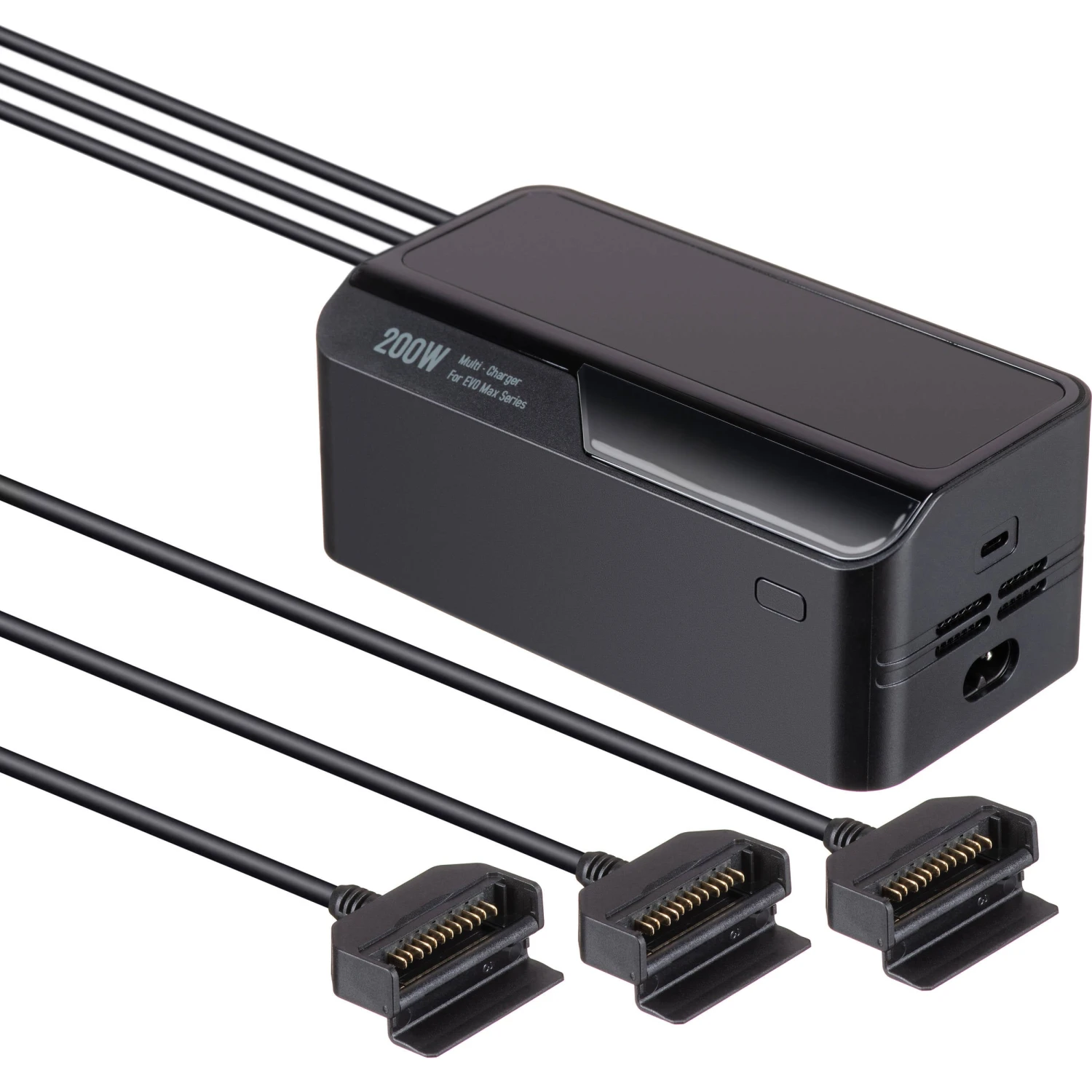

Quickly recharge on location or prepare for your next flight by using the EVO Max Multi-Charger from Autel Robotics. With the multi-charger, you can recharge up to three EVO Max flight batteries at once using your existing charging cables and an available AC outlet. There’s also a USB-C port with PPS fast-charging support to power up your controller, smartphone, or any other compatible device.
Items Included
- Autel Robotics EVO Max Multi-Charger
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Autel Robotics 102002546 Specs
| Quantity |
1 |
| Compatibility |
Autel Robotics EVO Max |
| Power Source |
AC Input (Included) |
| Power I/O |
1x NEMA 5-15 Input 1x USB-C Output |
| Center Tip Polarity |
Not Specified by Manufacturer |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 2.5 A |
| Maximum Power Output |
Not Specified by Manufacturer |
| Power Input |
USB-C: 9 V/3 A, 12 V/3 A, 15 V/3 A, and 20 V/5 A |
| Power Output |
USB-C: 5 V/2 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, and 20 V/5 A PPS: 3.3 V to 21 V/5 A One Battery: Up to 120 W Multiple Batteries: Up to 200 W |
| Charging Time |
One Battery: 60 to 70 Minutes Two or Three Batteries: 100 to 110 Minutes |
| Color |
Black |
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Dimensions |
5.9 x 3 x 2.4″ / 151 x 75 x 60 mm |
| Package Weight |
1.68 lb |
| Box Dimensions (LxWxH) |
7.1 x 4.8 x 3.5″ |
