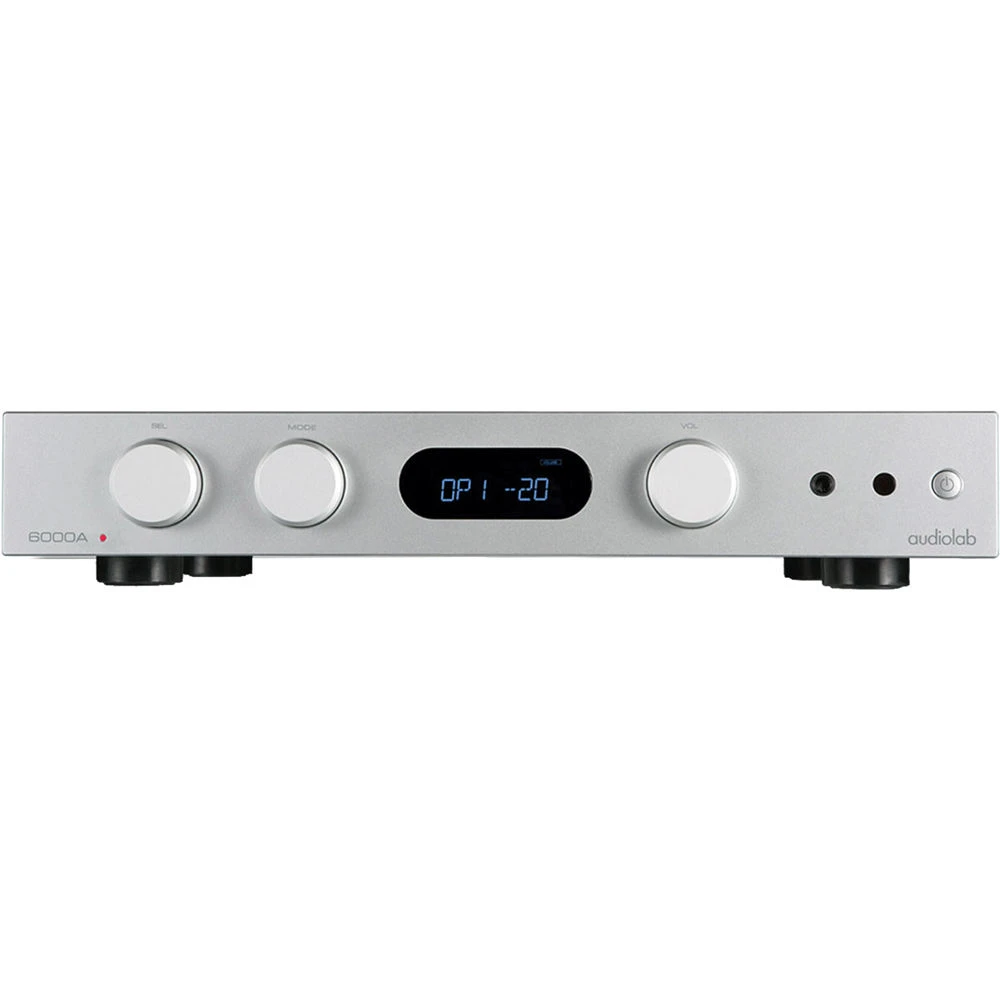

Audiolab 6000A Stereo 100W Integrated Amplifier (Silver)(Audiolab 6000a Stereo 100w Integrated Amplifier Silver)

2-Channel Amplifier Configuration50W per Channel Power Output @ 8 ohmsESS SABRE ES9018K2M DACBluetooth Audio Input

Enjoy enhanced stereo sound with your favorite pair of speakers and the silver Audiolab 6000A Stereo 100W Integrated Amplifier . It outputs up to 50W per channel at 8 ohms and features Bluetooth connectivity in addition to its two digital coaxial, two optical, and five stereo RCA inputs. One RCA input is a dedicated phono input and is accompanied by a ground screw terminal. An 1/8″ headphone jack with discrete amplification enables private listening. The 6000A includes a remote control as an added convenience.

Onboard DAC The onboard DAC lets the 6000A play digital sources without the need for an external DAC or other additional component. The 6000A uses the ES9018 SABRE32 Reference chip family for its D/A conversion, utilizing ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator to deliver low noise and high dynamic range. The amplifier has four digital inputs, three line-level analog inputs, a dedicated turntable input, Bluetooth wireless connectivity, and a dedicated headphone amplifier in addition to the speaker amplifiers. Analog Circuitry The discrete Class-AB power amp stage in the 6000A delivers 50W per channel into 8 ohms with a maximum current delivery of 9A into difficult loads. Its output stage uses a CFB (Complementary Feedback) topology to help ensure enhanced linearity and thermal stability, as the idle current is kept independent of the temperature of the output transistors. A 200VA toroidal transformer, followed by four 15,000 ?F reservoir capacity, helps the amp maintain control of the music while enabling a wide dynamic range. Simplified Preamp Section The preamp section is kept simple to help maintain signal purity, with line input signals passing to the analog volume stage, which covers the range from -80 dB to 8 dB in steps of 2 dB and 1 dB; step resolution increases with volume position. The physical layout of the 6000A’s circuitry is engineered to protect the preamp section from noise interference. UPC: 703341216009

Configuration	Stereo
Power Output per Channel	Up to 50 W Max @ 8 ohms, <1% THD Up to 75 W Max @ 4 ohms, <1% THD
Amplifier Class	Class-AB
Total Harmonic Distortion	<0.003% (1 kHz @ 40 W, 8 ohms)
Frequency Response ± 3dB	20 Hz to 20 kHz
Damping Factor	Not Specified by Manufacturer

Model	ESS SABRE ES9018K2M
THD	<0.0006% (1 kHz @ 0 dBFS)
Output Level	2.05 V @ 0 dBFS, 1 kHz
Max Sampling Rate	192 kHz
Signal to Noise Ratio	>112 dB (A-Weighted)
Gain	29 dB

Bluetooth	Yes

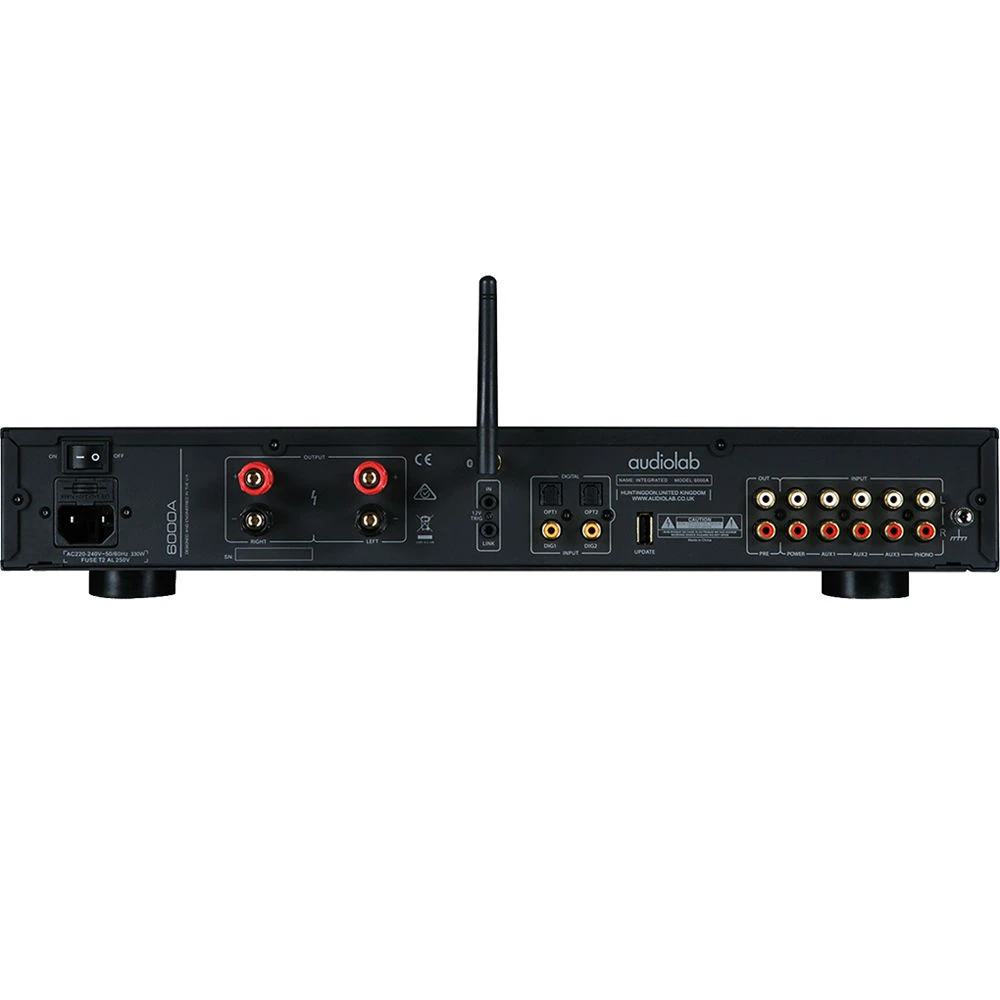

Inputs	5 x Stereo RCA Pairs (1 Phono with Ground Screw) 2 x Optical TOSLINK 2 x Digital Coaxial
Output	1 x Stereo RCA
Speaker Connectors	2 x Binding Post Pairs
Other Connectors	1 x 1/8″ / 3.5 mm 12 V Trigger In 1 x 1/8″ / 3.5 mm 12 V Trigger Out 1 x USB Type-A (Service)
Input Impedance	Line: 10 kilohms Phono MM: 47 kilohms / 100 pF
Input Sensitivity	Line, Volume = 0 dB: 720 mV Phono MM, Volume = 0 dB: 3.1 mv
Max Gain	Line: 8 dB Phono MM: 55 dB
THD	Line: <0.0004%, 1 kHz @ 2 V, Volume = 0 dB
Max Output Voltage	2.3 V (Volume = 0 dB)
Output Impedance	120 ohms
Signal to Noise Ratio	Line, A-Weighted: >110 dB Phono MM, A-Weighted: >76 dB
Max Output Current	9 A

THD	<0.01% (1 kHz, 50 mW)
Output Impedance	2.35 ohms
Load Impedance	20 to 600 ohms

Power Requirements	100 to 240 VAC, 50/60 Hz
Standby Power Consumption	<0.5 W
Dimensions (W x H x D)	17.5 x 2.6 x 11.8″ / 445 x 65.5 x 300 mm
Weight	17.2 lb / 7.8 kg

Package Weight	21.45 lb
Box Dimensions (LxWxH)	20.2 x 18.5 x 6.4″
