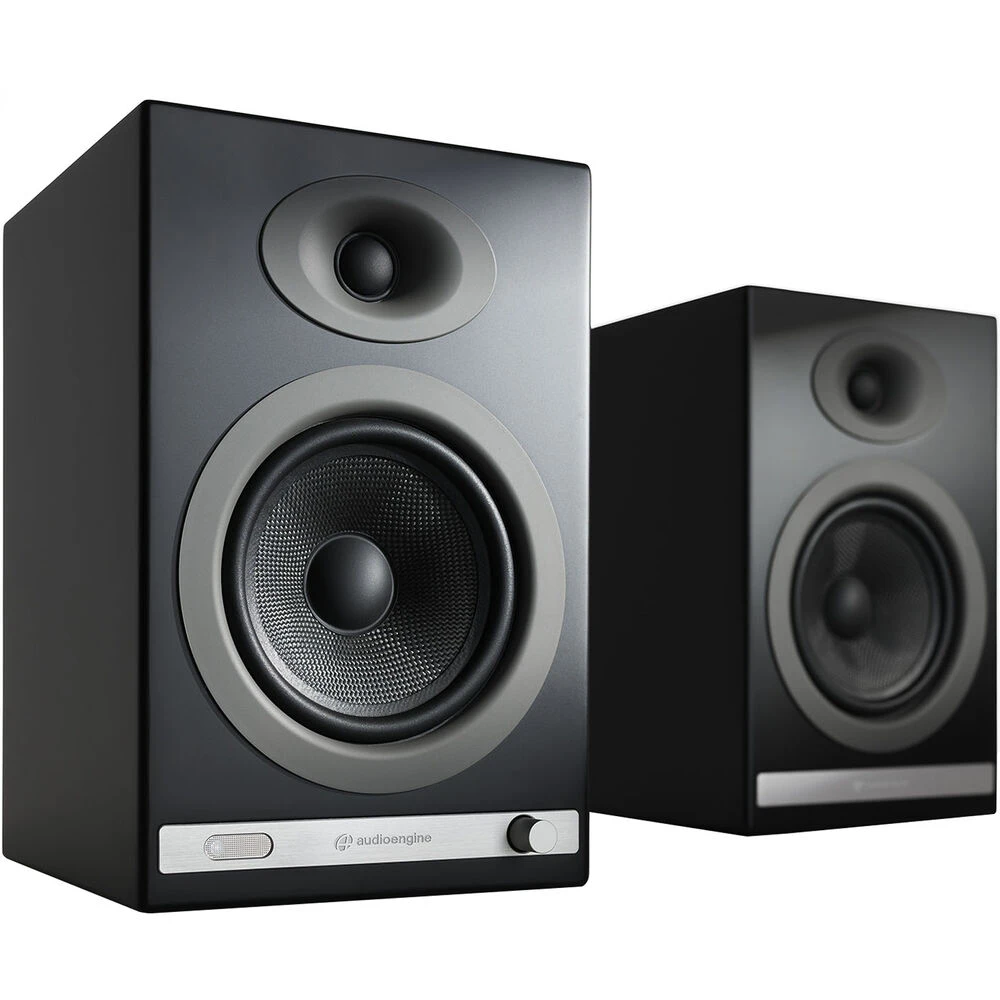

Audioengine HD5 Overview
Turntable or streaming music, movies or gaming, this pair of HD5 2-Way Active Wireless Bookshelf Speakers from Audioengine have been designed to deliver powerful, Hi-Fi sound. Inside each speaker is a 0.75″ silk tweeter and 5″ Aramid fiber woofer, while outside, they are encased by a low-vibration, 0.7″ thick high-resin MDF cabinet in a stunning matte black finish. They combine with a Hi-Fi Class AB amplifier and 24-bit AKM AK4396 DAC for crisp, clear, and sonically accurate audio reproduction, at a loud 100W. Conveniently stream music via Bluetooth aptX HD from up to 100′ away, or keep it local with wired optical, RCA, or 3.5mm wired input.
- 24-bit DAC can be used via Bluetooth or optical input to bypass TV or component DACs
- Optical, RCA, and 3.5mm AUX inputs
- Subwoofer output
- Gapless core toroidal transformers for lower noise
- Drivers are video shielded for close placement to displays and hard drives
- Brushed metal hardware and front volume control
- Removable neodymium magnetic grilles

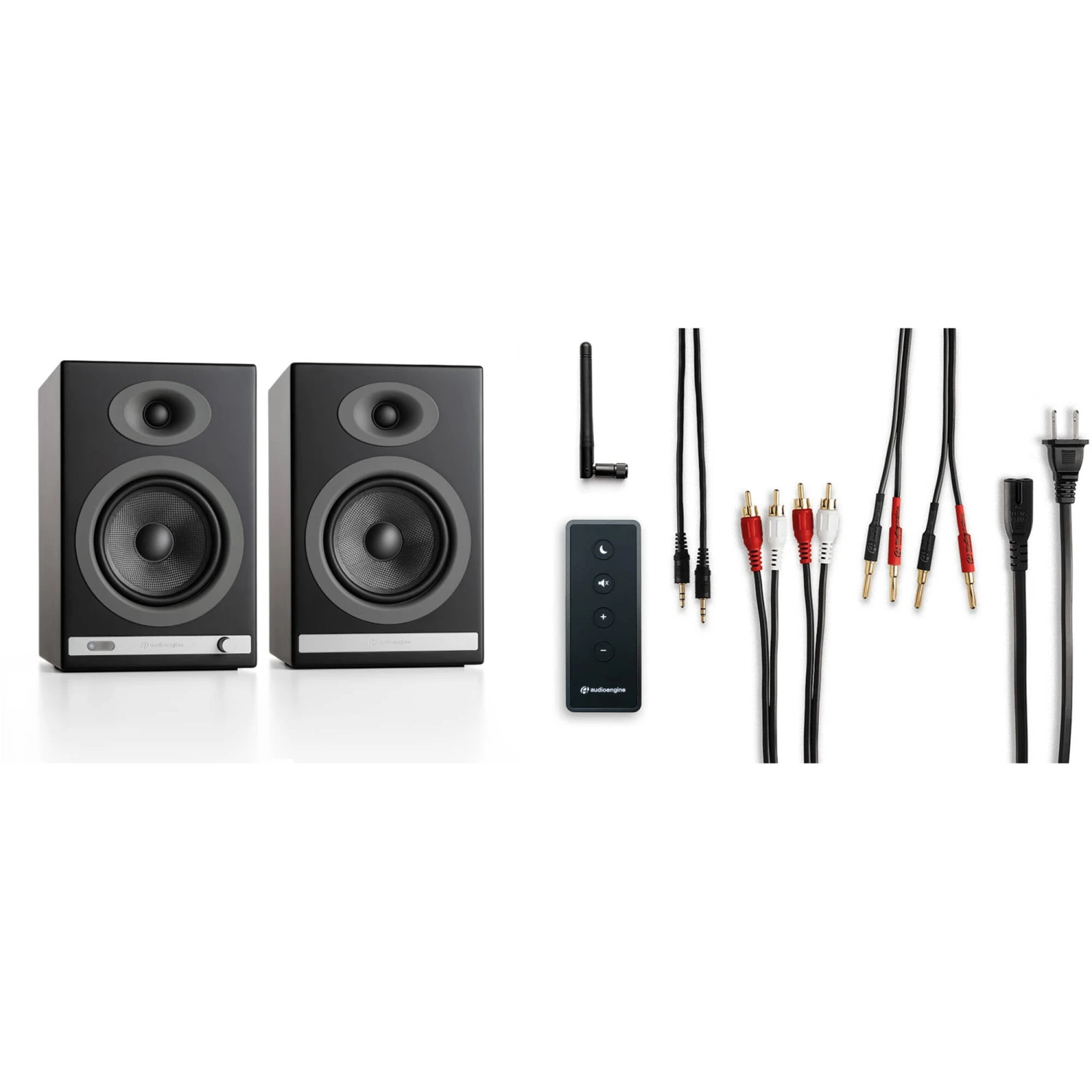

Items Included
- Audioengine HD5 2-Way Active Wireless Bookshelf Speakers (Matte Black, Pair)
- Remote Control
- Antenna
- 16 AWG Speaker Wire
- 3.5mm Audio Cable
- RCA Cable
- 2 x Microfiber Speaker Bag
- 2 x Microfiber Cable Bag
- AC Power Cord
- Limited 3-Year Manufacturer Warranty
Additional Resources
Quick-Start Guide
0.9 MB
Audioengine HD5 Specs
| Speaker Configuration |
2-Way |
| Amplifier Power Rating |
100 W RMS 150 W Peak |
| Drivers |
1x 5″ / 127 mm Woven Aramid-Fiber/Kevlar Woofer (per Speaker) 1x 0.75″ / 19.05 mm Silk Tweeter (per Speaker) |
| Frequency Response |
50 Hz to 22 kHz (±1.5 dB) |

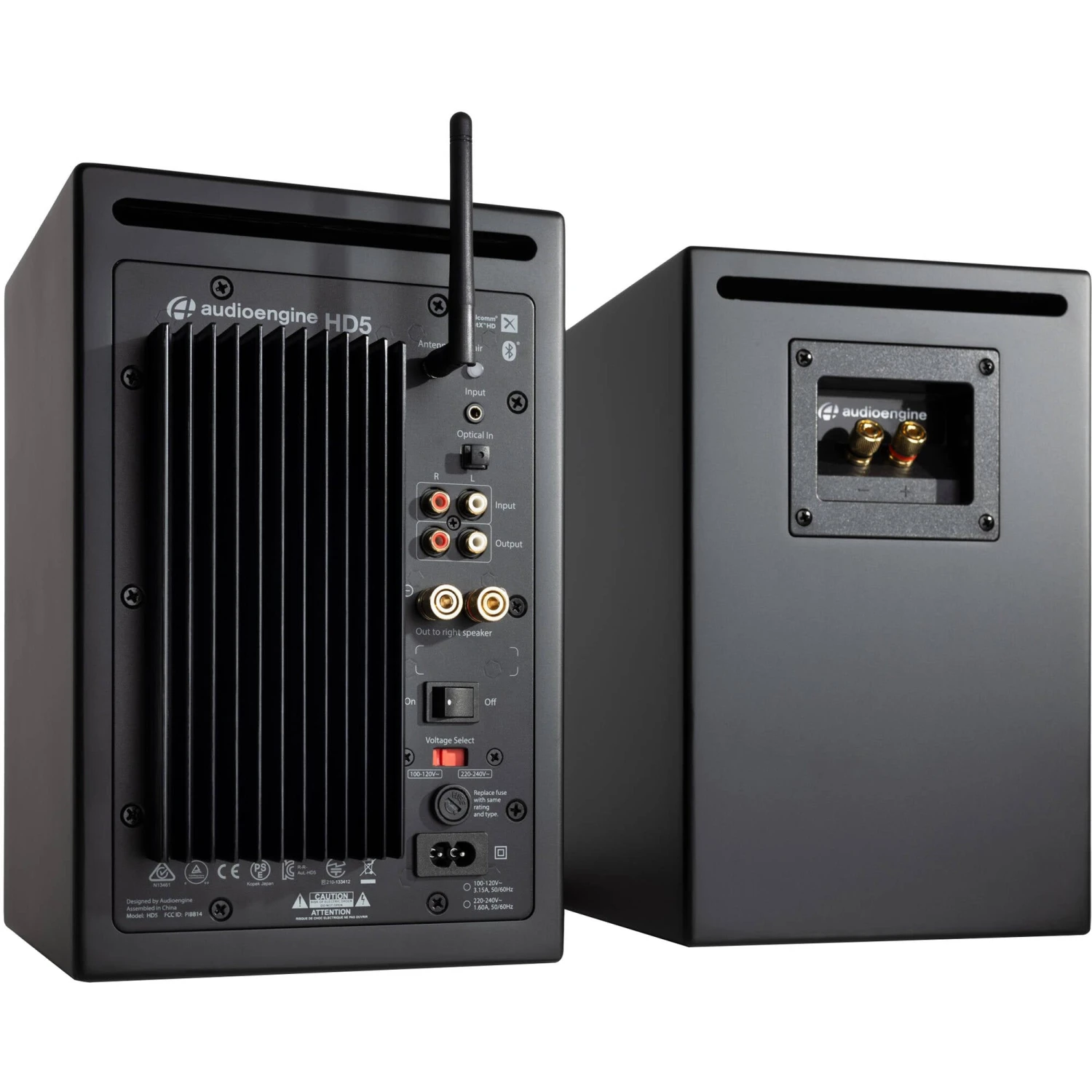

| Inputs/Outputs |
1x TOSLINK Optical Input (Audio) 1x RCA Input (Audio) 1x 1/8″ / 3.5 mm Input (Audio) 1x RCA Output (Audio) 2x Binding Post Pair Thru (to Other Speaker) |
| Bluetooth |
5.0 |
| Speaker Configuration |
2-Way |
| Amplifier Power Rating |
100 W RMS 150 W Peak |
| Drivers |
1x 5″ / 127 mm Woven Aramid-Fiber/Kevlar Woofer (per Speaker) 1x 0.75″ / 19.05 mm Silk Tweeter (per Speaker) |
| Ports |
1x Rear-Firing (per Speaker) |
| Frequency Response |
50 Hz to 22 kHz (±1.5 dB) |
| Magnetic Shielding |
Yes |
| Inputs/Outputs |
1x TOSLINK Optical Input (Audio) 1x RCA Input (Audio) 1x 1/8″ / 3.5 mm Input (Audio) 1x RCA Output (Audio) 2x Binding Post Pair Thru (to Other Speaker) |
| Amplifier Class |
1 x Class-AB |
| SNR (Signal-to-Noise Ratio) |
95 dBA |
| THD (Total Harmonic Distortion) |
< 0.05% |
| Input Impedance |
48 Kilohms (RCA) 48 Kilohms (1/8″ / 3.5 mm) |
| Wireless Connection Protocols |
Bluetooth |
| Bluetooth |
5.0 |
| Wireless Range |
100′ / 30.5 m (Device to Speaker) |
| Supported Audio Codecs |
AAC, aptX, aptX HD, SBC |
| Input Power |
115 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
10 W (Idle) 4 W (Standby) |
| Supported Sample Rates |
Up to 192 kHz / 24-Bit |
| Color |
Matte Black |
| Placement & Mounting Options |
Tabletop/Bookshelf |
| Cabinet Material |
MDF |
| Grille |
Cloth (Removable) |
| Operating Conditions |
32 to 95°F / 0 to 35°C at 5 to 95% Humidity |
| Storage Conditions |
-4 to 113°F / -20 to 45°C |
| Dimensions |
7.2 x 11 x 7.8″ / 18.2 x 28 x 19.8 cm (Each) |
| Weight |
Left: 17.6 lb / 8.0 kg Right: 12.1 lb / 5.5 kg |
| Package Weight |
29.11 lb |
| Box Dimensions (LxWxH) |
20.6 x 16 x 12.7″ |
