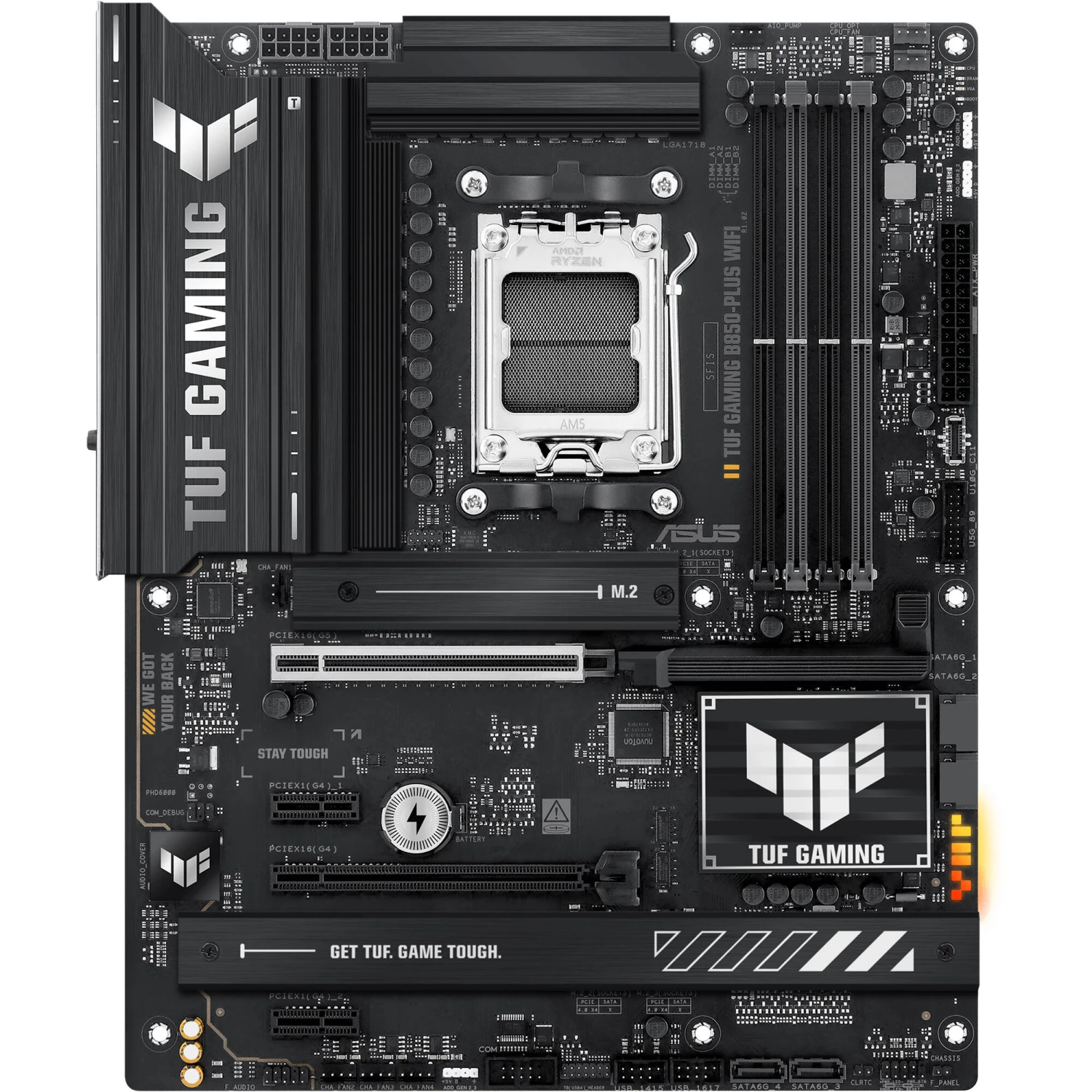

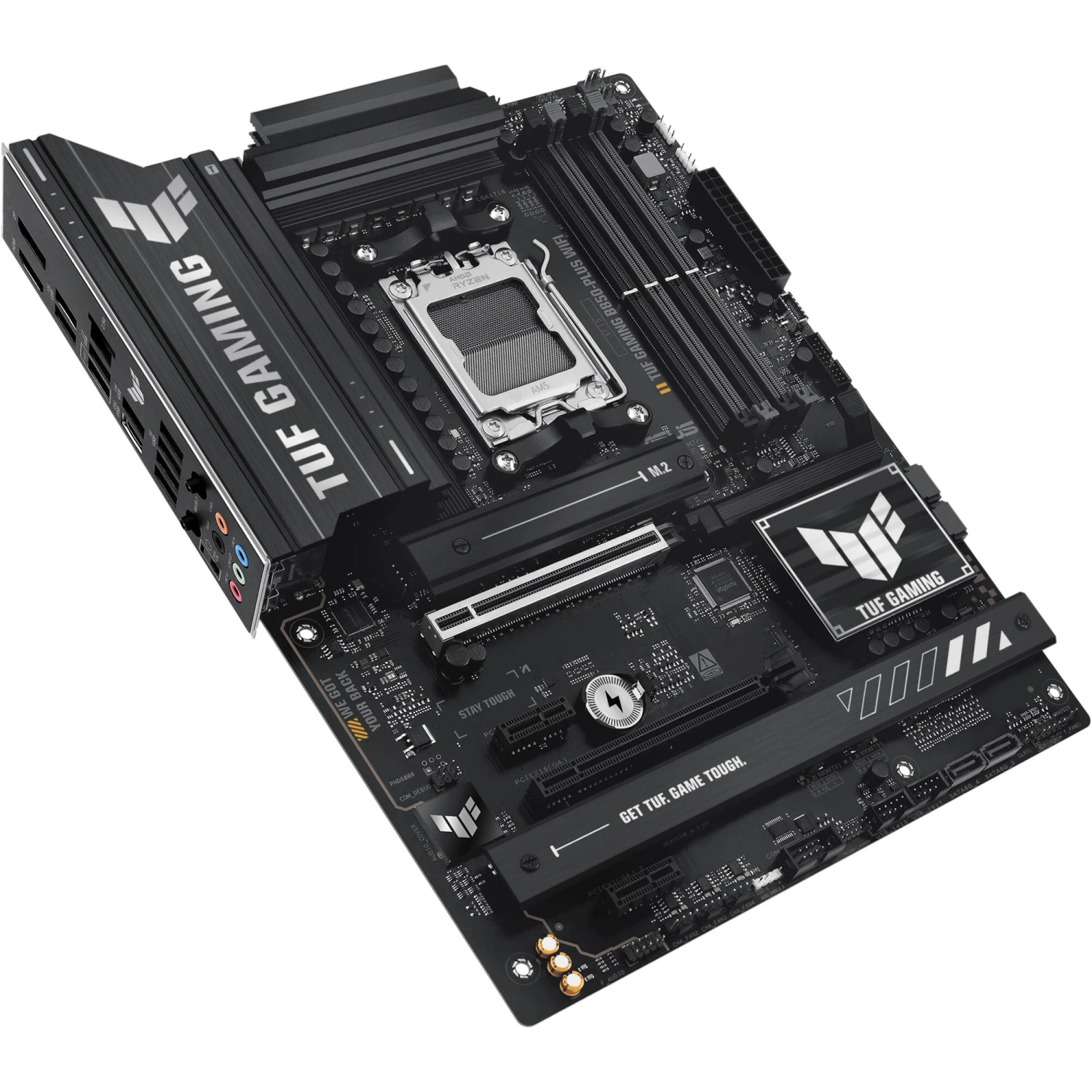

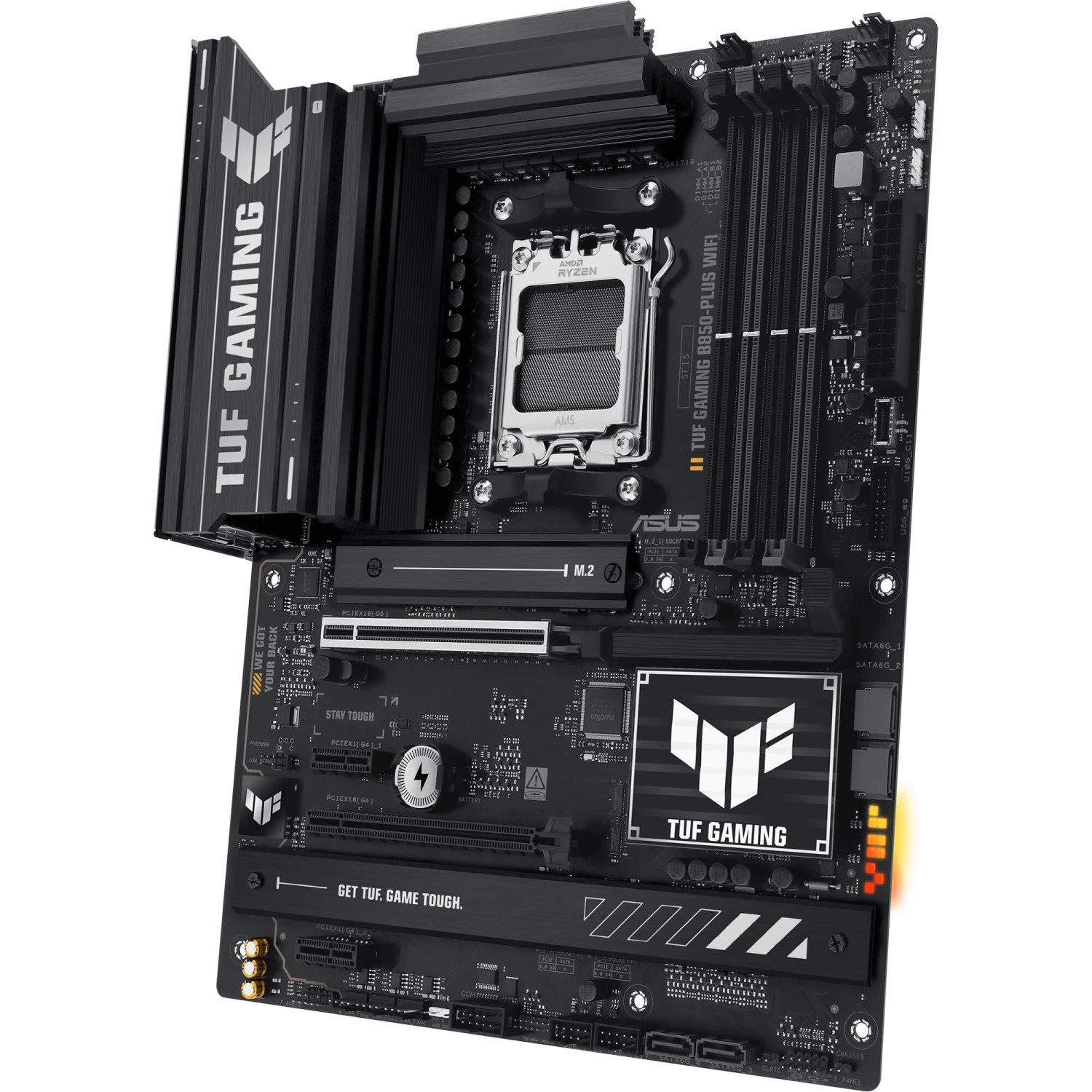

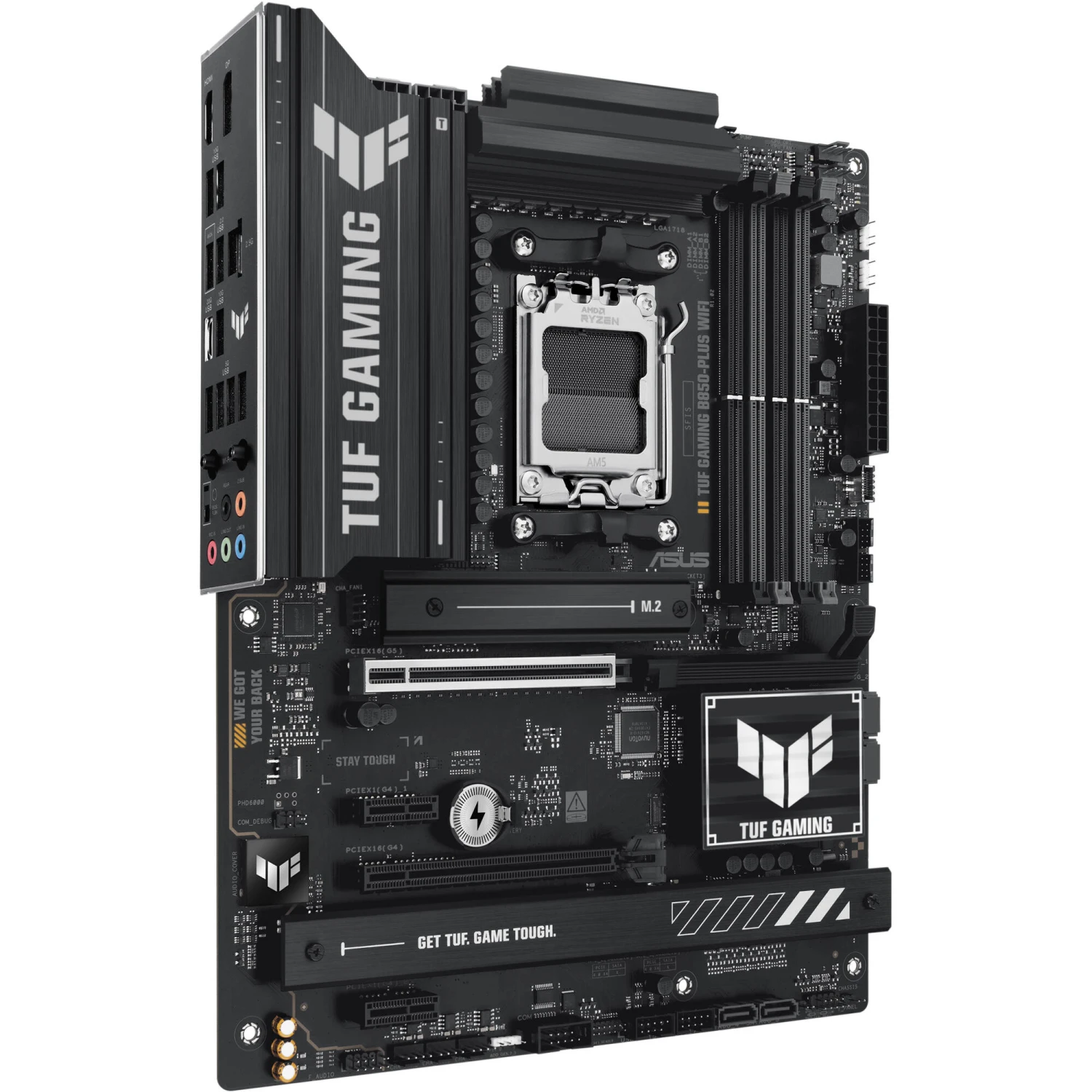

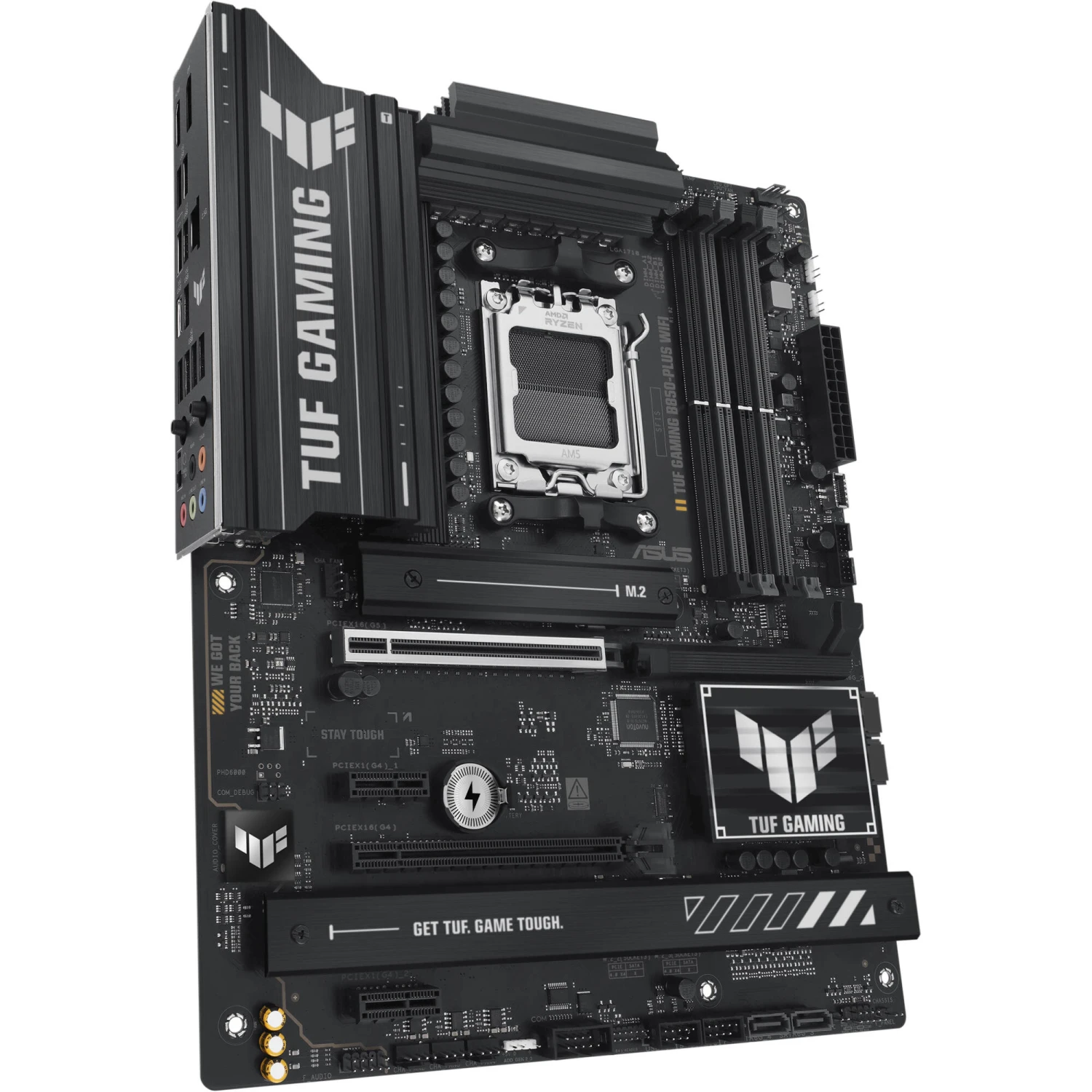

ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Motherboard(Asus Tuf Gaming B850 Plus Wifi Am5 Atx Motherboard)

ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Motherboard(Asus Tuf Gaming B850 Plus Wifi Am5 Atx Motherboard) - Image 2

ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Motherboard(Asus Tuf Gaming B850 Plus Wifi Am5 Atx Motherboard) - Image 3

ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Motherboard(Asus Tuf Gaming B850 Plus Wifi Am5 Atx Motherboard) - Image 4

ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Motherboard(Asus Tuf Gaming B850 Plus Wifi Am5 Atx Motherboard) - Image 5

ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Motherboard(Asus Tuf Gaming B850 Plus Wifi Am5 Atx Motherboard) - Image 6

ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Motherboard(Asus Tuf Gaming B850 Plus Wifi Am5 Atx Motherboard) - Image 7

ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Motherboard(Asus Tuf Gaming B850 Plus Wifi Am5 Atx Motherboard)

Original price was: $392.00.Current price is: $98.99.

SKU: DGFUB 7132785279061 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: ASUS B850-PLUS, Computers, Desktop Components, Motherboards

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

ASUS B850-PLUS Overview

Power immersive gaming and content creation with the ASUS TUF GAMING B850-PLUS WIFI ATX Motherboard as your foundation for your custom build. Designed primarily for first time builders with support for AMD 7000, 8000, and 9000 series processors, this socket AM5 motherboard offers fast connectivity and AI-driven performance features.

Four DDR5 DIMM slots are available, supporting up to 192GB of 8000 MT/s overclocked memory for smooth multitasking, large projects, and demanding applications. For storage, you can install an M.2 PCIe 5.0 SSD alongside two PCIe 4.0 and four SATA III drives to store your games library and important files. A PCIe 5.0 x16 slot is available for a powerful graphics card while the PCIe 4.0 x16 (x4 mode) and dual PCIe 4.0 x1 slots may be used for other compatible expansions.

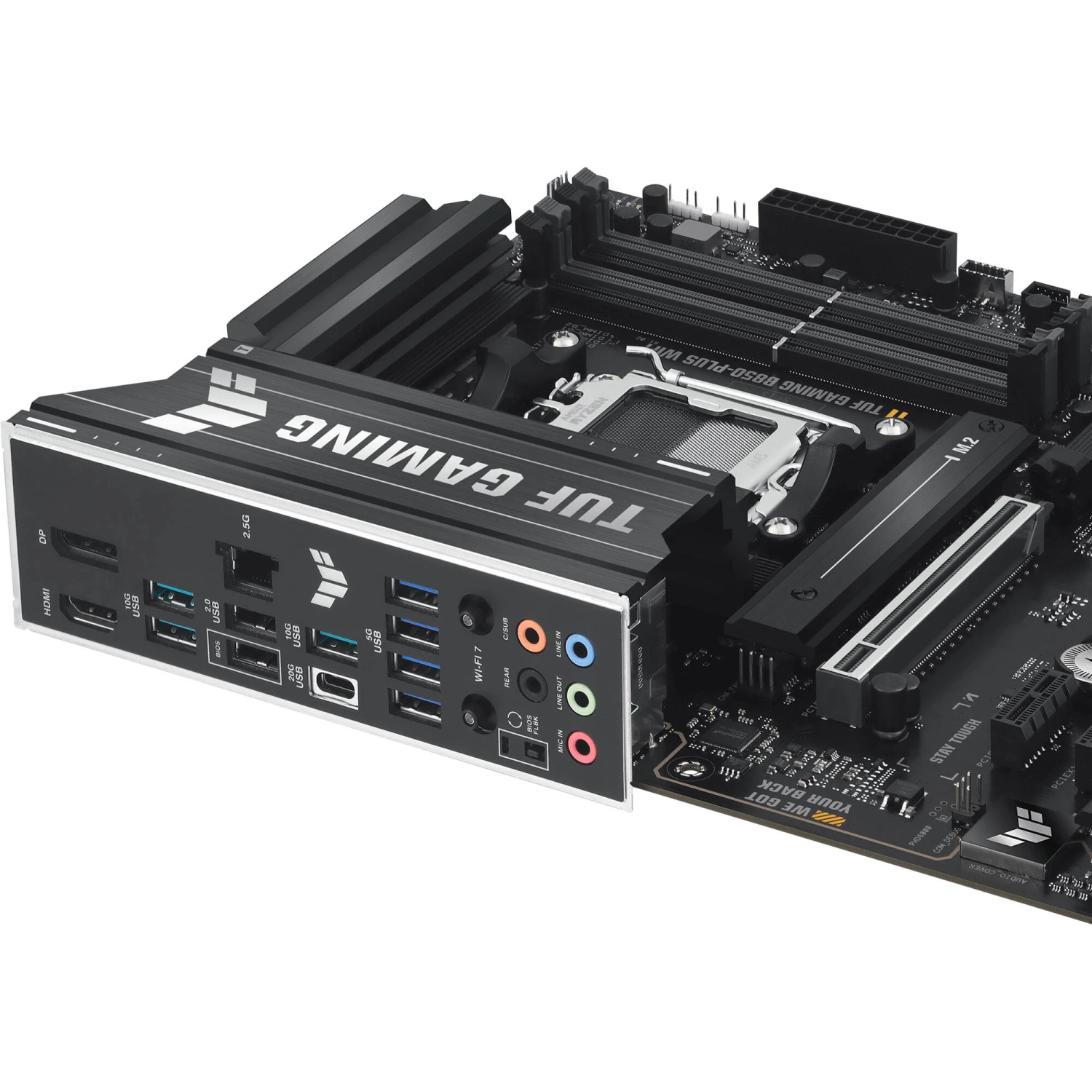

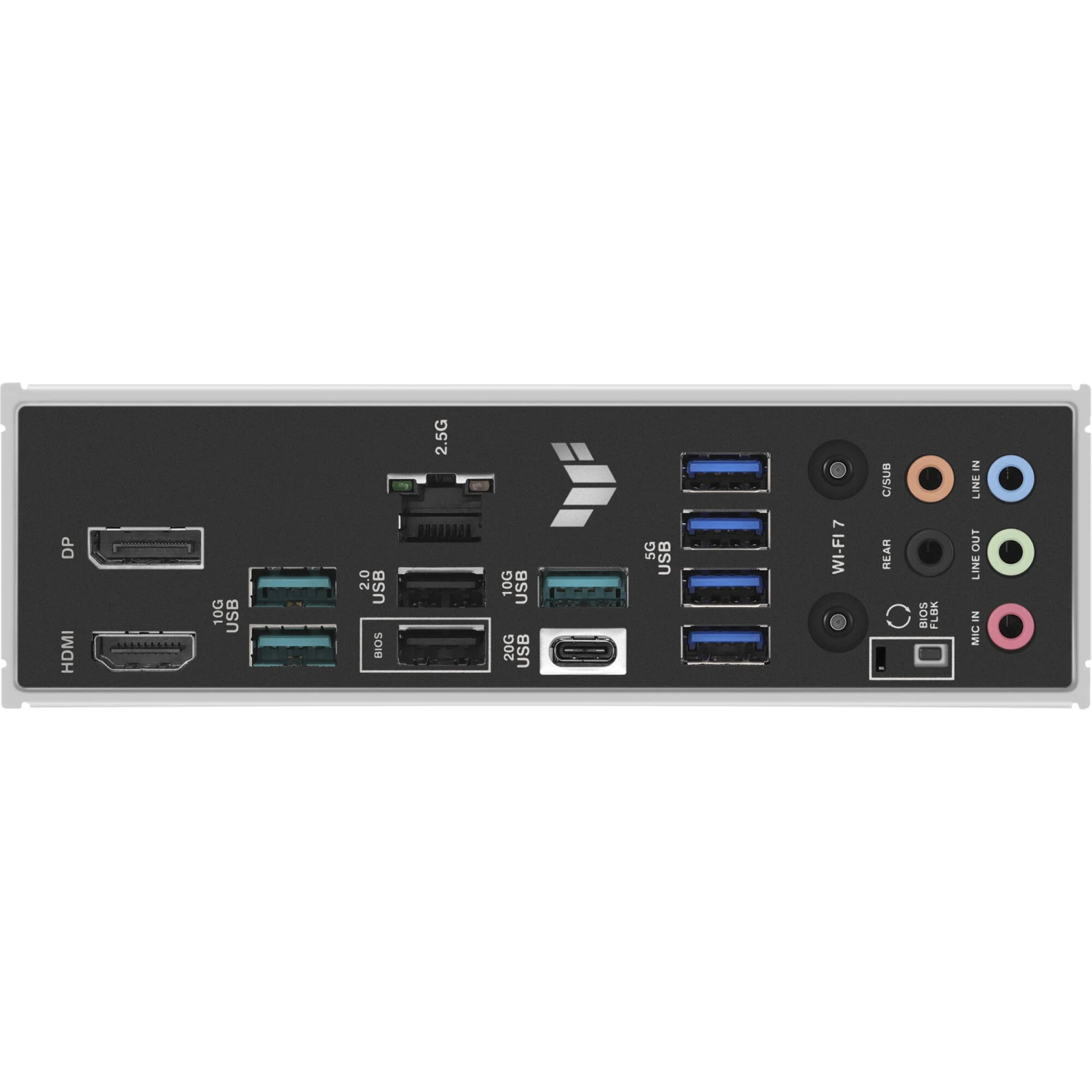

The rear panel includes a 20 Gb/s USB-C port, which is complemented by three USB-A ports that can transfer up to 10 Gb/s with compatible devices. Four 5 Gb/s compatible USB-A 3.2 Gen 1 ports and two USB-A 2.0 ports are also available. Built-in Wi-Fi 7 (802.11be) support and a 2.5 Gb/s Ethernet port provide you with fast connections to compatible network devices. Built-in HDMI 2.1 and DisplayPort 1.4 ports work with CPUs with integrated graphics. Windows 11 or later is required to take advantage of all the motherboard’s features.

Performance

AI Ready

Designed for AI computing, this motherboard offers the power and connectivity needed for demanding applications.

Overclocking Memory

This motherboard is ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.

AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

Power Design

Sporting 14+2+1 80A DrMOS power stages with ProCool power connectors, this motherboard delivers reliable and stable performance with high-core count CPUs, graphics cards, and other power-intensive components.

Advanced Cooling

Designed for overclocking, this motherboard maintains optimal performance and stability with fan and AIO pump headers, and heatsinks for the M.2 slots and VRM.

Realtek Audio

Featuring Realtek 7.1 surround sound, the integrated audio system delivers deep, immersive experiences.

DTS Audio Processing

DTS Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies, and music sound better. It also allows you to customize audio settings.

Connectivity

Wi-Fi 7

Wi-Fi 7 supports 320 MHz bandwidth on the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.

2.5G Ethernet

An onboard 2.5G Ethernet port provides fast and stable connectivity to compatible wired devices.

DIY Friendly

Easy M.2 Installation

The ASUS M.2 Q-Latch and Q-Slide allow you to quickly install or remove M.2 SSDs without the need for tools or screws.

PCIe Slot Q-Release

A physical lever unlocks the first PCIe slot’s security latch with one tap, which simplifies the process of detaching a PCIe card from the motherboard when it’s time to upgrade.

Q-Antenna

With Q-Antenna, attaching a Wi-Fi antenna to your PC is a snap. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place.

Q-LED

The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components are functioning normally during startup. It can also alert them when memory modules have not been properly installed.

BIOS FlashBack

BIOS FlashBack makes BIOS updates easy. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a summary. No CPU or memory needed.

Software Utilities

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

ASUS GlideX

Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.

Play in Style

Aura Sync

Enjoy complete RGB lighting control and synchronize the effects with compatible peripherals such as keyboards, mice, and monitors.

Addressable Gen 2 RGB headers

The two addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear. You can sync the effects Aura Sync compatible peripherals such as keyboards, mice, and monitors.

UPC: 197105781603

Items Included

ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Motherboard
2 x SATA III Cable
ASUS WiFi Q-Antenna
TUF GAMING Sticker
2 x M.2 Rubber Package
Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

ASUS B850-PLUS Specs

Key Specs

Chipset	AMD B850
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Support	DDR5 8000 MT/s
Storage Slots	1x M.2 (M Key) 2280 (PCIe 5.0 x4) 1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 4.0 x4)
Expansion Slots	1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x1
Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor	ATX

CPU

Chipset	AMD B850
CPU Socket	AM5

Back Panel I/O

USB	1x USB-C (USB 3.2 Gen 2×2) 3x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI 2.1 1x DisplayPort 1.4
Audio	5x 1/8″ / 3.5 mm
Ethernet / Controller	1x Intel 2.5Gigabit
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 8000 MT/s
Maximum Capacity	192 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC, ECC Unbuffered

Storage Expansion

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2280 (PCIe 5.0 x4) 1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 4.0 x4)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x1
USB	1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	2x 4-Pin CPU 4x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin CPU
Security	Chassis Intrusion
LED Header	3x RGB
Audio	1x Speaker
Diagnostics	Clear CMOS
Add-On	1x Thunderbolt Header
Legacy	1x Serial

BIOS

ROM

256 Mb

Front Panel I/O

AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec	Realtek ALC1220P (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth	5.4
Module Support	1 E Key M.2

Software

OS Compatibility

Windows 11

Physical

Form Factor	ATX
Dimensions	12 x 9.6″ / 304.8 x 243.8 mm

Packaging Info

Package Weight	4.235 lb
Box Dimensions (LxWxH)	14.8 x 11.3 x 2.9″
