Sale!

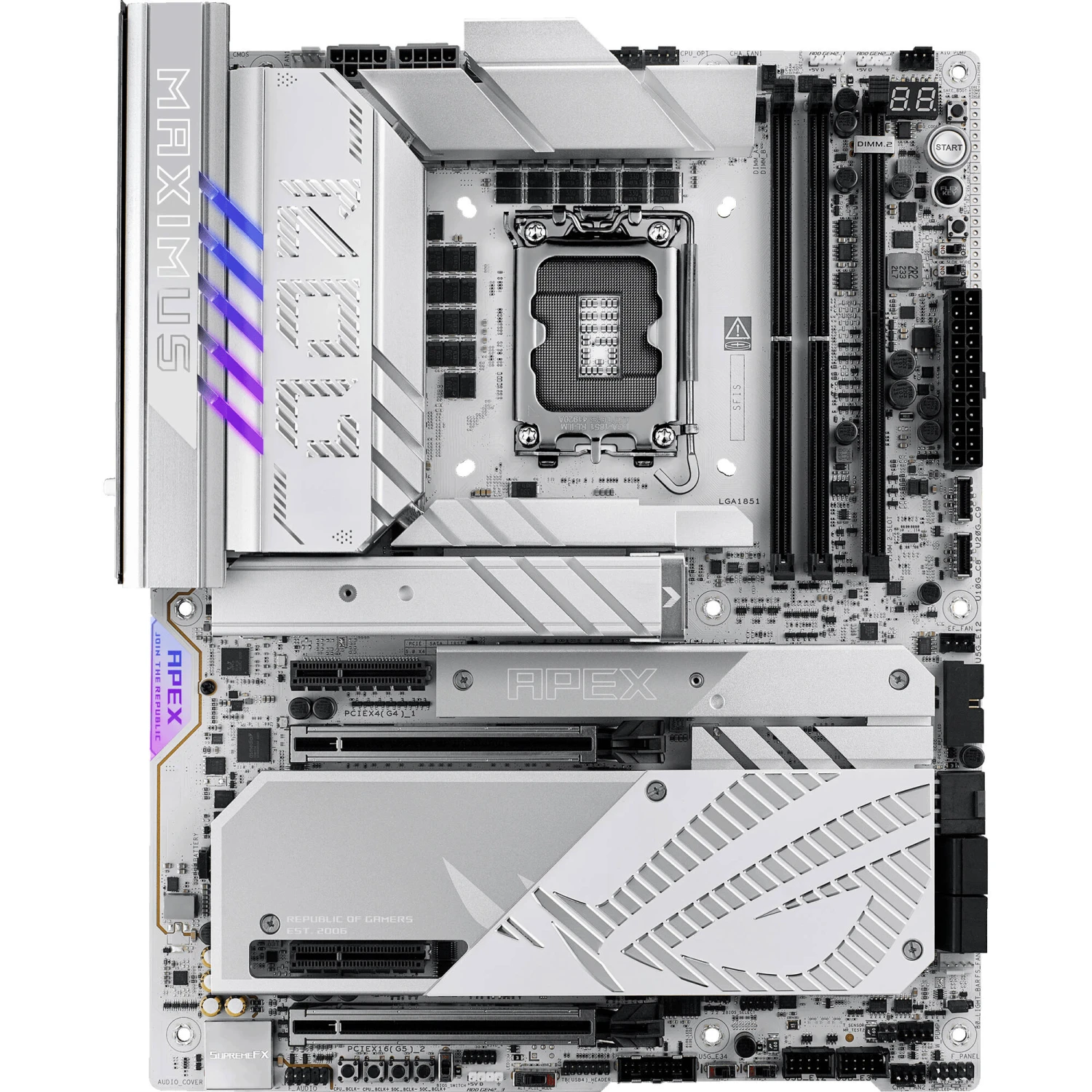

ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard(Asus Rog Maximus Z890 Apex Lga 1851 Atx Motherboard)

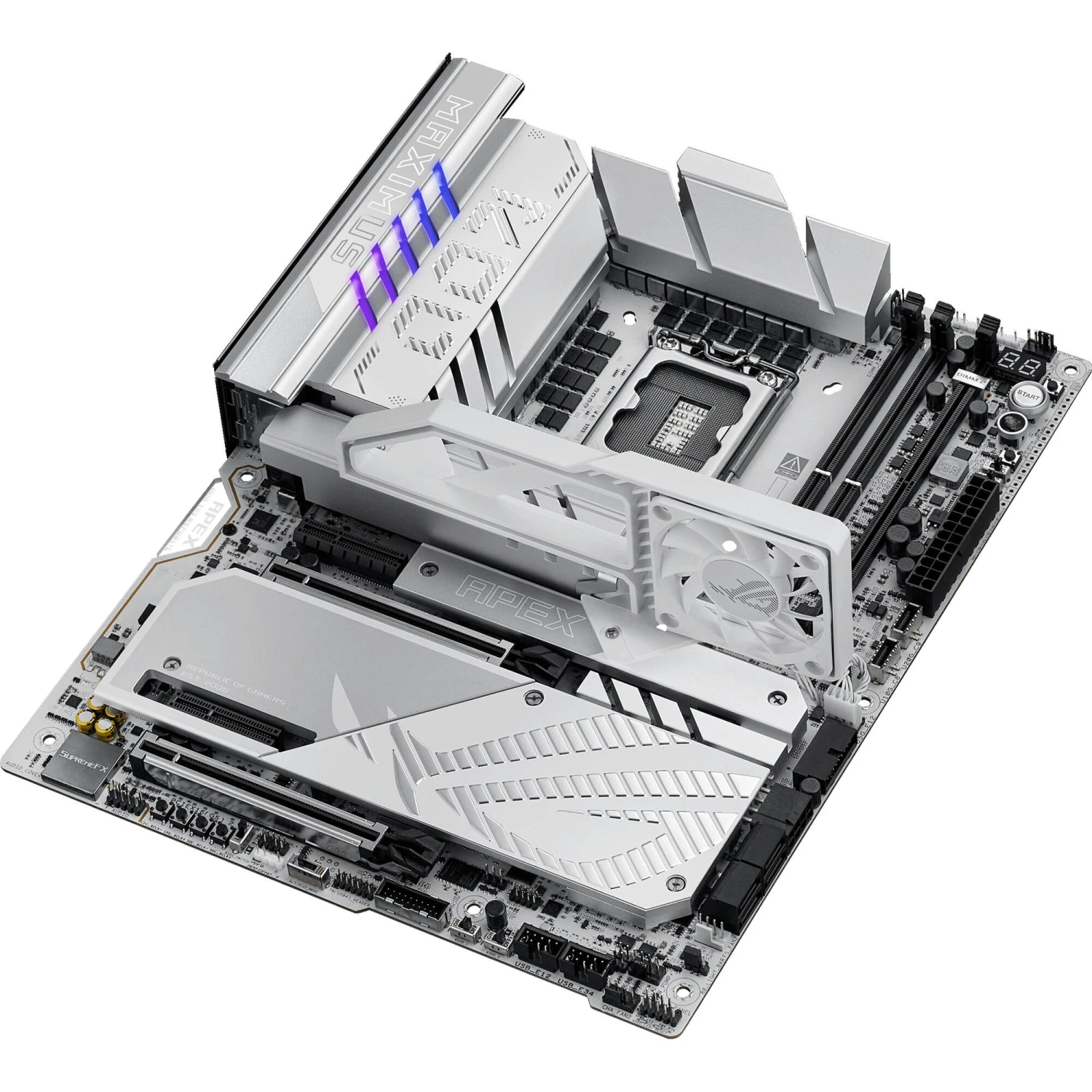

ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard(Asus Rog Maximus Z890 Apex Lga 1851 Atx Motherboard) - Image 2

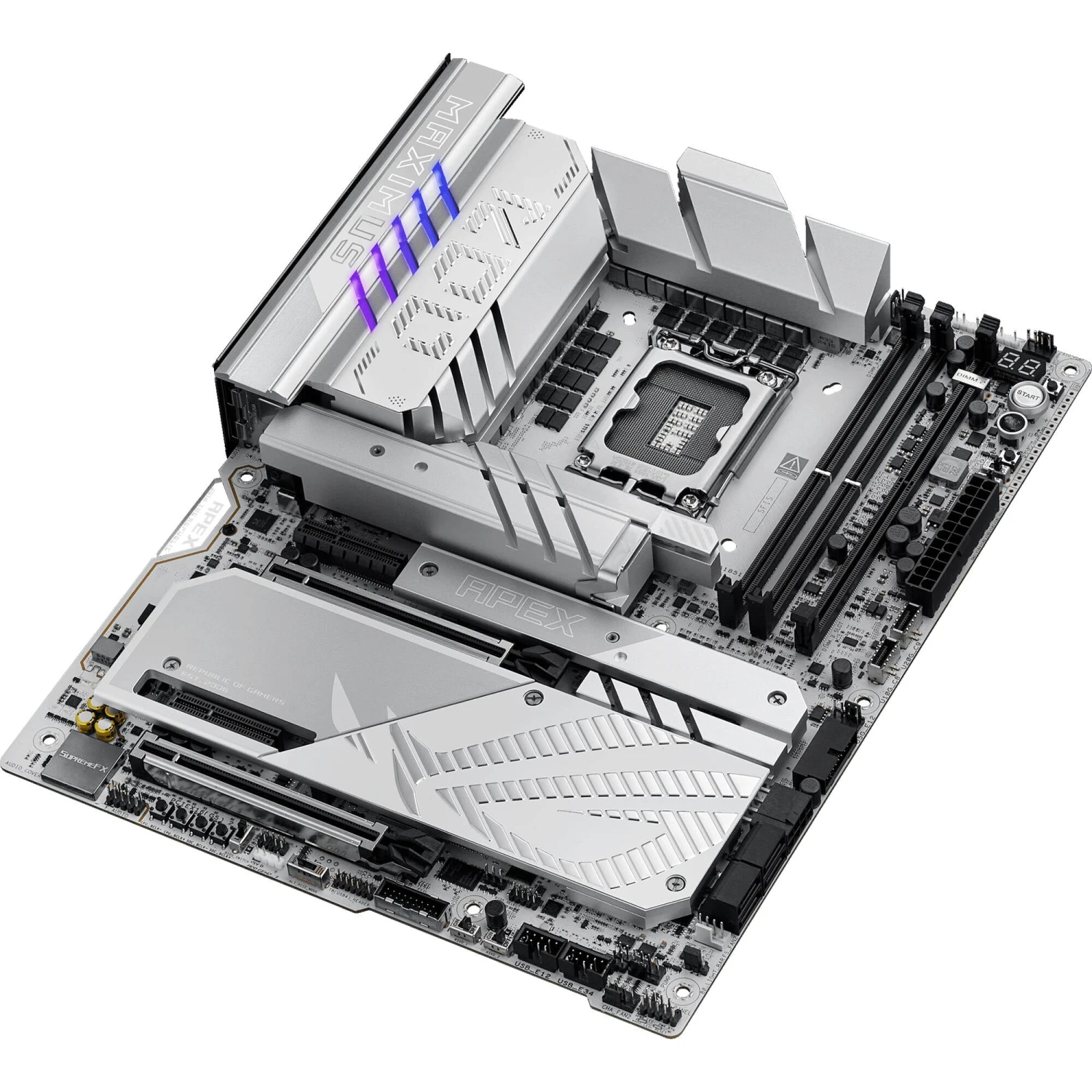

ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard(Asus Rog Maximus Z890 Apex Lga 1851 Atx Motherboard) - Image 3

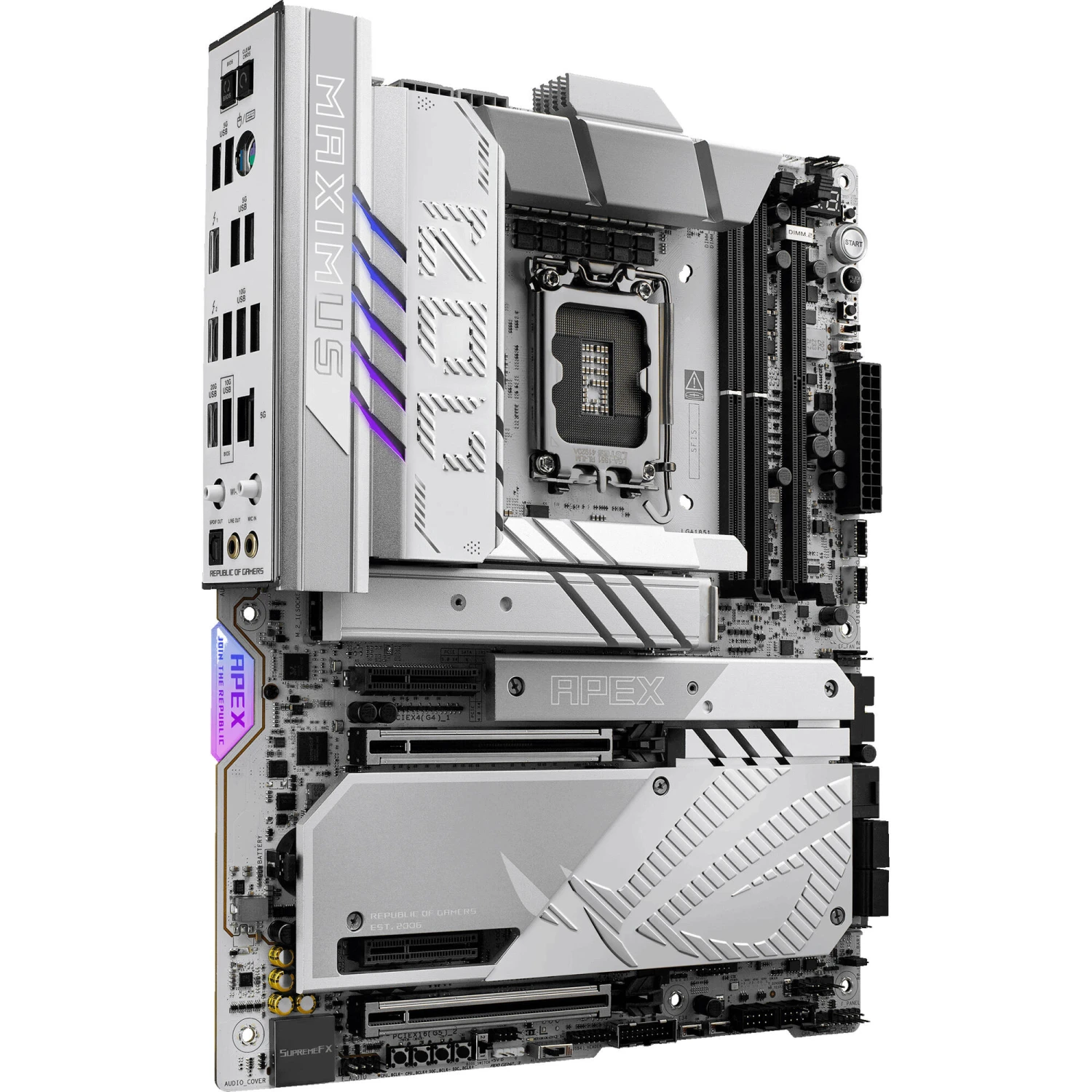

ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard(Asus Rog Maximus Z890 Apex Lga 1851 Atx Motherboard) - Image 4

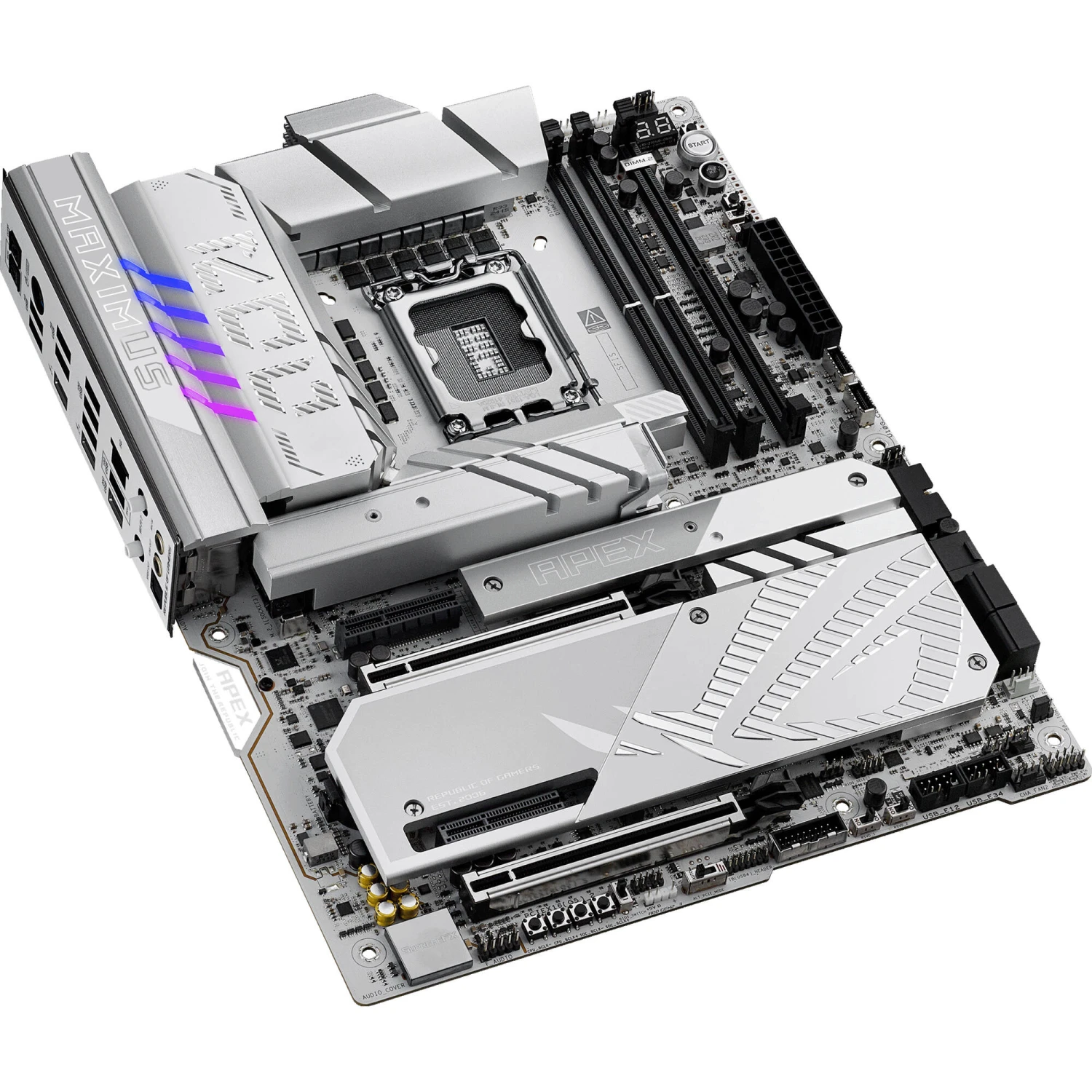

ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard(Asus Rog Maximus Z890 Apex Lga 1851 Atx Motherboard) - Image 5

ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard(Asus Rog Maximus Z890 Apex Lga 1851 Atx Motherboard) - Image 6

ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard(Asus Rog Maximus Z890 Apex Lga 1851 Atx Motherboard)

Original price was: $310.00.Current price is: $99.99.

SKU: DGFUB 7073132576853 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: ASUS ROG MAXIMUS Z890 APEX, Computer Components, Desktop Components, Motherboards

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

ASUS ROG MAXIMUS Z890 APEX Overview

Outfit your computer build for high performance with the ASUS ROG MAXIMUS Z890 APEX Motherboard as the foundation. Designed for immersive entertainment and demanding creative workflows, this ATX motherboard supports Intel Core Ultra series 2 desktop processors with the LGA 1851 socket and may be equipped to smoothly handle creative applications and AI workloads.

Install up to three M.2 PCIe 5.0 SSDs alongside one PCIe 4.0 drive. Two more M.2 PCIe 4.0 x4 SSDs may be added using the included DIMM.2 adapter, and there are four SATA III connectors, providing you with plenty of space to store your games library, applications, and multimedia files. The two DDR5 DIMM slots support up to 96GB at 9600 MT/s overclocked speeds. With two PCIe 5.0 x16 and two PCIe 4.0 x4 slots, you can install powerful graphics cards and other compatible expansions.

The rear panel features two Thunderbolt 4 ports that can transfer up to 40 Gb/s with compatible devices or connect a USB-C compatible 8K displays. There is also a 20 Gb/s compatible USB-C port alongside four 10 Gb/s USB-A ports and four USB-A 3.2 Gen 1 ports that work with 5 Gb/s compatible devices. Internal headers allow you to connect front panel 20 Gb/s and 10 Gb/s USB-C ports. Built-in Wi-Fi 7 (802.11be) support and a 5 Gb/s Ethernet port provide you with connections to compatible network devices for smooth video streaming and low-latency online games. Windows 11 is required to take advantage of all this motherboard’s features.

Performance

AI Equipped

Leveraging Artificial Intelligence, the ROG MAXIMUS Z890 APEX can boost performance with automatic AI overclocking and cooling, enhancing your games and productivity without compromising thermal capabilities. You can ask the ASUS AI Adviser questions about optimizing your system’s performance and finding out more about its features.

Easy Overclocking

The ROG Overclocker’s Toolkit includes hardware-level controls that can enhance your overclocking experience. They include Safe Boot, BCLK, and Retry summarys, along with RSVD, LN2 Mode, Slow Mode, and BIOS switches. There are also Probeit measurement points for advanced tuning. A differential-sensing circuit and delicate IC simplify overclocking and tuning by allowing you to accurately track voltages. Specialized circuitry detects when condensation occurs on the back of the board.

Enhanced Power Solution

Equipped with 22(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II connectors, MicroFine alloy chokes, and durable capacitors, this motherboard delivers stable power throughout the entire motherboard, maintaining electrical volume whether you are performing simple tasks or operating at full power during resource-demanding processes.

M.2 PowerBoost

ROG M.2 PowerBoost technology helps ensure that every onboard M.2 device operates simultaneously at optimal performance.

DIMM Fit

This ASUS-exclusive BIOS feature analyzes individual memory modules to optimize performance and pinpoint potential issues.

DIMM Flex

DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

Comprehensive Cooling

A VRM heat sink works with highly conductive thermal pads and a chipset heat sink to efficiently dissipate heat. M.2 heat sinks and dedicated backplates help to ensure optimal SSD performance during sustained workloads. The DIMM.2 card also includes a hefty heat sink.

Gaming Audio

SupremeFX 7.1 Surround Sound

The ROG SupremeFX ALC4080 codec delivers studio quality 32-bit, 384 kHz audio across all channels. The front panel audio output is channeled through an integrated Savitech SV3H712 amplifier, delivering near imperceptible distortion levels at -90dB THD+N and a signal-to-noise ratio of 110 dB. Audio line shielding and an audio cover reduces electromagnetic interference.

Dolby Atmos

With the addition of height channels, Dolby Atmos surround sound creates an immersive audio experiences by providing the sensation of sound coming from above, below, and around the listener.

DIY Friendly

Easy M.2 Installation

ASUS M.2 Q-Release, Q-Slide and Q-Latch technologies allow you to quickly install or remove M.2 SSDs without the need for tools or screws.

PCIe Slot Q-Release Slim

With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. Users no longer need to fiddle with a tricky latch or even press a summary to release their graphics card from the slot.

Q-Antenna

With Q-Antenna, attaching a Wi-Fi antenna to your PC is a snap. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place.

Q-LED

The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components are functioning normally during startup. It can also alert them when memory modules have not been properly installed.

Troubleshooting

A built-in start summary and Q-Code LEDs help you quickly identify problems.

Clear CMOS and BIOS FlashBack

Clear the CMOS at the touch of a summary to help remove data corruption from the chip. BIOS FlashBack makes BIOS updates easy. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a summary. No CPU or memory needed.

Software Utilities

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

TurboV Core

Accessed via ASUS DriverHub, TurboV Core delivers intuitive CPU tuning that can unleash performance for overclocking enthusiasts. No need to enter the BIOS. You can modify settings directly from within Windows and apply them without needing to reboot.

Thunderbolt Share

Enhance your multitasking by connecting up to two Thunderbolt compatible computers together. Seamlessly share screens, keyboards, mice, storage and files between them with the speed of Thunderbolt technology.

ASUS GlideX

Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.

HWINFO

This comprehensive diagnostic tool provides detailed information about hardware components and real-time system monitoring.

AIDA64 Extreme

The AIDA64 Extreme tool provides detailed information about the hardware components and software, performs benchmark tests, and helps prevent possible hardware issues. A 60-day trial subscription is included.

Armoury Crate

Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

Play in Style

Aura Sync

Enhance your immersion with RGB lighting effects, including modes that adapt to the on-screen action. Then synchronize them with Aura Sync compatible peripherals such as keyboards, mice, and monitors.

Addressable Gen 2 RGB headers

The three addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear.

UPC: 197105754294

Items Included

ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
ROG DIMM.2 with Heatsink
M.2 Pad for ROG DIMM.2
2 x M.2 Screw Package for ROG DIMM.2
ASUS WiFi Q-Antenna
Q-Connector
3 x M.2 Q-Slide package
5 x M.2 Backplate Rubber Package
USB Drive with Utilities and Drivers
ROG Bottle Opener
ROG VIP Card
Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

ASUS ROG MAXIMUS Z890 APEX Specs

Key Specs

Chipset	Intel Z890
CPU Socket	LGA 1851
Memory Slots	2x 288-Pin
Memory Support	DDR5 9600 MT/s
Storage Slots	1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4) 2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Expansion Slots	2x PCIe 5.0 x16 2x PCIe 4.0 x4
Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor	ATX

CPU

Chipset	Intel Z890
CPU Socket	LGA 1851

Back Panel I/O

USB	1x USB-C (USB 3.2 Gen 2×2) 4x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt	2x Thunderbolt 4
Display	No Dedicated Display Ports (Video Signal via USB-C)
Audio	2x 1/8″ / 3.5 mm 1x S/PDIF
Ethernet / Controller	1x Realtek 5GbE
PS/2	1x Combo
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback, Clear CMOS

Memory

Memory Slots	2x 288-Pin
Memory Support	DDR5 9600 MT/s
Maximum Capacity	96 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4) 2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
DIMM.2	1 Slot Supporting 2 M Key 2230, 2242, 2260, 2280, 22110 PCIe 4.0 x4
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10

Internal I/O

Expansion Slots	2x PCIe 5.0 x16 2x PCIe 4.0 x4
USB	1x USB 3.2 Gen 2×2 Header (Supports 1 USB-C Port) 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	2x 4-Pin CPU 4x 4-Pin System 1x Thermal Sensor
Liquid Cooling	2x 4-Pin Pump 1x Water Cooling CPU Fan
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin CPU 1x 8-Pin ATX
LED Header	3x RGB
Audio	1x Speaker
Diagnostics	2-Digit Debug LED, BIOS Selection, Clear CMOS, Flash BIOS, LN Mode, Measurement Points, Pause, ReTry, Safe Boot, Slow Mode, Start
Add-On	1x Thunderbolt Header

BIOS

ROM

2x 256 Mb
