ASUS ProArt Z890-CREATOR WIFI Overview
Designed primarily for creative professionals, the ASUS ProArt Z890-Creator WiFi LGA 1851 ATX Motherboard may be outfitted with high-end expansions to accelerate rendering times and streamline workflows. Supporting Intel Core Ultra series 2 desktop processors with the LGA 1851 socket, this ATX motherboard delivers top-end performance for demanding applications and AI workloads.
Install one M.2 PCIe 5.0 SSD alongside four PCIe 4.0 drives to store your applications and multimedia files. Four SATA III connectors are also available. The four DDR5 DIMM slots support up to 192GB of 9066 MT/s memory in overclocked mode. You can install powerful graphics cards into the two available PCIe 5.0 x16 slots while reserving the PCIe 4.0 x16 (x4 mode) slot for other compatible expansions.

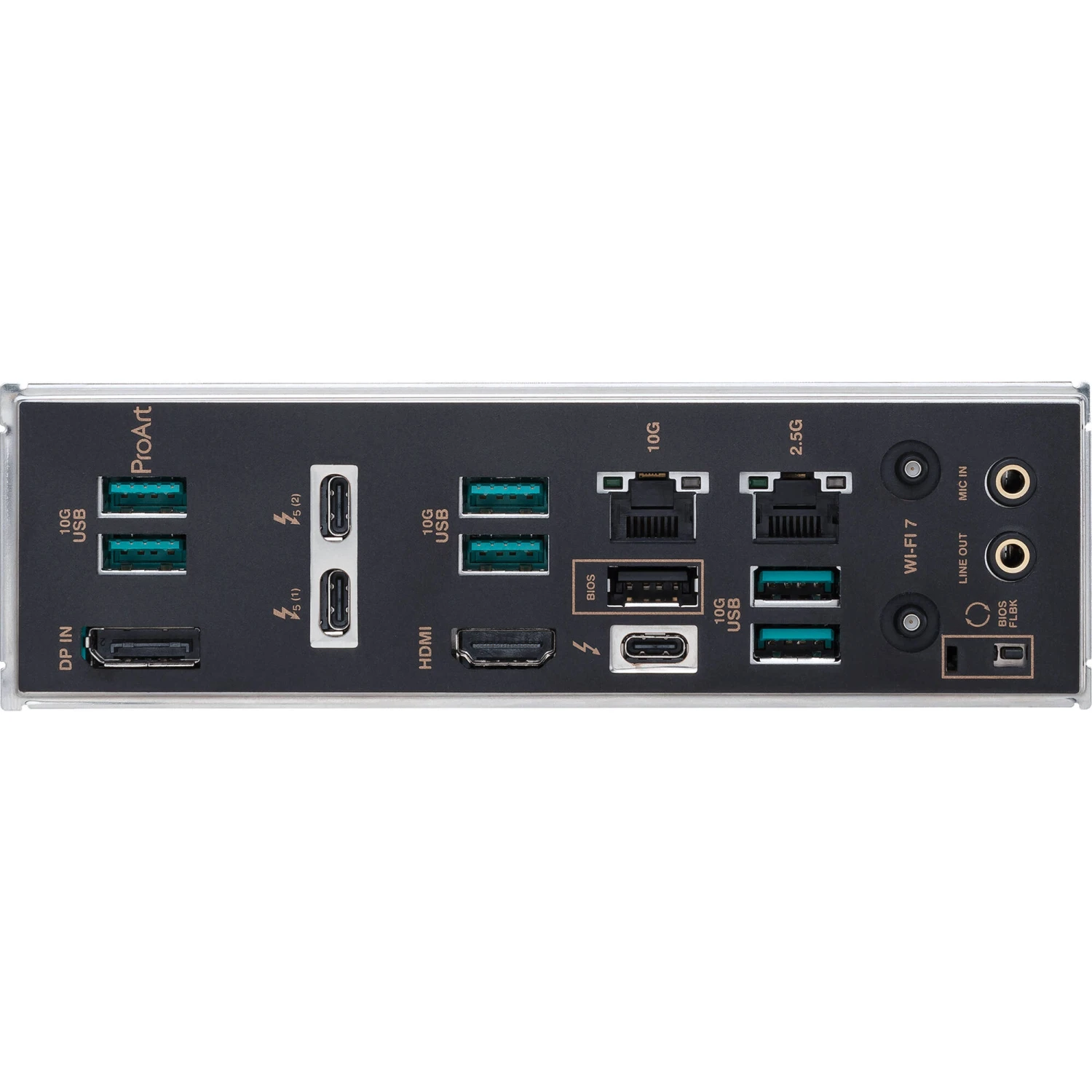

The rear panel features two Thunderbolt 5 ports that can transfer up to 80 Gb/s with compatible devices or connect a USB-C compatible 8K display. There is also a 40 Gb/s Thunderbolt 4 port available alongside six USB-A 3.2 Gen 2 ports for 10 Gb/s compatible devices. You can use the four USB-A 2.0 ports for peripherals such as a wireless keyboard and mouse adapter. An internal header allows you to connect a front panel 20 Gb/s USB-C port. Built-in Wi-Fi 7 (802.11be) support, 10 Gb/s Ethernet, and a 2.5 Gb/s Ethernet port allow you to connect to compatible network devices for smooth video streaming and fast data transfers. Windows 11 is required to take advantage of all this motherboard’s features.
Items Included
- ASUS ProArt Z890-Creator WiFi LGA 1851 ATX Motherboard
- 2 x SATA III Cable
- ASUS WiFi Q-Antenna
- Q-Connector
- 2 x M.2 Q-Latch Package
- 2 x M.2 Rubber Package
- ProArt Accessory Bag
- Limited 3-Year Manufacturer Warranty
Additional Resources
User Manual
1.7 MB
More from manufacturer
ASUS ProArt Z890-CREATOR WIFI Specs
| Chipset |
Intel Z890 |
| CPU Socket |
LGA 1851 |
| Memory Slots |
4x 288-Pin |
| Memory Support |
DDR5 9066 MT/s |
| Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4) 3x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified)) |
| Expansion Slots |
2x PCIe 5.0 x16 1x PCIe 4.0 x16 |
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) (2 x 2) |
| Form Factor |
ATX |
| Chipset |
Intel Z890 |
| CPU Socket |
LGA 1851 |
| USB |
6x USB-A (USB 3.1/3.2 Gen 2) 1x USB-A (USB 2.0) |
| Thunderbolt |
2x Thunderbolt 5 1x Thunderbolt 4 |
| Display |
1x HDMI 1x DisplayPort Input |
| Audio |
2x 1/8″ / 3.5 mm |
| Ethernet / Controller |
1x Intel 2.5Gigabit 1x Marvell 10GbE |
| Buttons |
BIOS Flashback |
| Memory Slots |
4x 288-Pin |
| Memory Support |
DDR5 9066 MT/s |
| Maximum Capacity |
192 GB |
| Channel Architecture |
Dual Channel |
| ECC Support |
Non-ECC Unbuffered |
| SATA |
4x SATA III |
| Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4) 3x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified)) |
| RAID Support |
RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5, 10 (M.2) |
| Expansion Slots |
2x PCIe 5.0 x16 1x PCIe 4.0 x16 |
| USB |
1x USB 3.2 Gen 2×2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 2 USB-A Port) |
| Air Cooling |
2x 4-Pin CPU 5x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump |
| Power Connectors |
1x 24-Pin Mainboard 2x 8-Pin ATX |
| Security |
Chassis Intrusion, TPM Header |
| LED Header |
3x RGB |
| Audio |
No |
| Diagnostics |
Clear CMOS |
| ROM |
256 Mb |
| Front Panel I/O |
AAFP |
| Audio Codec |
Realtek ALC1220P (7.1-Channel) |
| DAC |
No |
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) (2 x 2) |
| Bluetooth |
5.4 |
| OS Compatibility |
Windows 11 |
| Form Factor |
ATX |
| Dimensions |
12.0 x 9.6″ / 30.5 x 24.4 cm |
| Package Weight |
6.055 lb |
| Box Dimensions (LxWxH) |
14.3 x 11.8 x 3.6″ |
