ASUS PA32UCXR Overview
Steven Wong

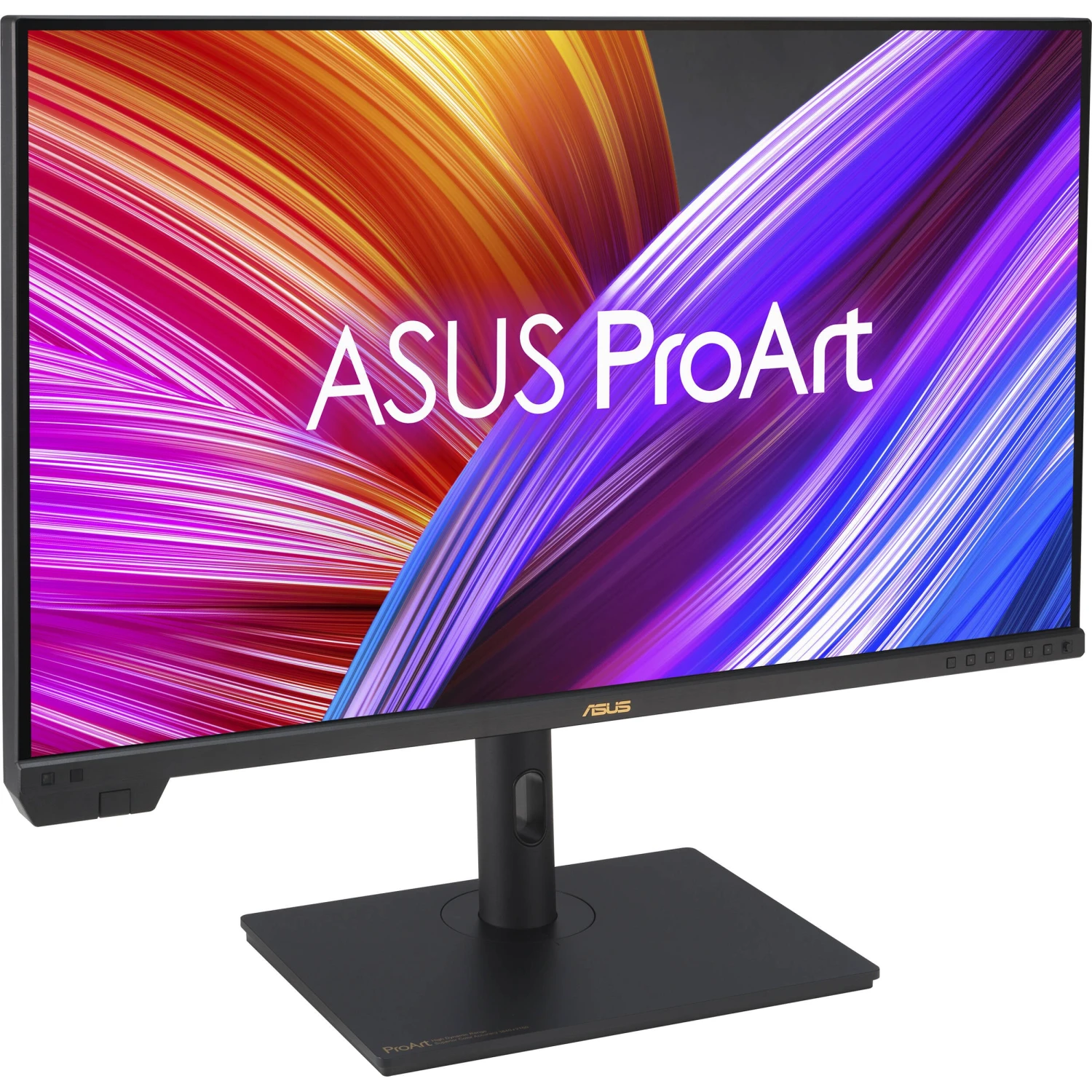

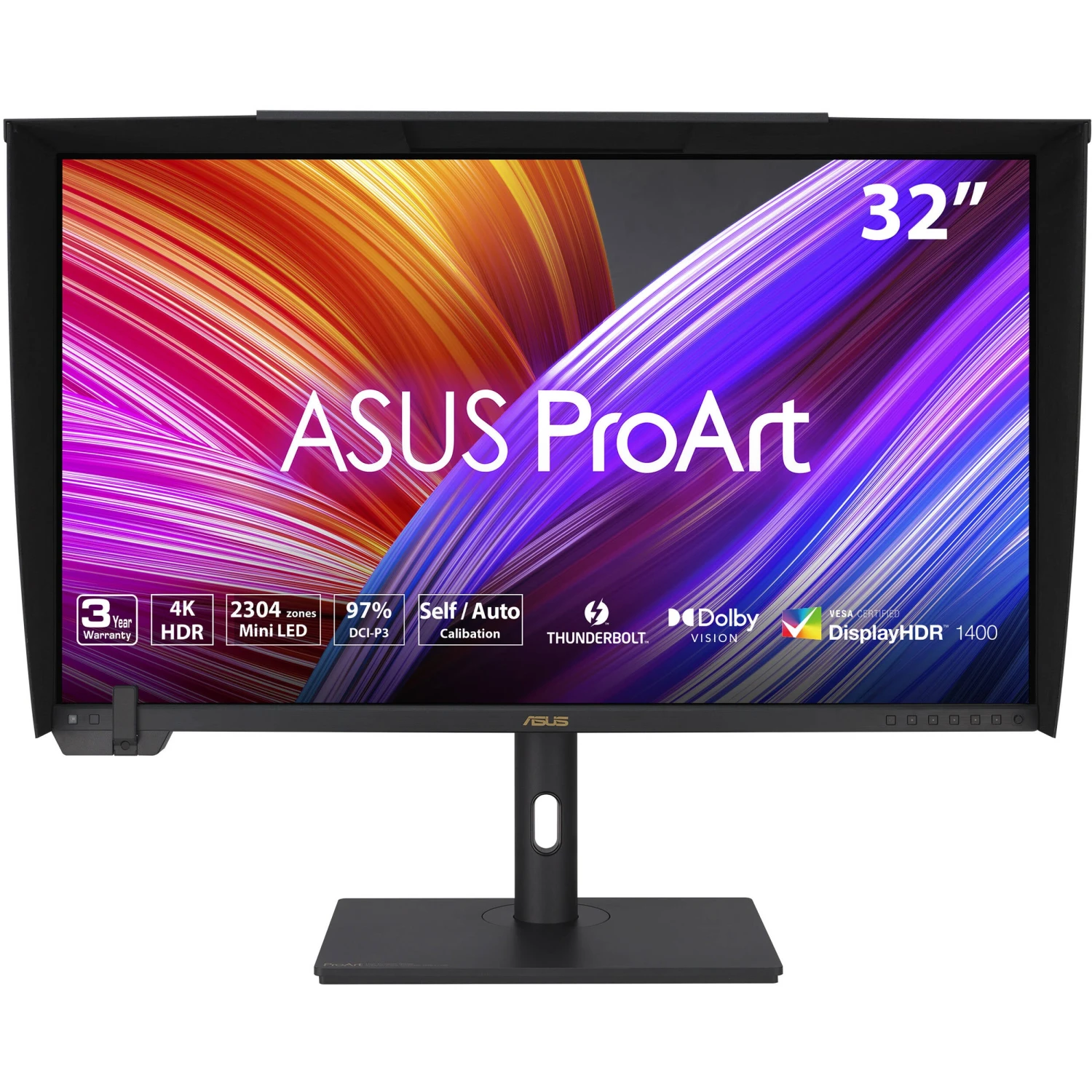

Bring your professional projects to life with the 32″ ProArt Display PA32UCXR 4K HDR Monitor. Designed to deliver exceptional color, this Calman ready 3840 x 2160 resolution 4K mini-LED display is factory calibrated for Delta E <1 accuracy, covering 97% of the DCI-P3 gamut. A built-in, motorized flip colorimeter and self-calibration system provides consistent color accuracy. Supporting VESA DisplayHDR 1400 certified HDR10, HLG, and Dolby Vision high-dynamic range formats provides images with realistically bright highlights and deep shadows.

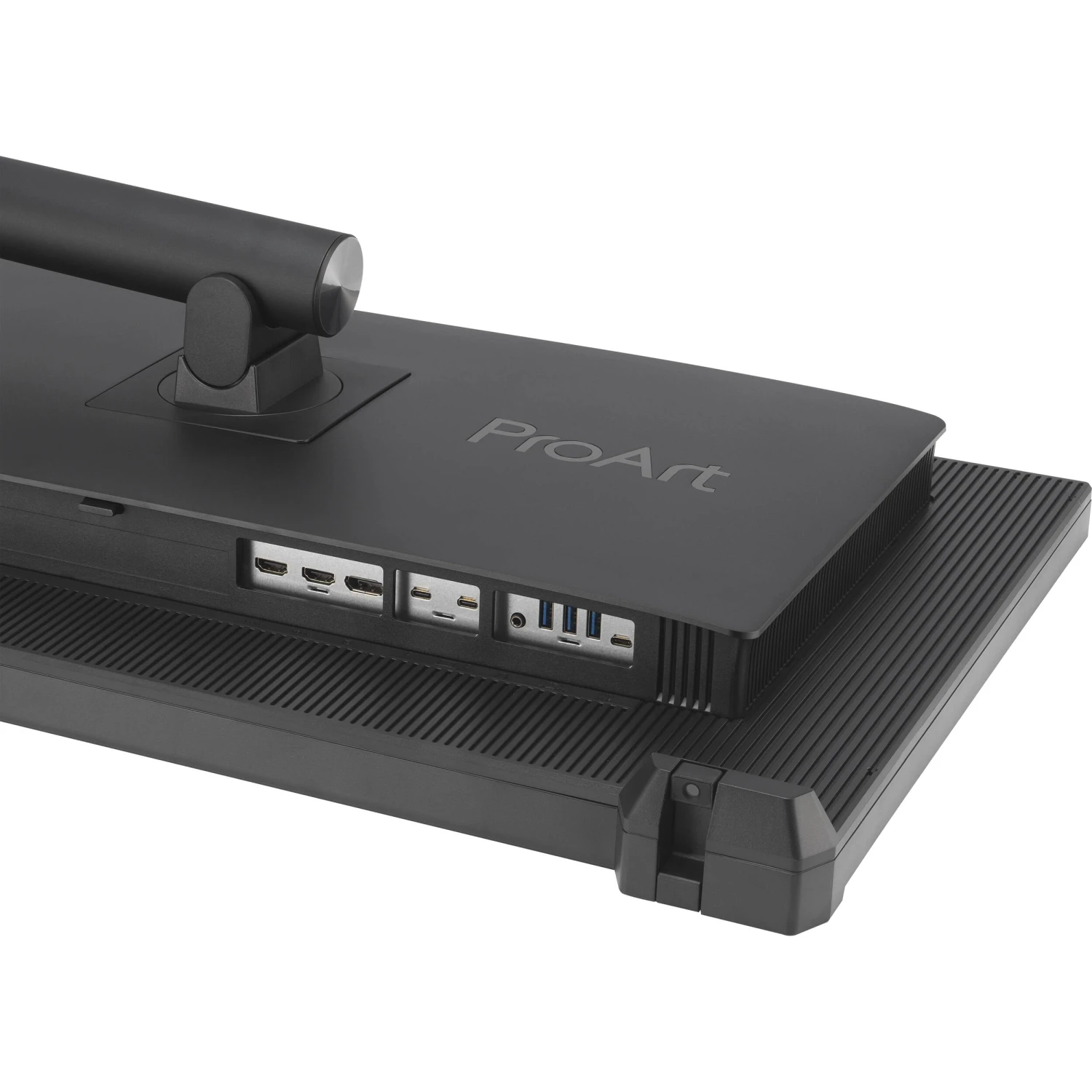

In addition to featuring DisplayPort and HDMI inputs, the Thunderbolt 4 ports allow you to transfer video, data, audio, and up to 90W of power over a single cable with compatible laptops. A second Thunderbolt 4 port allows you to daisy chain additional displays and other compatible devices. There is also a built-in USB 3.2 Gen 2 hub that includes three USB-A ports and one USB-C port, allowing you to charge your devices and connect 10 Gb/s compatible peripherals to your system through the monitor.
In the Box
- ASUS ProArt Display PA32UCXR 32″ 4K HDR Monitor

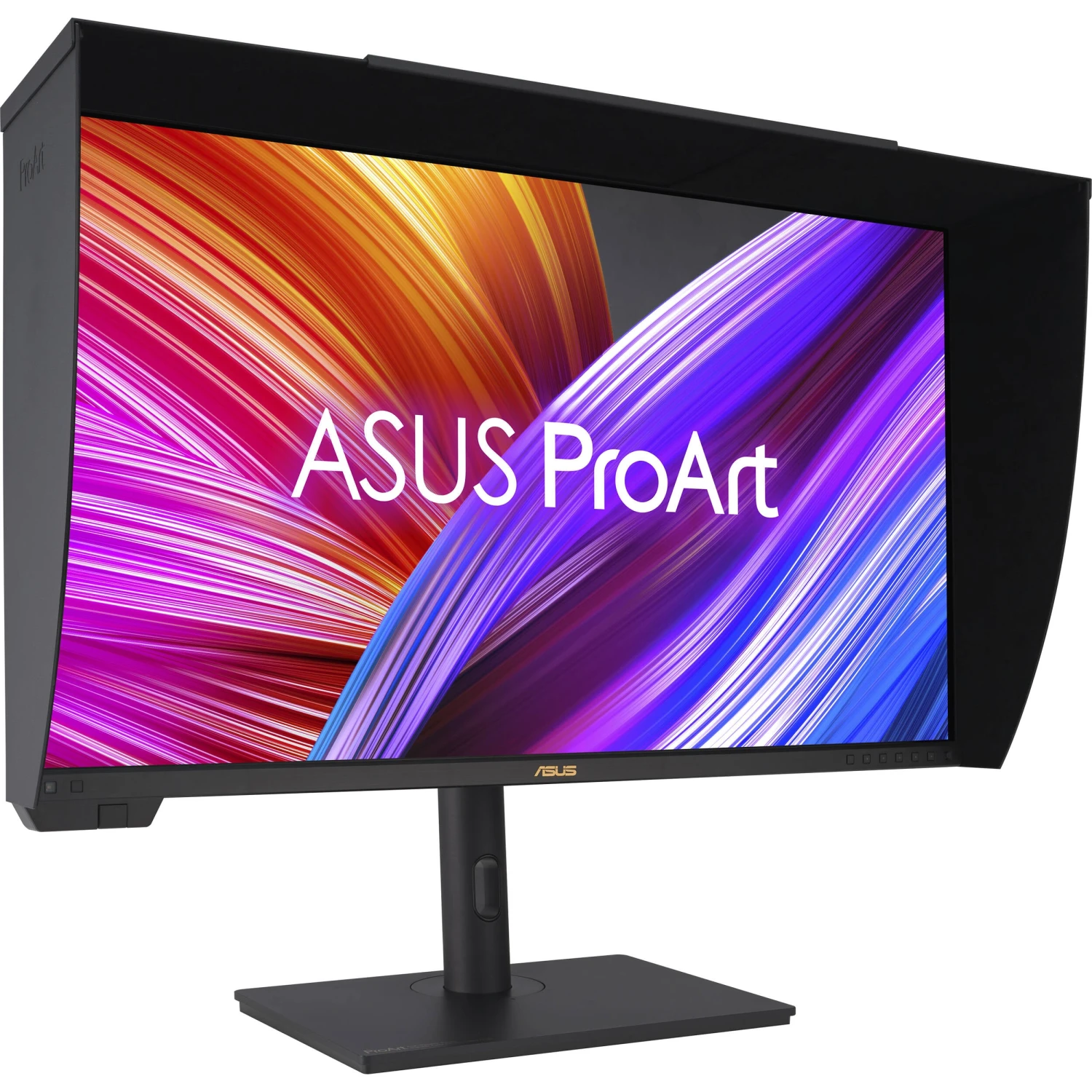

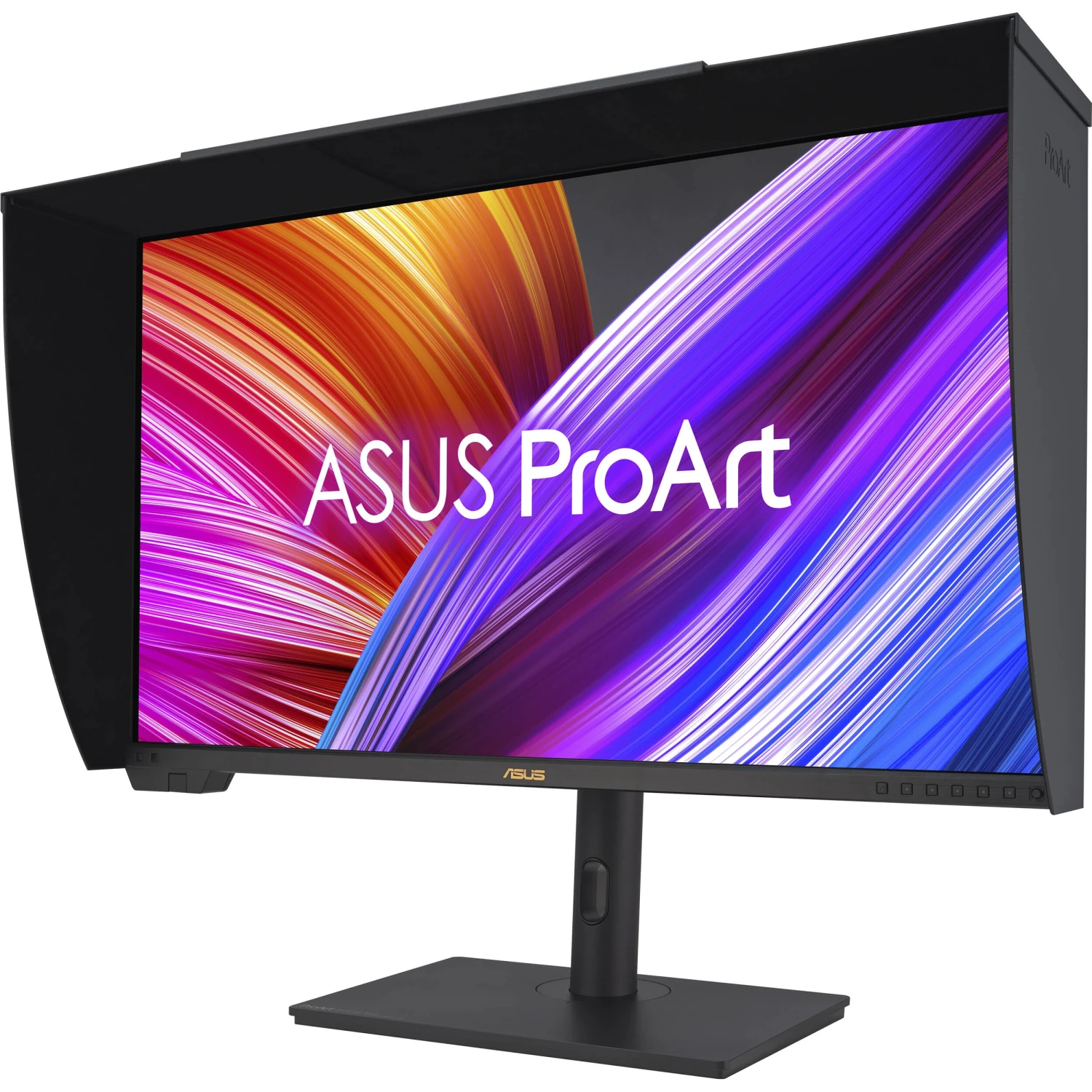

- Monitor Hood
- Power Cable
- HDMI Cable
- DisplayPort Cable
- Thunderbolt 4 Cable
- USB-C to USB-A Cable
- Welcome Card
- Limited 3-Year Manufacturer Warranty
Additional Resources
User Manual
4.5 MB
More from manufacturer
ASUS PA32UCXRSpecs
| Display Size |
32″ |
| Panel Type |
Mini-LED IPS LCD |
| Native Resolution |
3840 x 2160 |
| Maximum Brightness |
1600 nits / cd/m2 (Peak in HDR Mode) 1000 nits / cd/m2 (Sustained) |
| HDR Support |
Yes, HDR10/Dolby Vision/Hybrid Log Gamma |
| Color Support |
1.07 Billion Colors (10-Bit) |
| Color Gamut |
100% sRGB 99% Adobe RGB 97% DCI-P3 85% Rec. 2020 |
| Finish |
Anti-Glare / Matte |
| Touchscreen Technology |
No |
| Inputs |
1x DisplayPort 1.4 2x HDMI 2.0 |
| Outputs |
1x 1/8″ / 3.5 mm (Headphone) |
| USB I/O |
2x USB-C (Thunderbolt 4) (Video/Charging) 3x USB-A 3.1/3.2 Gen 2 1x USB-C 3.1/3.2 Gen 2 |
| Built-In Speakers |
Yes, 2x 3 W |
| Display Size |
32″ |
| Panel Type |
Mini-LED IPS LCD |
| Aspect Ratio |
16:9 |
| Native Resolution |
3840 x 2160 |
| Maximum Brightness |
1600 nits / cd/m2 (Peak in HDR Mode) 1000 nits / cd/m2 (Sustained) |
| HDR Support |
Yes, HDR10/Dolby Vision/Hybrid Log Gamma |
| Contrast Ratio |
1000:1 |
| Dynamic Contrast Ratio |
1,000,000:1 |
| Response Time |
5 ms (GtG) |
| Refresh Rate |
60 Hz |
| Variable Refresh Technology |
Adaptive-Sync, Variable Refresh Rate (VRR) |
| Color Support |
1.07 Billion Colors (10-Bit) |
| Color Gamut |
100% sRGB 99% Adobe RGB 97% DCI-P3 85% Rec. 2020 |
| Viewing Angle (H x V) |
178 x 178° |
| Screen Area |
27.89 x 15.69″ / 708.48 x 398.52 mm |
| Pixels Per Inch (ppi) |
138 ppi |
| Finish |
Anti-Glare / Matte |
| Touchscreen Technology |
No |
| Inputs |
1x DisplayPort 1.4 2x HDMI 2.0 |
| Outputs |
1x 1/8″ / 3.5 mm (Headphone) |
| HDCP Support |
Yes, Version 2.2 |
| USB I/O |
2x USB-C (Thunderbolt 4) (Video/Charging) 3x USB-A 3.1/3.2 Gen 2 1x USB-C 3.1/3.2 Gen 2 |
| USB Power Delivery |
90 W (via USB-C) |
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP) |
| Built-In Speakers |
Yes, 2x 3 W |
| Power Consumption |
Typical: 46.6 W Standby: 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
Internal |
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Storage Conditions |
-4 to 140°F / -20 to 60°C |
| Adjustments |
Height: 3.9″ / 100 mm Tilt: 28° (-5 to 23°) Rotation: 180° (-90 to 90°) Swivel: 60° (-30 to 30°) |
| Mounting-Hole Pattern |
100 x 100 mm |
| Lock Slot |
Yes, Kensington |
| Dimensions |
28.6 x 23.7 x 9.6″ / 72.7 x 60.1 x 24.5 cm (with Stand) 28.6 x 17.5 x 3.5″ / 72.7 x 44.5 x 9 cm (without Stand) |
| Weight |
30.4 lb / 13.8 kg (with Stand) 20.3 lb / 9.2 kg (without Stand) |
| Package Weight |
45.28 lb |
| Box Dimensions (LxWxH) |
38 x 22.5 x 8.75″ |
