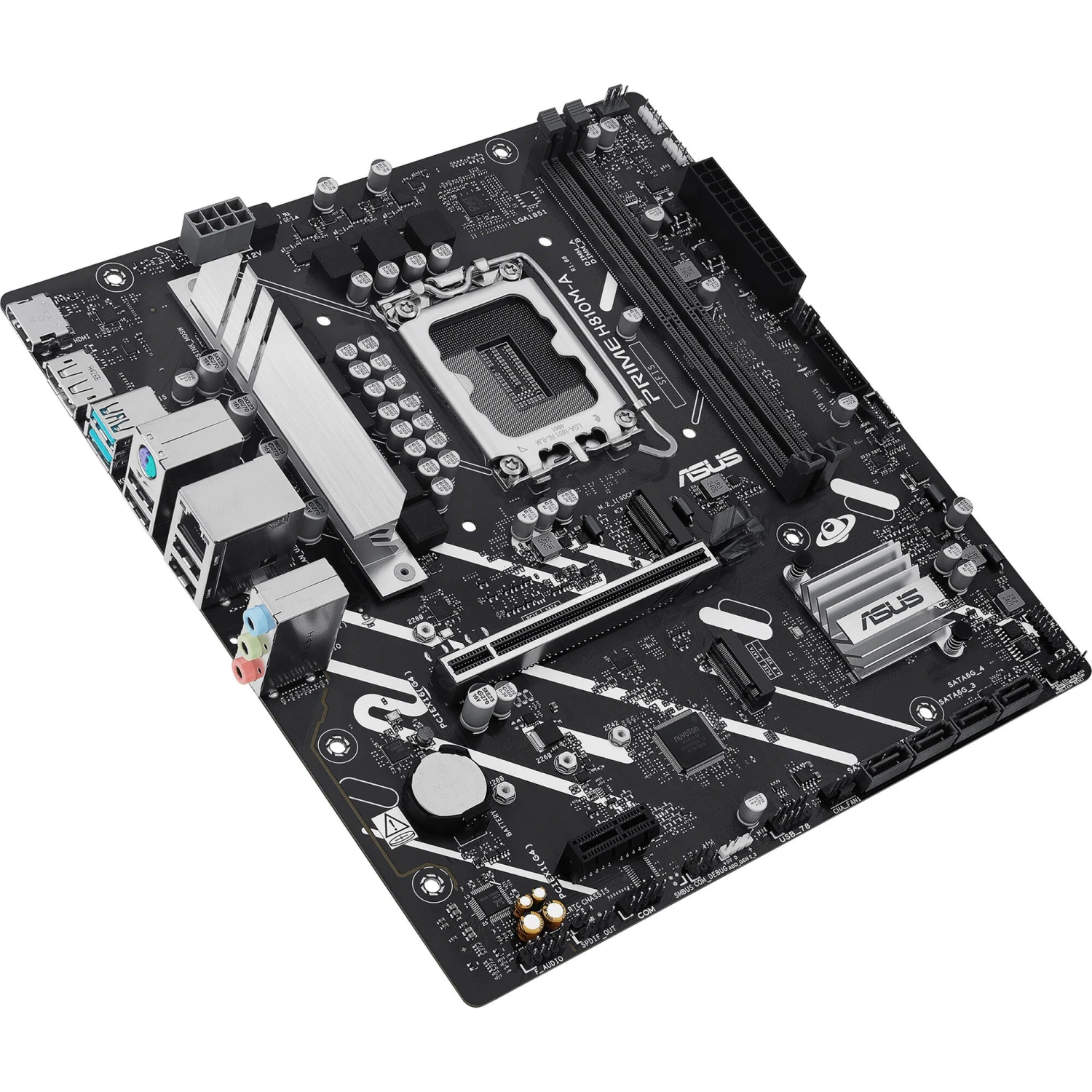

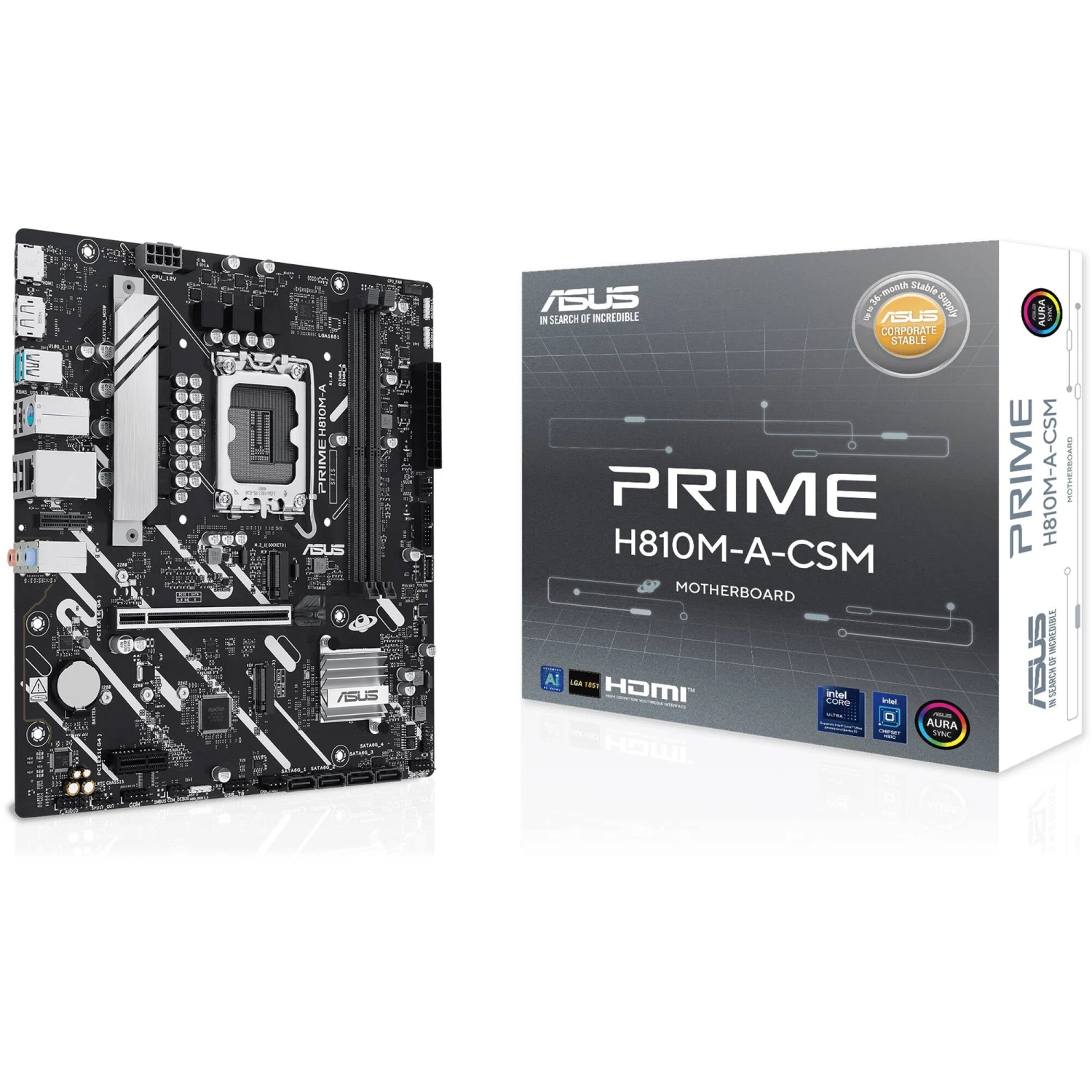

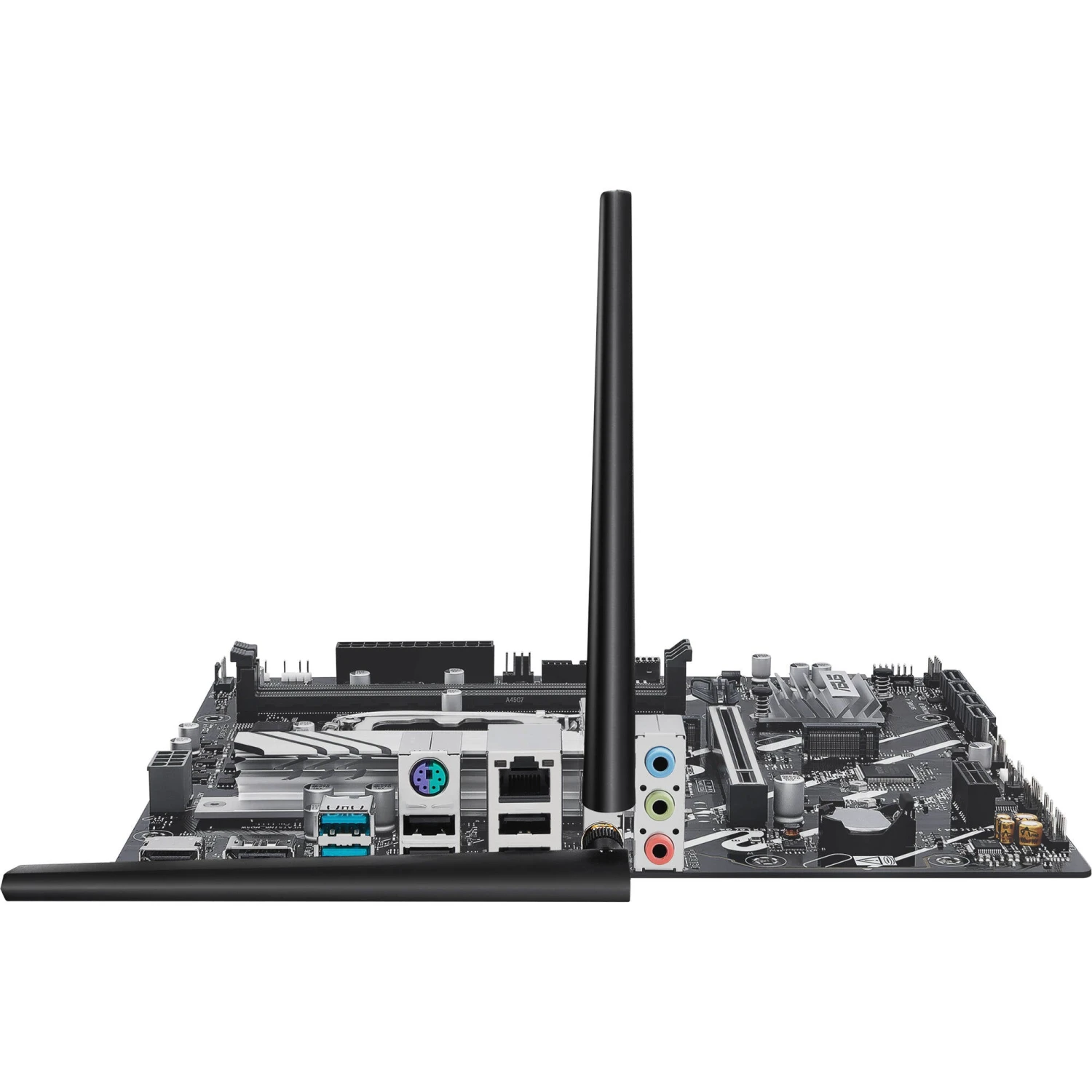

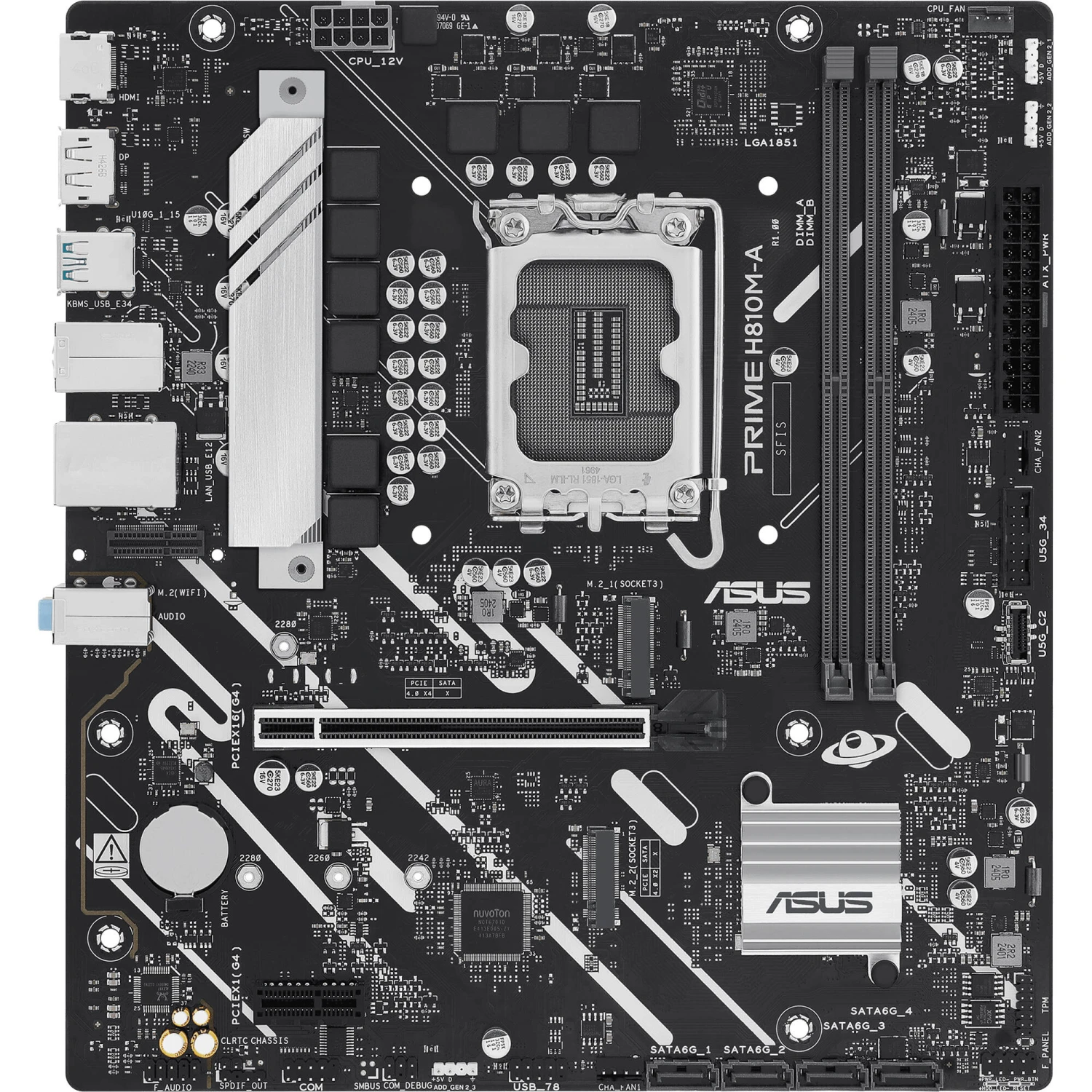

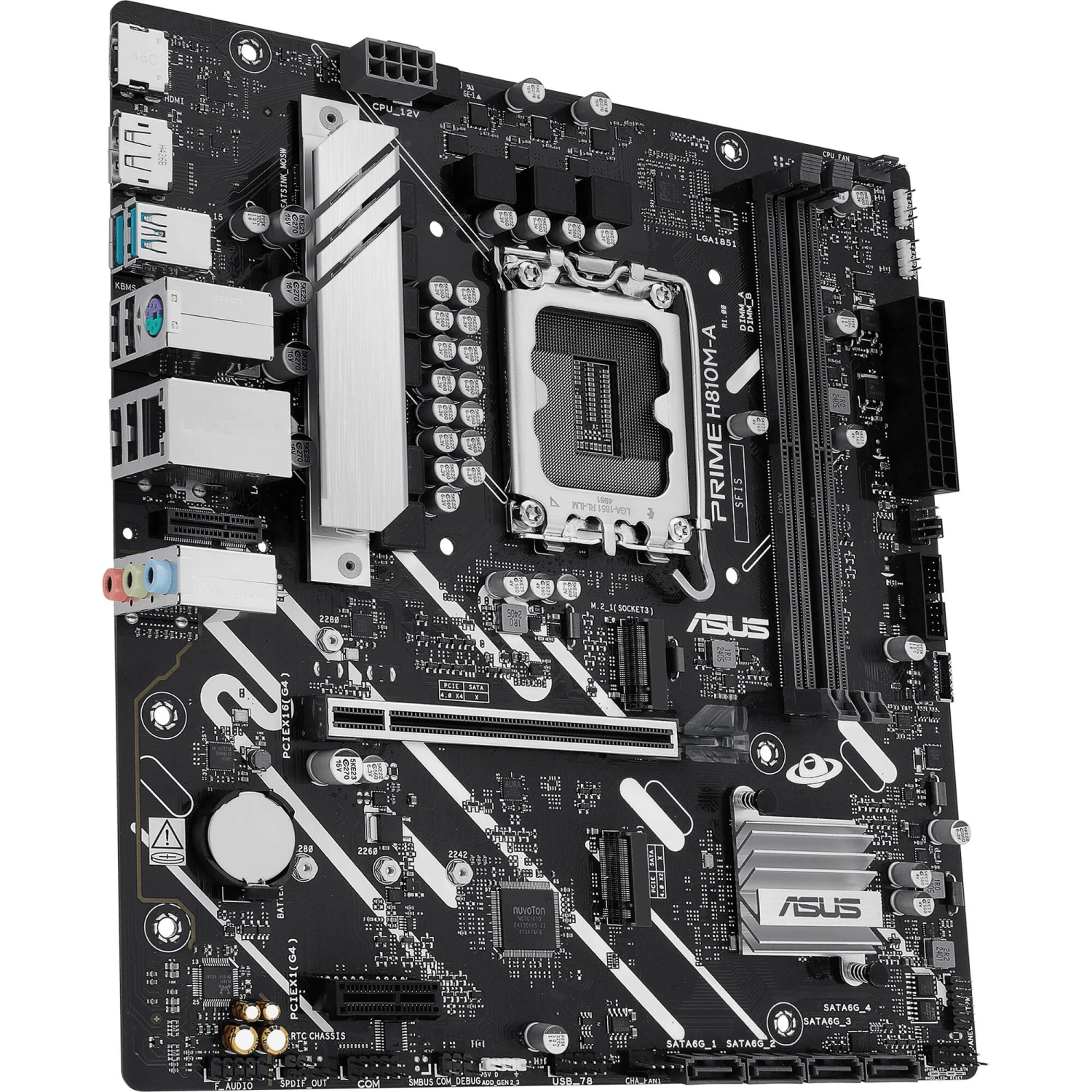

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard(Asus Prime H810m A Csm Lga 1851 M Atx Motherboard)

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard(Asus Prime H810m A Csm Lga 1851 M Atx Motherboard) - Image 2

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard(Asus Prime H810m A Csm Lga 1851 M Atx Motherboard) - Image 3

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard(Asus Prime H810m A Csm Lga 1851 M Atx Motherboard) - Image 4

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard(Asus Prime H810m A Csm Lga 1851 M Atx Motherboard) - Image 5

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard(Asus Prime H810m A Csm Lga 1851 M Atx Motherboard) - Image 6

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard(Asus Prime H810m A Csm Lga 1851 M Atx Motherboard) - Image 7

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard(Asus Prime H810m A Csm Lga 1851 M Atx Motherboard)

Original price was: $236.96.Current price is: $97.99.

SKU: DGFUB 7133235216469 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: ASUS PRIME H810M-A-CSM, Computer Components, Computers, Desktop Components

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

ASUS PRIME H810M-A-CSM Overview

Designed to provide businesses with stable and reliable performance, the ASUS PRIME H810M-A-CSM Motherboard may be outfitted to power productivity and content creation. With support for Intel Core Ultra series 2 desktop processors with the LGA 1851 socket, this M-ATX motherboard delivers smooth performance for demanding applications and AI workloads.

Install an M.2 PCIe 4.0 x4 SSD alongside one PCIe 4.0 x2 and four SATA III drives, providing you with plenty of space to store your applications and multimedia files. The two DDR5 DIMM slots support up to 96GB of 6400 MT/s memory. You can install a powerful graphics card into the available PCIe 4.0 x16 slot while reserving the PCIe 4.0 x1 slot for other compatible expansions.

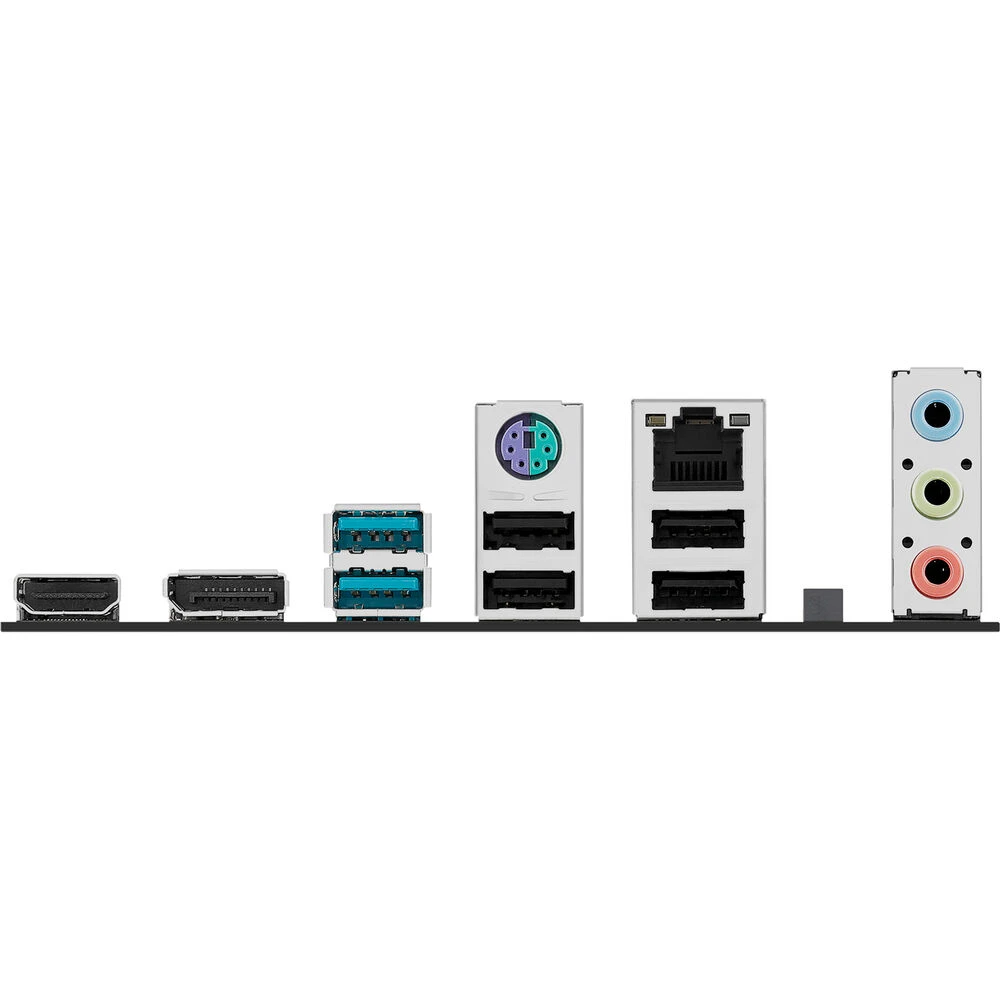

The rear panel features two 10 Gb/s USB-A ports alongside four USB-A 2.0 ports that may be used for keyboards, mice, and other peripherals. A Gigabit Ethernet port allows you to connect to compatible network devices for smooth video streaming and fast file transfers. The HDMI and 2.1 and DisplayPort 1.4 ports may be used with CPUs with integrated graphics. Windows 10 or later is required to take advantage of all this motherboard’s features.

Performance

AI Ready

Designed for the future of AI computing, this motherboard is equipped with the power and connectivity needed for demanding AI applications.

Enhanced Power Solution

Equipped with 6+1+1+1 discrete MOS power stages with durable chokes, this motherboard delivers stable power throughout the system for overclocked components.

AEMP II

ASUS Enhanced Memory Profile III (AEMP II) is an advanced firmware feature that empowers users to achieve cutting-edge overclocked memory performance.

Comprehensive Cooling

A VRM heatsink works with the smart fan headers to efficiently dissipate heat for optimal performance.

Realtek 7.1 Surround Sound

The Realtek codec delivers high-quality 24-Bit / 192 kHz audio with shielded ports, premium capacitors, and dedicated PCB layers.

DIY Friendly

Q Technologies

ASUS Q-Dashboard, Q-DIMM, Q-LED Core, and Q-slot features help to simplify installation.

Personalization

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

ASUS GlideX

Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.

Aura Sync

Enhance your immersion with RGB lighting effects, including modes that adapt to the on-screen action. Then synchronize them with Aura Sync compatible peripherals such as keyboards, mice, and monitors.

Addressable Gen 2 RGB headers

The three addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear.

UPC: 197105844629

Items Included

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard
2 x SATA III Cable
I/O Shield
Screw Package for M.2 SSD
Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

ASUS PRIME H810M-A-CSM Specs

Key Specs

Chipset	Intel H810
CPU Socket	LGA 1851
Memory Slots	2x 288-Pin
Memory Support	DDR5 6400 MT/s
Storage Slots	1x M.2 (M Key) 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
Expansion Slots	1x PCIe 4.0 x16 1x PCIe 4.0 x1
Wi-Fi	No
Form Factor	Micro-ATX

CPU

Chipset	Intel H810
CPU Socket	LGA 1851

Back Panel I/O

USB	2x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI 2.1 1x DisplayPort 1.4
Audio	3x 1/8″ / 3.5 mm
Ethernet / Controller	1x Realtek Gigabit
PS/2	1x Combo
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback

Memory

Memory Slots	2x 288-Pin
Memory Support	DDR5 6400 MT/s
Maximum Capacity	96 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
Optane Memory Support	No
RAID Support	No

Internal I/O

Expansion Slots	1x PCIe 4.0 x16 1x PCIe 4.0 x1
USB	1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling	1x 4-Pin CPU 2x 4-Pin System
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin CPU
Security	TPM Header
LED Header	3x RGB
Audio	1x Speaker 1x S/PDIF
Diagnostics	Clear CMOS
Legacy	1x Serial

BIOS

ROM

2x 128 Mb

Front Panel I/O

AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec	Realtek (7.1-Channel)
DAC	No

Wireless

Wi-Fi	No
Bluetooth	No
Module Support	1 E Key M.2

Software

OS Compatibility

Windows 10 or Later

Physical

Form Factor	Micro-ATX
Dimensions	9.6 x 8.75″ / 24.4 x 22.23 cm

Packaging Info

Package Weight	2.015 lb
Box Dimensions (LxWxH)	11.8 x 10.7 x 2″
