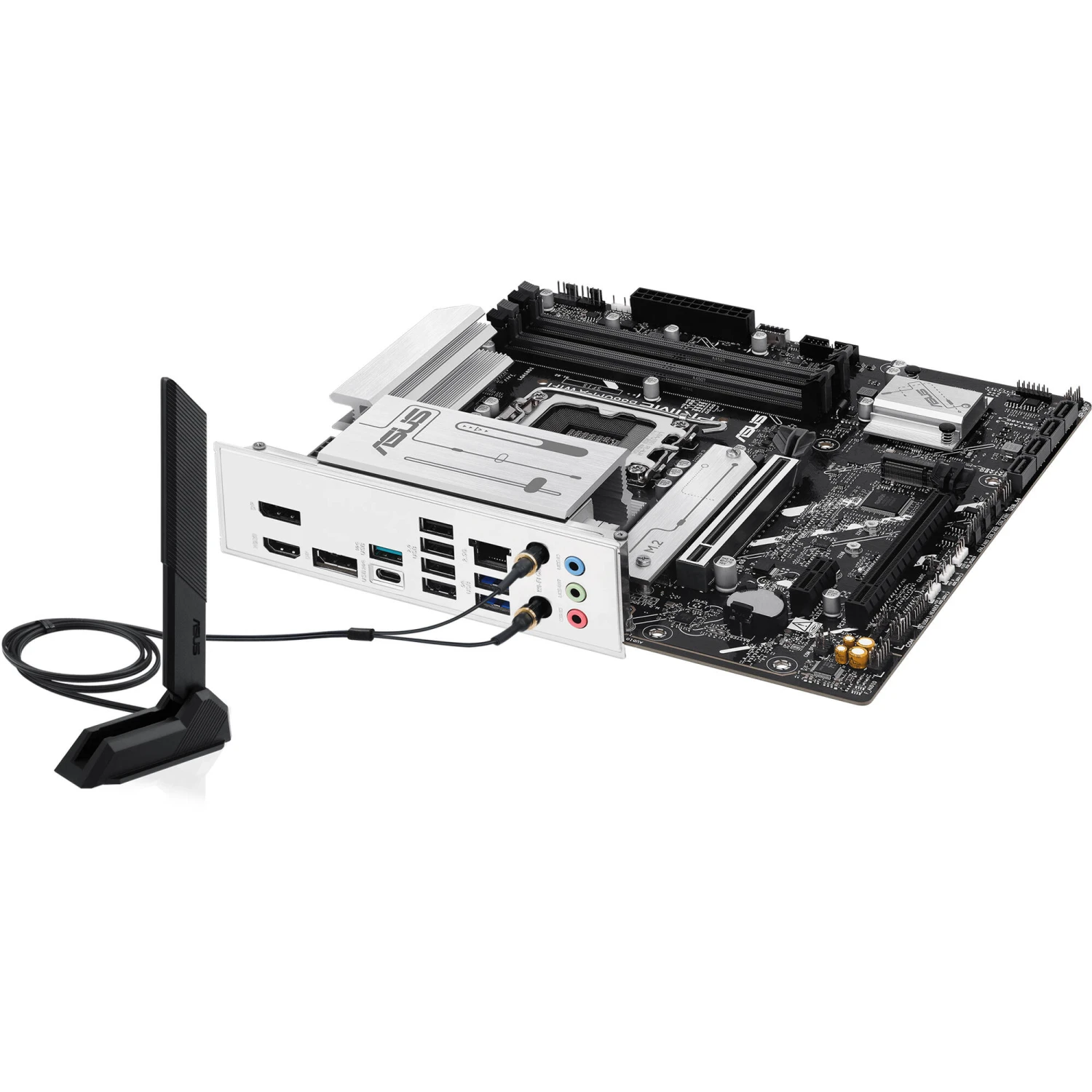

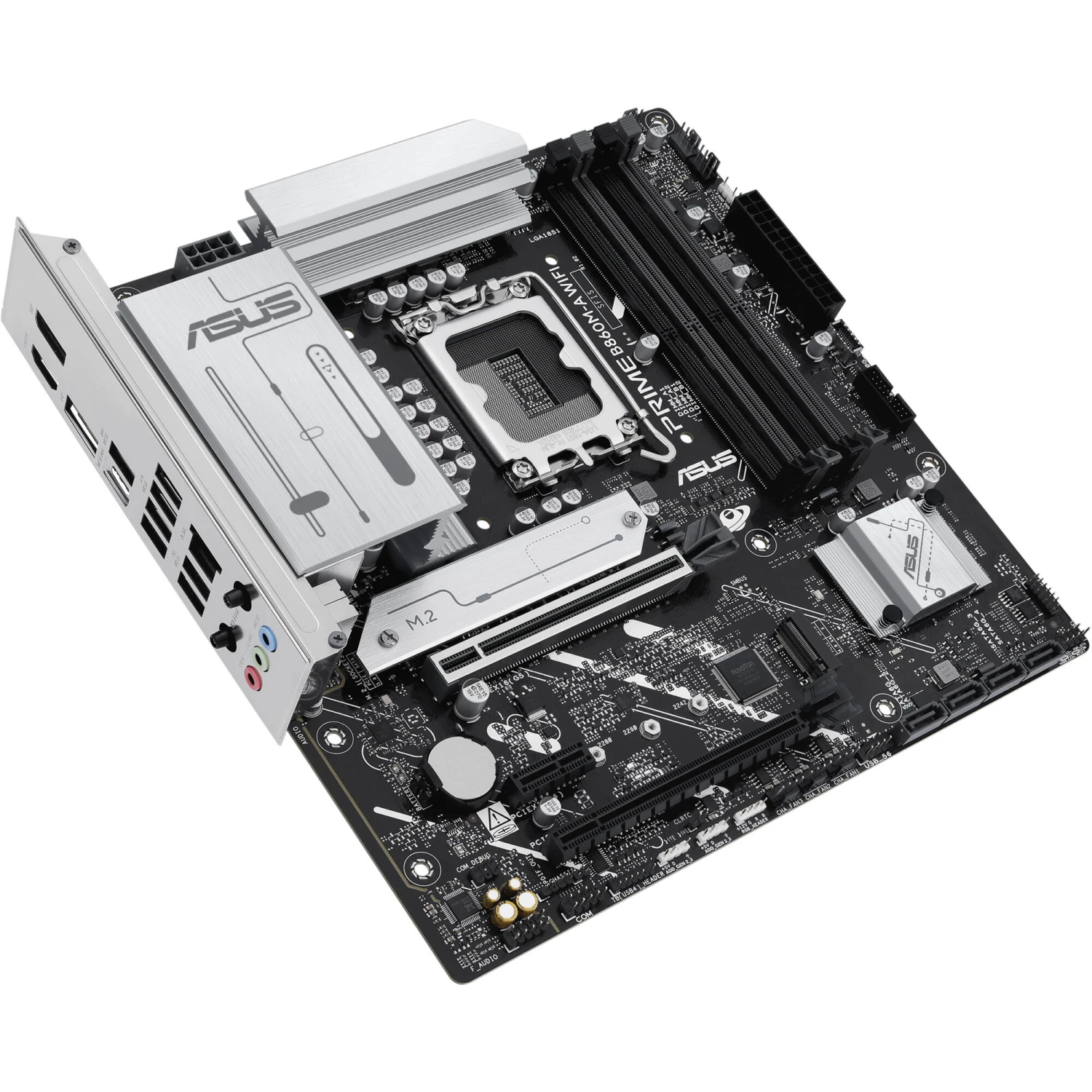

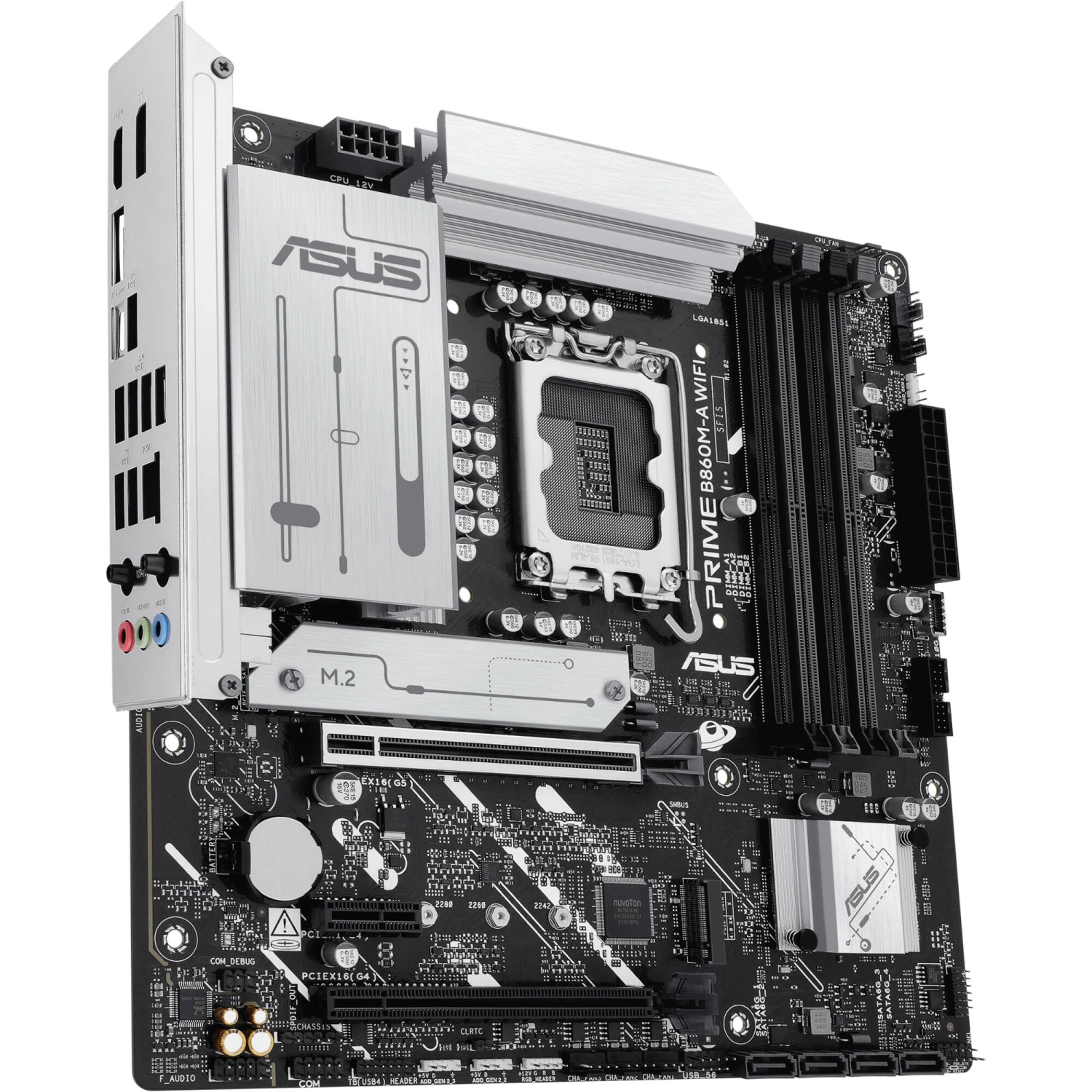

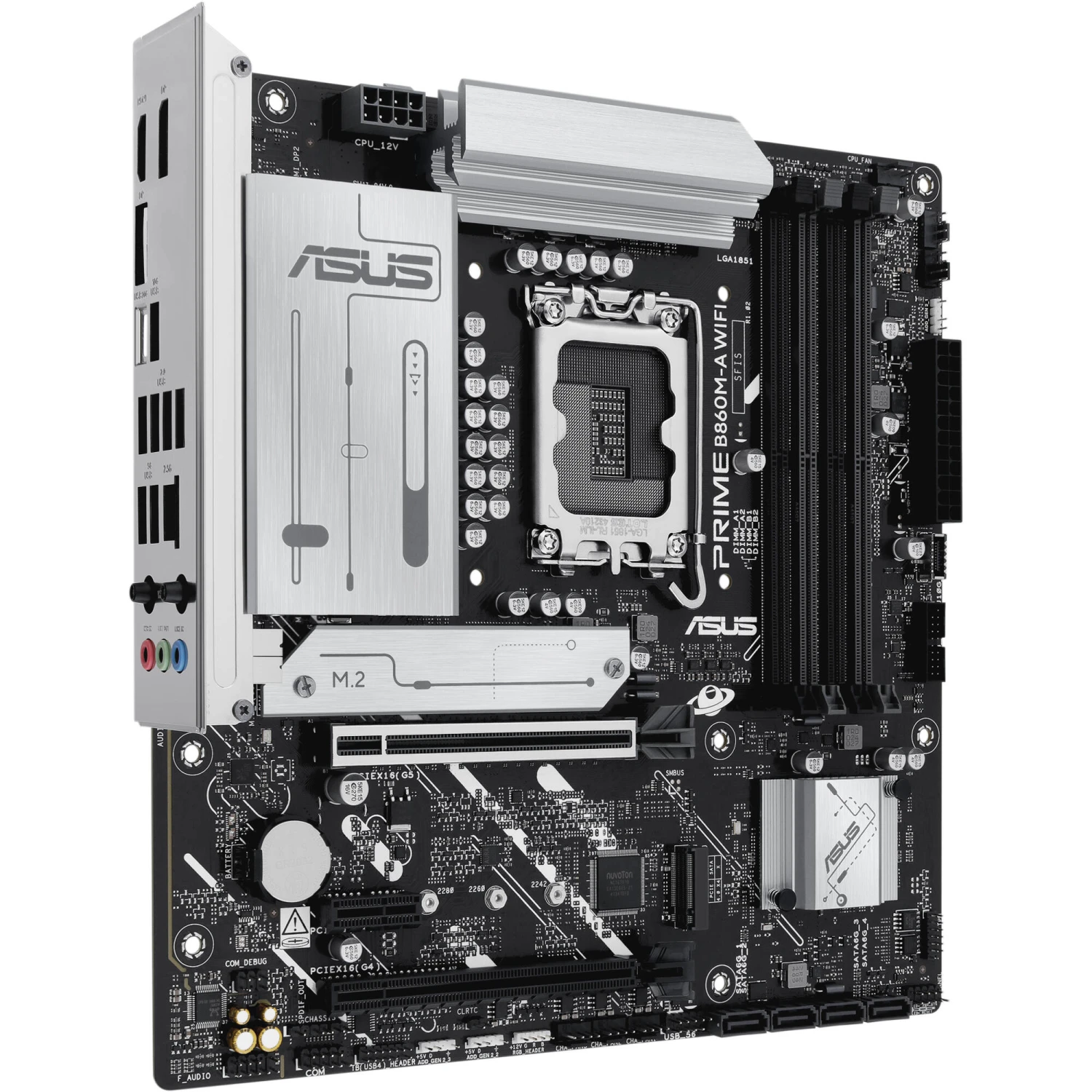

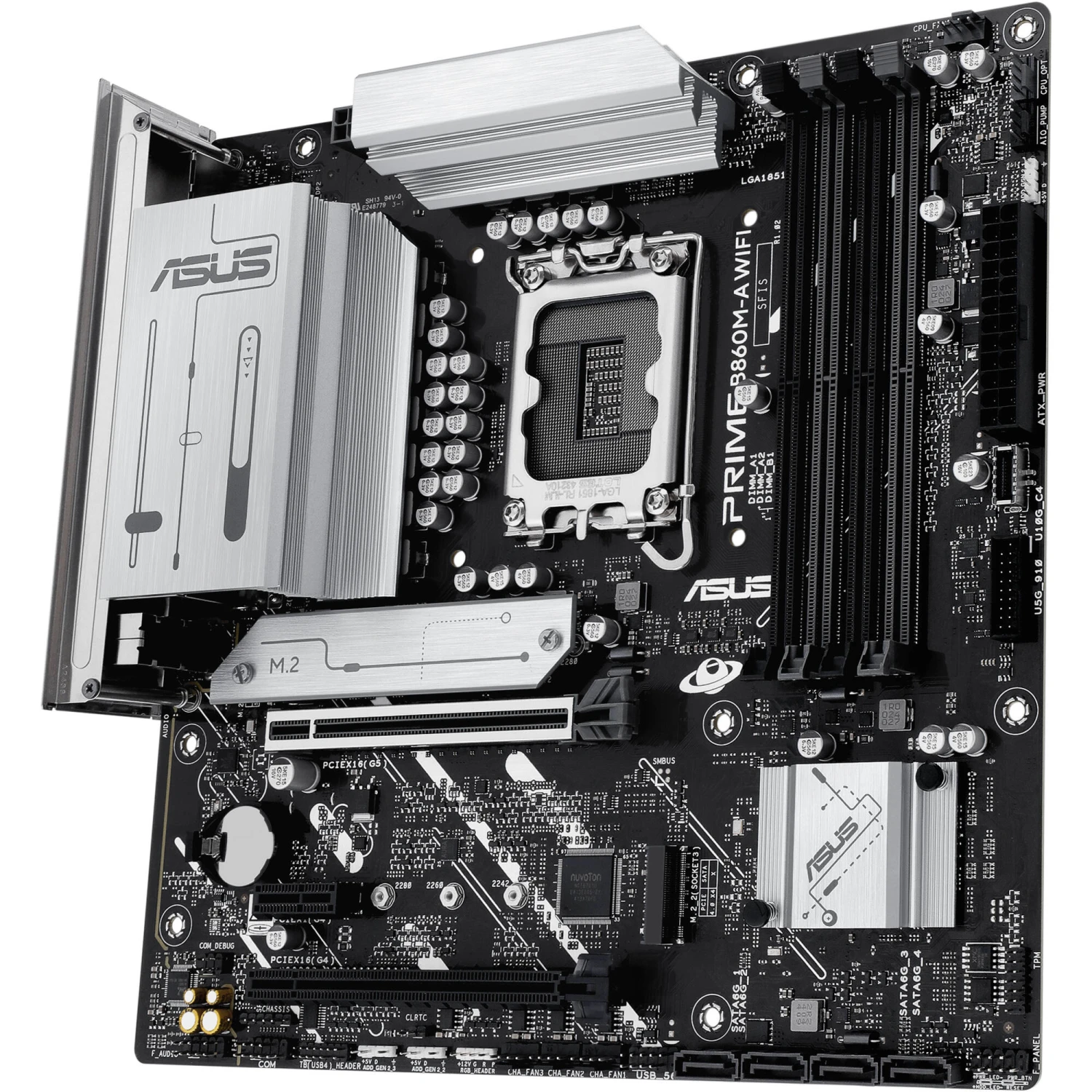

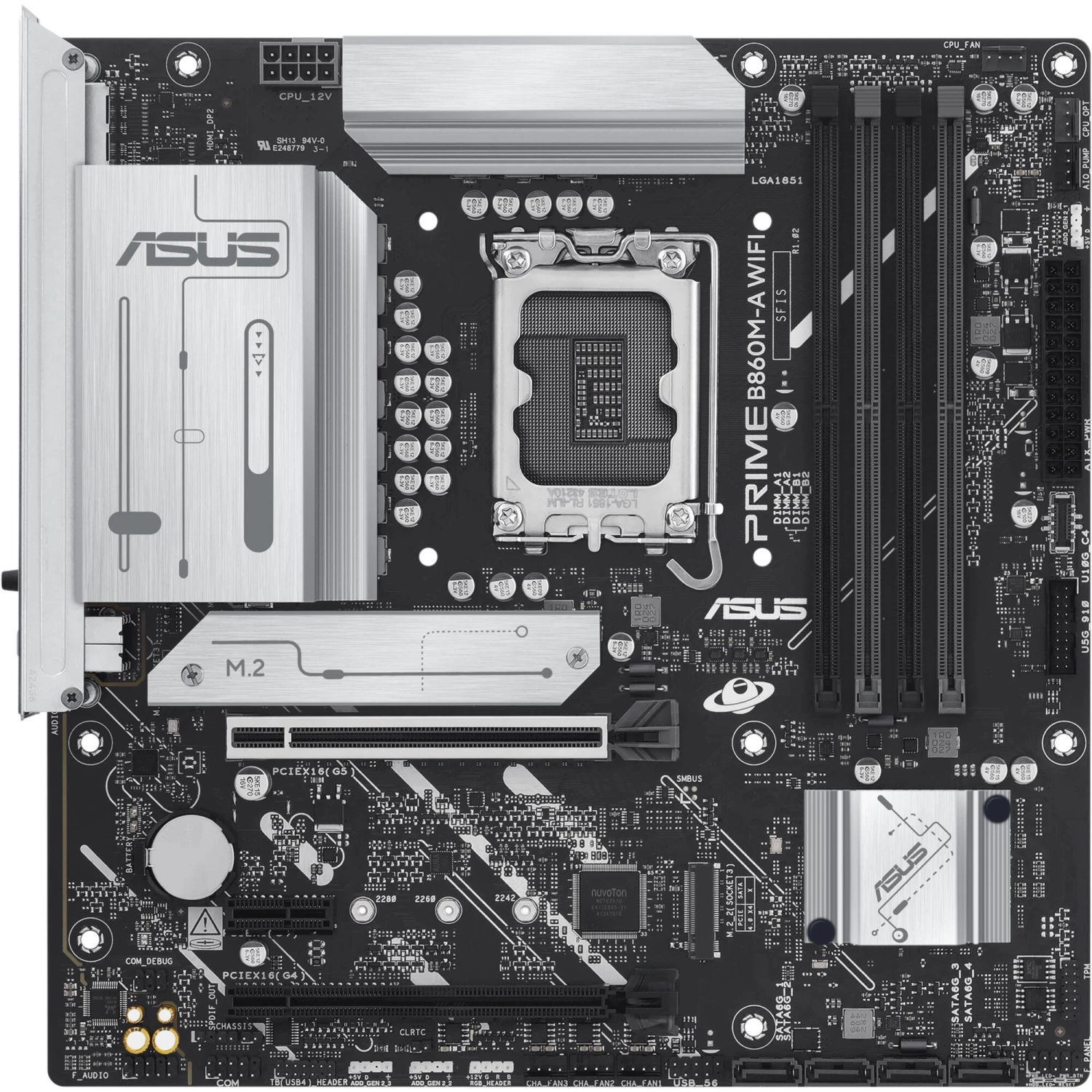

ASUS PRIME B860M-A WIFI-CSM LGA 1851 M-ATX Motherboard(Asus Prime B860m A Wifi Csm Lga 1851 M Atx Motherboard)

ASUS PRIME B860M-A WIFI-CSM LGA 1851 M-ATX Motherboard(Asus Prime B860m A Wifi Csm Lga 1851 M Atx Motherboard) - Image 2

ASUS PRIME B860M-A WIFI-CSM LGA 1851 M-ATX Motherboard(Asus Prime B860m A Wifi Csm Lga 1851 M Atx Motherboard) - Image 3

ASUS PRIME B860M-A WIFI-CSM LGA 1851 M-ATX Motherboard(Asus Prime B860m A Wifi Csm Lga 1851 M Atx Motherboard) - Image 4

ASUS PRIME B860M-A WIFI-CSM LGA 1851 M-ATX Motherboard(Asus Prime B860m A Wifi Csm Lga 1851 M Atx Motherboard) - Image 5

ASUS PRIME B860M-A WIFI-CSM LGA 1851 M-ATX Motherboard(Asus Prime B860m A Wifi Csm Lga 1851 M Atx Motherboard) - Image 6

ASUS PRIME B860M-A WIFI-CSM LGA 1851 M-ATX Motherboard(Asus Prime B860m A Wifi Csm Lga 1851 M Atx Motherboard) - Image 7

ASUS PRIME B860M-A WIFI-CSM LGA 1851 M-ATX Motherboard(Asus Prime B860m A Wifi Csm Lga 1851 M Atx Motherboard)

Original price was: $314.48.Current price is: $99.99.

SKU: DGFUB 7133548380245 Categories: Computer & Presentation, Computer Solutions Tags: ASUS PRIME B860M-A WIFI, Computer Components, Computers, Motherboards

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

ASUS PRIME B860M-A WIFI Overview

Designed to provide businesses and first-time builders with stable and reliable performance, the ASUS PRIME B860M-A WIFI-CSM Motherboard may be outfitted to drive immersive entertainment and high-quality content creation. With support for Intel Core Ultra series 2 desktop processors with the LGA 1851 socket, this M-ATX motherboard fits compact cases while delivering smooth performance for demanding applications and AI workloads.

Install an M.2 PCIe 5.0 SSD alongside one PCIe 4.0 and four SATA III drives, providing you with plenty of space to store your games library, applications, and multimedia files. The four DDR5 DIMM slots support up to 192GB of 8400 MT/s overclocked memory. You can install a powerful graphics card into the available PCIe 5.0 x16 slot while reserving the PCIe 4.0 x16 (x4 mode) and PCIe 4.0 x1 slots for other compatible expansions.

The rear panel features one USB-C port that can transfer up to 20 Gb/s compatible devices or connect a compatible display. There is also a 10 Gb/s USB-A port alongside two USB-A 3.2 Gen 1 ports that work with 5 Gb/s devices. You can use the four USB-A 2.0 ports for keyboards, mice, and other peripherals. Built-in Wi-Fi 6E (802.11ax) support and a 2.5 Gb/s Ethernet port provide you with fast connections to compatible network devices for smooth video streaming and low-latency online games. Windows 10 or later is required to take advantage of all this motherboard’s features.

Performance

AI Ready

Designed for the future of AI computing, this motherboard is equipped with the power and connectivity needed for demanding AI applications

Enhanced Power Solution

Equipped with 7+1+1+1 80A DrMOS power stages with ProCool connectors and durable chokes, this motherboard delivers stable power throughout the system for overclocked components.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve cutting-edge overclocked memory performance.

Comprehensive Cooling

An enlarged VRM heat sink array works with the smart fan and AIO pump headers to efficiently dissipate heat for optimal performance.

Realtek 7.1 Surround Sound

The Realtek codec delivers high-quality 24-Bit / 192 kHz audio with shielded ports, premium capacitors, and dedicated PCB layers.

DIY Friendly

Q Technologies

ASUS Q-Dashboard, Q-DIMM, Q-LED Core, and Q-slot features, along with a pre-mounted I/O shield, help to simplify installation.

Personalization

ASUS GlideX

Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Aura Sync

Enhance your immersion with RGB lighting effects, including modes that adapt to the on-screen action. Then synchronize them with Aura Sync compatible peripherals such as keyboards, mice, and monitors.

Addressable Gen 2 RGB headers

The three addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear.

UPC: 197105806290

Items Included

ASUS PRIME B860M-A WIFI-CSM LGA 1851 M-ATX Motherboard
2 x SATA III Cable
ASUS WiFi Q-Antenna
M.2 Rubber Package
Screw for M.2 SSD
Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

ASUS PRIME B860M-A WIFI Specs

Key Specs

Chipset	Intel B860
CPU Socket	LGA 1851
Memory Slots	4x 288-Pin
Memory Support	DDR5 8400 MT/s
Storage Slots	1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Expansion Slots	1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x1
Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor	Micro-ATX

CPU

Chipset	Intel B860
CPU Socket	LGA 1851

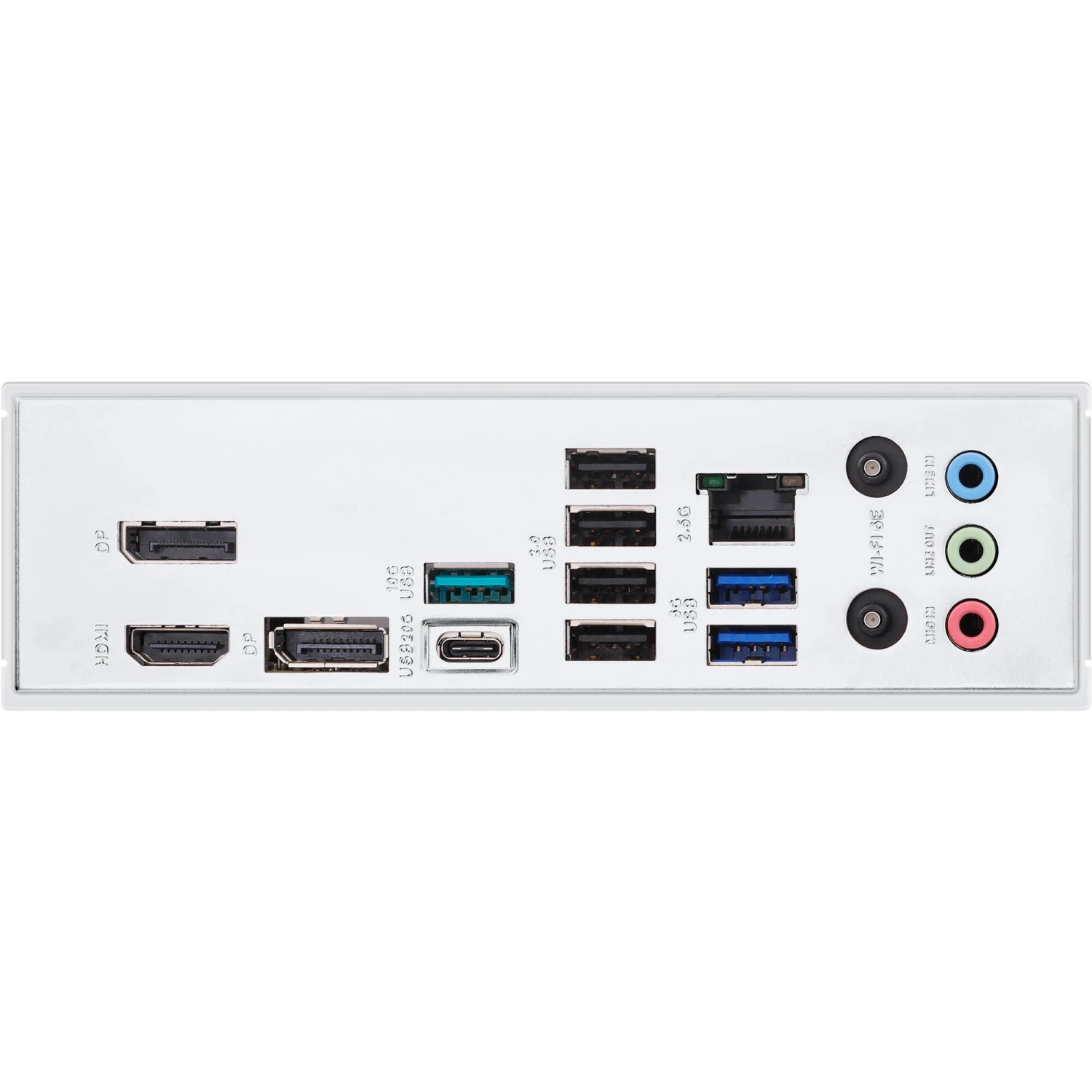

Back Panel I/O

USB	1x USB-C (USB 3.2 Gen 2×2) 1x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI 2.1 2x DisplayPort 1.4
Audio	3x 1/8″ / 3.5 mm
Ethernet / Controller	1x Realtek 2.5Gigabit
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 8400 MT/s
Maximum Capacity	192 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x1
USB	1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling	2x 4-Pin CPU 3x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin CPU
Security	Chassis Intrusion, TPM Header
LED Header	4x RGB
Audio	1x Speaker 1x S/PDIF
Diagnostics	Clear CMOS, Flash BIOS
Add-On	1x Thunderbolt Header
Legacy	1x Serial

BIOS

ROM

256 Mb

Front Panel I/O

AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec	Realtek (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth	5.3
Module Support	1 E Key M.2

Software

OS Compatibility

Windows 10 or Later

Physical

Form Factor	Micro-ATX
Dimensions	9.6 x 9.6″ / 24.4 x 24.4 cm

Packaging Info

Package Weight	3 lb
Box Dimensions (LxWxH)	12.1 x 10.9 x 2.7″
