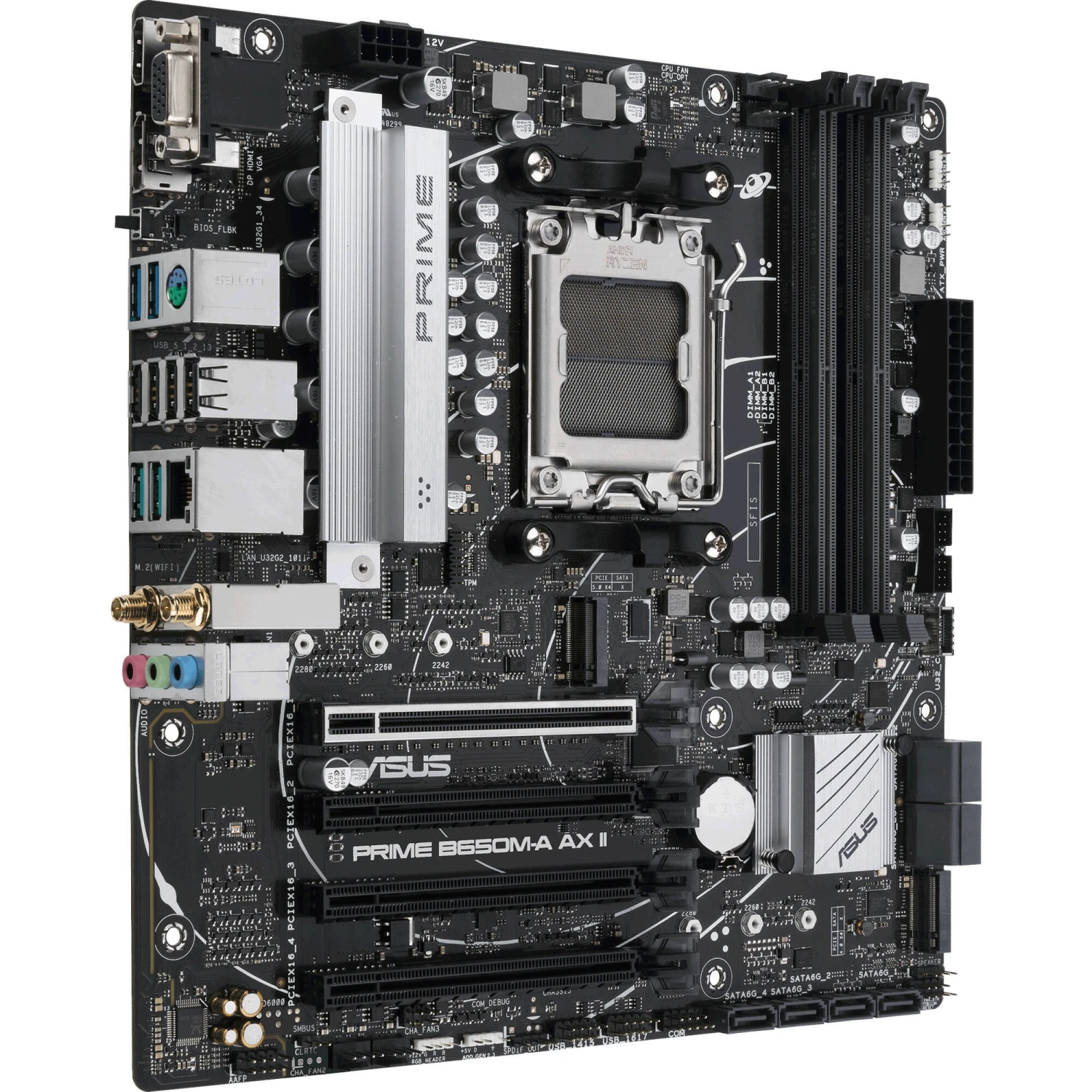

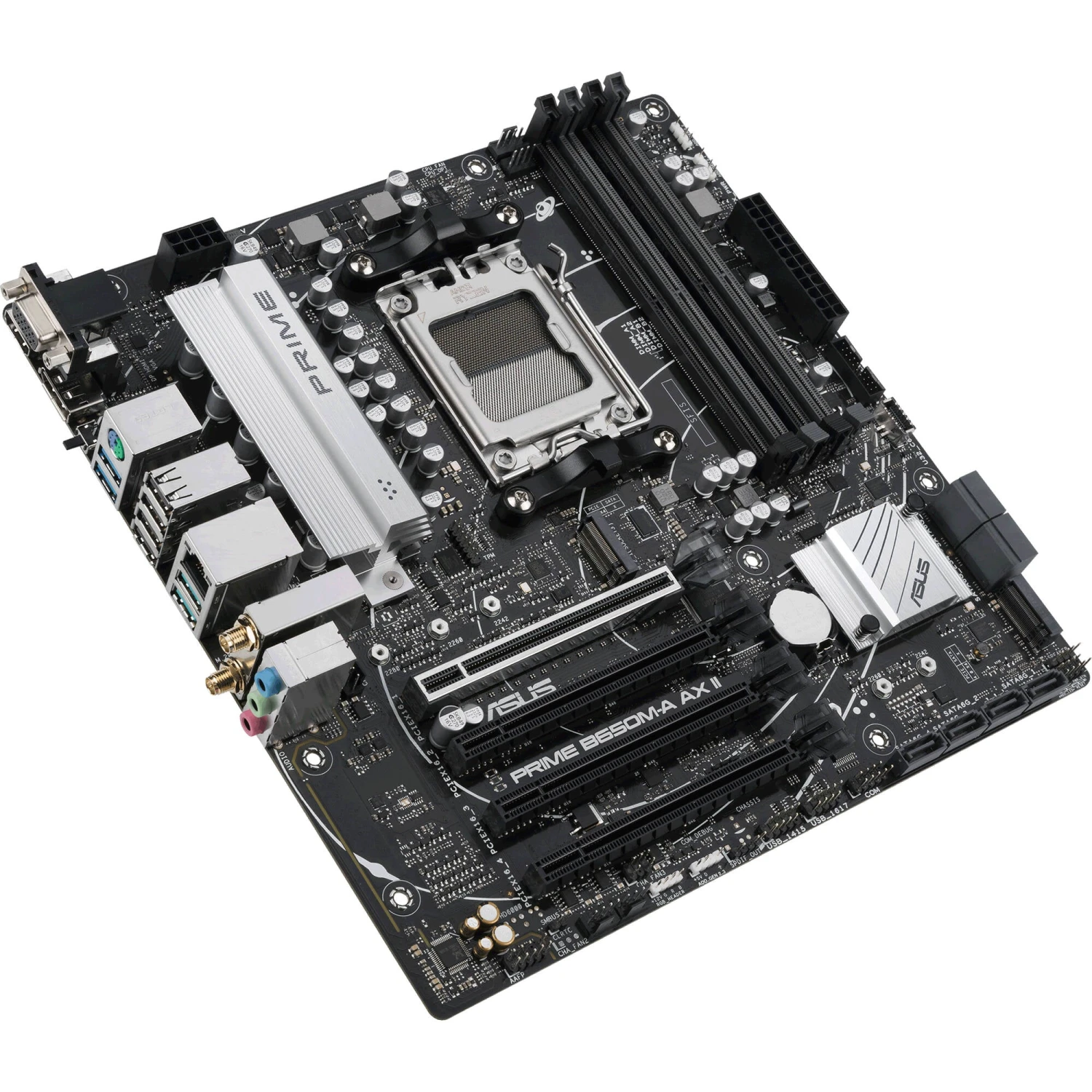

ASUS PRIME B650M-A AX II AM5 Micro-ATX Motherboard(Asus Prime B650m A Ax Ii Am5 Micro Atx Motherboard)

ASUS PRIME B650M-A AX II AM5 Micro-ATX Motherboard(Asus Prime B650m A Ax Ii Am5 Micro Atx Motherboard) - Image 2

ASUS PRIME B650M-A AX II AM5 Micro-ATX Motherboard(Asus Prime B650m A Ax Ii Am5 Micro Atx Motherboard) - Image 3

ASUS PRIME B650M-A AX II AM5 Micro-ATX Motherboard(Asus Prime B650m A Ax Ii Am5 Micro Atx Motherboard) - Image 4

ASUS PRIME B650M-A AX II AM5 Micro-ATX Motherboard(Asus Prime B650m A Ax Ii Am5 Micro Atx Motherboard) - Image 5

ASUS PRIME B650M-A AX II AM5 Micro-ATX Motherboard(Asus Prime B650m A Ax Ii Am5 Micro Atx Motherboard) - Image 6

ASUS PRIME B650M-A AX II AM5 Micro-ATX Motherboard(Asus Prime B650m A Ax Ii Am5 Micro Atx Motherboard)

Original price was: $320.13.Current price is: $99.99.

SKU: DGFUB 6950299959381 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: ASUS PRIME B650M-A AX II, Computer Components, Computers, Desktop Components

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

ASUS PRIME B650M-A AX II Overview

1Description
2M.2 PCIe 5.0
3Connectivity
4ASUS OptiMem II
5Comprehensive Cooling
6Aura Sync
7CEC Regulation

Whether you are looking for a no-frills replacement or building on a budget, the ASUS PRIME B650M-A AX II AM5 Micro-ATX Motherboard leverages the power of AMD’s Ryzen 7000 processors while also supporting gaming-focused components.

An AMD AM5 socket allows you to install a wide range of Ryzen processors from the 7000 Series family with ease. Four DDR5 DIMM slots allow you to utilize the enhanced speed and performance needed for gaming as well as editing and replaying your favorite in-game moments. Eight SATA and two M.2 interfaces allow you to install an array of storage drives, creating a massive library for your titles, video assets, and more. Install graphics and utility cards with one PCIe 4.0 x16 and three PCIe 4.0 x16 (in x1 mode) slots. A wide range of USB ports allow you to plug in your favorite peripherals such as keyboards, mice, audio interfaces, and more with USB 2.0, 3.2 Gen 1, and Gen 2 support. You can also use wireless peripherals such as mice and headsets with Bluetooth 5.2 technology. Connect to your network with the integrated Wi-Fi 6 (802.11ax) and 2.5 Gigabit Ethernet port, giving you a reliable wireless and wired connection.

M.2 PCIe 5.0

M.2 PCIe 5.0 technology enables you to quickly load your programs faster off your M.2 SSD, getting you into your games and applications even faster.

Connectivity

USB-C 3.2 Gen 2 provides you with enhanced data transfer speeds up to 10 Gb/s, allowing you to utilize a wide range of peripherals such as audio interfaces, external storage solutions, and more. With front panel support, the motherboard incorporates internal headers for USB-A and USB-C 3.2 Gen 1 devices, giving you up to 5 Gb/s data transfer speeds for quick file management.

ASUS OptiMem II

Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.

Comprehensive Cooling

Enlarged VRM and PCH heat sinks, hybrid fan headers, and Fan Xpert 2+ utility within the Armoury Crate software allow you to optimize cooling capabilities.

Aura Sync

A stylish edge lighting design, addressable RGB headers, and RGB strip header allow you to add a splash of color to your system, turning your rig into the centerpiece of your gaming room.

CEC Regulation

This motherboard is CEC Tier II ready, meeting the electrical efficiency compliance set forth by California State Energy Commission regulations.

UPC: 197105020481

In the Box

ASUS PRIME B650M-A AX II AM5 Micro-ATX Motherboard
2 x SATA Cables
Wi-Fi Moving Antenna

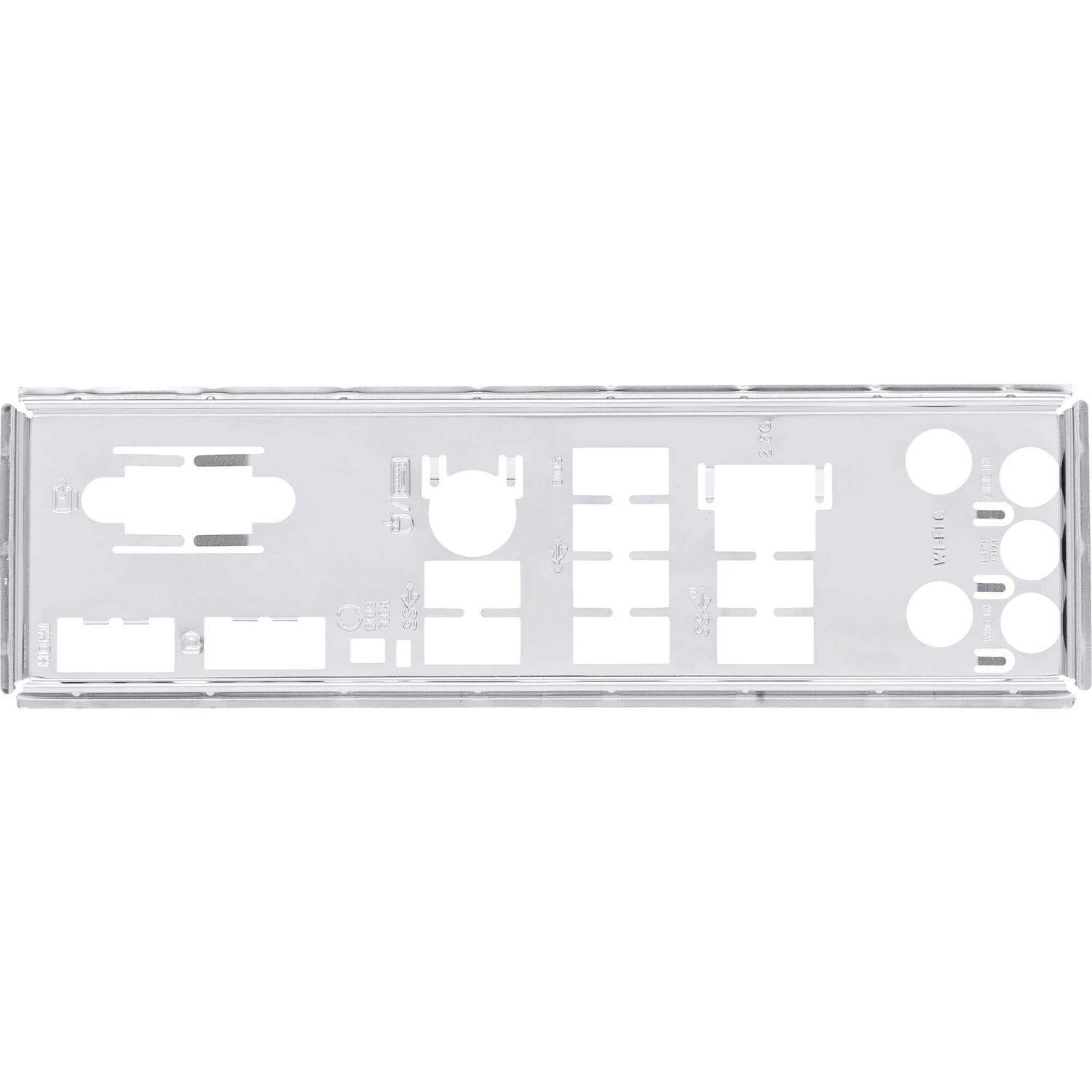

I/O Shield
Screw Package for M.2 SSD
Limited 3-Year Manufacturer Warranty

ASUS PRIME B650M-A AX II Specs

CPU

Chipset	AMD B650
CPU Socket	AM5

Back Panel I/O

USB	2 x USB-A (USB 3.1/3.2 Gen 2) 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4 x USB-A (USB 2.0)
Thunderbolt	None
Display	1 x DisplayPort 1 x HDMI 1 x VGA
Audio	3 x 1/8″ / 3.5 mm
Ethernet / Controller	1 x Realtek 2.5Gigabit
PS/2	1 x Combo
Buttons	BIOS Flashback

Memory

Memory Slots	4 x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC, ECC Unbuffered

Storage Expansion

SATA	8 x SATA III
M.2	1 x M Key 2242, 2260, 2280 (PCIe 5.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support	No
RAID Support	RAID 0, 1, 10 (SATA) RAID 0, 1, 10 (M.2)

Internal I/O

Expansion Slots	1 x PCIe 4.0 x16 3 x PCIe 4.0 x16 (x1 mode)
USB	1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port)
Air Cooling	2 x 4-Pin CPU 3 x 4-Pin System
Power Connectors	1 x 24-Pin Mainboard 1 x 8-Pin CPU
Security	TPM Header
LED Header	4 x RGB
Audio	1 x Speaker 1 x S/PDIF
Diagnostics	Clear CMOS
Legacy	1 x Serial

BIOS

ROM

256 Mb

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec

Realtek (7.1-Channel)

Wireless

Bluetooth	5.2
Wi-Fi	Wi-Fi 6 (802.11ax)
Wireless	Wi-Fi 6 (802.11ax) / Bluetooth 5.2

Software

OS Compatibility

Windows 10 to 11
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility

Physical

Form Factor	Micro-ATX
Dimensions	9.6 x 9.6″ / 24.4 x 24.4 cm

Packaging Info

Package Weight	2.91 lb
Box Dimensions (LxWxH)	11.6 x 10.7 x 2.9″
