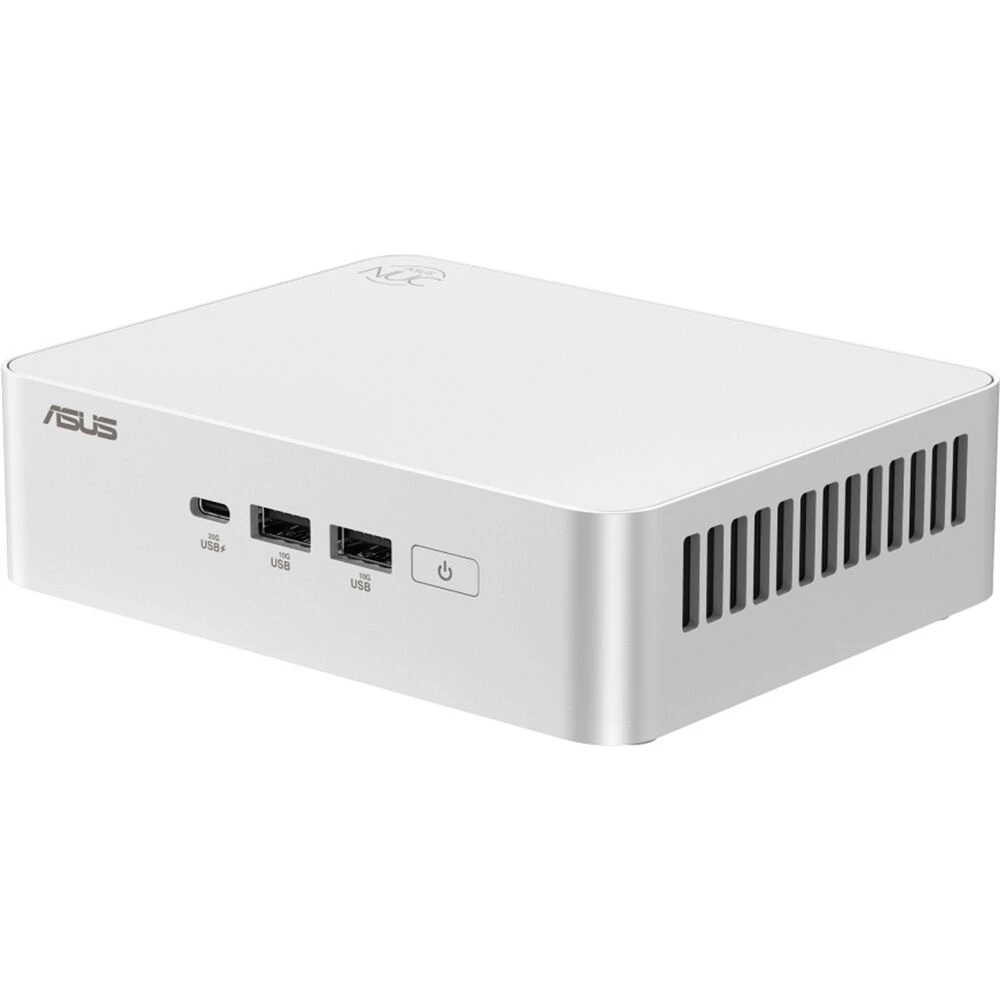

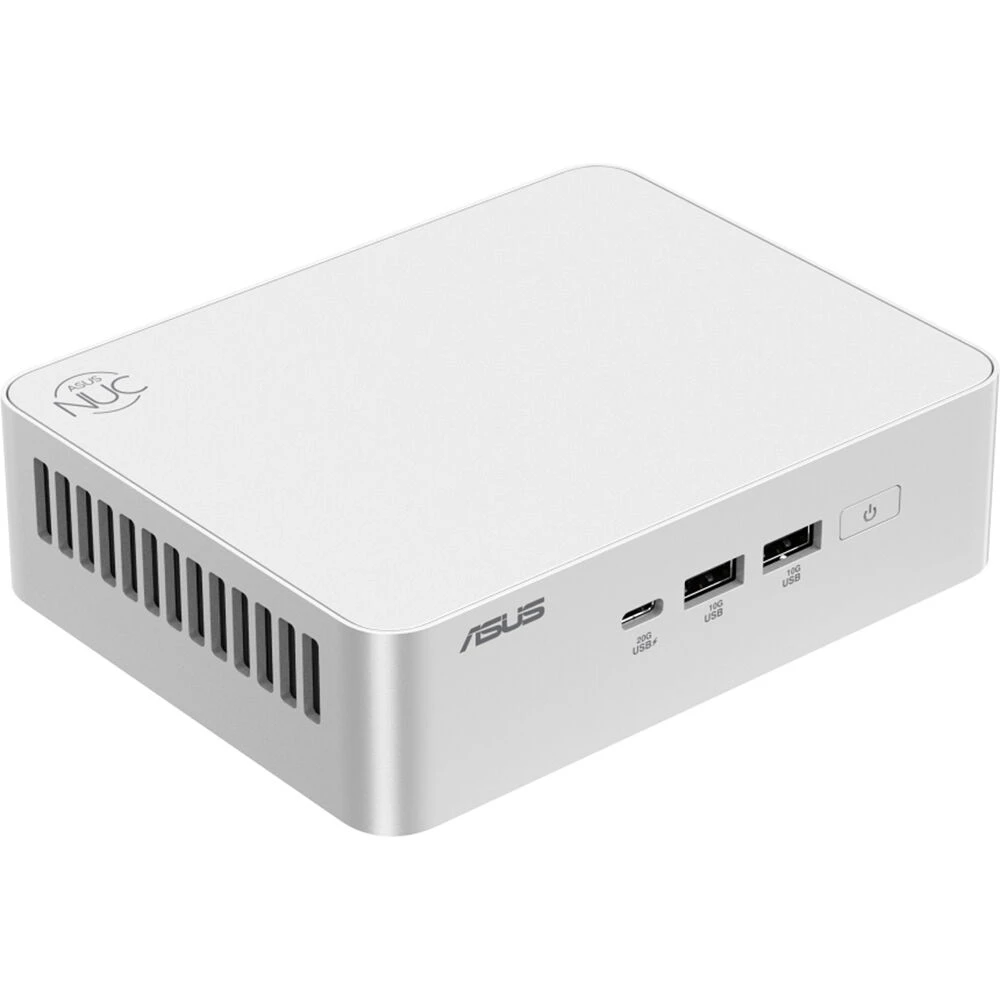

ASUS NUC 15 Pro+ Barebone Kit(Asus Nuc 15 Pro Barebone Kit)

ASUS NUC 15 Pro+ Barebone Kit(Asus Nuc 15 Pro Barebone Kit) - Image 2

ASUS NUC 15 Pro+ Barebone Kit(Asus Nuc 15 Pro Barebone Kit) - Image 3

ASUS NUC 15 Pro+ Barebone Kit(Asus Nuc 15 Pro Barebone Kit) - Image 4

ASUS NUC 15 Pro+ Barebone Kit(Asus Nuc 15 Pro Barebone Kit) - Image 5

ASUS NUC 15 Pro+ Barebone Kit(Asus Nuc 15 Pro Barebone Kit) - Image 6

ASUS NUC 15 Pro+ Barebone Kit(Asus Nuc 15 Pro Barebone Kit)

Original price was: $377.00.Current price is: $98.99.

SKU: DGFUB 7132797960277 Categories: Computer & Presentation, Computer Products, Desktops & Workstations Tags: ASUS NUC 15 Pro+, Computers, Desktop Computers, Desktops & Workstations

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

ASUS NUC 15 Pro+ Overview

With its compact size, the ASUS NUC 15 Pro+ Barebone Kit can fit into a variety of spaces and be customized to enhance your workflow and power AI workloads. Inside the toolless chassis is a 2.9 GHz Intel Core Ultra 9 285H 16-Core Series 2 processor with integrated Arc graphics to get you started.

The two DDR5 slots support up to 48GB DDR5-6400 CSO-DIMM modules. For storage, you have one M.2 2280 PCIe 4.0 slot alongside an M.2 PCIe 4.0 2242 slot. This system also includes built-in Wi-Fi 7 support and a 2.5G Ethernet port for high-speed internet access. Dual Thunderbolt 4 ports, along with a front-facing USB-C 3.2 Gen 2×2 and dual USB-A 3.2 Gen 2 ports, allow you to quickly transfer large videos, photos, and other files. This kit is Windows 11 OS ready. A US power cable is included.

Performance

The Intel Core Ultra 9 285H processor powers applications with six Performance cores while eight Efficient cores and two Low Power E-cores handle background tasks. The Performance cores have a base speed of 2.9 GHz and can be boosted up to 5.4 GHz.

Expansion

There are two dual-channel DDR5-6400 CSO-DIMM slots available, supporting up to 64GB. There is also an M.2 2280 PCIe 4.0 x4 slot and an M.2 2242 PCIe 4.0 x4 slot. The tall form factor provides room for a separately purchased M.2 2280 expansion module.

High-Speed USB

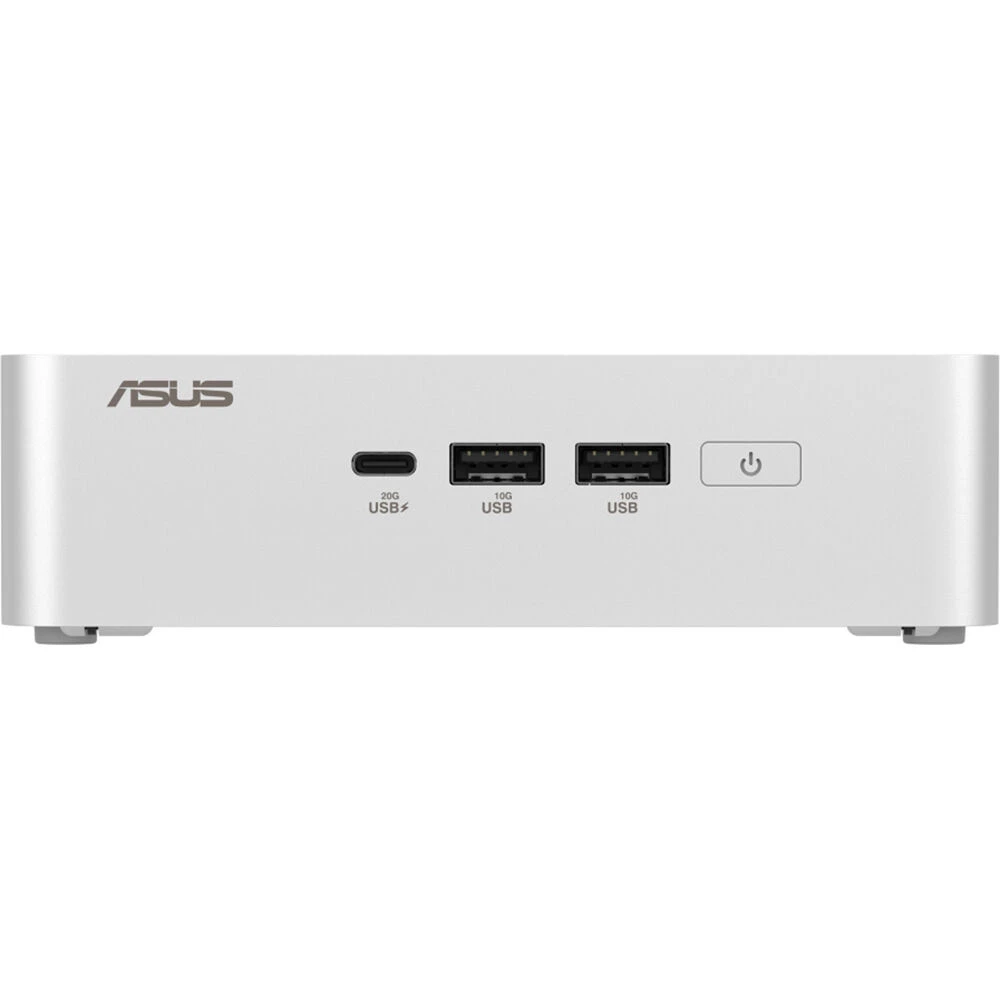

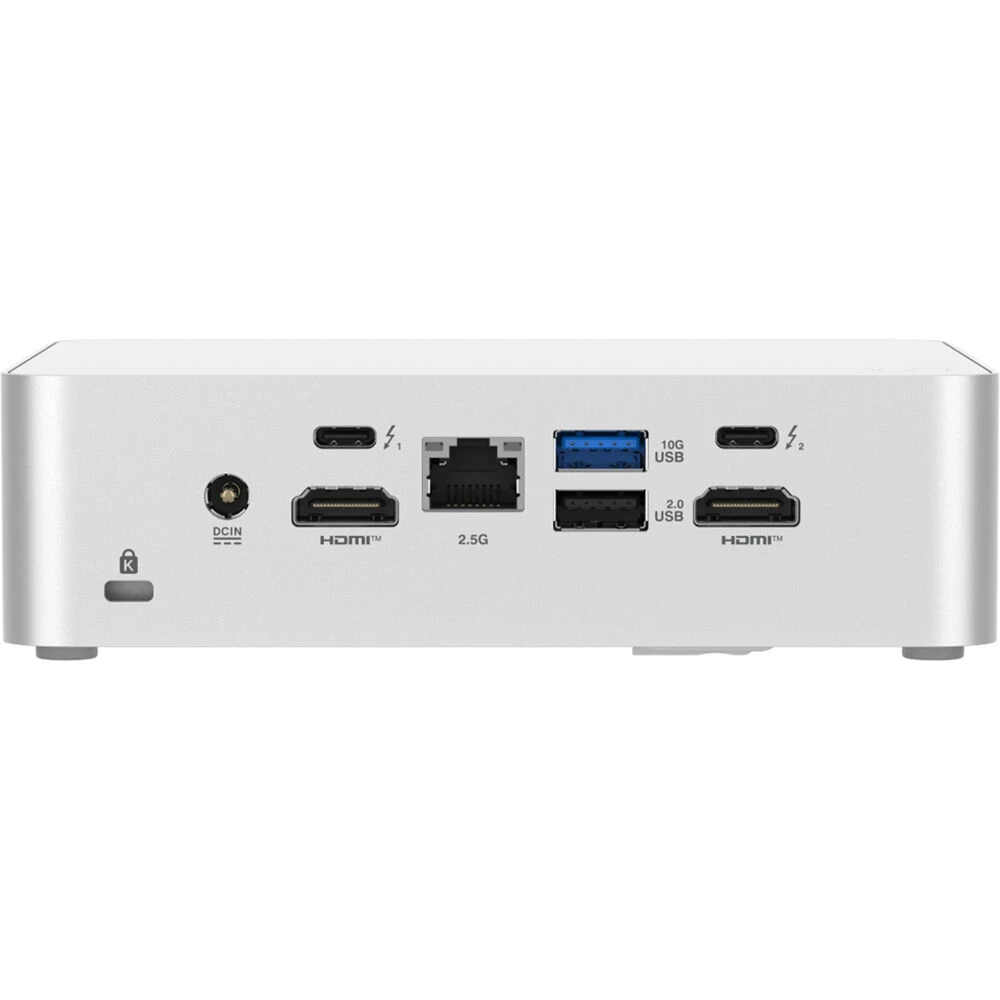

A front-facing USB-C 3.2 Gen 2×2 port allows you to transfer up to 20 Gb/s with compatible devices. The front panel also includes two 10 Gb/s USB-A 3.2 Gen 2 ports. The rear panel includes two Thunderbolt 4 ports, a USB-A 3.2 Gen 2 port, and one USB-A 2.0 port.

Thunderbolt 4

Thunderbolt 4 is a hardware interface that utilizes the reversible USB-C connector and features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB4 at up to 20 Gb/s, and dual-bandwidth DisplayPort allows you to connect either one 8K monitor or up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 4 port.

Network Connectivity

Wi-Fi 7 (802.11be) support provides access to the less congested 6 GHz band with compatible wireless networks while enhancing reliability with signal optimization technologies. The 2.5G Ethernet port provides a fast and reliable wired internet connection.

Multi-Display Support

Enhance your workflow by connecting up four displays through the dual HDMI and two Thunderbolt 4 ports.

Flexible Mounting

Place this desktop system almost anywhere with included VESA mounting bracket, including on a wall or under a desk. You can also attach it to a monitor for an AIO computing experience. ASUS Power Sync allows you to simultaneously control the power for the NUC and compatible monitor.

UPC: 197105976344

Items Included

ASUS NUC 15 Pro+ Barebone Kit
Power Adapter
US Power Cable
VESA Mount
Limited 3-Year Manufacturer Warranty

Not Included

Essential Operating Systems
Essential Internal Hard Drives

Additional Resources

No additional resources available

ASUS NUC 15 Pro+ Specs

Key Specs

Operating System	No
Processor	Intel Core Ultra 9 285H
GPU	Intel Arc Graphics
Installed RAM	No
Total Installed Storage	No
Inputs/Outputs	2x USB-C (Thunderbolt 4) 1x USB-C 3.2 Gen 2×2 2x USB-A 3.1/3.2 Gen 2
Display I/O	2x HDMI 2.1
Wi-Fi	Wi-Fi 7 (802.11be)
Bluetooth	5.4

Performance

Chipset	Intel Z890
Processor	Intel Core Ultra 9 285H
CPU Socket	BGA 2049
CPU	16-Core: 2.9 to 5.4 GHz Performance (6 Cores) 2.7 to 4.5 GHz Efficiency (8 Cores) 1 to 2.5 GHz Low Power Efficiency (2 Cores)
Dedicated AI Cores	Yes
L3 Cache	24 MB
Graphics Type	Integrated
GPU	Intel Arc Graphics
Installed RAM	No
RAM Type	6400 MT/s DDR5 SO-DIMM
RAM Configuration / Capacity	RAM Needed / 2 Slots Supporting up to 48 GB (SO-DIMM)

Storage and Expansion

Total Installed Storage	No
Storage Expansion	1x M.2 Slot 2280 [Available]
PCI Expansion	No

Inputs / Outputs

Inputs/Outputs	2x USB-C (Thunderbolt 4) 1x USB-C 3.2 Gen 2×2 2x USB-A 3.1/3.2 Gen 2
Display I/O	2x HDMI 2.1
Audio I/O	No
Network I/O	1x RJ45 (2.5Gb Ethernet)
Built-In Speakers	No
Built-In Microphones	No
Media/Memory Card Slot	No

Communications

Wi-Fi	Wi-Fi 7 (802.11be)
Bluetooth	5.4

Keyboard & Mouse

Keyboard	No
Pointing Device	No

General

Security	Kensington Lock Slot
Power Supply	150 W with Barrel/Proprietary
Input Power	19.5 VDC at 7.69 A
VESA Mounting-Hole Pattern	Yes (Unspecified VESA Pattern)
Dimensions	5.7 x 4.4 x 1.7″ / 144 x 112 x 42 mm
Weight	21.2 oz / 600 g

Packaging Info

Package Weight	3.635 lb
Box Dimensions (LxWxH)	7.2 x 6.3 x 4.8″
