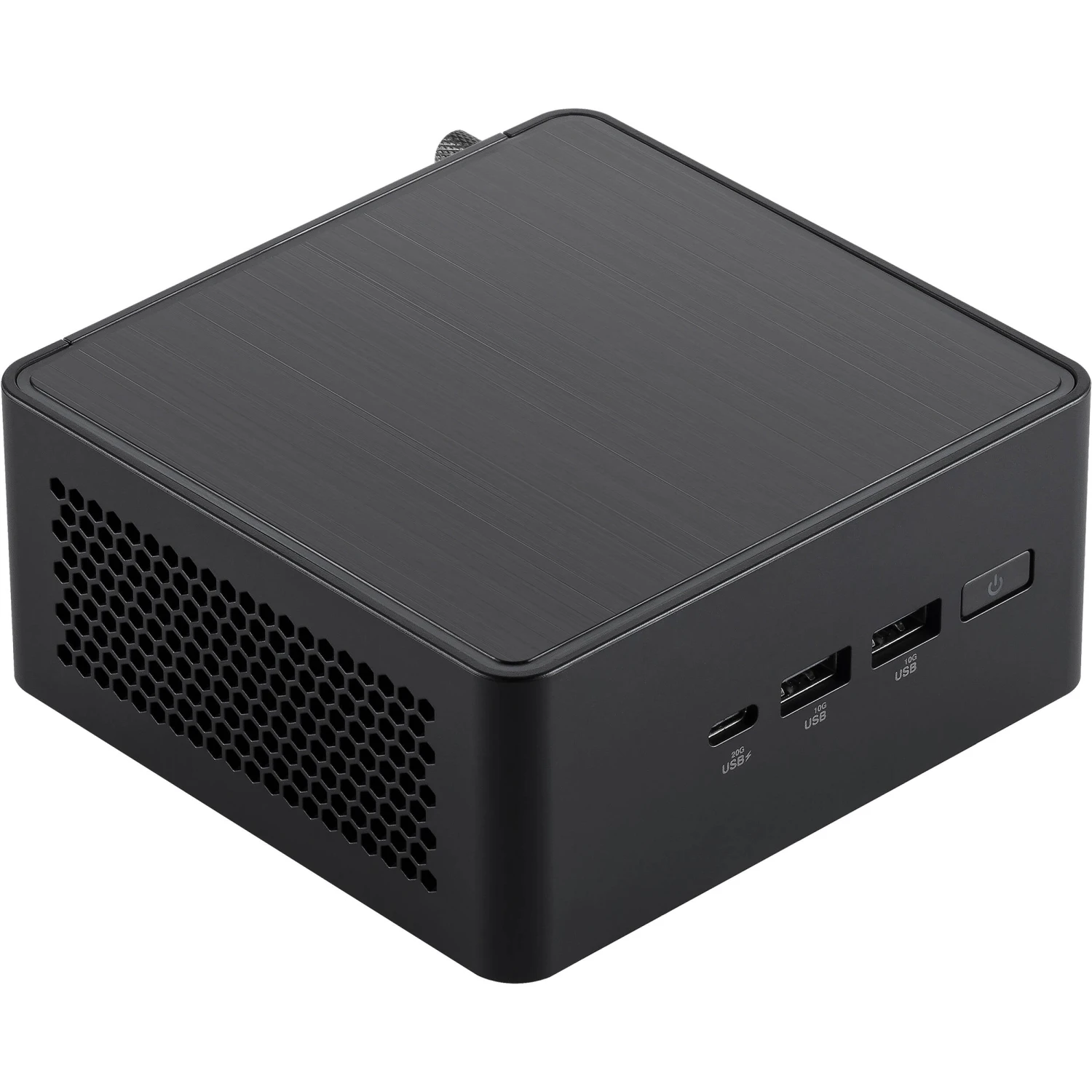

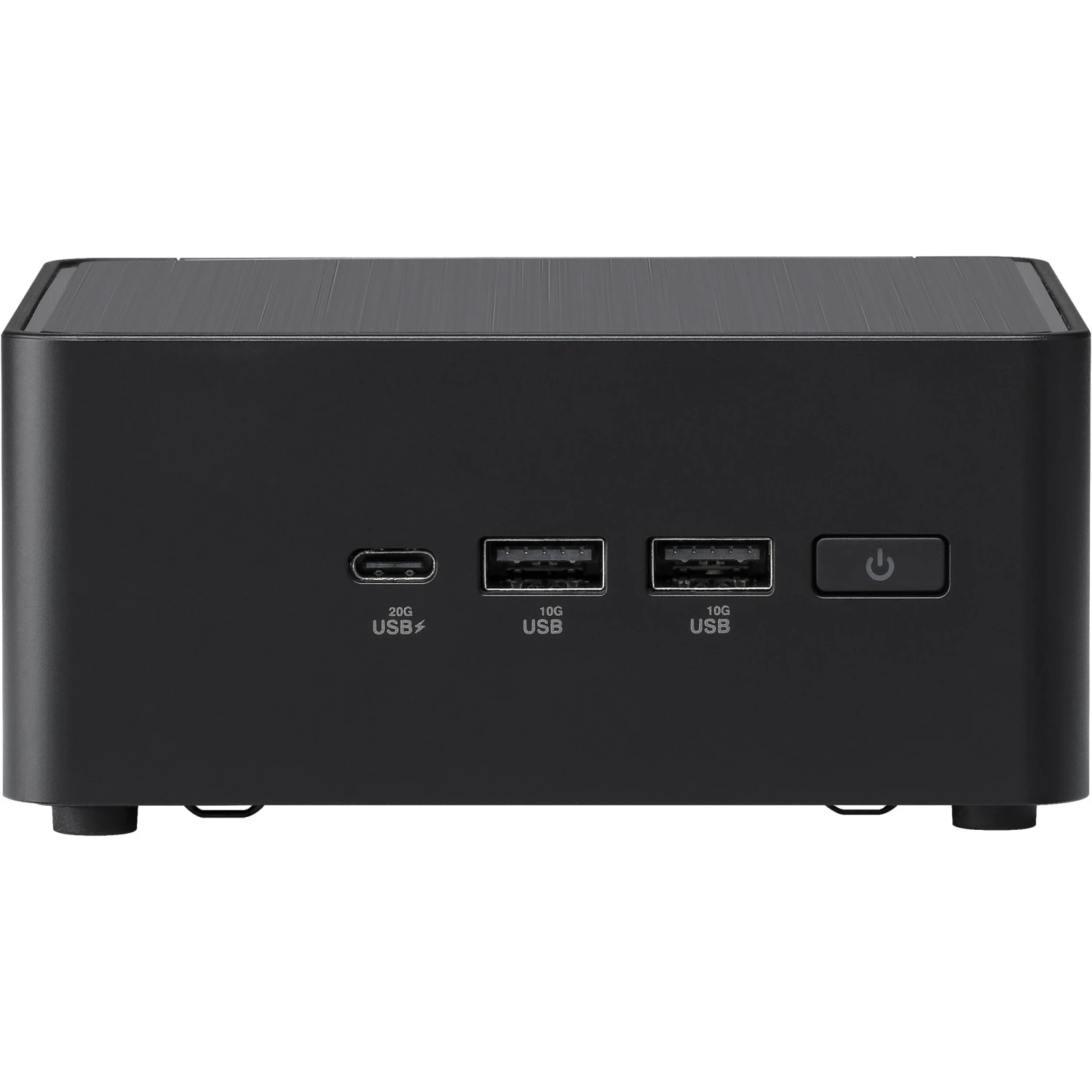

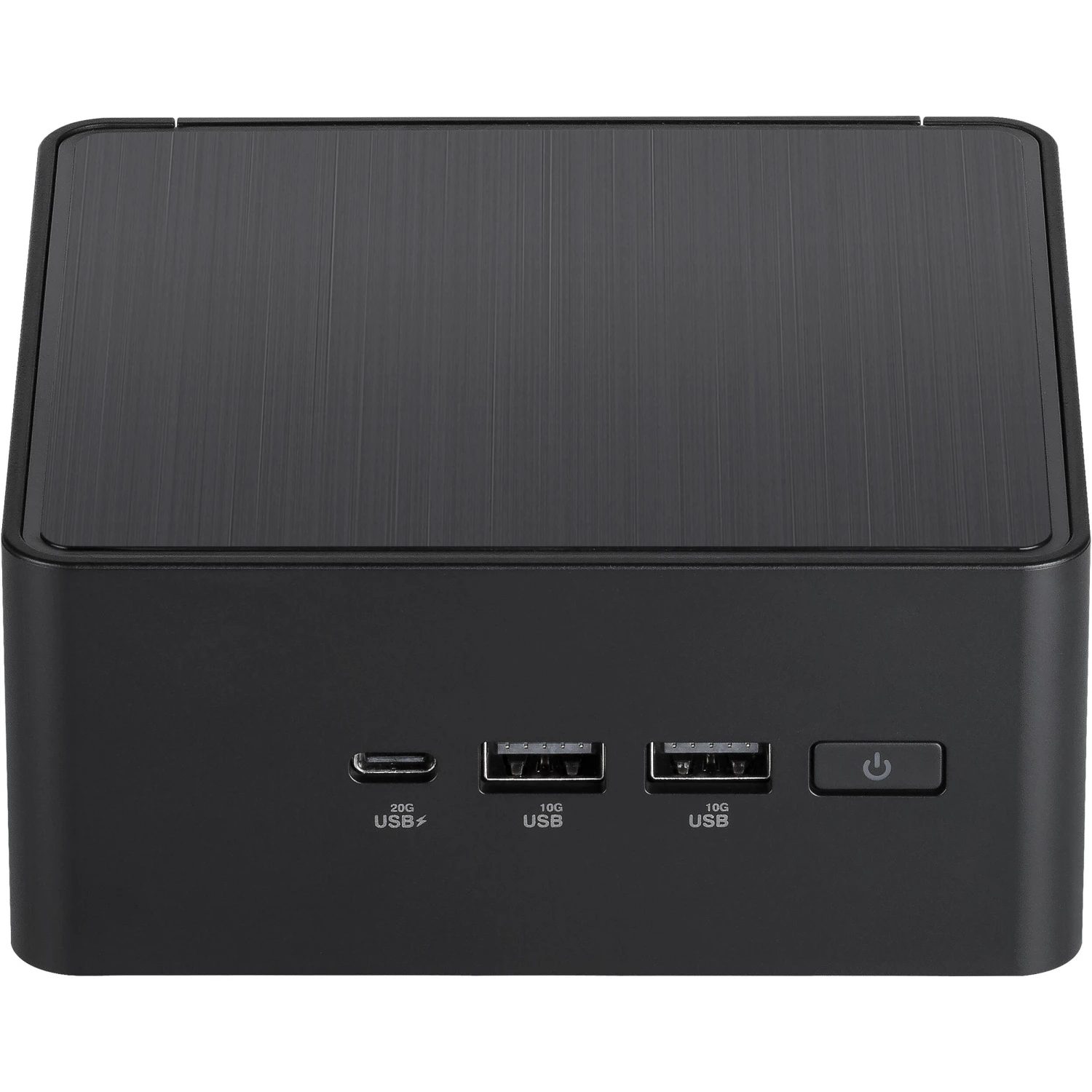

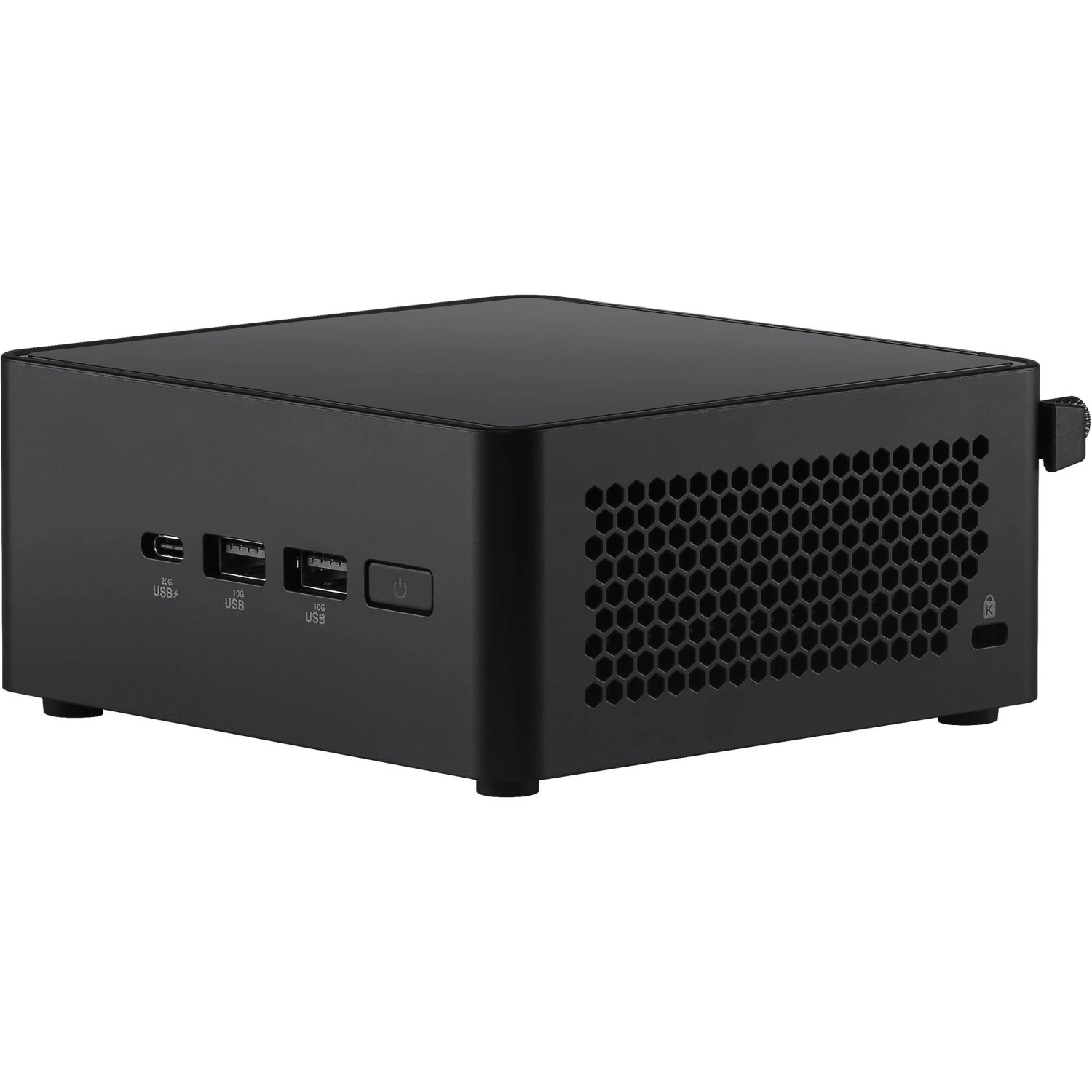

ASUS NUC 14 Pro Tall Overview
Steven Wong
With its compact size, the ASUS NUC 14 Pro Tall Barebone Kit can fit into a variety of spaces and be customized to help you stay productive. Inside the toolless chassis is a 1.2 GHz Intel Core Ultra 5 125H 14-Core processor with integrated graphics to get you started.
The two DDR5 SO-DIMM slots support up to 96GB of memory. For storage, you have an M.2 2280 PCIe 4.0 slot alongside an M.2 PCIe 3.0 2242 slot and a 2.5″ drive bay. This system also includes built-in Wi-Fi 6E support and a 2.5G Ethernet port for high-speed internet access. Dual Thunderbolt 4 ports, along with a front-facing USB-C 3.2 Gen 2×2 and dual USB-A 3.2 Gen 2 ports, allow you to quickly transfer large videos, photos, and other files. This kit is Windows 11 OS ready. A US power cable is included.
Items Included
- ASUS NUC 14 Pro Tall Barebone Kit
- Power Adapter
- US Power Cable
- VESA Mount
- Limited 3-Year Manufacturer Warranty
Not Included
- Essential Operating Systems
- Essential Computer Memory (RAM)
- Essential Internal Hard Drives
Additional Resources
User Manual
1.8 MB
More from manufacturer
ASUS NUC 14 Pro Tall Specs
| Operating System |
No |
| Processor |
Intel Core Ultra 5 125H |
| GPU |
Intel Arc Graphics |
| Installed RAM |
No |
| Total Installed Storage |
No |
| External Bays |
No |
| Inputs/Outputs |
2x USB-C (Thunderbolt 4) / Supports Video Alt Mode and Power Delivery 1x USB-C 3.2 Gen 2×2 3x USB-A 3.1/3.2 Gen 2 1x USB-A 2.0 |
| Display I/O |
2x HDMI 2.1 |
| Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2) |
| Bluetooth |
5.3 |
| Processor |
Intel Core Ultra 5 125H |
| CPU |
14-Core: 1.2 to 4.5 GHz Performance (4 Cores) 0.7 to 3.6 GHz Efficiency (8 Cores) 0.7 to 2.5 GHz Low Power Efficiency (2 Cores) |
| L3 Cache |
18 MB |
| Graphics Type |
Integrated |
| GPU |
Intel Arc Graphics |
| Installed RAM |
No |
| RAM Type |
5600 MT/s DDR5 SO-DIMM |
| RAM Configuration / Capacity |
RAM Needed / 2 Slots Supporting up to 96 GB |
| vPro Support |
Yes |
| Total Installed Storage |
No |
| Storage Expansion |
1x M.2 Slot 2280 (PCIe 4.0 x4) [Available]1x M.2 Slot 2242 (PCIe 3.0 x4) [Available]1x 2.5″ Bay (SATA III) [Available] |
| PCI Expansion |
No |
| Optical Drive |
No |
| External Bays |
No |
| Inputs/Outputs |
2x USB-C (Thunderbolt 4) / Supports Video Alt Mode and Power Delivery 1x USB-C 3.2 Gen 2×2 3x USB-A 3.1/3.2 Gen 2 1x USB-A 2.0 |
| Display I/O |
2x HDMI 2.1 |
| Audio I/O |
No |
| Network I/O |
1x RJ45 (2.5Gb Ethernet) |
| Built-In Speakers |
No |
| Built-In Microphones |
No |
| Media/Memory Card Slot |
No |
| Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2) |
| Bluetooth |
5.3 |
| GPS |
No |
| Keyboard |
No |
| Pointing Device |
No |
| Security |
Firmware TPM (Software-Based) |
| Power Supply |
120 W with Barrel/Proprietary |
| Mounting-Hole Pattern |
No |
| Dimensions |
5.7 x 4.4 x 1.6″ / 144 x 112 x 41 mm |
| Weight |
1.7 lb / 750 g |
| Package Weight |
3.3 lb |
| Box Dimensions (LxWxH) |
8.7 x 6.7 x 4.8″ |
