ASUS NUC 14 Pro + Overview

With its stylish white anodized aluminum chassis and slim design, the ASUS NUC 14 Pro+ Barebone Kit is made to stand out. But don’t be fooled by its size. Inside is a 1.4 GHz Intel Core Ultra 7 155H 16-Core processor with integrated Arc Graphics that can accelerate AI workloads. Customize its memory and storage to fit your performance needs.

The two 5600 MHz DDR5 SO-DIMM slots support up to 96GB of memory. For storage, you have an M.2 2280 PCIe 4.0 slot alongside an M.2 PCIe 2242 slot. This system also includes built-in Wi-Fi 6E support and a 2.5G Ethernet port for high-speed internet access. Dual Thunderbolt 4 ports, along with a front-facing USB-C 3.2 Gen 2×2 and USB-A 3.2 Gen 2 ports, allow you to quickly transfer massive videos, photos, and other files. The included VESA mount helps to maximize your space by allowing you to attach the NUC 14 Pro+ to almost any flat surface. This kit is Windows 11 OS ready. A US power cable is included.

Performance

The Intel Core Ultra 7 155H processor powers applications with six Performance cores that have a 4.8 GHz Max Turbo Boost 3.0 Frequency while eight Efficient cores and two Low Power E-Cores handle background tasks. A dedicated NPU accelerates AI tasks. Integrated Intel Arc Graphics delivers quality visuals.

Expansion

There are two dual-channel DDR5-5600 SO-DIMM slots available, supporting up to 96GB. There is also an M.2 2280 PCIe 4.0 x4 slot and an M.2 2242 PCIe slot.

High-Speed USB

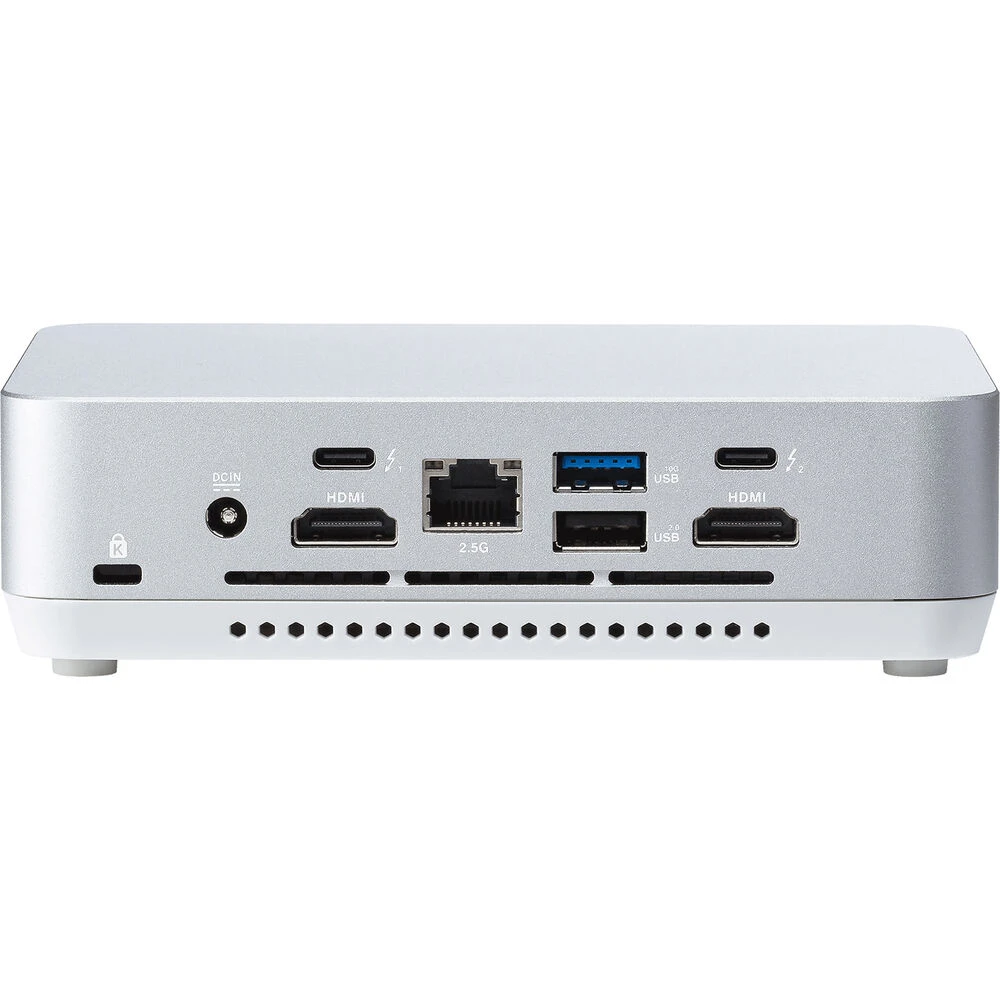

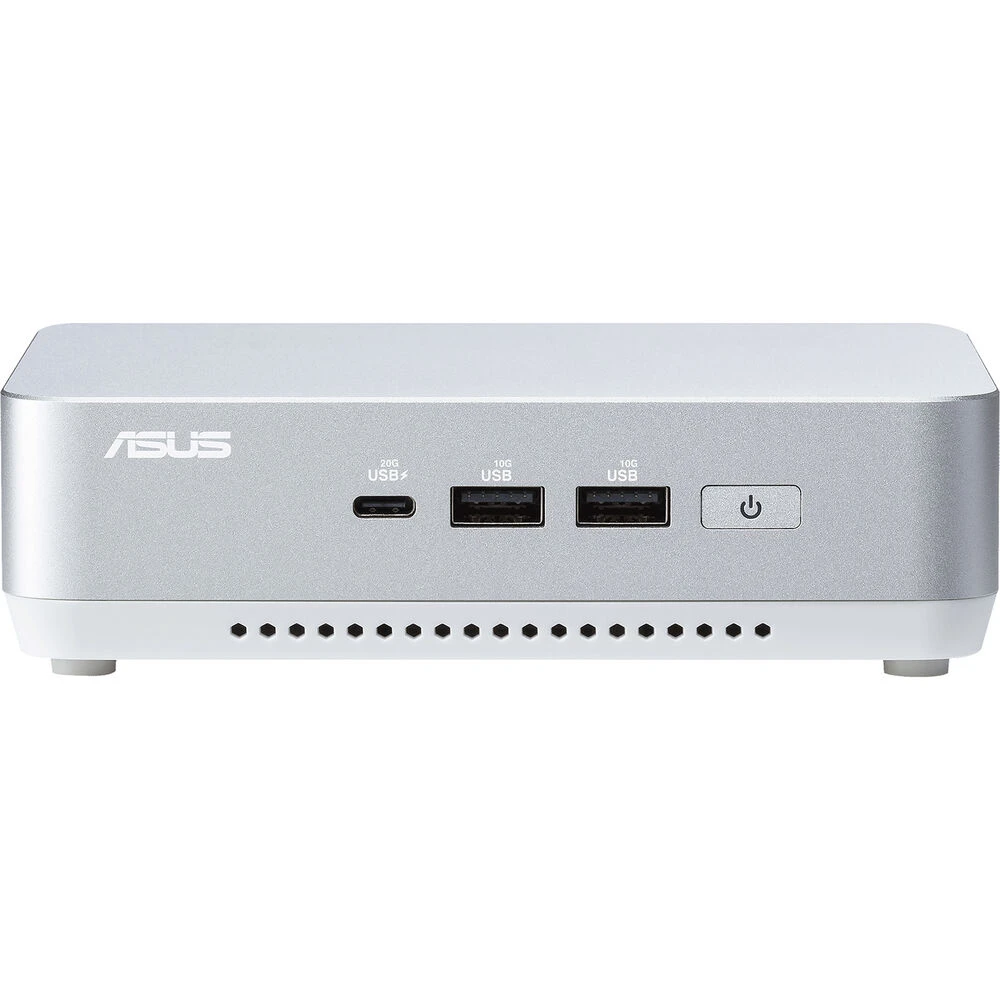

A front-facing 20 Gb/s USB-C Gen 2×2 and 10 Gb/s USB-A 3.2 Gen 2 ports allow you to quickly transfer data with compatible devices. The rear panel includes two Thunderbolt 4 ports alongside a USB-A 3.2 Gen 2 and one USB-A 2.0 port.

Thunderbolt 4

Thunderbolt 4 is a hardware interface that utilizes the reversible USB-C connector and features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB4 at up to 20 Gb/s, and dual-bandwidth DisplayPort allows you to connect either one 8K monitor or up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 4 port.

Network Connectivity

Wi-Fi 6E (802.11ax) support provides access to the less congested 6 GHz band with compatible wireless networks. The 2.5G Ethernet port provides a fast and reliable wired internet connection.

Multi-Display Support

Enhance your workflow by connecting up four displays through the dual HDMI and two Thunderbolt 4 ports.

UPC: 197105496705

Items Included

ASUS NUC 14 Pro+ Barebone Kit
Power Adapter
US Power Cable
VESA Mount
Limited 3-Year Manufacturer Warranty

Not Included

Essential Operating Systems
Essential Computer Memory (RAM)
Essential Internal Hard Drives

Additional Resources

User Manual

1.8 MB

ASUS NUC 14 Pro + Specs

Key Specs

Operating System	No
Processor	Intel Core Ultra 7 155H
GPU	Intel Arc Graphics
Installed RAM	No
Total Installed Storage	No
External Bays	No
Inputs/Outputs	2x USB-C (Thunderbolt 4) / Supports Video Alt Mode and Power Delivery 1x USB-C 3.2 Gen 2×2 3x USB-A 3.1/3.2 Gen 2 1x USB-A 2.0
Display I/O	2x HDMI 2.1
Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth	5.3

Performance

Processor	Intel Core Ultra 7 155H
CPU Socket	BGA 2049
CPU	16-Core: 1.4 to 4.8 GHz Performance (6 Cores) 0.9 to 3.8 GHz Efficiency (8 Cores) 0.7 to 2.5 GHz Low Power Efficiency (2 Cores)
Dedicated AI Cores	Yes
L3 Cache	24 MB
Graphics Type	Integrated
GPU	Intel Arc Graphics
Installed RAM	No
RAM Type	5600 MT/s DDR5 SO-DIMM
RAM Configuration / Capacity	RAM Needed / 2 Slots Supporting up to 96 GB
vPro Support	No

Storage and Expansion

Total Installed Storage	No
Storage Expansion	1x M.2 Slot 2280 (PCIe 4.0 x4) 1x M.2 Slot 2242 (PCIe x4)
PCI Expansion	No
Optical Drive	No
External Bays	No

Inputs / Outputs

Inputs/Outputs	2x USB-C (Thunderbolt 4) / Supports Video Alt Mode and Power Delivery 1x USB-C 3.2 Gen 2×2 3x USB-A 3.1/3.2 Gen 2 1x USB-A 2.0
Display I/O	2x HDMI 2.1
Audio I/O	No
Network I/O	1x RJ45 (2.5Gb Ethernet)
Built-In Speakers	No
Built-In Microphones	No
Media/Memory Card Slot	No

Communications

Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth	5.3
GPS	No

Keyboard & Mouse

Keyboard	No
Pointing Device	No

General

Security	Accepts 3rd Party Security Lock Devices, Firmware TPM (Software-Based)
Power Supply	150 W with Barrel/Proprietary
Dimensions	5.7 x 4.4 x 1.6″ / 144 x 112 x 41 mm
Weight	1.8 lb / 800 g

Packaging Info

Package Weight	3.165 lb
Box Dimensions (LxWxH)	6.9 x 6.7 x 4.8″
