Arduino ABX00043 ABX00043 Single Board Computer Portenta Max Carrier SARA-R412M-02B Family ARM Cortex-M4(Arduino Abx00043 Abx00043 Single Board Computer Portenta Max Carrier Sara R412m 02b Family Arm Cortex M4)

Original price was: $352.00.Current price is: $97.99.

Elevate Your Shopping Experience

Product guarantee 100% satisfaction

The quality solution for all your needs.

Streamlined service, designed for your convenience.

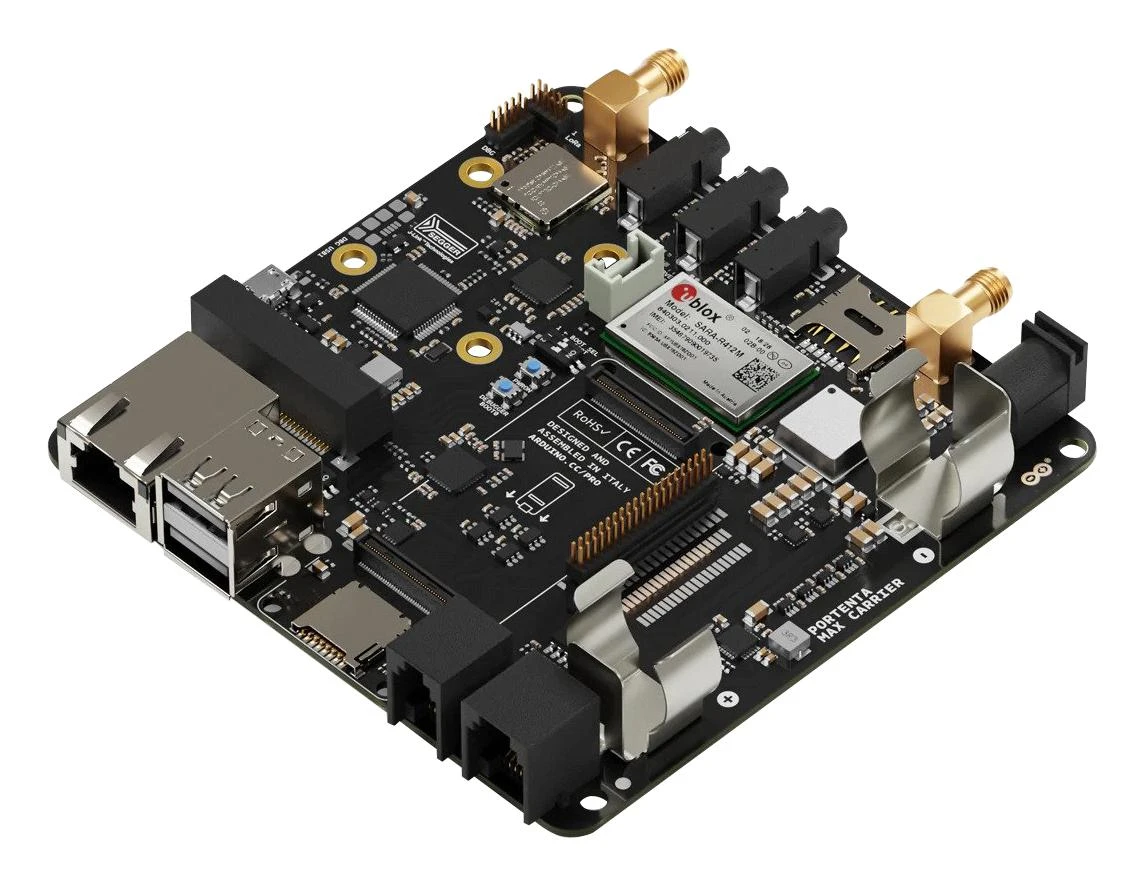

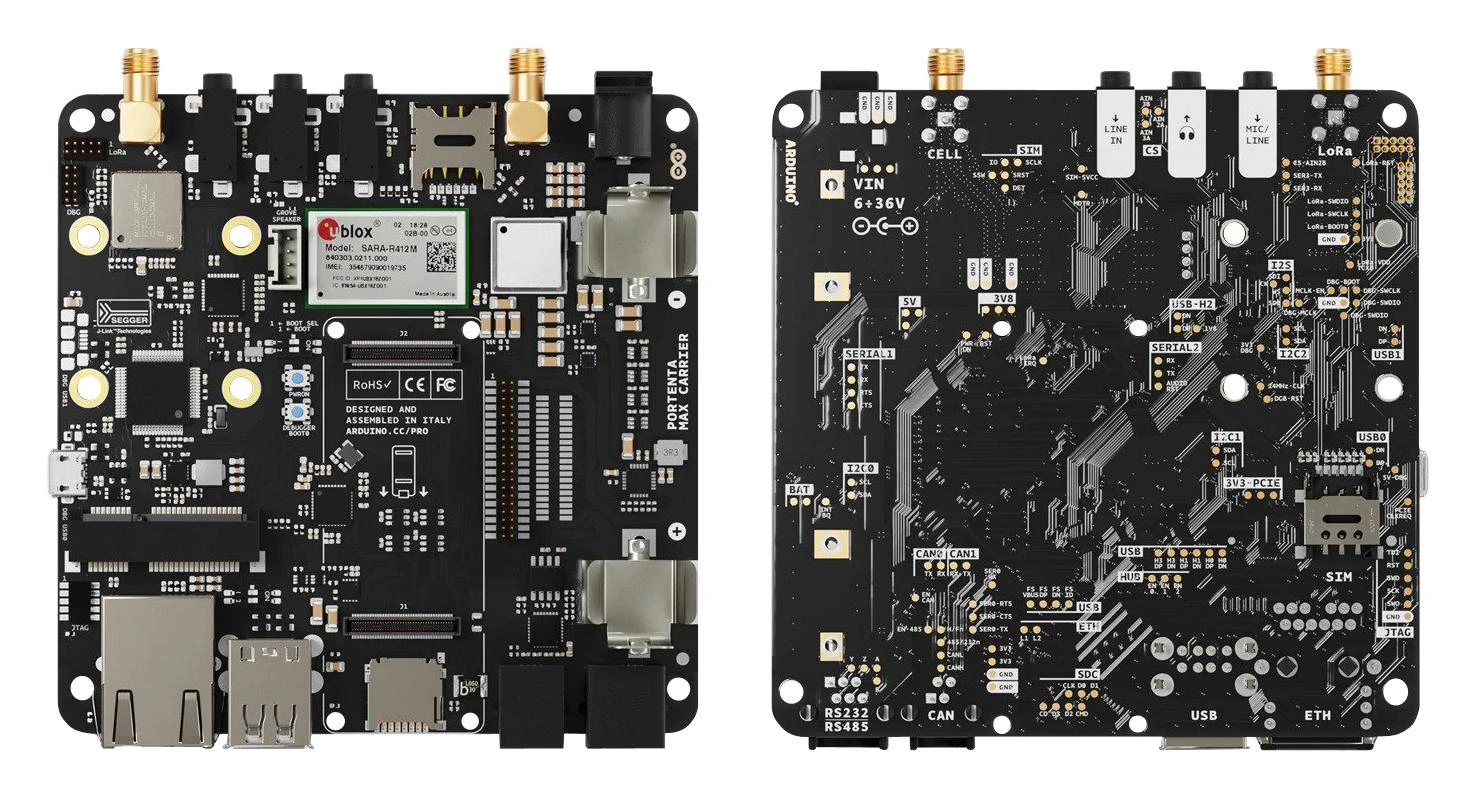

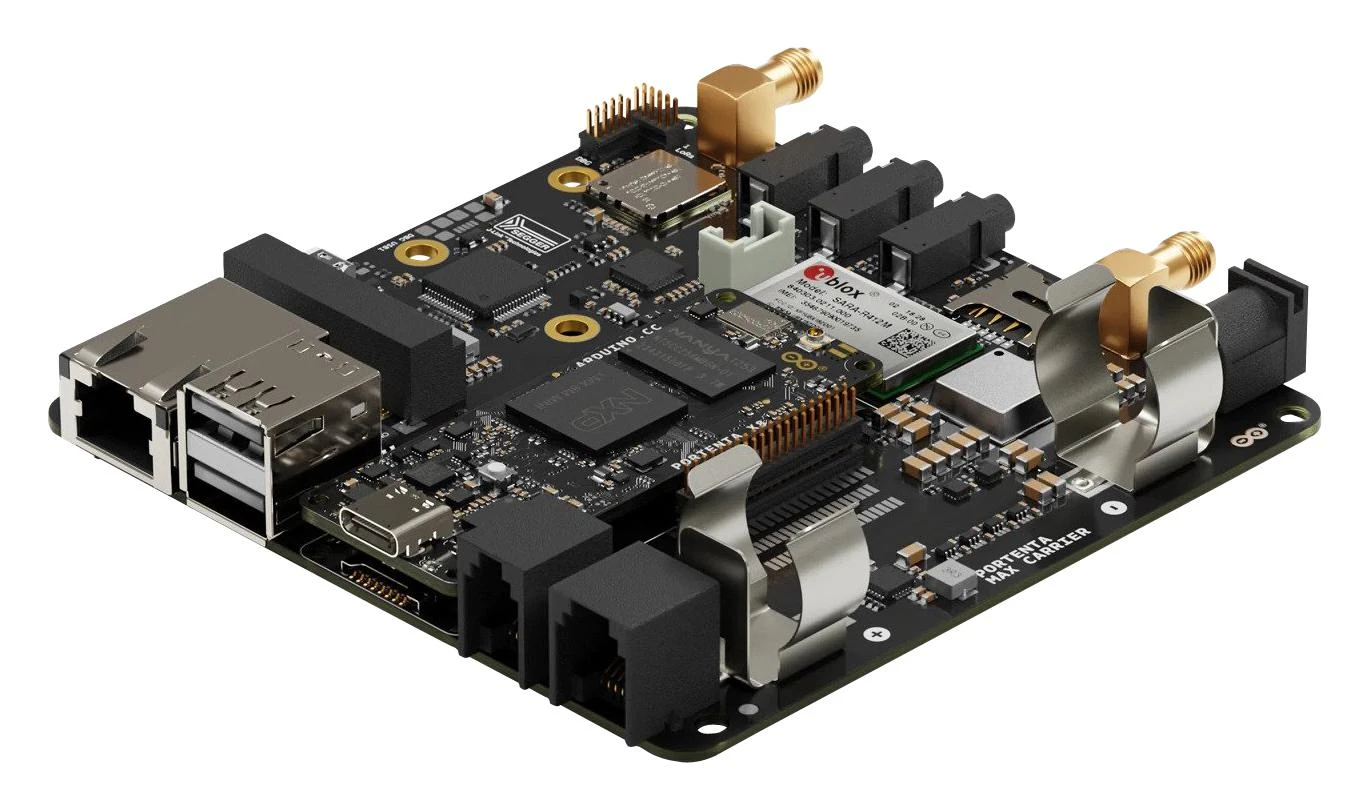

Transform your Portenta Module into a complete single-board computer, ideal for high performance industrial applications. Built to complement the Portenta family, the board provides a suite of plug & play connectors to augment connectivity options and MicroSD for data logging, allowing you to easily create a prototype for faster deployment and testing.

High density connectors compatible with Portenta X8 and H7
Easy debugging via JTAG connector
2Mb QSPI flash memory
MicroSD card slot
LoRa and 4G Micro SIM modules with SMA antenna connectors
Physical connections: 2x USB-A, Gigabit RJ45, FD-Can (RJ11), mini PCI-Ex, Serial RS232/422/485 (RJ12)
Integrated audio (stereo line in/out/mic) and speaker connector
Powered by external PSU (6-36V) with onboard 18650 li-ion battery connector and battery charger (3.7V)
Baattery can be used as backup power if external power supply fails (battery not included)

Footnotes Note: Requires the Portenta X8 for full functionality

Other details

Brand	ARDUINO
Part Number	ABX00043
Quantity	Each
Technical Data Sheet EN
Drawing EN
