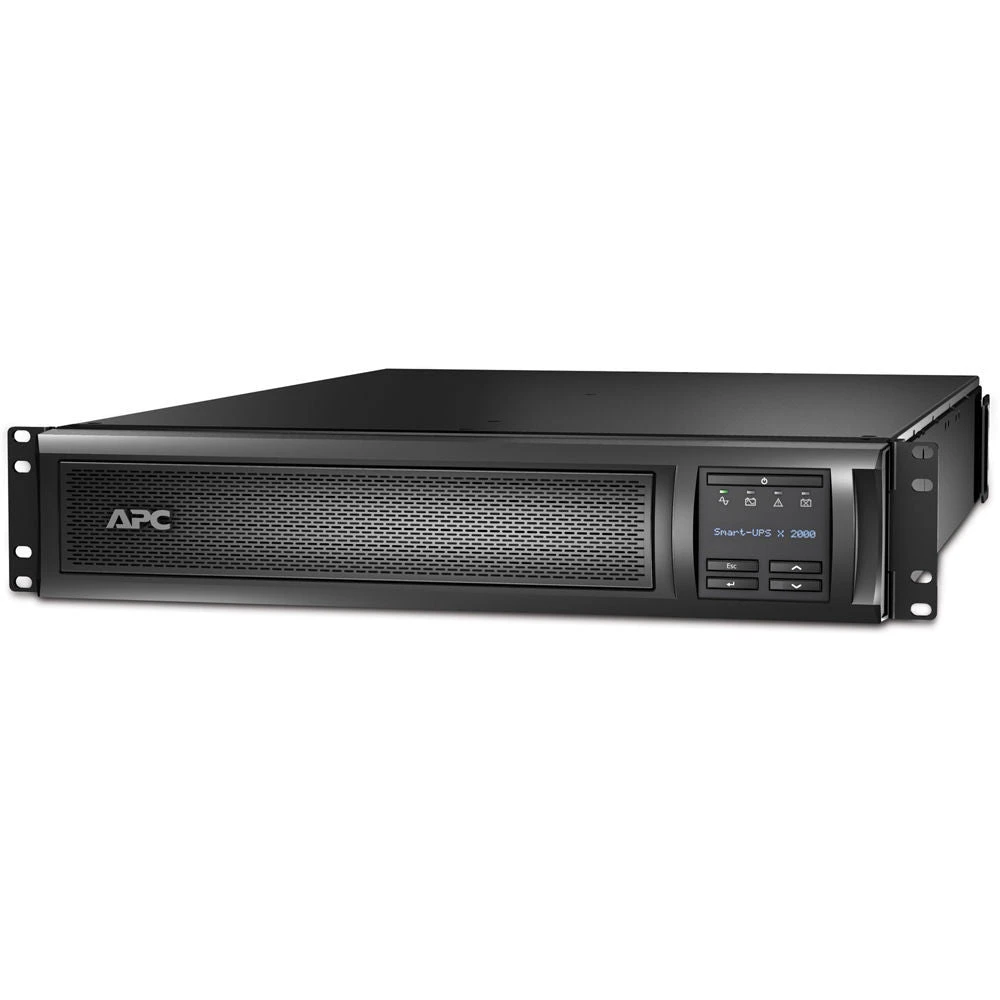

APC Smart-UPS X-series Rack/Tower UPS With LCD (2000 VA)(Apc Smart Ups X Series Rack Tower Ups With Lcd 2000 Va)

The APC Smart-UPS X-series Rack/Tower UPS with LCD (2000 VA) provides efficient power protection to your electrical equipment by maintaining a continuous supply in case of a power loss, and safeguards your equipment from surges, spikes, lightning, and electrical disturbances.

Designed for the energy-conscious consumer, the APC Smart-UPS is designed to increase control and efficiency, thereby helping the user save on utility costs. A unique feature of this UPS is the green mode, which bypasses unused electrical components in good power condition and saves energy, reducing the impact on the environment. If you’re an energy-conscious consumer, then you’ll appreciate the handy energy meter that helps you track the usage statistics of the UPS.

Improved diagnostic features of the Smart-UPS unit allow for enhanced monitoring, and keep you updated on any necessary maintenance well in advance. For instance, an audible alarm alerts you of events like changing utility power and UPS conditions, power outage, and low battery condition. The Smart-UPS also incorporates a notification process, which tells you the exact month and year when the battery is due for replacement so you can plan ahead of time. Predictive failure notification offers continuous worry-free operation by enabling you to fix a problem before it occurs. Thanks to hot-swap support, you can replace the battery on the fly without interrupting the surge protection functionality. In case of an over-load, the resettable circuit breakers will help you get back in business in no time. Additionally, the Smart-UPS allows you to individually control power flow to attached devices, enabling you to perform discrete sequenced on/off and reboot of hung devices and non-critical load shedding.

Boost and trim automatic voltage regulation outputs pure sine wave by correcting low and high voltage condition that makes this UPS suitable for use with active PFC servers and highly sensitive electronic equipment. An intelligent battery management system with precision charging prolongs battery life by charging the UPS as per its current temperature. Automatic periodic battery self tests will alert you in case of a problem with the battery so you can take the proper measures before it fails completely. An LED indicator lets you see the power and battery status at a glance. The UPS also features an automatic restart function, which will automatically power up devices after AC is restored.

An on-board LCD display, with multi-lingual support, provides clear and accurate information so you can configure the UPS using the navigation keys. You also can control and configure the UPS via a PC and connect it to a network for remote accessibility.

Operation

Protects your electrical equipment by maintaining a continuous flow of power

Safeguards equipment from surges, spikes, lightning, and electrical disturbances

Intuitive on-board LCD display with multi-linguistic support provides clear and accurate information and assists in configuration with easy-to-use navigation keys

Efficiency

Green mode bypasses unused electrical components in good power condition for energy efficient operation

Energy meter provides usage statistics

High online efficiency – reduced utility costs and minimal heat generation

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation

Individual power flow control enables you to perform discrete reboot of hung devices, sequenced on/off, and non-critical load shedding

Boost and trim automatic voltage regulation corrects low and high voltage condition for a constant pure sine wave output

Simulates utility power to provide the highest degree of compatibility for active PFC servers and sensitive electronic devices

Easy handling of the unit thanks to a high frequency design that avoids the use of bulky transformers

Scalable runtime for operating critical equipment in case of power failure

Alerts

Notifies you about the month and year that the battery is due for replacement

Continuous worry-free operation via predictive failure notification – fix a problem before it occurs

Disconnected battery notification warns you when a battery is not available for backup

Audible alarm alerts you of critical events that might affect the operation of the UPS

Periodic battery self tests allow you to prevent rather than correct faults in the battery

LED indication of power and battery status

Additional Functionalities

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Automatically recognizes the type of battery packs attached and its equivalent runtime

User-replaceable batteries reduces Mean Time to Repair (MTTR)

Adjustable voltage sensitivity offers the ability to adapt the UPS for optimal performance in specific power environments or generator applications

Resettable circuit breakers help you recover from an overload condition in no time

Battery management system prolongs battery life via precision charging with respect to the battery temperature

Automatic restart function automatically power up devices after AC is restored

Cold-start capable – provides temporary battery power when the utility power is out

Cold-start capable – provides temporary battery power when the utility power is out

Management via a serial port

Enables centralized management via StruxureWare Central

Can be integrated with a network for remote accessibility and management

Customizable UPS capabilities with management cards

Can be mounted in a rack, useful while migrating from tower to rack-mount environment

Safety-agency approved

APC Smart-UPS X-series Rack/Tower UPS with LCD (2000 VA)

Output	Output Power Capacity: 1800 W / 1920 VA Max Configurable Power: 1800 W / 1920 VA Nominal Output Voltage: 120 V Output Voltage Distortion: Less than 5% at full load Output Frequency (sync to mains): 47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal Waveform Type: Sine wave Output Connections: (3) NEMA 5-15R / (3) NEMA 5-20R / (1) NEMA L5-20R
Input	Nominal Input Voltage: 120 V Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing) Input Connections: NEMA 5-20P Cord Length: 8′ (2.4 m) Transfer Time: 2 – 4 ms Input Voltage Range for Main Operations: 82 – 147 V Input Voltage Adjustable Range for Mains Operation: 75 – 154 V
Battery	Battery Type: Maintenance-free sealed lead-acid battery with suspended electrolyte, Leakproof Typical Recharge time: 3 hours Replacement Battery: APCRBC117 RBC Quantity: 1 Extended Run Options: APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V
Communication	Interface Ports: SmartSlot Available SmartSlot Interface Quantity: 1 Control Panel: LED status display with On Line : On Battery : Replace battery and overload indicators, Multi-function LCD status and control console Emergency Power Off (EPO): Yes Audible Alarm: alarm when on battery : Distinctive low battery alarm : Configurable delays
Surge Protection	Surge Energy Rating: 540 Joules Filtering: Full time multi-pole noise filtering : 0.3% IEEE Surge let-through : Zero clamping response time : Meets UL 1449
Environmental	Operating Environment: 32 – 104� F (0 – 40� C) Operating Relative Humidity: 0 – 95% Operating Elevation: 0-9843′ (0-3000 m) Storage Temperature 5 – 113� F (-15 – 45� C) Storage Relative Humidity: 0 – 95% Storage Elevation: 0-49212′ (0-15000 m) Audible Noise at 3.3′ (1 m) from surface of unit:�55 dBA Online Thermal Dissipation: 276 BTU/hr
Conformance	Regulatory Approvals: BSMI,CSA,EN 50091-2,EN 55022 Class A,FCC Part 15 Class A,NOM,TUV,UL 1778,VCCI Class A Environmental Compliance RoHS 7b Exemption,REACH: Contains no SVHCs
Compliance	RoHS 7b Exemption, REACH: Contains no SVHCs
Topology	Line interactive
Dimensions (HxWxD)	3.4 x 17 x 26.3″ (85 x 432 x 667 mm) – 2U rack height
Weight	84.6 lb (38.5 kg)

Packaging Info
Package Weight	99.0 lb
Box Dimensions (LxWxH)	34.0 x 23.6 x 9.7″
