APC Smart-UPS X Battery Backup & Surge Protector With SmartConnect(Apc Smart Ups X Battery Backup Surge Protector With Smartconnect)

APC Smart-UPS X Battery Backup & Surge Protector With SmartConnect(Apc Smart Ups X Battery Backup Surge Protector With Smartconnect) - Image 2

APC Smart-UPS X Battery Backup & Surge Protector With SmartConnect(Apc Smart Ups X Battery Backup Surge Protector With Smartconnect) - Image 3

APC Smart-UPS X Battery Backup & Surge Protector With SmartConnect(Apc Smart Ups X Battery Backup Surge Protector With Smartconnect)

Original price was: $327.00.Current price is: $96.99.

SKU: DGFUB 6751091916885 Categories: Computer & Presentation, Computer Solutions, Power Accessories Tags: APC Smart-UPS X 1000VA, Computers, Power Accessories, UPS & Accessories

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

APC 1000VA Overview

1Description
2General Features
3Serviceability
4Adaptability
5Availability
6Manageability
7Safety

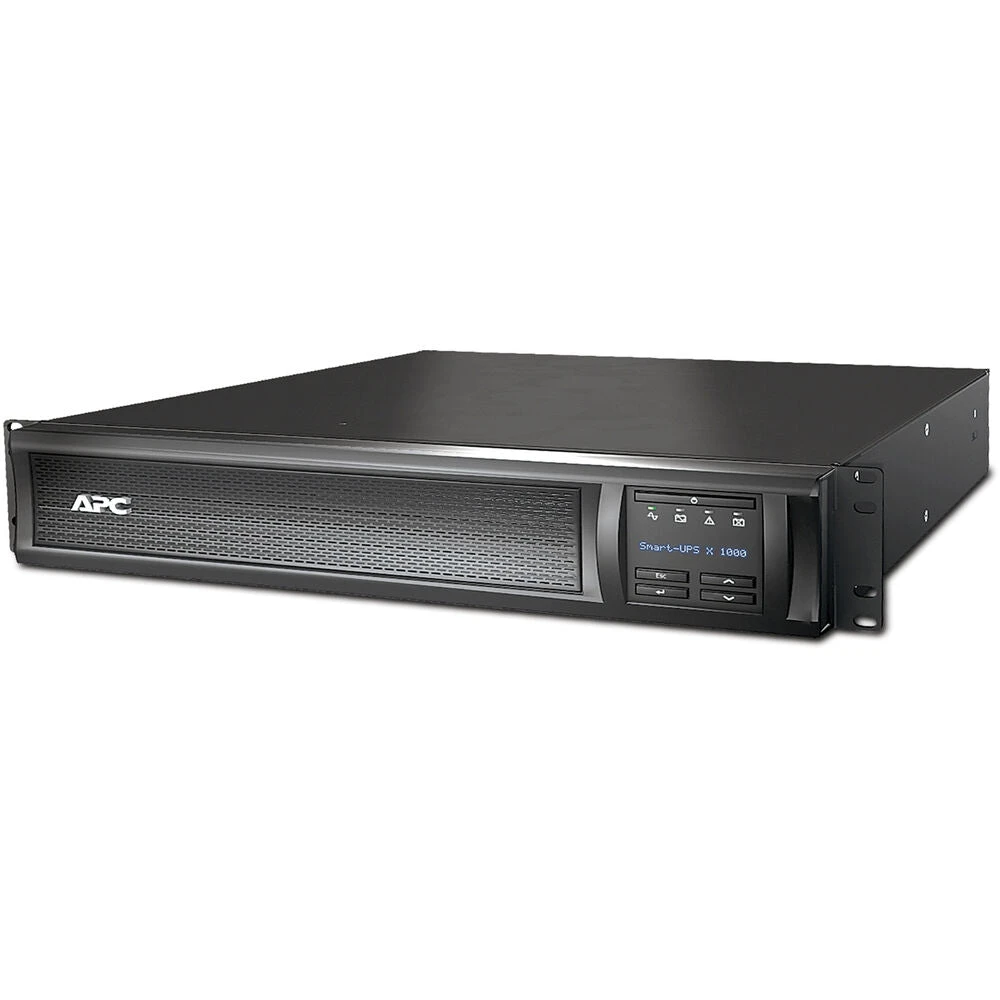

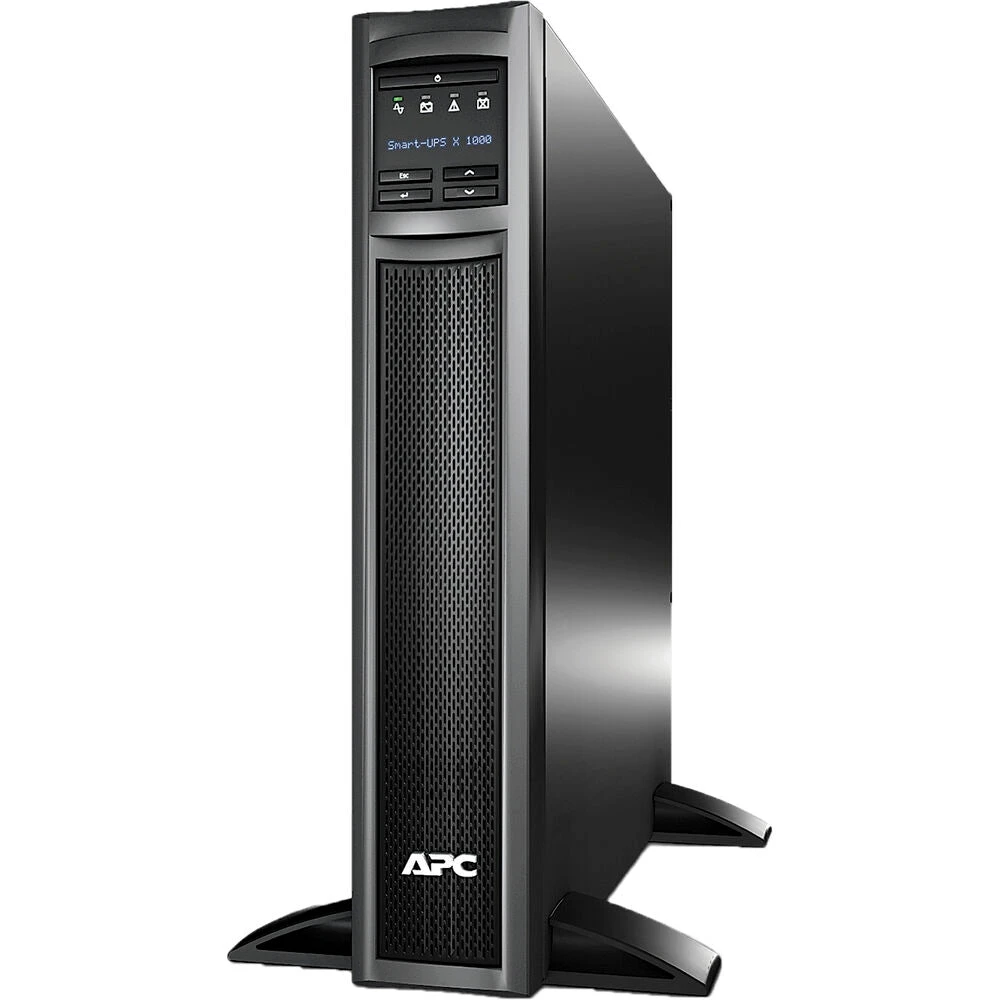

Designed for servers, point-of-sale, routers, switches, hubs, and other network devices, the Smart-UPS X Battery Backup & Surge Protector with SmartConnect from APC has a 2 RU form factor and delivers intelligent and efficient network power protection from entry level to scalable runtime. It can provide up to 8.2 minutes of use when running a full load of 900W and up to 20.9 minutes of use when running a half load of 450W

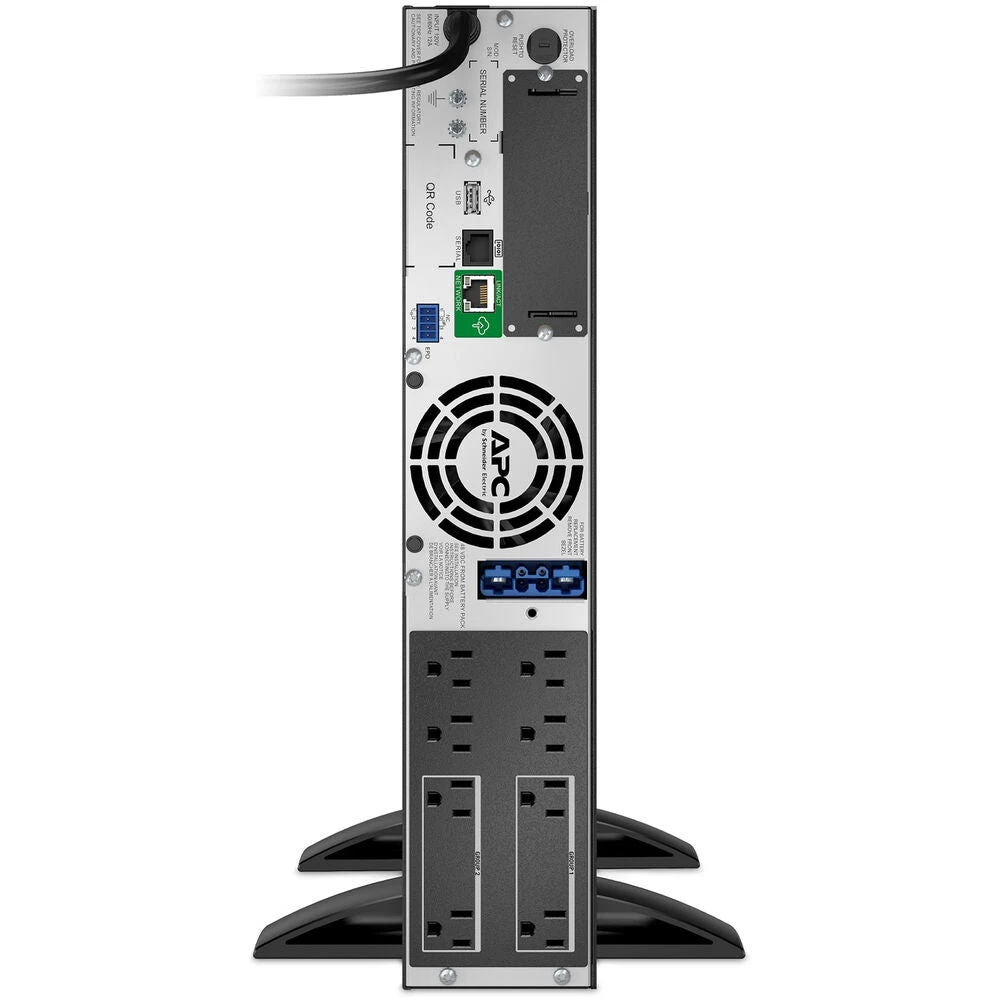

This Smart-UPS X features an output of 900W / 1000 VA, a nominal input of 120V @ 50/60 Hz ±3 Hz, an input voltage range of 82-143V, eight NEMA 5-15R battery backup outlets, an 8.01′ NEMA 5-15P input connection, a surge energy rating of 600 joules, line interactive topology, and a sine waveform output. Included PowerChute Network Shutdown management software helps to provide unattended, yet proper shutdowns of network operating systems, and also included is an Ethernet cable, rack mounting brackets, removable support feet, an RS-232 cable, and a USB cable. Support is provided by a limited 3-year repair or replace warranty, a limited 2-year battery warranty, and a limited lifetime $150,000 equipment protection policy.

The APC SmartConnect ports allow the run time of this unit to be extended. When using five SMX48RMBP2U external battery packs, this UPS can last for over 3 hours at 900W. You’ll also be able to view the status of your UPS through a secure web portal. Through this remote management interface, you’ll receive automatic notifications, firmware updates, and advanced support.

General Features

Serviceability

Battery Failure Notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

User-Replaceable Batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Resettable Circuit Breakers

Enables a quick recovery from overload events.

Predictive Failure Notification

Provides early-warning fault analysis ensuring proactive component replacement.

Hot-Swappable Batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

Adaptability

Adjustable Voltage Sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable Voltage-Transfer Points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Availability

Disconnected Battery Notification

Warns when a battery is not available to provide backup power.

Automatic Self-Test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery.

Power Conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Automatic Restart of Loads After UPS Shutdown

Automatically starts up the connected equipment upon the return of utility power.

Intelligent Battery Management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Temperature-Compensated Battery Charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Manageability

Audible Alarms

Actively lets you know if the unit is on battery, if the battery is low, or if there is an overload condition.

Network Manageable

Provides remote power management of the UPS over the network.

LED Status Indicators

Quickly understand unit and power status with visual indicators.

USB Connectivity

Provides management of the UPS via a USB port.

Serial Connectivity

Provides management of the UPS via a serial port.

Safety

Safety Agency Approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

UPC: 731304401124

In the Box

APC Smart-UPS X Battery Backup & Surge Protector with SmartConnect
Ethernet Cable
USB Cable
RS-232 Cable
Rack Mounting Brackets
Removable Support Feet
Limited Lifetime $150,000 Equipment Protection Policy
Limited 2-Year Warranty (Battery Only)
Limited 3-Year Repair or Replace Warranty (Hardware Only)

APC 1000VA Specs

General

Total Outlets	8 x NEMA 5-15R (4 Transformer-Sized)
Protected Outlets	8 x NEMA 5-15R (Battery and Surge)
Plug Type	NEMA 5-15P
Data Line Protection	RJ45
Communications	USB via Type-B Serial via RJ45
Emergency Power Off (EPO) Support	Yes
Noise Filtering	5%
Topology	Line Interactive

Power

Surge Energy Rating	600 Joules
Maximum Current	12 A
Maximum Wattage	900 W
Nominal Input Voltage	120 VAC
Input Voltage Range	82 to 143 VAC
Input Frequency	50/60 Hz ± 3 Hz (Auto Sensing)
Nominal Output Voltage	120 VAC
Output Frequency	50/60 Hz ± 3 Hz
Voltage Distortion	<5%
Load Capacity	1000 VA
Thermal Dissipation	82 BTU/Hour
Maximum Efficiency	98.9%
Waveform	Sine Wave

Battery

Chemistry	Lead-Acid
Full-Load Runtime	8.2 Minutes
Half-Load Runtime	20.9 Minutes
Recharge Time	3 Hours
User Replaceable	Yes
Replacement Battery	CURK116-01-02
Hot-Swap Support	Yes
External Battery Connection	1 x IEC Jumper

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 95%
Storage Temperature	5 to 113°F / -15 to 45°C
Operating Altitude	0 to 10,000′ / 0.0 to 3048 m
Storage Altitude	0 to 50,000′ / 0.0 to 15,240 m
Noise Level	40 dBA
Certifications	UL, cUL, as per Manufacturer

Physical

Cable Length	8.01′ / 2.44 m
Rackmount Size	2 RU
Dimensions (W x H x D)	17.01 x 3.5 x 19.29″ / 43.21 x 8.9 x 49 cm
Weight	50.4 lb / 22.9 kg

Packaging Info

Package Weight	57.4 lb
Box Dimensions (LxWxH)	24.75 x 23.25 x 9.5″
