APC Smart-UPS SRT Battery Backup 3000 VA RM 208V(Apc Smart Ups Srt Battery Backup 3000 Va Rm 208v)

The Smart-UPS Battery Backup SRT 3000 VA RM 208V from APC provides high-density, double-conversion online power protection with scalable runtimes. Network grade power conditioning helps protect against damaging surges and disruptive noises and the double conversion architecture helps provide voltage regulation, frequency regulation, and zero transfer time to the battery during power events. Using intelligent battery management, its battery life is maximized and automatic self-tests not only help ensure reliability, but also warn customers in advance of battery replacement. When it is time to replace the battery, hot-swappable modules let you perform replacement without powering down.

APC’s Smart-UPS SRT Battery Backup features an output of 3000 VA / 2700W, an input range of 100-275 VAC @ 40-70 Hz, one NEMA L6-30R output, two NEMA L6-20R outputs, one NEMA L6-20P input, a surge energy rating of 340 joules, a sine waveform, and an LED status display to monitor the system and perform functions as needed. The built-in APCRBC152 battery is hot-swappable and may be recharged in around 3 hours. Included are rack mounting brackets, rack mounting hardware, rack mounting supports rails, and a USB cable.

General Features

SRT3000RMXLT Features

Battery Failure Notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

ECO Mode

Operating mode that bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Green Mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

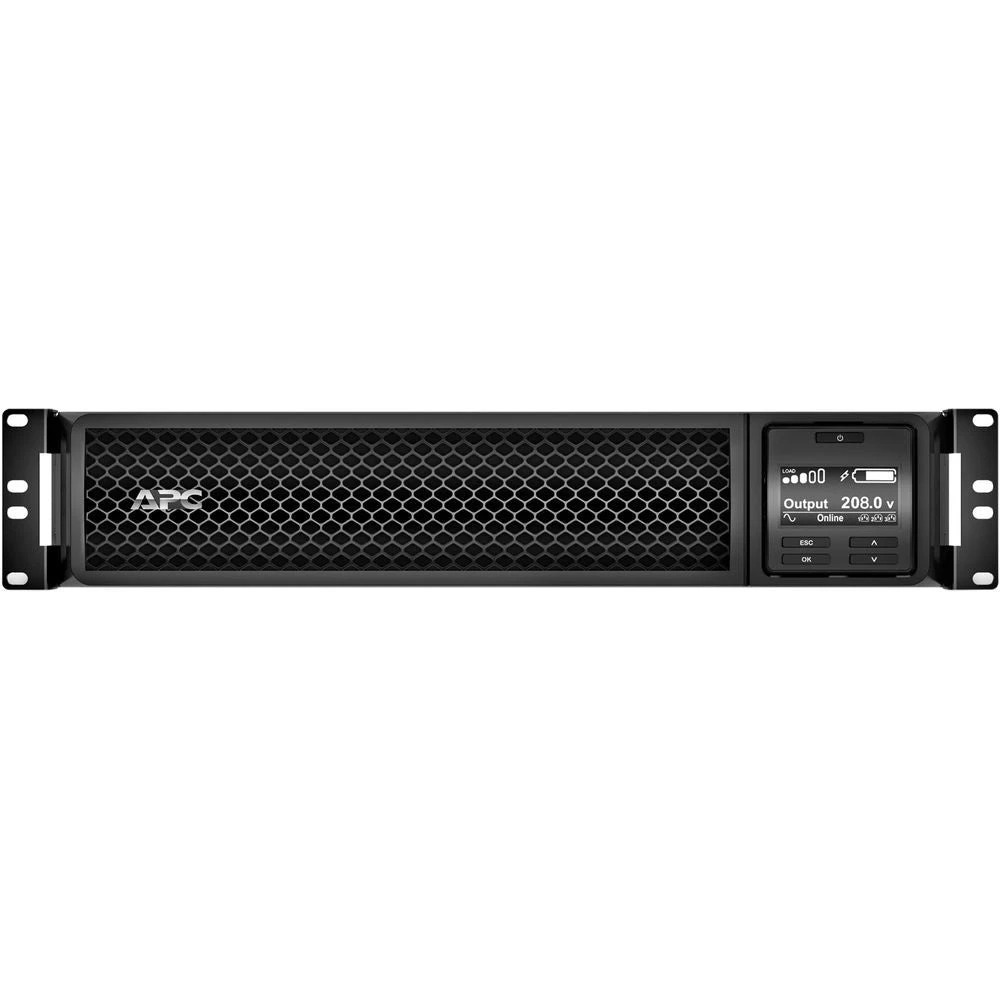

LCD Graphics Display

Text and mimic diagrams that display modes of operation, system parameters, and alarms.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rackmount environment.

Smart-UPS Online Features & Benefits

Serviceability

Audible Alarms

Provides notification of changing utility power and UPS power conditions.

Disconnected Battery Notification

Warns when a battery is not available to provide backup power.

Predictive Failure Notification

Provides early-warning fault analysis ensuring proactive component replacement.

Automatic Self-Test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

User-Replaceable Batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Protection

Generator Compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Cold-Start Capable

Provides temporary battery power when the utility power is out.

Power Conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Input Power Factor Correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Frequency and Voltage Regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Resettable Circuit Breaker

Easy recovery from overloads; no need to replace a fuse.

Safety-Agency Approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Manageability

Network Manageable

Provides remote power management of the UPS over the network.

Serial Connectivity

Provides management of the UPS via a serial port.

SmartSlot

Customize UPS capabilities with management cards.

LED Status Indicators

Quickly understand unit and power status with visual indicators.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

Adaptability

Plug-and-Play External Batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Flash Upgradeable Firmware

Install maintenance releases of firmware remotely using FTP.

Availability

Temperature-Compensated Battery Charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic Internal Bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Intelligent Battery Management

Maximizes battery performance, life, and reliability through intelligent precision charging.

Scalable Runtime

Allows additional run time to be quickly added as needed.

Automatic Restart of Loads After UPS Shutdown

Automatically starts up the connected equipment upon the return of utility power.

Hot-Swappable Batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Product Distribution

Anguilla, Netherlands Antilles, Aruba, Barbados, Bermuda, Belize, Canada, Colombia, Costa Rica, Cuba, Dominican Republic, Ecuador, Falkland Islands, Guatemala, Guyana, Honduras, Haiti, Jamaica, Mexico, Nicaragua, Panama, Puerto Rico, El Salvador, Turks and Caicos Islands, Trinidad and Tobago, United States, Venezuela, U.S. Virgin Islands

APC Smart-UPS SRT Battery Backup 3000 VA RM 208V

Output
Output Power Capacity	2700 W / 3000 VA
Max Configurable Power	2700 W / 3000 VA
Nominal Output Voltage	208 V
Output Voltage Note	Configurable for 208 or 240 V nominal output
Output Voltage Distortion	Less than 2%
Output Frequency (Sync to Mains)	50/60 Hz ±3 Hz
Other Output Voltages	240 V
Load Crest Factor	3:1
Topology	Double Conversion Online
Waveform Type	Sine wave

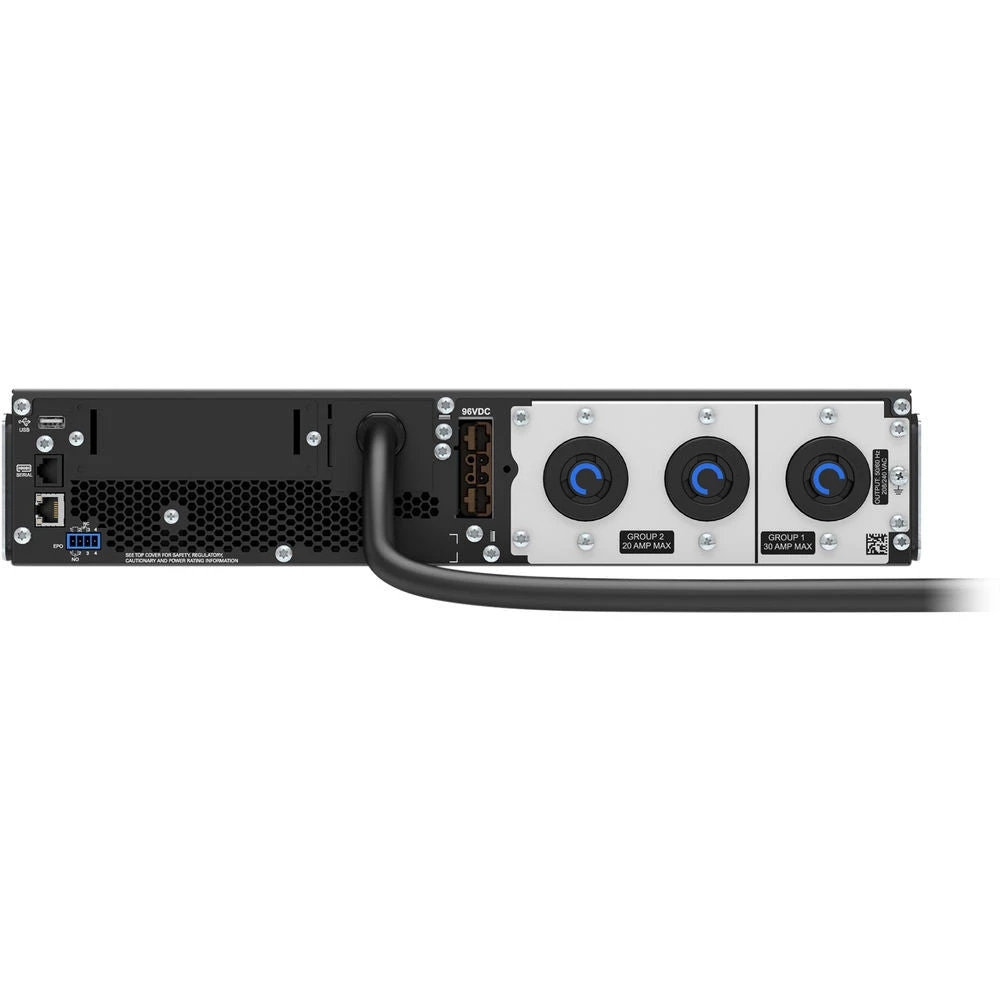

Output Connections	1 x NEMA L6-30R (Battery Backup) 2 x NEMA L6-20R (Battery Backup)
Bypass	Internal Bypass (Automatic and Manual)

Input
Nominal Input Voltage	208 V
Input Frequency	40-70 Hz (auto sensing)
Input Connections	NEMA L6-20P
Cord Length	6.0′ / 1.8 m
Input Voltage Range for Main Operations	160-275 V
Input Voltage Adjustable Range for Mains Operation	100-275 V
Number of Power Cords	1
Other Input Voltages	240

Batteries & Runtime
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte (leakproof)
Included Battery Modules	2
Typical Recharge Time	3 hours
Replacement Battery	APCRBC152
Expected Battery Life	3-5 years
RBC Quantity	1
Extendable Run Time	1
Battery Volt-Amp-Hour Capacity	497
Extended Run Options	1
Extended Run Options	APC-Smart-UPS-SRT-3000 VA-RM-208 V

Communications & Management
Interface Ports	RJ45 Serial, Smart-Slot, USB
Control Panel	Multi-function LCD status and control console
Audible Alarm	Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)	Yes
Available SmartSlot Interface Quantity	1

Surge Protection and Filtering
Surge Energy Rating	340 joules

Environmental
Operating Environment	32 to 104°F / 0 to 40°C
Operating Relative Humidity	0 – 95% (non-condensing)
Operating Elevation	0 to 10,000′ / 0.0 to 3,048 m
Storage Temperature	5 to 113°F / -15 to 45°C
Storage Relative Humidity	0 – 95% (non-condensing)
Storage Elevation	0 to 50,000′ / 0 to 15,240 m
Online Thermal Dissipation	773 BTU/hr
Protection Class	IP 20

Conformance
Approvals	CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, OSHPD, UL 1778

Sustainable Offer Status
RoHS	Compliant
REACH	Contains No SVHCs
Battery Directive	Compliant

Physical
Color	Black
Rack Height	2 RU
Dimensions	3.35 x 17.00 x 25.00″ / 8.51 x 43.18 x 63.50 cm
Weight	69.0 lb / 31.3 kg
