APC Smart-UPS Li-Ion Short-Depth 1000VA, 120V Uninterruptible Power Supply With SmartConnect(Apc Smart Ups Li Ion Short Depth 1000va 120v Uninterruptible Power Supply With Smartconnect)

APC Smart-UPS Li-Ion Short-Depth 1000VA, 120V Uninterruptible Power Supply With SmartConnect(Apc Smart Ups Li Ion Short Depth 1000va 120v Uninterruptible Power Supply With Smartconnect)

Original price was: $356.00.Current price is: $96.99.

SKU: DGFUB 6751091589205 Category: Computer & Presentation Tags: APC Smart-UPS 1000VA, Computers, Power Accessories, UPS Backup

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

APC 1000VA Overview

1Description
2Cold-Start Capable
3Energy Meter
4Green Mode
5Optimized Online Efficiency
6LCD Interface
7Lithium-Ion Battery
8Predictive Replace-Battery Date
9Pure Sine Wave Output
10Short-Depth Rack Compatibility
11Single Switched Outlet Group
12SmartConnect
13SmartSlot
14Temperature-Compensated Battery Charging
15Disconnected Battery Notification
16Power Conditioning
17Automatic Restart
18Intelligent Battery Management
19Automatic Self-Test
20Battery Failure Notification
21Predictive Failure Notification
22Hot-Swappable Batteries
23User-Replaceable Batteries
24Resettable Circuit Breakers
25Adjustable Voltage-Transfer Points
26Adjustable Voltage Sensitivity
27Safety-Agency Approved
28Audible Alarms
29USB Connectivity
30Serial Connectivity
31Network Management
32LED Status Indicators

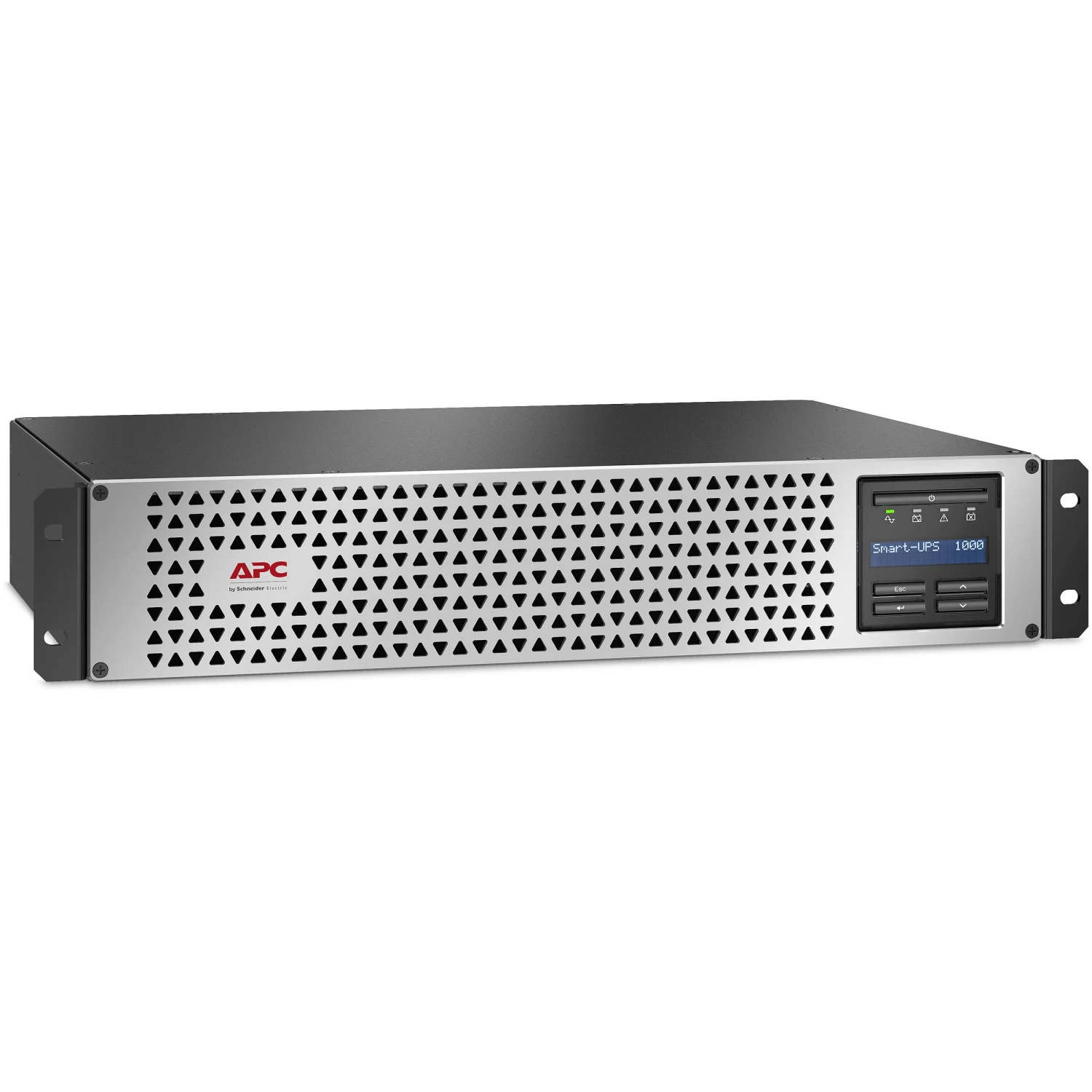

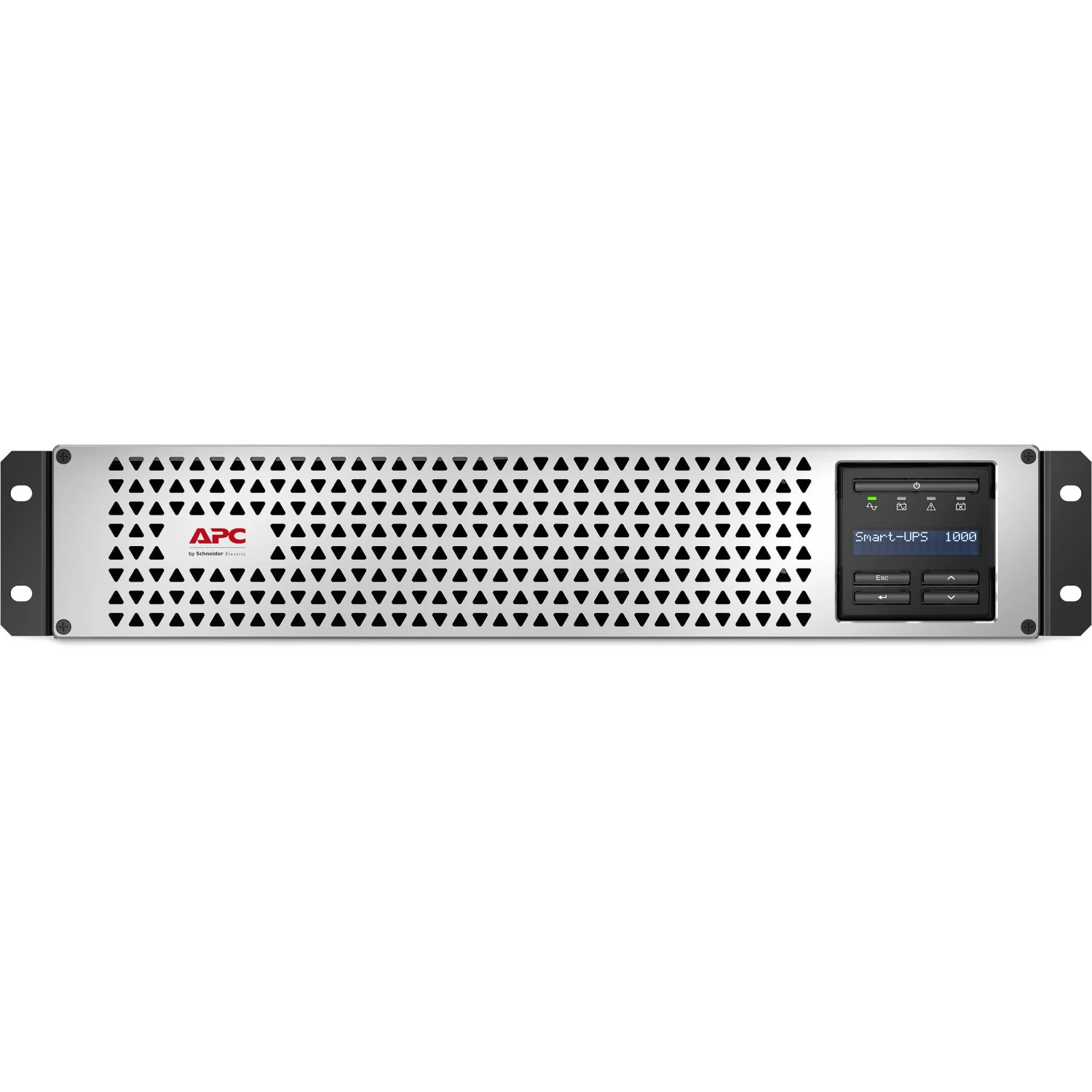

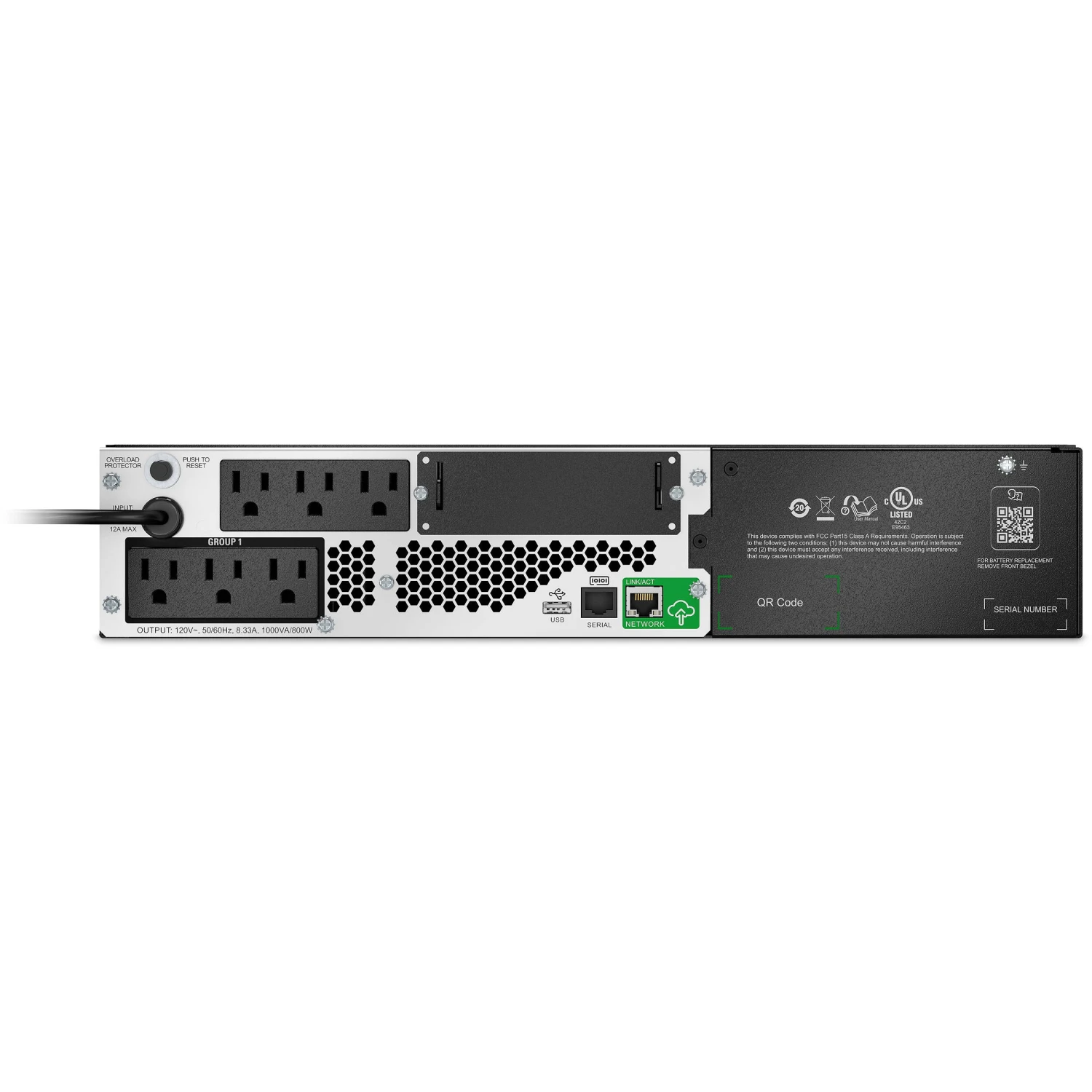

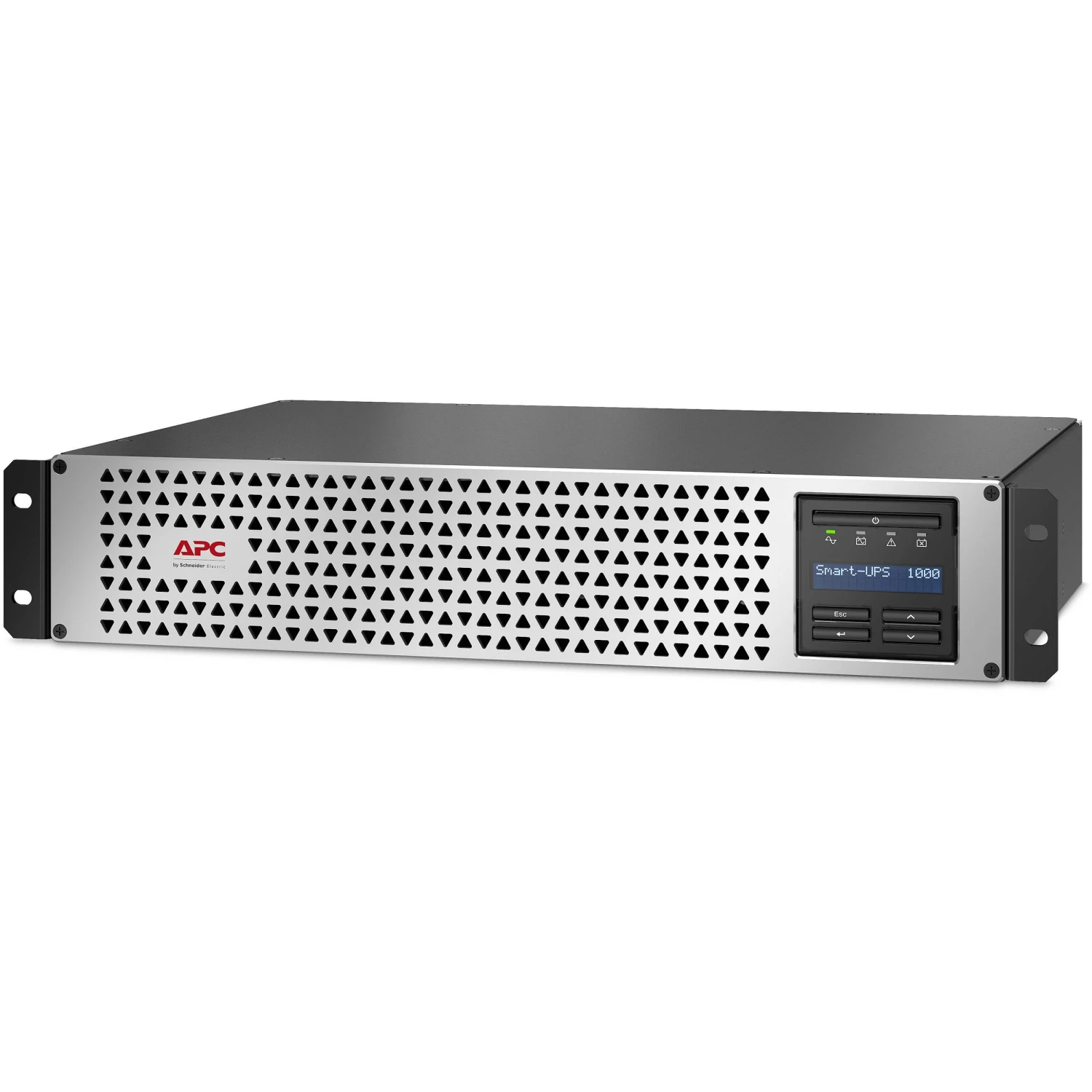

Keep critical components powered on and backed up with the Smart-UPS Li-Ion Short-Depth 1000VA, 120V Uninterruptible Power Supply with SmartConnect. Providing six NEMA 5-15R outlets, this UPS utilizes a 5-15P power connection and features single USB Type-A and serial RJ45 communication ports. Providing 1000VA at 120V, this uninterruptible power supply sports an integrated LCD interface to monitor performance or check visual indicators. Audible alarms can also be used to monitor the status of power supply, notifying you of changes to UPS and utility power conditions.

Featuring hot-swappable user-replaceable batteries, this Smart-UPS allows for easy switching when a battery is depleting, ensuring limited downtime. Cold-start capable, it can provide temporary battery power if utility power is lost. Furthermore, half of the receptacles belong to a single switched outlet group, facilitating discrete control over rebooting hung devices, sequenced power cycling, or load shedding. Thanks to integrated SmartConnect support, users can remotely control the UPS. Or, take advantage of SmartSlot compatibility to install various adapter cards, expanding management options. This APC Smart-UPS unit features a short depth and a 2 RU form factor, allowing for easy installation in server racks.

Cold-Start Capable

Provides temporary battery power when the utility power is out.

Energy Meter

Provides actual kilowatt hours of usage for energy-conscious users.

Green Mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Optimized Online Efficiency

Reduces utility costs, generates less heat.

LCD Interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy-to-use navigation keys.

Lithium-Ion Battery

Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light, and environmentally friendly.

Predictive Replace-Battery Date

Dynamically provides the month and year when battery replacement is recommended to aid in long-term maintenance planning.

Pure Sine Wave Output

Simulates utility power to provide the highest degree of compatibility for active PFC or power factor corrected servers and sensitive electronics.

Short-Depth Rack Compatibility

Compact design fits comfortably in short-depth rack applications.

Single Switched Outlet Group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off, and non-critical load shedding.

SmartConnect

Innovative, easy-to-use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.

SmartSlot

Customize UPS capabilities with management cards.

Temperature-Compensated Battery Charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Disconnected Battery Notification

Warns when a battery is not available to provide backup power.

Power Conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Automatic Restart

Automatically starts up the connected equipment upon the return of utility power.

Intelligent Battery Management

Maximizes battery performance, life, and reliability through intelligent precision charging.

Automatic Self-Test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery Failure Notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

Predictive Failure Notification

Provides early-warning fault analysis ensuring proactive component replacement.

Hot-Swappable Batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

User-Replaceable Batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair or MTTR.

Resettable Circuit Breakers

Enables a quick recovery from overload events.

Adjustable Voltage-Transfer Points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable Voltage Sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety-Agency Approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Audible Alarms

Provides notification of changing utility power and UPS conditions.

USB Connectivity

Provides management of the UPS via a USB port (not available on all models).

Serial Connectivity

Provides management of the UPS via a serial port.

Network Management

Provides remote power management of the UPS over the network.

LED Status Indicators

Quickly understand unit and power status with visual indicators.

UPC: 731304341987

In the Box

APC Smart-UPS Li-Ion Short-Depth 1000VA, 120V Uninterruptible Power Supply with SmartConnect
Rack Mounting Support Rails
USB Cable
Limited 5-Year Warranty

Table of Contents

Description
Cold-Start Capable
Energy Meter
Green Mode
Optimized Online Efficiency
LCD Interface
Lithium-Ion Battery
Predictive Replace-Battery Date
Pure Sine Wave Output
Short-Depth Rack Compatibility
Single Switched Outlet Group
SmartConnect
SmartSlot
Temperature-Compensated Battery Charging
Disconnected Battery Notification
Power Conditioning
Automatic Restart
Intelligent Battery Management
Automatic Self-Test
Battery Failure Notification
Predictive Failure Notification
Hot-Swappable Batteries
User-Replaceable Batteries
Resettable Circuit Breakers
Adjustable Voltage-Transfer Points
Adjustable Voltage Sensitivity
Safety-Agency Approved
Audible Alarms
USB Connectivity
Serial Connectivity
Network Management
LED Status Indicators

APC 1000VA Specs

General

Total Outlets	6 x NEMA 5-15R
Protected Outlets	6 x NEMA 5-15R (Battery and Surge)
Plug Type	NEMA 5-15P
USB Charging Ports	None
SmartSlot Interface	1
Coax Protection	None
Data Line Protection	None
Communications	Serial via RJ45 USB via Type-A
Noise Filtering	0.3%
Topology	Line Interactive
Transfer Time	6 to 10 ms

Power

Surge Energy Rating	680 Joules
Maximum Wattage	800 W at 120 VAC
Nominal Input Voltage	120 VAC
Input Voltage Range	75 to 154 VAC
Input Voltage Adjustable Range	82 to 144 VAC
Input Frequency	50/60 Hz ± 3 Hz (Auto Sensing)
Nominal Output Voltage	120 VAC
Output Frequency	50/60 Hz ± 3 Hz
Voltage Distortion	<5%
Load Capacity	1000 VA
Thermal Dissipation	70 BTU/Hour
Waveform	Sine Wave

Battery

Battery Capacity	239 VAh
Chemistry	Lithium-Ion
User Replaceable	Yes
Hot-Swap Support	Yes

Environmental
