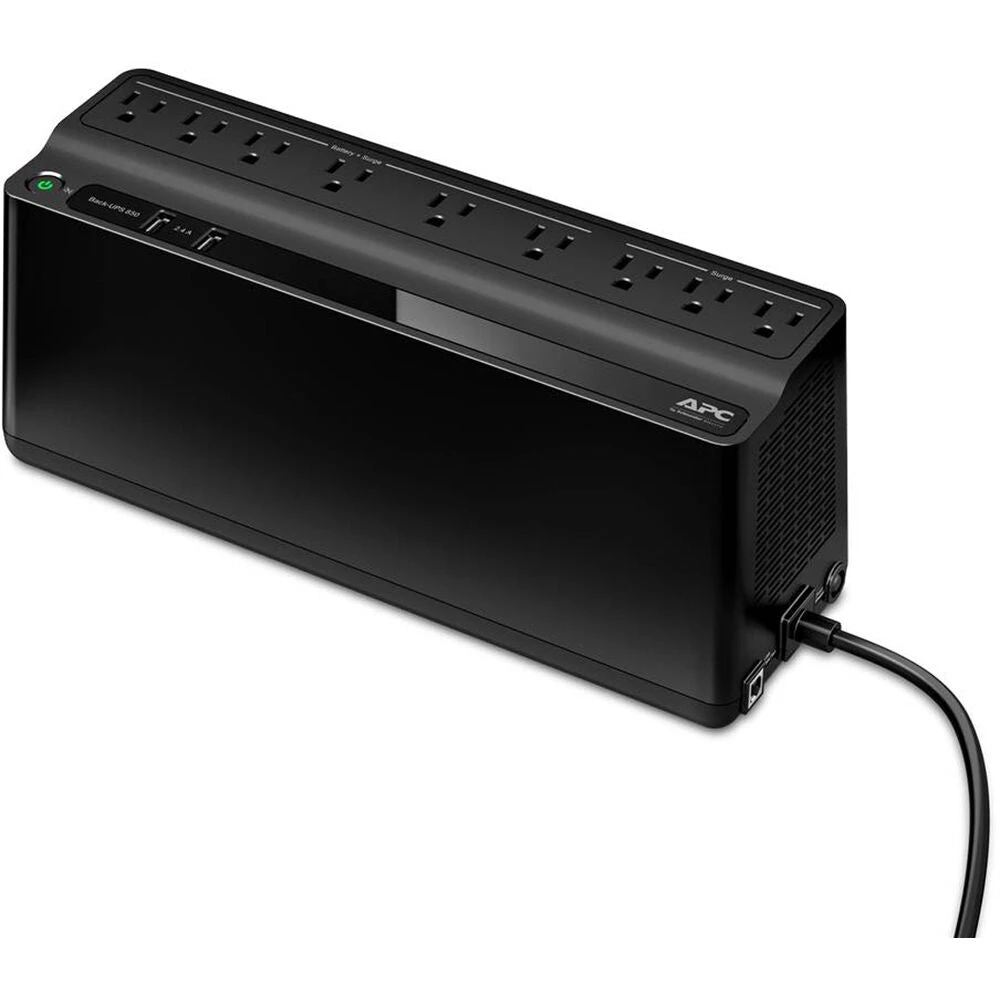

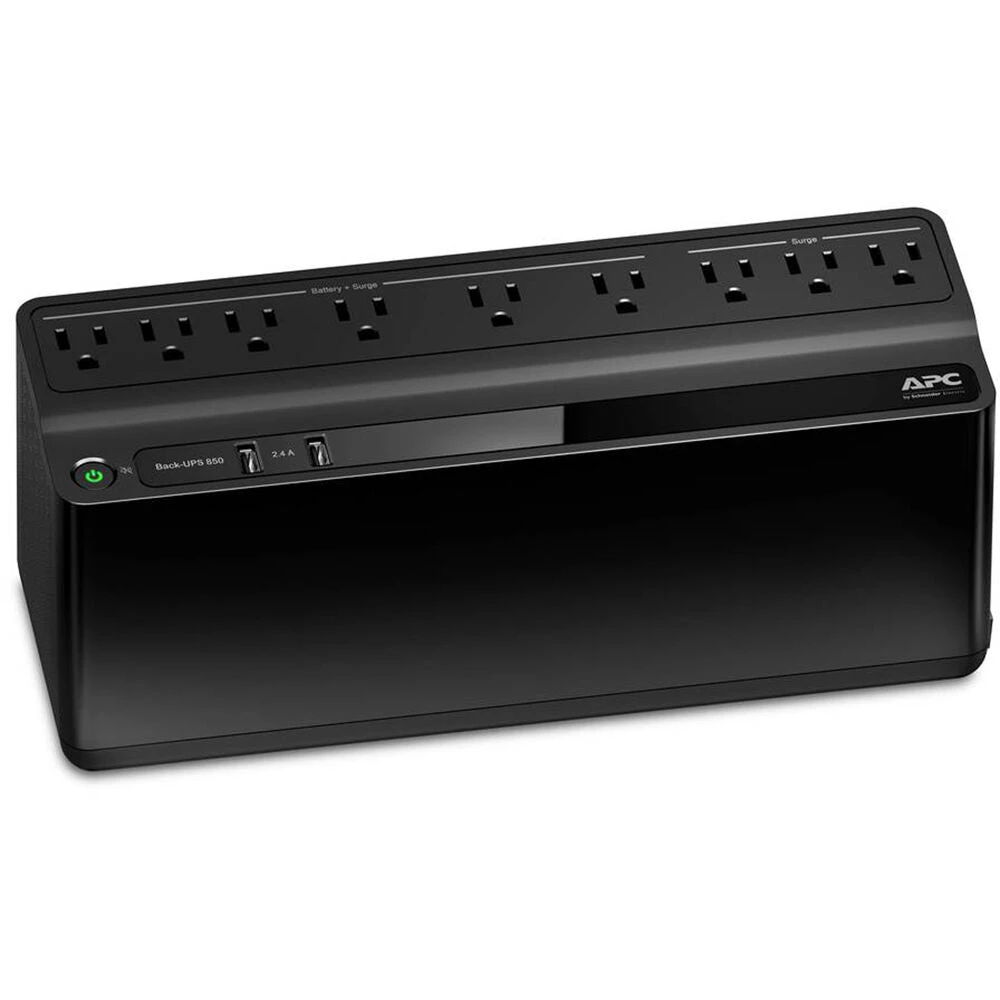

Keep devices backed up and protected with the Back-UPS 850VA with 2 USB Charging Ports (120V) from APC. Featuring a NEMA 5-15P input connection and nine NEMA 5-15R outlets, the Back-UPS incorporates six backup and surge-protected outlets and three outlets with only surge protection. Two USB Type-A charging ports are also present. Delivering a load capacity of 850VA or 450W, this uninterruptible power supply features an input of 120 VAC at 50 to 60 Hz. Surge protection is rated at 354 Joules with a 15A clamp force.
Boasting a transfer time of 6 to 10 ms, the APC Back-UPS ensures quick power backup for up to six connected devices in the event of a power surge, spike, or outage. Self-testing, this system alerts users when batteries need to be replaced or fail to start, or when a wiring fault is found in the mains. Alerts can come in the form of audible or visual alarms. You can also connect this power supply to a host computer via the USB Type-B port and included cable, allowing for easier power management. The RBC17 battery holds a capacity of 104 VAH and has an expected lifespan of two to five years. Employing a hot-swappable design, this battery can be easily replaced, limiting downtime.
Adjustable Voltage Sensitivity
Audible Alarms
Automatic Self-Test
Battery Failure Notification
LED Status Display & Indicators
Cold-Start Capable
Disconnected Battery Notification
Hot-Swappable Batteries
Simple Battery Replacement
Transformer Block Spacing
USB Connectivity
Surge-Only Outlets
Battery and Surge-Protected Outlets
Intelligent Battery Management
In the Box
- APC Back-UPS 850VA with 2 USB Charging Ports (120V)
- USB Cable
- Limited 3-Year Warranty
User Manual
0.3 MB
More from manufacturer
- Description
- Adjustable Voltage Sensitivity
- Audible Alarms
- Automatic Self-Test
- Battery Failure Notification
- LED Status Display & Indicators
- Cold-Start Capable
- Disconnected Battery Notification
- Hot-Swappable Batteries
- Simple Battery Replacement
- Transformer Block Spacing
- USB Connectivity
- Surge-Only Outlets
- Battery and Surge-Protected Outlets
- Intelligent Battery Management
APC 850VA Specs
| Total Outlets | 9 x NEMA 5-15R (3 Transformer-Sized) |
| Protected Outlets | 6 x NEMA 5-15R (Battery and Surge) 3 x NEMA 5-15R (Surge Only) |
| Plug Type | NEMA 5-15P Right-Angle |
| USB Charging Ports | 2 x USB Type-A (2.4 A) |
| SmartSlot Interface | None |
| Coax Protection | None |
| Data Line Protection | None |
| Communications | USB via Type-B |
| Topology | Standby |
| Transfer Time | 6 to 10 ms |
| Surge Energy Rating | 354 Joules |
| Maximum Wattage | 450 W |
| Nominal Input Voltage | 120 VAC |
| Input Voltage Range | 92 to 139 VAC |
| Input Voltage Adjustable Range | 88 to 142 VAC |
| Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) |
| Nominal Output Voltage | 120 VAC |
| Output Frequency | 50/60 Hz ± 3 Hz |
| Load Capacity | 850 VA |
| Circuit Breaker Rating | 15 A |
| Waveform | Simulated Sine Wave |
| Battery Capacity | 104 VAh |
| Chemistry | Lead-Acid |
| Charging Time | 8 Hours |
| User Replaceable | Yes |
| Replacement Battery | RBC17 |
| Hot-Swap Support | Yes |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 95% |
| Storage Temperature | 5 to 113°F / -15 to 45°C |
| Storage Humidity | 10 to 90% |
| Operating Altitude | 0.00 to 9842′ / 0 to 3000 m |
| Storage Altitude | 0.00 to 49,212′ / 0 to 15,000 m |
| Noise Level | 45 dBA |
| Certifications | CEC, FCC, RoHS, UL, as per Manufacturer |
| Cable Length | 5′ / 1.52 m |
| Rackmount Size | None |
| Dimensions (W x H x D) | 12.87 x 5.47 x 4.13″ / 32.69 x 13.89 x 10.49 cm |
| Weight | 9.04 lb / 4.1 kg |
| Package Weight | 10.45 lb |
| Box Dimensions (LxWxH) | 16 x 7 x 6″ |
