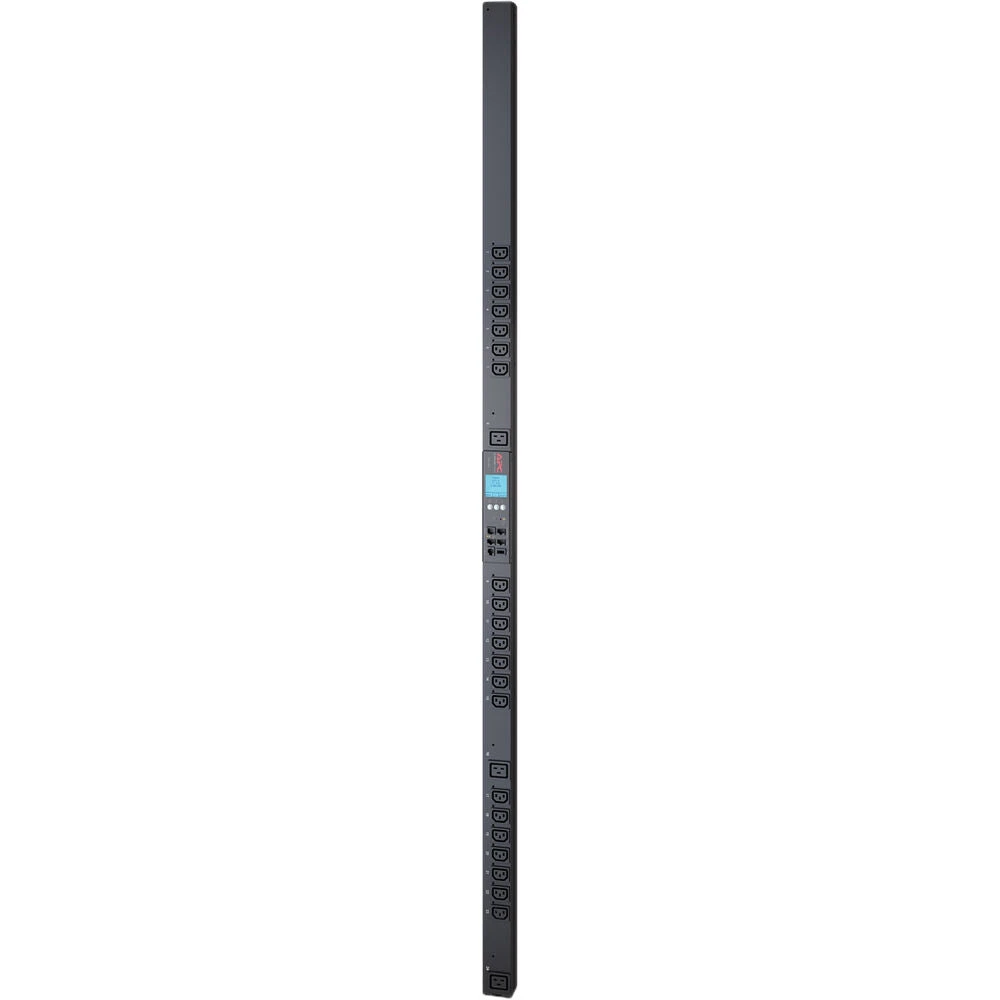

APC AP8659NA3 Metered Rack Power Distribution Unit 2G(Apc Ap8659na3 Metered Rack Power Distribution Unit 2g)

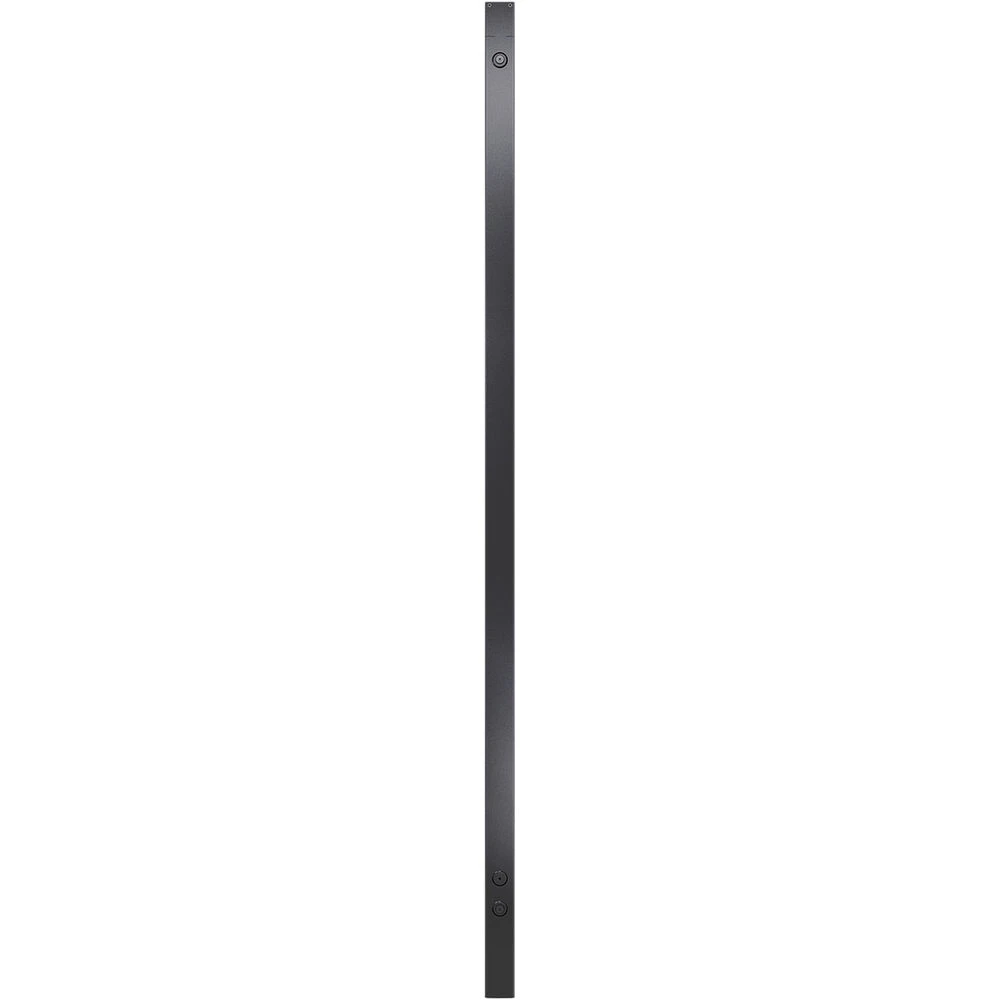

APC AP8659NA3 Metered Rack Power Distribution Unit 2G(Apc Ap8659na3 Metered Rack Power Distribution Unit 2g) - Image 2

APC AP8659NA3 Metered Rack Power Distribution Unit 2G(Apc Ap8659na3 Metered Rack Power Distribution Unit 2g) - Image 3

APC AP8659NA3 Metered Rack Power Distribution Unit 2G(Apc Ap8659na3 Metered Rack Power Distribution Unit 2g)

Original price was: $337.00.Current price is: $99.99.

SKU: DGFUB 7075177201749 Categories: Computer & Presentation, Computer Solutions, Power Accessories Tags: APC AP8659NA3, Conditioners & Cords, Distributors, Power Accessories

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

APC AP8659NA3 Overview

Introduce outlet-level switching and monitoring to your racks and enclosures with the AP8659NA3 Metered Rack Power Distribution Unit 2G from APC. This PDU has been designed to provide power cycling, outlet locking, rebooting, and power sequencing control through a NEMA L6-20P input. The 21 IEC C13 outlets along with the 3 IEC C19 outlets provide ample room for connections in your rack or enclosure. Interface options are provided through an RJ12 serial and RJ45 Base-T Ethernet port, while the integrated USB-A port can be used to deploy firmware upgrades via a flash drive. Also present is a networking port for use with the optional APC Temp and Humidity Sensor.

LEDs that notify you of status conditions such as warnings and overload indicators are built into this PDU. Users can define the alarms to suit preferred parameters, and each outlet features dedicated metering as well as on/off switching for easy power sequencing and shedding as well as preventing unauthorized use of specific outlets. Featuring a load capacity of 3300VA, this PDU delivers 230V at 20A. Designed to be installed vertically on racks or enclosures, the APC AP8659NA3 comes with mounting hardware and features a 9.8′ power cord.

Remote Management Capabilities

Network management interfaces provide standards-based management via web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Integrates with StruxureWare Data Center Expert

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video, and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released.

Local Current Monitoring Display

The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Single Input Power Source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rackmount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable

Includes horizontal, vertical, and toolless mount varieties.

UPC: 731304299523

Items Included

APC AP8659NA3 Metered Rack Power Distribution Unit 2G
CAN Port Terminator

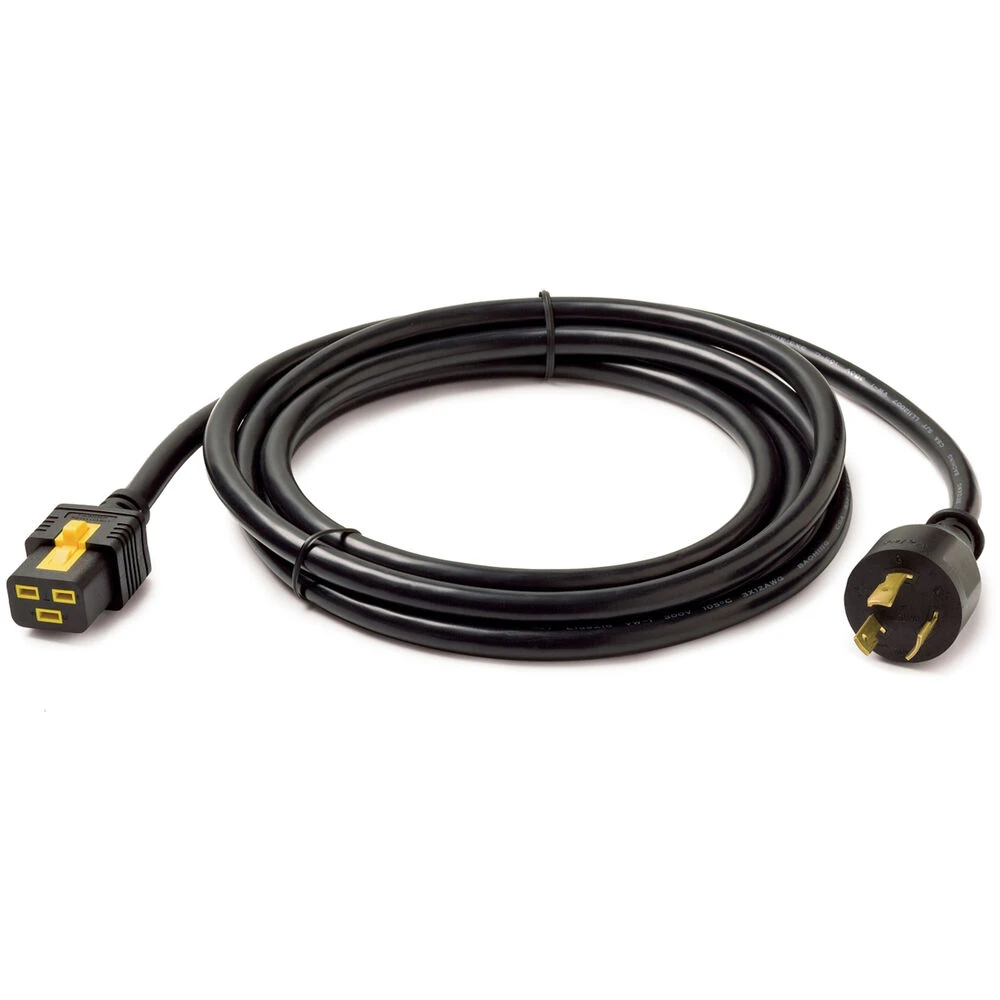

Locking Input Power Cord
Rack Mounting Brackets
Serial Configuration Cable
Limited 2-Year Manufacturer Warranty

Additional Resources

User Manual

0.5 MB

APC AP8659NA3 Specs

Key Specs

Metering	Yes
Battery Backup	No
Outlets	21x IEC-320 C13 3x IEC-320 C19
Additional I/O	2x RJ45 2x RJ12 1x USB-A
Surge Protection	Yes

Type	Distributor
Amp Rating	20 A
Number of Circuits	Not Specified by Manufacturer
Metering	Yes
Battery Backup	No
Integrated Lamps	None

Connections

Outlets	21x IEC-320 C13 3x IEC-320 C19
Wall Plug Type	NEMA L6-20P
AC Power I/O	Hardwired
Lamp I/O	No
Additional I/O	2x RJ45 2x RJ12 1x USB-A
Wireless	Wi-Fi *Built-In

Electrical

AC Input Power	200 to 230 VAC, 50 / 60 Hz
Output Voltage	208 VAC
DC Output Power	Not Specified by Manufacturer
Output Current	20 A
Load Capacity	3300 VA
Sequencing Delay	Adjustable

Protection & Conditioning

Protection Types & Modes	Overvoltage, Undervoltage
Circuit Breaker	Yes
Surge Protection	Yes

Physical

Rackmount Size	1 RU
Cable Length	9.8′ / 3 m
Certifications	EN, FCC, ICES
Operating Conditions	23 to 140°F / -5 to 60°C at 5 to 95% Humidity
Storage Conditions	-13 to 149°F / -25 to 65°C at 5 to 95% Humidity
Material of Construction	Metal
Cable Management	No
Dimensions	80.24 x 6.38 x 4.61″ / 203.81 x 16.21 x 11.71 cm
Weight	19.95 lb / 9.05 kg
