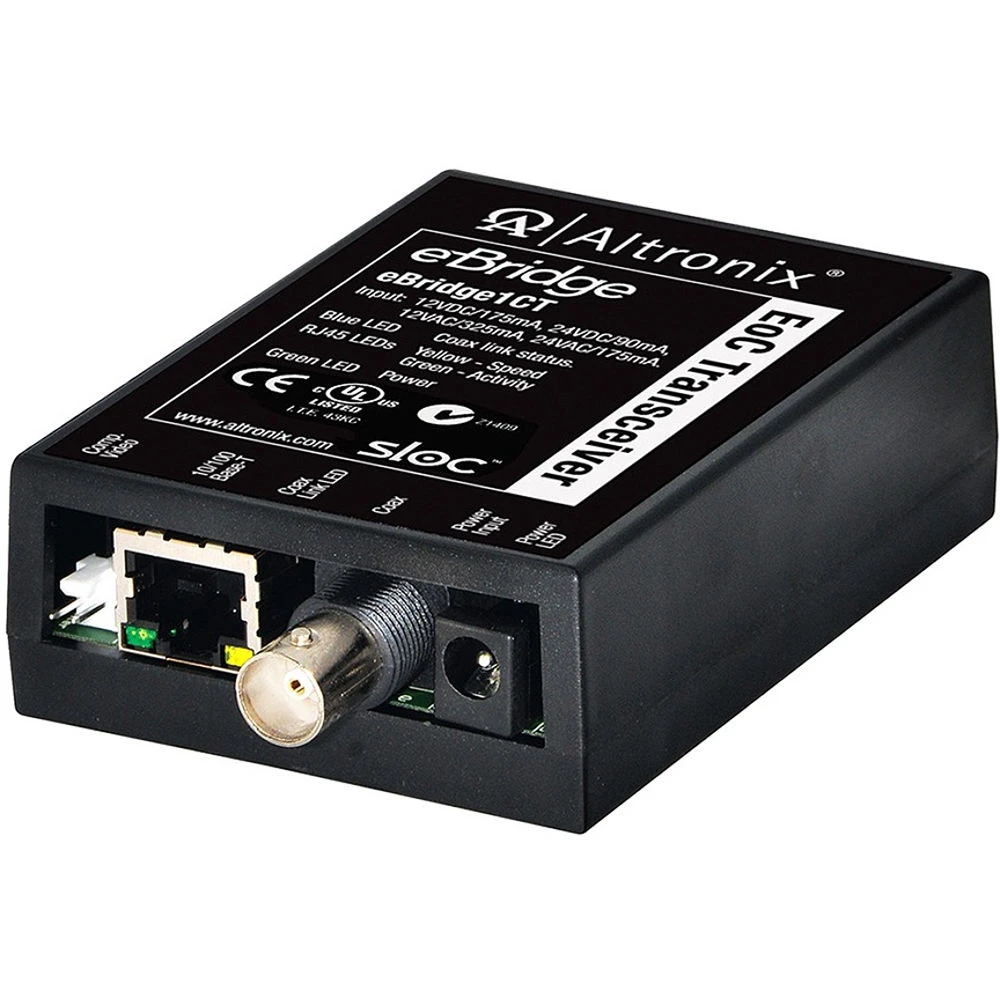

ALTRONIX EBridge1CT IP Over Coax Transceiver(Altronix Ebridge1ct Ip Over Coax Transceiver)
Original price was: $248.32.$99.99Current price is: $99.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
ALTRONIX eBridge Overview
Upgrade your surveillance system by enabling network camera compatibility over coax cable with the eBridge1CT IP over Coax Transceiver from ALTRONIX. This transceiver unit enables RJ45 connection over existing coax cable when used with an eBridge receiver (available separately). It also extends the transmission distance bu up to 1500′, over 5 times standard Ethernet distance limits. It has an RJ45 Ethernet port as well as a BNC coax connector and is capable of transmitting composite video signals and Ethernet data simultaneously. This unit is compatible with cameras that broadcast at resolutions up to 1080p.
In the Box
- ALTRONIX eBridge1CT IP over Coax Transceiver
- Composite Video Cable
- Power Connector
- Limited Lifetime Manufacturer Warranty
ALTRONIX eBridge Specs
| Input | 12-24 VDC Class 2 power supply (polarity not observed) 16-24 VAC Class 2 plug-in transformer |
| Consumption | 12 VDC, 275 mA, 24 VDC, 110 mA 16 VAC, 375 mA, 24 VAC, 200 mA |
| Compliance | Security Link over Coax (sloc) |
| Ethernet Interface | RJ45 with auto-crossover |
| Wire Type | 4-pair Cat5 or higher structured cable |
| Distance | Up to 328′ (100 m) |
| Speed | 10/100Base-T, half/full duplex, auto negotiation Throughput is rated to pass 25 Mbps of data at distances up to 1500′ (457 m) |
| Connector | BNC, RG-59/U |
| Distance | Up to 1500′ (457 m) |
| BTU/h | VDC: 1.69-4.46 VAC: 2.46-3.07 |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Humidity | 85% ± 5%, RH non-condensing |
| Operating Altitude | -1000 to 6562′ (-305 to 2000 m) |
| Certifications | UL/CUL (60950-1), CE, C-TICK (Z1409) |
| LED Indicators | Blue: Coax link connection Yellow/Green: RJ45 IP link status, 10/100Base-T active Green: Power |
| Dimensions | 2.5 x 3.8 x 1″ (63.5 x 96.52 x 25.4 mm) |
| Weight | 3.5 oz lb (0.1 kg) |
| Package Weight | 0.32 lb |
| Box Dimensions (LxWxH) | 6.05 x 4.45 x 2.35″ |
