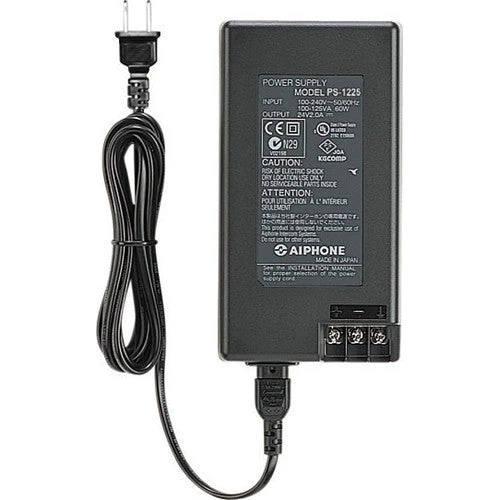

Aiphone PS-1225UL Overview
The 12 VDC PS-1225UL Power Supply from Aiphone is UL/CSA listed and provides power for the LEF Hands-Free Selective Call System, LEF-C Semi-Flush Mount Loudspeaker System, MP-S Mid-Power Intercom System, TB-AD10 10-Call Audio Door Adapter, TD-H/B Selective Call Intercom, and NEW-5 Dual Console Adapter. A mounting bracket is supplied with the power supply.
In the Box
- Aiphone PS-1225UL Power Supply (12 VDC)
- Mounting Bracket
- Packet of Screws
- Limited 1-Year Warranty
Aiphone PS-1225UL Specs
| Power Source |
100 to 240 VAC, 50/60 Hz |
| Power Consumption |
37 W, 65 to 82 VA |
| Secondary Voltage |
Output Voltage: 12 VDC |
| Output Current |
Secondary: 2 A |
| Cable Requirements |
Rating: 125 V, 2 A (for use with 100 to 125 VAC), 250 V, 2 A (for use with 200 to 240 VAC) Cord Length: Minimum 6.0′ (1.8 m), maximum 6.6′ (2.0 m) Type: Must comply with requirements set out by safety approval/certification organizations AC Cord Inlet: Specified EN60320 or equivalent Employ a plug in shape and ratings matched with the AC outlet to be used Nominal Voltage and Current Rating: 120 V, 60 Hz, 2 A (minimum); 240 V, 60 Hz, 2 A (minimum) |
| Ambient Temperature |
32 to 104°F (0 to 40°C) |
| Dimensions |
6.56 x 3.56 x 2.00″ (16.70 x 9.00 x 5.20 cm) |
| Weight |
0.95 lb (0.43 kg) excluding AC cord |
| Package Weight |
1.6 lb |
| Box Dimensions (LxWxH) |
7.9 x 5.5 x 2.8″ |
