Aiphone LEM-1DL 1-Call Access Sentry Master Station With Door Release Relay(Aiphone Lem 1dl 1 Call Access Sentry Master Station With Door Release Relay)

Original price was: $221.88.Current price is: $96.99.

SKU: DGFUB 7074739028053 Categories: Intercoms, Optics & Surveillance, Surviellance Tags: Aiphone LEM-1DL, Indoor Stations, Intercoms, Surveillance

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

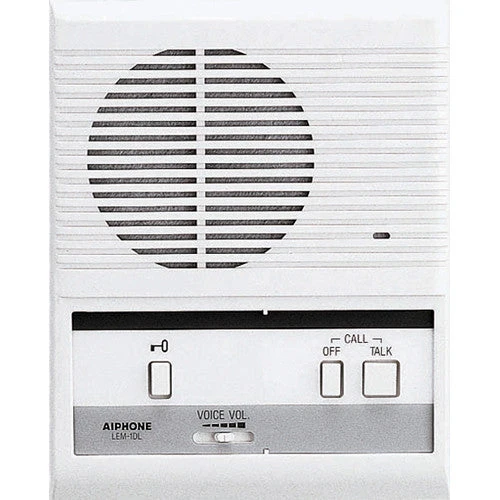

Aiphone LEM-1DL Overview

The LEM-1DL 1-Call Access Sentry Master Station from Aiphone features a built-in door-release relay and can be used with the company’s LE and LS Series Door Stations. This master station can be mounted to a wall or to the top of a desk for convenient access. It requires a single power supply for powering both the master station and an attached door strike unit (available separately).

Master station with door-release summary

A single power supply can be used to power the master station and the door strike unit (not included)

Can be mounted to a wall or to the top of a desk

Compatible with LE or LS series door stations (available separately)

UPC: 790143116408

Items Included

Aiphone LEM-1DL 1-Call Access Sentry Master Station with Door Release Relay
2 x Screws for Mounting on a Gang Box
2 x Wood Screws for Mounting onto a Wall Surface
Limited 1-Year Warranty

Additional Resources

No additional resources available

Aiphone LEM-1DL Specs

Compatible With	Aiphone LE or LS Series Door Stations
Power Supply	12 to 16 VAC or 12 to 24 VDC
Power Consumption	16 VAC: 4 W maximum 24 VDC: 200 mA maximum
Call Signaling	From Door to Master Station: Electronic continuous tone From Master to Door Station: Electronic continuous tone or voice
Communication	Press to talk, release to listen at master (with speech volume control)
Output	100 mW
Wiring	2 wires (non-polarized) plus 2 wires for door release
Contact Capacity	For Door Release: 30 V (AC/DC), 1 A
Cable Length	24 AWG (0.01″ (0.50 mm)): 390′ (119 m) 22 AWG (0.02″ (0.65 mm)): 650′ (198 m) 20 AWG (0.03″ (0.80 mm)): 980′ (299 m) 18 AWG (0.04″ (1.00 mm)): 1570′ (478 m) 16 AWG (0.05″ (1.20 mm)): 2360′ (719 m)
Dimensions	7.0 x 5.5 x 2.2″ (18.0 x 14.3 x 5.5 cm)
Weight	0.75 lb (0.34 kg)

Packaging Info

Package Weight	0.95 lb
Box Dimensions (LxWxH)	7.7 x 6.2 x 2.7″
