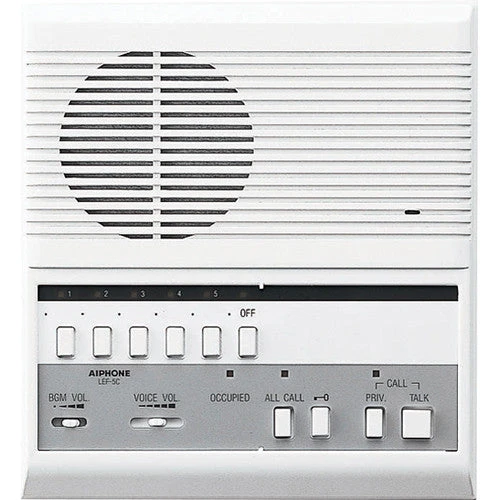

Aiphone LEF-5C 5-Call Semi-Flush Mount Master Station For LEF Series(Aiphone Lef 5c 5 Call Semi Flush Mount Master Station For Lef Series)

Original price was: $363.00.Current price is: $96.99.

SKU: DGFUB 6995876937813 Categories: Intercoms, Optics & Surveillance, Surviellance Tags: Aiphone LEF-5C, Indoor Stations, Intercoms, Surveillance

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Aiphone LEF-5C Overview

The LEF-5C 5-Call Semi-Flush Mount Master Station from Aiphone is a selective-calling open-voice style master station, used to answer calls from other remotes or masters. The LEF-5C can be part of a larger system with the ability to communicate with five other stations, and make an All Call and/or receive background music (requires All Call/Chime Adapter, available separately). The master station flush mounts into a wall.

Incoming calls from a sub or door station are annunciated with a momentary electronic mono-tone and an LED that remains lit for approximately 20 sec. Communication at the calling master is press-to-talk, release-to-listen, and hands-free at the receiving station. The person at the master station can selectively call and talk with a person at any other sub or master station in the system.

Supports up to 6 stations

Fully intermixable system, including any number of master and sub stations up to the maximum capacity

LED annunciation and momentary tone from calling sub or door station

Communication at the calling master is press-to-talk, release-to-listen

Hands-free communication at responding station

Semi-flush mount

Selective monitoring

Privacy summary to prevent eavesdropping

Voice and call tone volume controls

UPC: 790143115876

In the Box

Aiphone LEF-5C 5-Call Semi-Flush Mount Master Station for LEF Series
Limited 1-Year Warranty

Aiphone LEF-5C Specs

Compatible with	LE-series Sub/Door Stations BG-10C All Call/Chime Adapter BGR-10A Radio/All Call/Chime Unit PS-1225UL Power Supply
Power Source	12 VDC, 300 mA per station Use PS-1225UL power supply (sold separately); one power supply is required per system
Output	800 mW @ 20 ? (reception) 500 mW @ 20 ? (transmission)
Communication	Press-to-talk, release-to-listen at master station Hands free response at responding station
Talk Path	1 talk path, occupied LED glows when in use
Capacity	Up to 6 stations, intermixable
Wiring	Master Stations Communication only: 5 common wires +1 per station in the system, looped Communication and All Call: 8 common wires + 1 per station in the system, looped Communcation, All Call, Door Release: 9 common wires + 1 per station in the system, looped. Standard Sub: 2 common wires + 1 per station on the loop LE-C/CN: 4 common wires + 2 per station on the loop Single Master System: 2 wires per sub station, homerun
Distance	Wiring: 650.0′ (198.1 m) with 22AWG 1,600′ (488 m) with 18AWG
Release	110 VAC / 1A, 24 VDC / 1A (selective door release or control of external capacity for door release devices), on output of RY-PA relay.)
Contact	Select Switch Rating: 12 VDC, 30 mA (K1 to K5 terminals for external device control)
Speaker	Sensitivity: 40 dB
Total Harmonic Distortion	Less than 5% at rated output power
Signal to Noise Ratio	60 dB
Frequency Response	-3 dB, 770 to 6,800 Hz
Dimensions	9.4 x 7.8 x 1.3″ (238.7 x 198.1 x 33.0 mm)
Weight	1.50 lb (0.68 kg)

Packaging Info

Package Weight	2.07 lb
Box Dimensions (LxWxH)	9.9 x 9.1 x 3.4″
