Aiphone JP Series JPS-4AEDV Video Intercom System With 7″ Touchscreen Handset And Surface Mount Color Video Door Station(Aiphone Jp Series Jps 4aedv Video Intercom System With 7 Touchscreen Handset And Surface Mount Color Video Door Station)

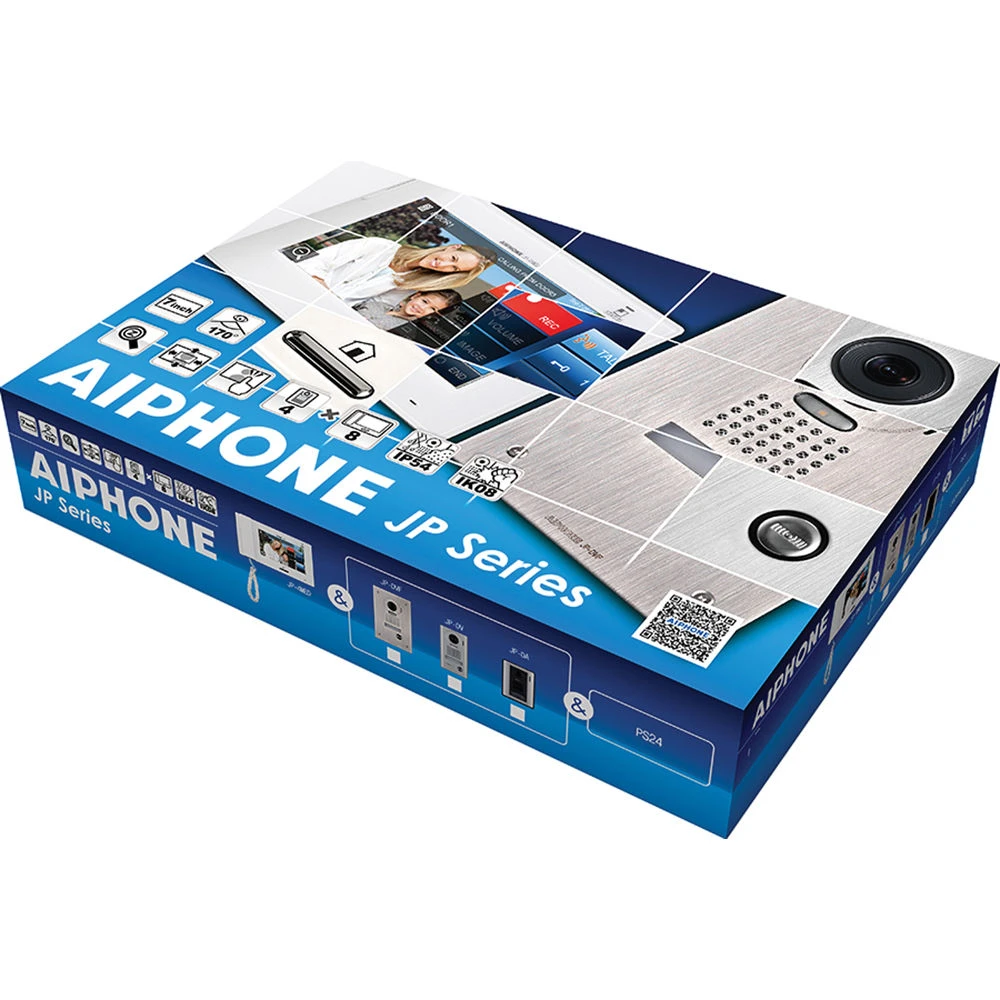

The JP Series JPS-4AEDV Video Intercom System from Aiphone includes the JP-4MED Hands-free Color Video Intercom Master Station, JP-DV Surface Mount Vandal-Resistant Color Video Door Station, and PS-2420UL 24 VDC Power Supply that powers the system.

The JP-4MED Master Station features a 7″ color touchscreen LCD display. It offers handset (duplex) and hands-free (VOX) communication. The unit supports up to 4 door stations and 7 sub masters. It is also equipped with PTZ and brightness controls, giving the user control of the door station camera angle and camera lighting for better visibility. The master station’s picture memory records up to 20 calls to the internal memory and 1,000 calls to a removable SD / SDHC card (not included). The JP-4MED connects to door stations using 18AWG, 2-conductor cable and connects to sub master stations using CAT5e or CAT6 cable.

The JP-DV Surface Mount Video Door Station features a color CMOS PTZ camera with 170° horizontal field of view, speaker and mic for communication, illuminated call directory and white illumination LED for low light conditions. Its faceplate is made from cast zinc, the call summary is metal, and the camera is protected with a clear polycarbonate lens cover. It mounts directly to a wall or 1-gang box with the MKW-P Mounting Plate (available separately).
