Aiphone JP-DV Overview

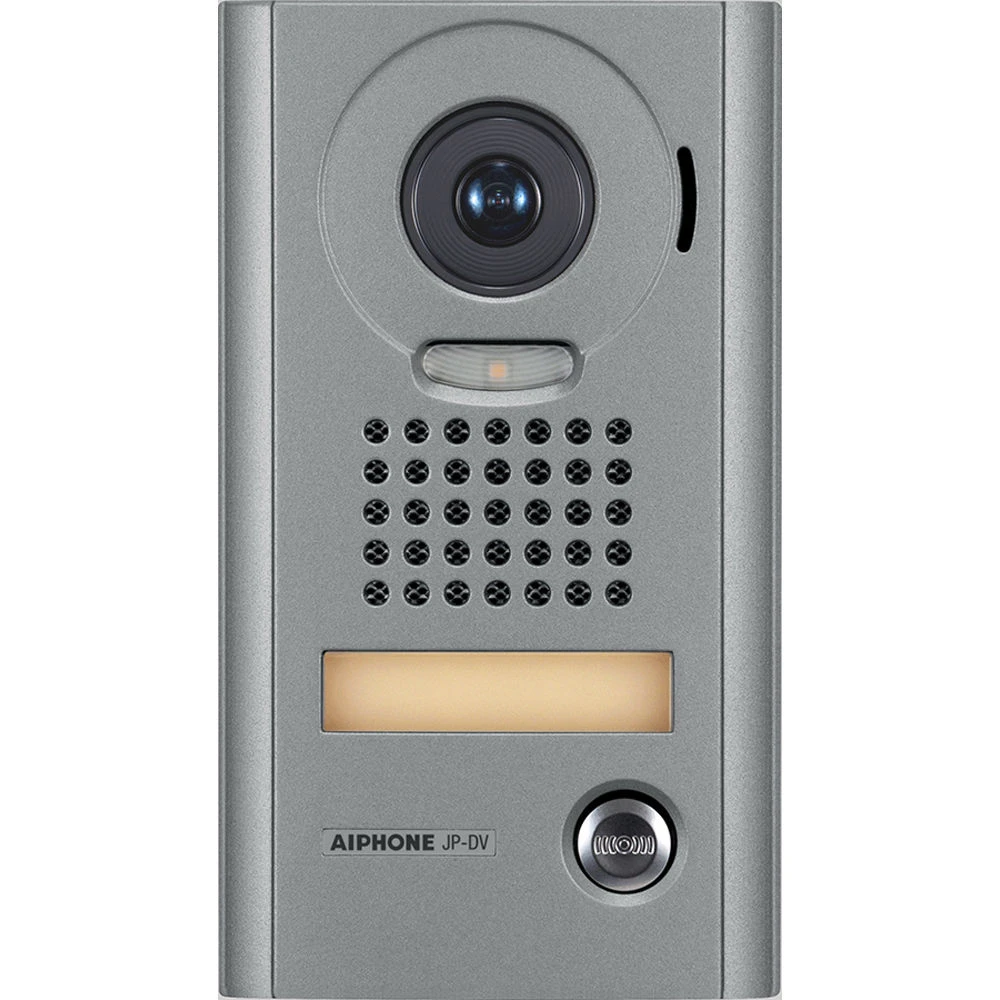

The JP-DV Surface Mount Vandal-Resistant Color Video Door Station from Aiphone is used with the JP Series Video Intercom. The unit mounts directly to wall surface or to a 1-gang box with the MKW-P plate. The JP-DV faceplate is cast zinc, the call summary is metal and the camera is protected with a clear polycarbonate lens cover. The JP-DV features a color CMOS camera, speaker and mic for communication, and an illuminated call directory and white illumination LED for low light conditions.
In the Box
- Aiphone JP-DV Surface Mount Vandal-Resistant Color Video Door Station for JP Series Video Intercom
- Screwdriver
- 2 x Transparent Nameplate
- Limited 2-Year Warranty
Aiphone JP-DV Specs
| Power Source |
Supplied by JP Series Master |
| Communication |
Hands-free (VOX) |
| Camera |
Type: 1/4″ color CMOS |
| Field of View |
100 x 170° (V x H) |
| Scanning (lines/fields/frames) |
525 lines |
| Minimum Illumination |
5 lux |
| Release |
N/O dry contact, 24 VAC/DC, 500 mA – use EL 12S (use RY 24L for larger contact rating and use RY 3DL for 3~4 doors; sold separately) |
| Wire Type |
Door Station to Master Station: 2 conductor, mid cap, solid, non shielded |
| Distance |
Door Station to Master Station: 330′ (100.5 m) |
| Operating Temperature |
14 to 140°F (-10 to 60°C) |
| Dimensions |
6.8 x 3.8 x 1.0″ (173 x 98 x 27.1 mm) |
| Weight |
22.9 oz (650 g) |
| Package Weight |
2 lb |
| Box Dimensions (LxWxH) |
9.7 x 7 x 3.5″ |
