Aiphone GT-1D Overview

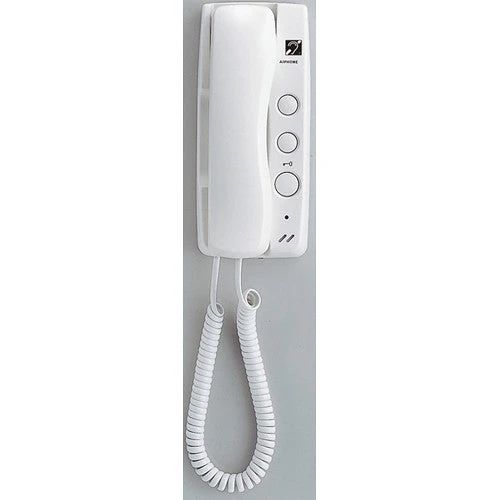

The GT-1D Handset Tenant Station from Aiphone is an audio only handset tenant station designed for use with the GT Series Multi-Unit Entry System. It is equipped with Door Release, Option, and Guard summarys.
When a visitor calls, the tenant station rings and the call is answered by picking up the handset. The GT-1D also has the capability of calling the Concierge/Security Guard station(s), turning on a light while speaking with a visitor at the entrance, and receiving an emergency tone from a pull cord or panic call summary.
The GT-1D is designed to be surface mounted. Up to four units can be used in the same tenant location and up to 500 units can be used in a system. Communication is hands-free at the entrance station when a tenant answers the call, and is simultaneous via the tenant�s handset station when speaking with the visitor.
In the Box
- Aiphone GT-1D Handset Tenant Station for GT Series Multi-Tenant Color Video Entry Security System
- Wood Mounting Screws
- Screws
- Option Connector
- Limited 3-Year Manufacturer Warranty
Aiphone GT-1D Specs
| Power Source |
24 VDC, supplied from GT-BC control unit |
| Communication |
Simultaneous via handset |
| Mounting |
Wall mount |
| Temperature |
32 to 104°F (0 to 40°C) |
| Dimensions |
3.5 x 7.8 x 2.5″ (8.89 x 19.81 x 6.35 cm) |
| Weight |
Approximately 0.73 lb (0.33 kg) |
| Package Weight |
0.95 lb |
| Box Dimensions (LxWxH) |
8.9 x 3.8 x 2.6″ |
