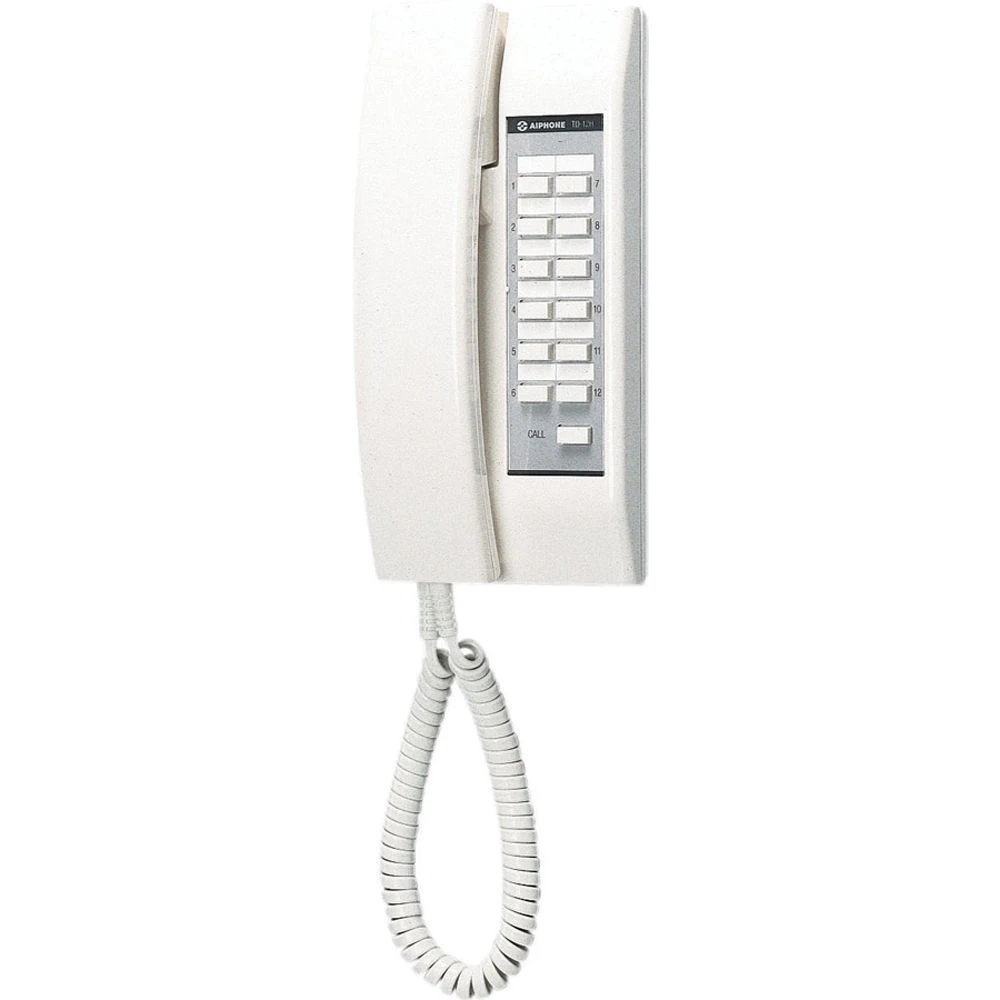

Aiphone TD-12H/B Overview
Manage your TD-H Selective Call Handset Intercom System using the 12-Call Master Station from Aiphone. The master station offers 12 channels, allowing you to connect up to 12 TD-1H/B 1-Call Stations to create a single-master system. Alternatively, you can connect up to three additional master stations to create an all-master system. Furthermore, various combinations of 1-call and master stations can be used to build an intermixed system. The master station can also be used to expand an existing intercom system.
The master station is also compatible with IE/IF Series Audio Door Stations and MY-DC/A PanTilt Video Door Stations. When a door station calls in, the master station receives an intermittent call tone. The call can be answered by pressing the door-assigned summary on the master station. To view the image captured by the video door station, a MY-CU Master Monitor or MYH-CU Sub Monitor can be installed along with the Master Station at the receiving end. The TD-H Series Intercom System supports configuration of paging zones by adding PD-1 and PD-2 Paging Adapters to the system.
The master station can be wall-mounted using a single-gang box, or mounted to a flat surface, such as a wall or desk, using the TDW-12/A Desktop Terminal Box.
Items Included
- Aiphone 12-Call Master Station for TD-H Series Selective Call Intercom System
- Packet of Screws
- Limited 1-Year Warranty
Additional Resources
No additional resources available
Aiphone TD-12H/B Specs
| For Use with |
TD-H Series Selective Call Handset Intercom System |
| Channels |
12; added features counts as a station |
| Power Supply |
12 VDC; Maximum 70 mA per station |
| Compatible Power Supplies |
PS-12A or PS-12C |
| Communication |
Multi-talk path, simultaneous intercom; the handset has to be picked up when called by the other station Calling: Station select summary (1 to 12) and Call summary; rings with tremolo tone; rings while call summary is held down |
| Paging |
Multiple zones using the PD-1 or PD-2 (with talkback) Paging Adapters, amplifiers, and an appropriate number of speakers for each adapter |
| Door Station |
Maximum 2 door stations; IE/IF series or MY-DC/A PanTilt Video Door Station, using DE-UR Door Station Adapter for each door station Rings maximum 12 stations with intermittent tremolo, 2.5 sec timed Call tone selector switch on DE-UR for 2 doors |
| Wiring |
16-Conductor wire (3 wires common plus 1 for each selective calling) |
| Wire Length |
Between 2 Stations: 18 AWG: 4900′ (1500 m); 20 AWG (0.8 mm): 3281′ (1000 m); 22 AWG (0.65 mm): 2132′ (650 m) |
| Mounting |
Wall-mounted using a single-gang box (available separately) Surface mounted using the TDW-3/A Desktop Terminal Box (available separately) |
| Dimensions |
8.25 x 3.94 x 2.87″ (20.95 x 10.01 x 7.29 cm) |
| Weight |
16.2 oz (460.0 g) |
| Package Weight |
1.45 lb |
| Box Dimensions (LxWxH) |
10.1 x 4.8 x 3.6″ |
